Photos show the actual item you will receive.
Product details
About this part
The Square D by Schneider Electric 8501NH7 Relay Hold-Down Spring Clip, Ser. B, Lot of 80 is made by Schneider Electric and identified by manufacturer part number 8501NH7.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New. Factory new, in original packaging.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Square D by Schneider Electric 8501NH7 Relay Hold-Down Spring Clip, Ser. B, Lot of 80.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Schneider Electric), the part number (8501NH7) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Schneider Electric
- Part number
- 8501NH7
- Model
- 8501NH7
- Manufacturer
- Square D by Schneider Electric
- Catalog number
- 8501NH7, Ser. B
- Type
- Hold-down (restraining) spring clip
- For use with
- Square D 8501 plug-in relays, 9050JCK timers
- Sockets (distributor data)
- 8501NR51, 8501NR52, 8501NR61, 8501NR62
- Material
- Metal
- UPC
- 785901089827
- Country of origin
- USA (box label)
- Packaging
- 10 per box, each spring in its own bag
- Quantity in lot
- 80 (8 boxes of 10)
This is a lot of 80 Square D 8501NH7 hold-down springs (8 boxes of 10), the metal restraining spring clip that holds a Square D 8501 plug-in relay or 9050JCK timer in its socket. Schneider Electric lists the 8501NH7 as a Type N restraining spring for 8501 relays and 9050JCK timers. It is used in high-vibration applications, where the relay could otherwise work loose from its socket.

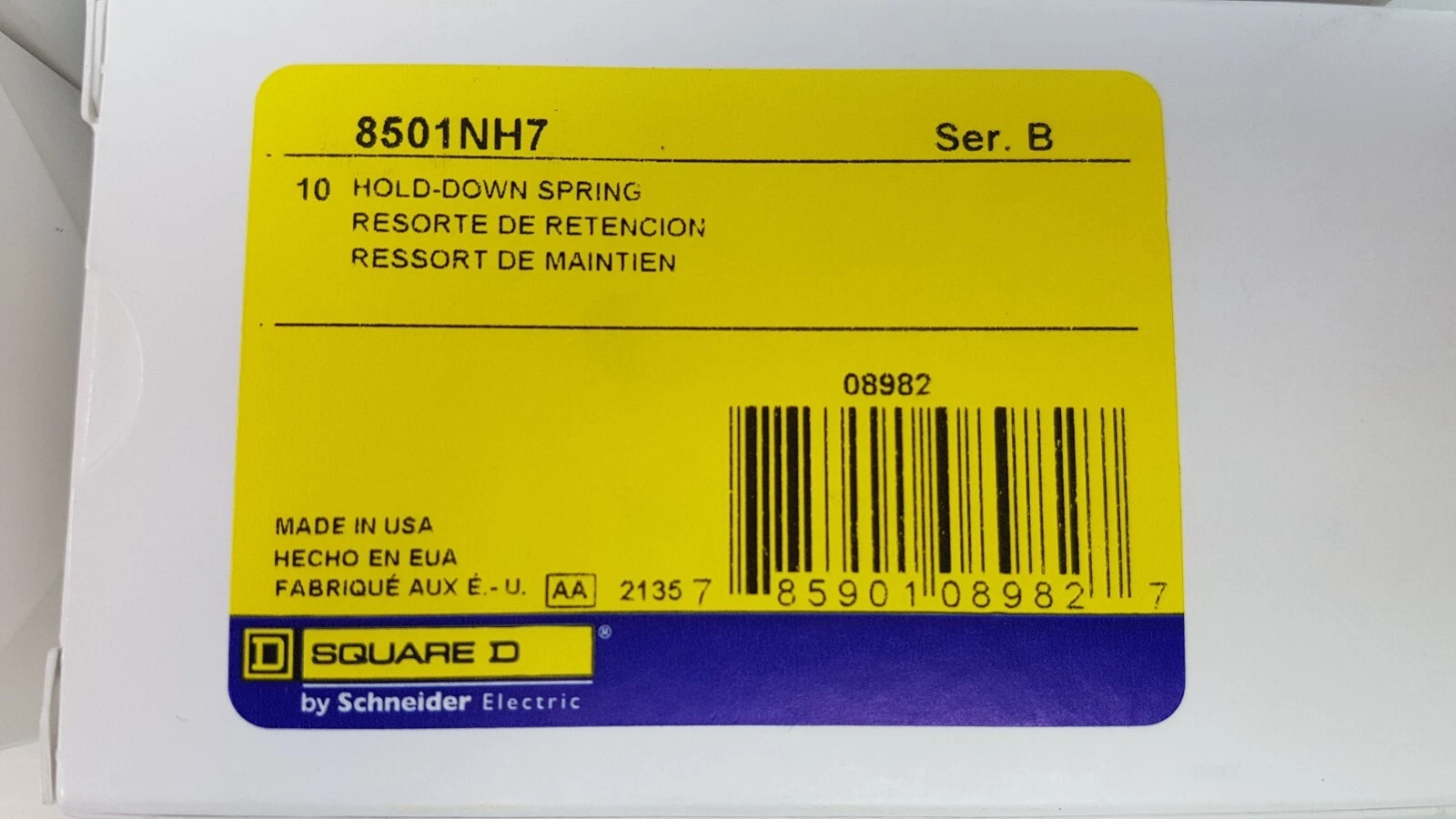

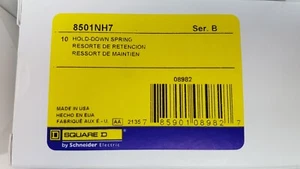

What does the box label say?
8501NH7, Ser. B, 10 Hold-Down Spring / Resorte de retencion / Ressort de maintien, 08982, Made in USA, Square D by Schneider Electric. The barcode is UPC 7 85901 08982 7. All eight boxes in the photos carry the same label.
Which sockets does the 8501NH7 fit?
Distributor data lists the 8501NH7 for the Square D 8501NR51, 8501NR52, 8501NR61 and 8501NR62 relay sockets, direct mount. Check your socket number before ordering: Square D makes other hold-down clips for other socket families.
How does a relay hold-down spring work?

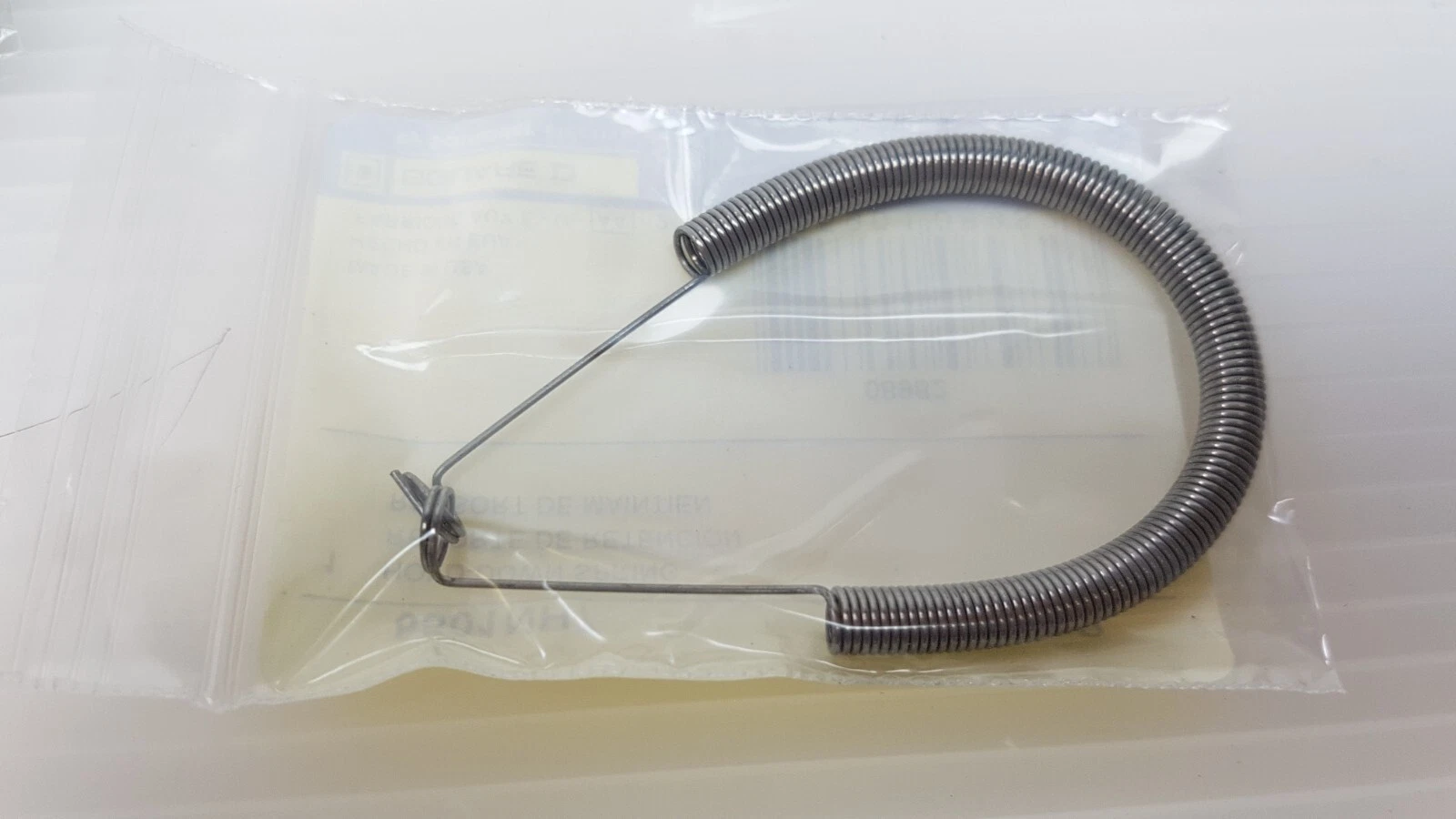

The 8501NH7 is a wire bail with coiled spring sections, as the close-up photo shows. Fitted to the socket, it holds the plug-in relay or timer down under spring tension, so it cannot back out of the socket under vibration.

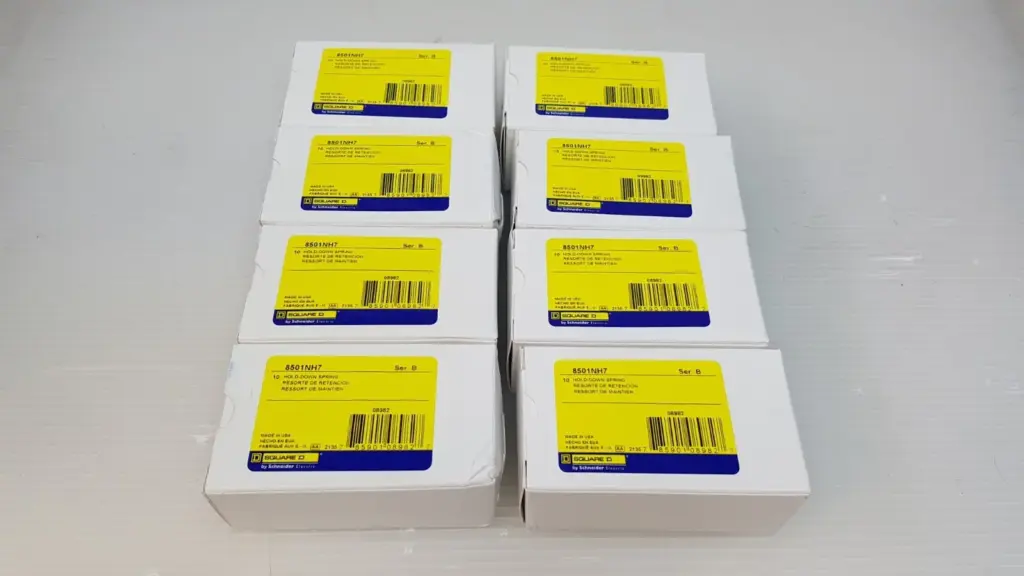

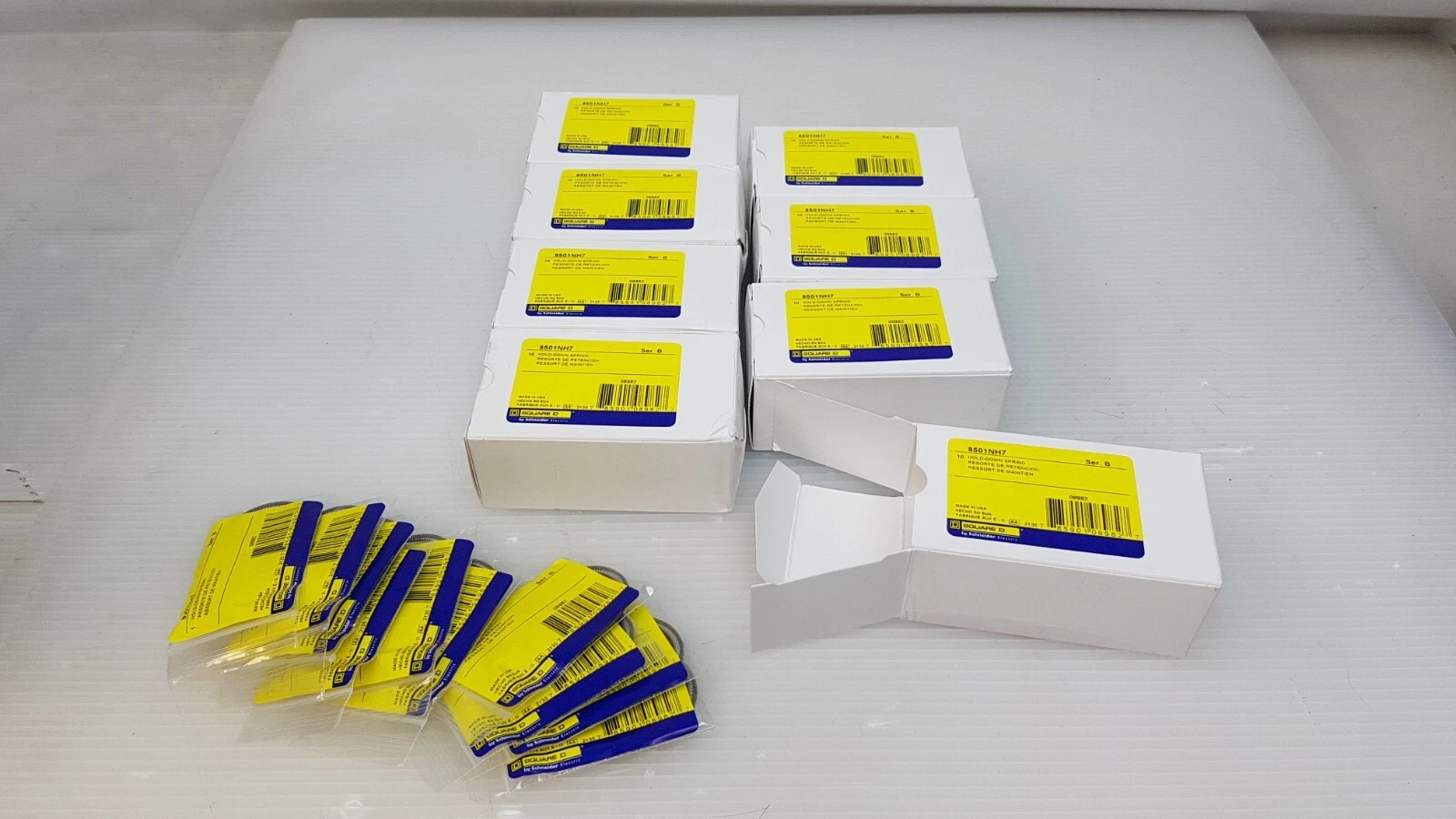

What is in the photos?
Eight Square D boxes, one box opened with its ten individually bagged springs laid out, and a close-up of one spring in its bag. Condition: new.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Square D 8501NH7?
A metal hold-down spring clip that keeps a Square D 8501 plug-in relay or 9050JCK timer seated in its socket.
How many springs are in this lot?
80: eight boxes, each labeled 10 hold-down springs.
Which relay sockets does it fit?
Distributor data lists the Square D 8501NR51, 8501NR52, 8501NR61 and 8501NR62 sockets.
Why use a relay hold-down clip?
Vibration can slowly push a plug-in relay out of its socket. The spring clip holds the relay down in its socket.
Does it work with the 9050JCK timer?
Yes. Schneider Electric describes the 8501NH7 as a restraining spring for 8501 relays and 9050JCK timers.
What condition are they in?
New, in the original Square D boxes. One box is shown opened.
