Product details
About this part
The Schneider Electric LC1F225M5 TeSys F Contactor 225 A, 220 V AC Coil is made by Schneider Electric and identified by manufacturer part number F-046005.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New – Open Box. Unused. Packaging opened or missing.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Schneider Electric LC1F225M5 TeSys F Contactor 225 A, 220 V AC Coil.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Schneider Electric), the part number (F-046005) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Schneider Electric
- Part number
- F-046005
- Model
- LC1F225M5
- Manufacturer
- Schneider Electric (Telemecanique)
- Reference
- LC1F225M5 (box: LC1 F225M5AC), TeSys F 046005
- Type
- 3-pole contactor, 3 NO, AC-3 225 A at 440 V or less
- Coil
- LX1FG220, 220-230 V 50 Hz / 265-277 V 60 Hz
- Ith / Ui / Uimp
- 315 A / 1000 V / 8 kV
- AC3 power (IEC)
- 63 kW 230 V, 110 kW 400-440 V, 129 kW 500-690 V
- AC3 power (JIS)
- 55 kW 200/220 V, 110 kW 440 V
- UL / CSA
- 600 V a.c. max, 60 Hp 208 V, 75 Hp 240 V, 150 Hp 480/600 V, continuous 250 A, SCCR 10 kA
- Auxiliary contact
- 03/04 NO beside the coil terminals
- Power terminals

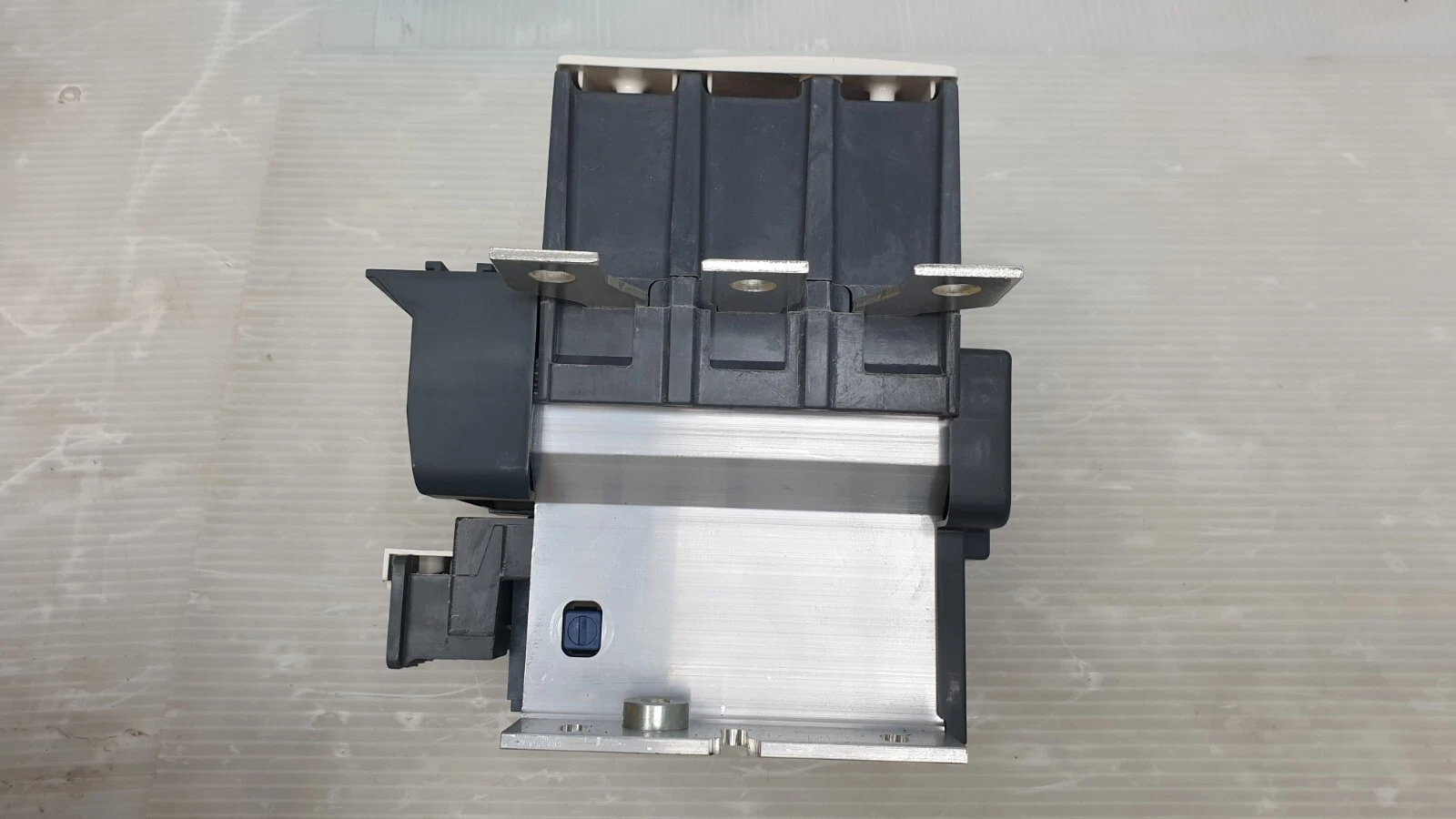

- Bar connections, 300 MCM-6, 75 °C Cu, 275 lb.in, terminal kit DZ2FH
- Standard
- IEC/EN 60947-4-1, JIS C8201-4-1
- Country of origin
- Czech Republic
- Included (photos)
- Contactor, bag of bolts and washers, original box

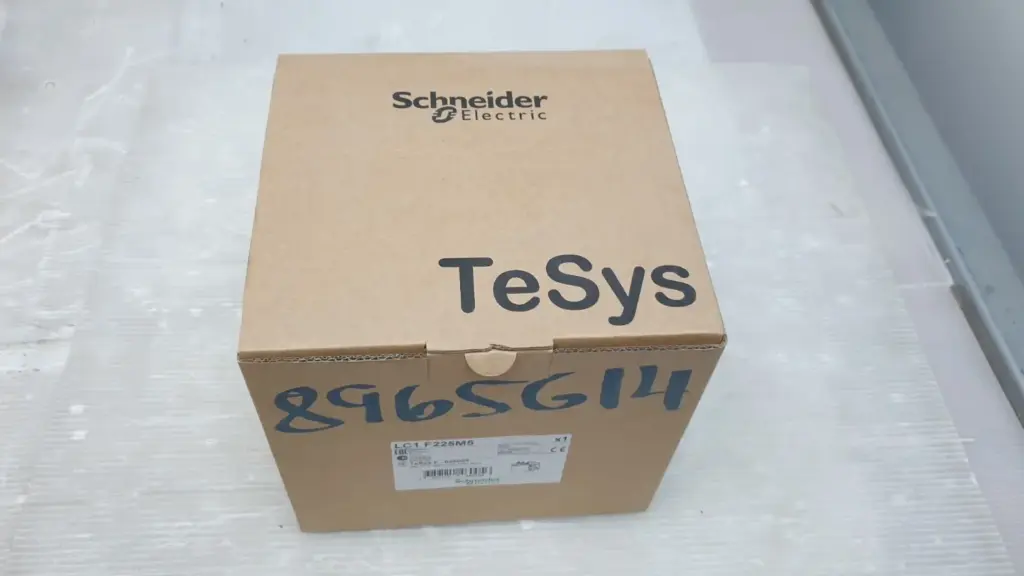

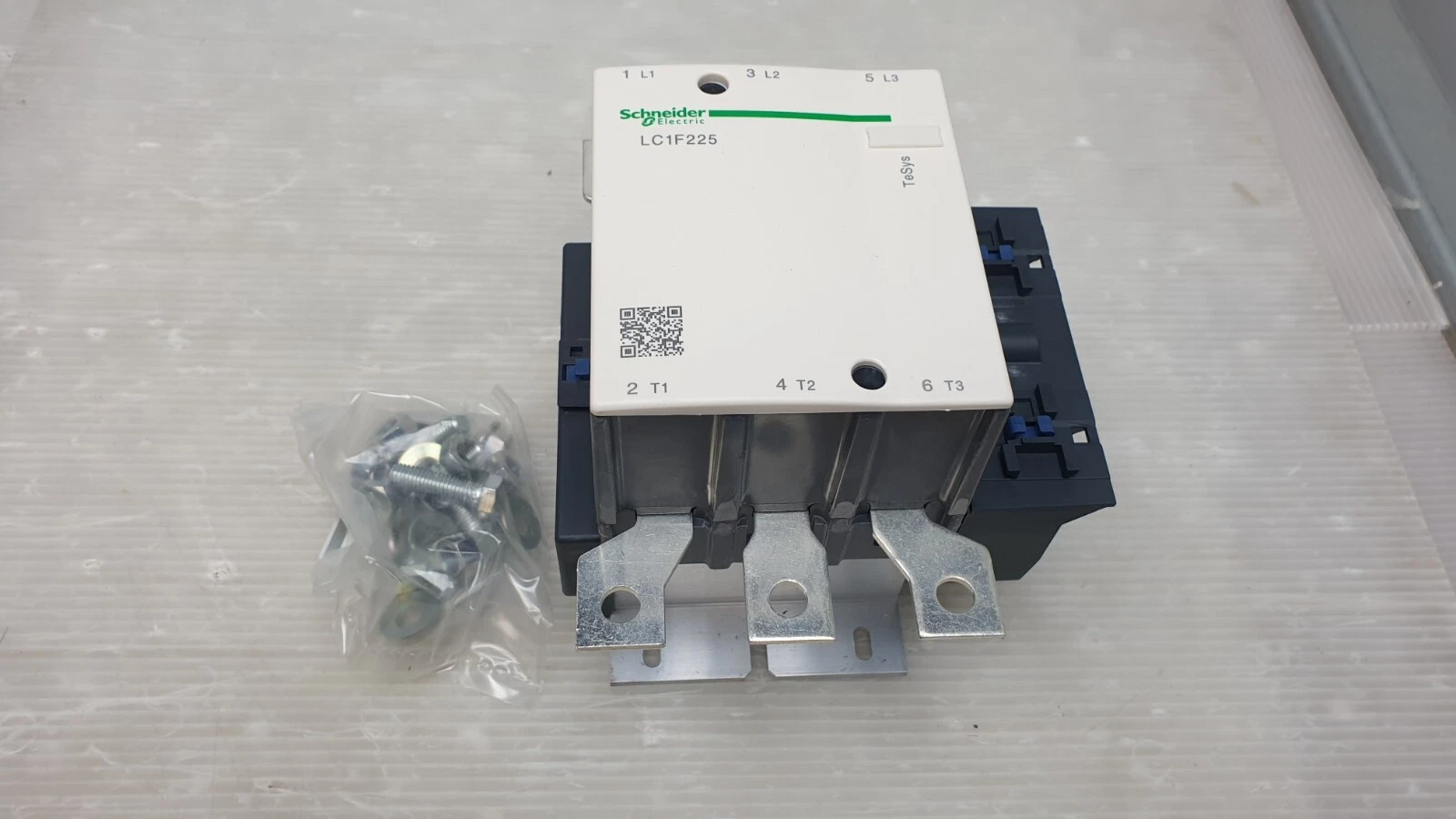

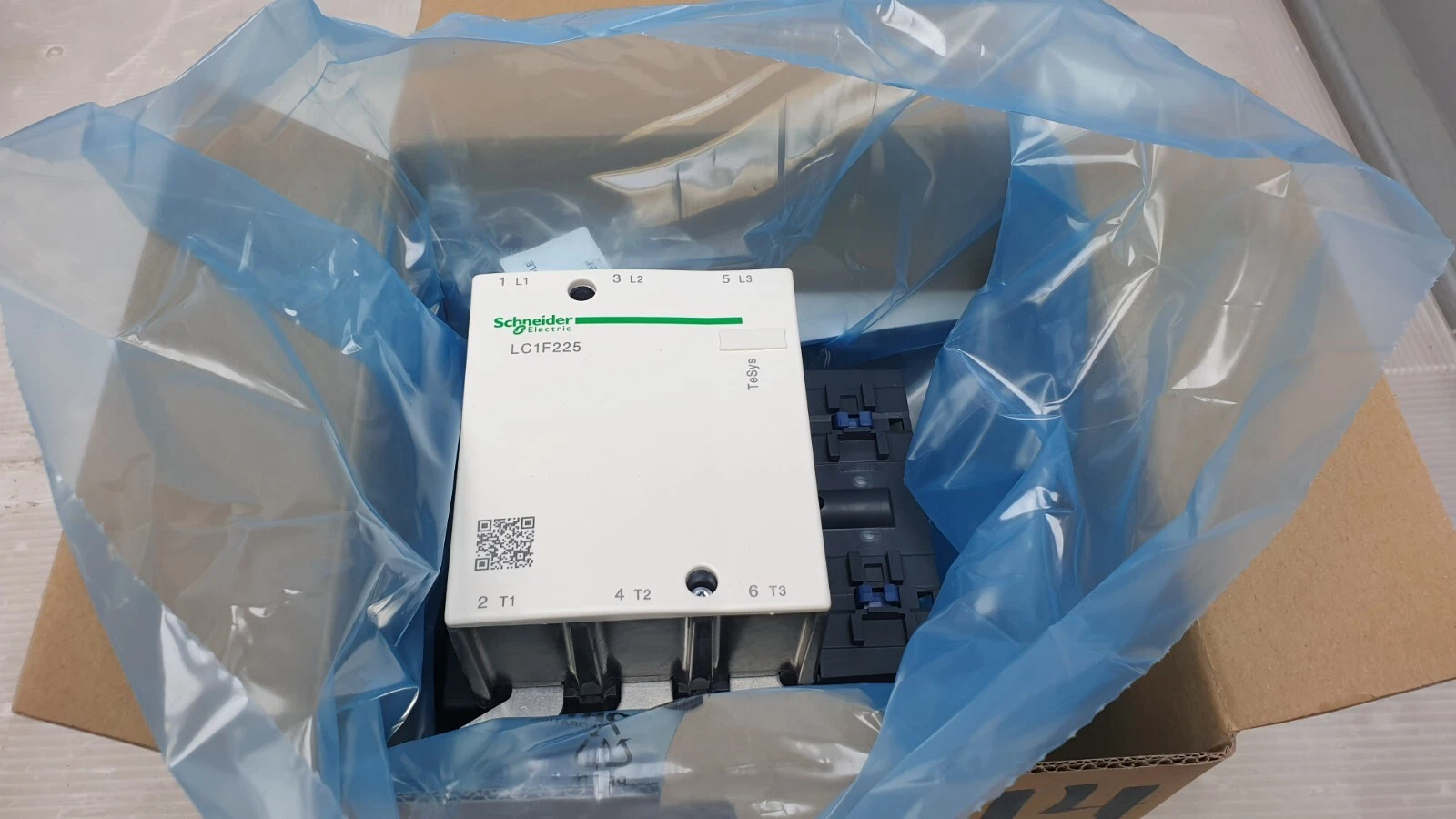

Schneider Electric LC1F225M5, TeSys F 3-pole contactor, 225 A, 220 V AC coil. New in its opened box, still in the blue bag, with the bag of terminal bolts. Box reference TeSys F 046005, made in Czech Republic. Searched as LC1 F225M5, LC1F225 and LC1-F225M5.
What coil voltage is the LC1F225M5?

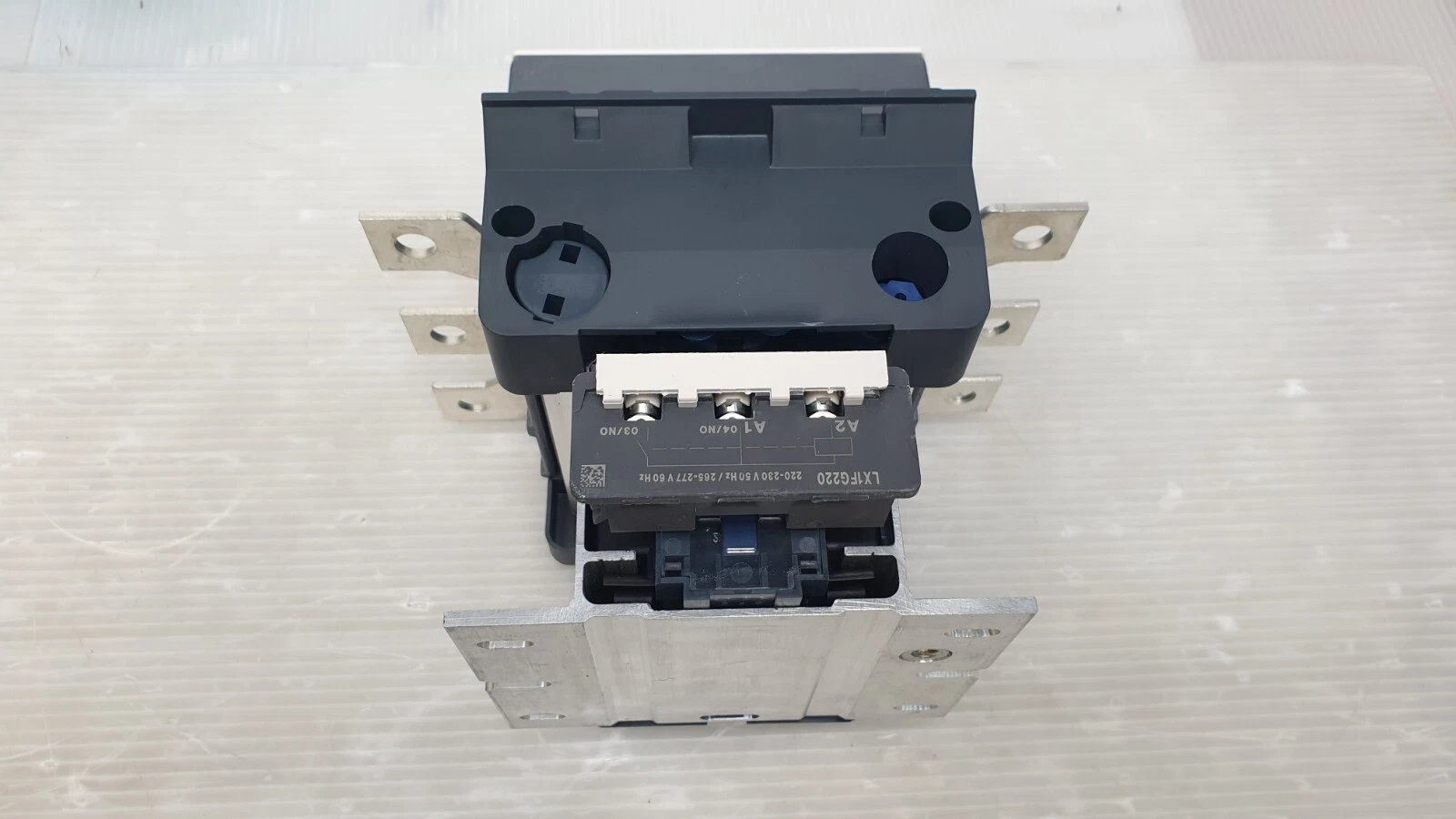

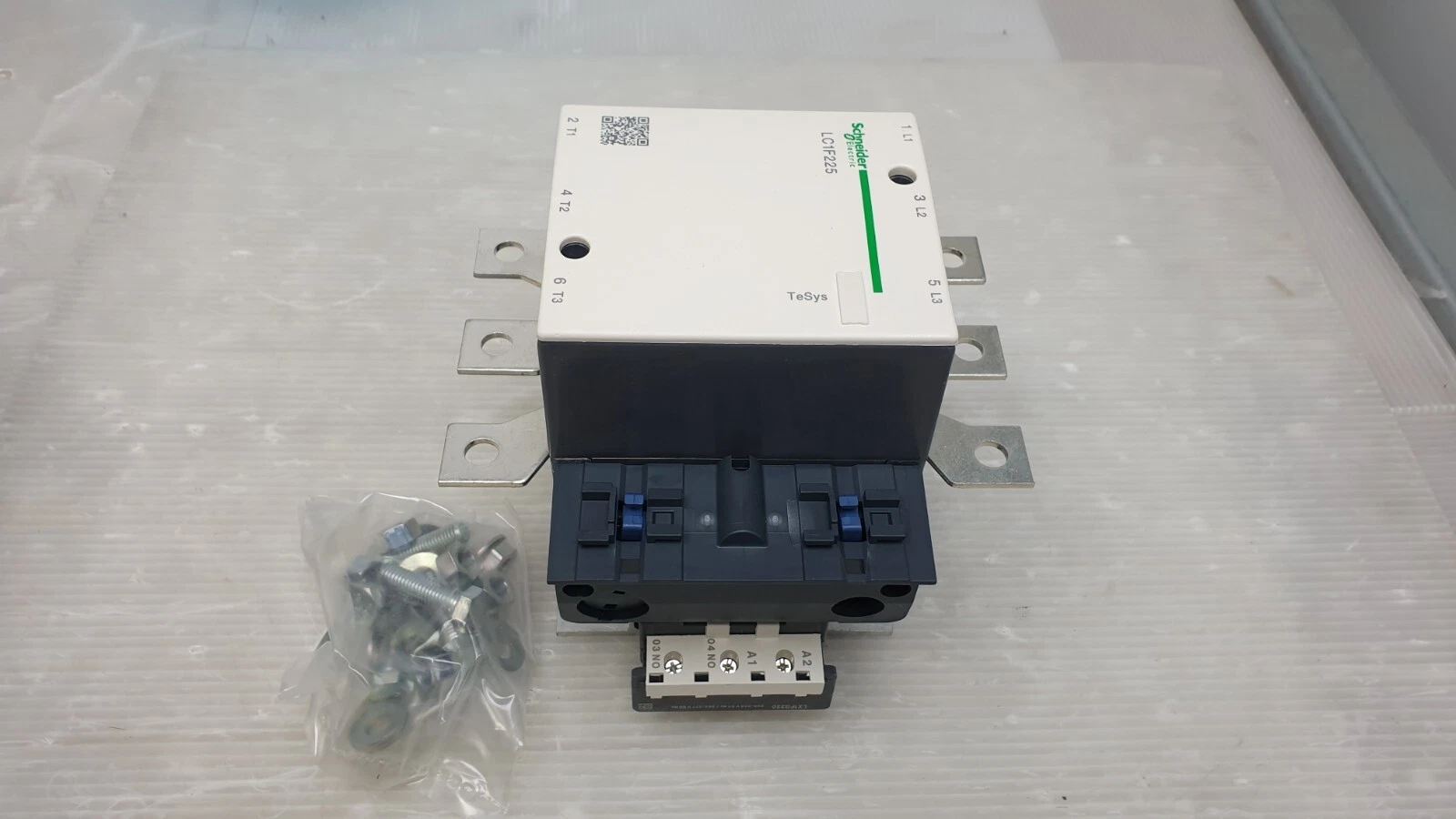

The M5 suffix is the 220 V AC coil. The fitted coil reads LX1FG220, 220-230 V 50 Hz / 265-277 V 60 Hz, and the box gives the same: 265.277V 60Hz / 220.230V 50Hz. Coil terminals are A1 and A2, next to a 03/04 NO auxiliary contact.
How much motor can it switch?

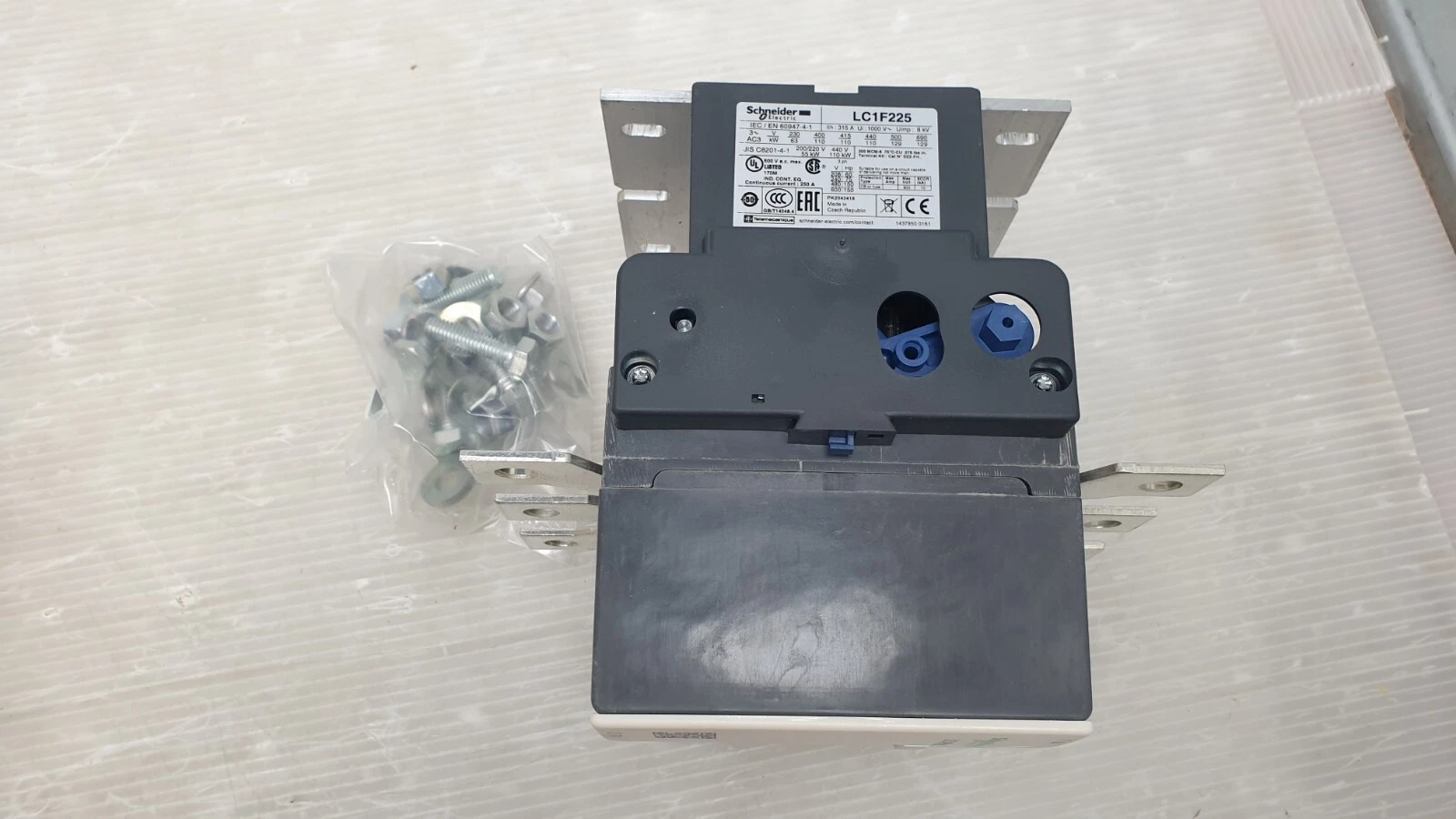

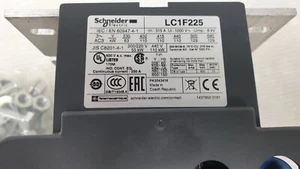

From the rating plate, AC3: 63 kW at 230 V, 110 kW at 400 to 440 V, 129 kW at 500 and 690 V. UL: 60 Hp at 208 V, 75 Hp at 240 V, 150 Hp at 480 and 600 V, 3 phase. Ith 315 A, Ui 1000 V, Uimp 8 kV, continuous current 250 A (UL).
Is the LC1F225 still in Schneider's range?
No. Schneider lists the LC1F225M5 as discontinued in 2023 and points to the TeSys Giga LC1G225 contactors instead. A like-for-like LC1F225 avoids changing the panel layout or the overload relay.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
Contactor vs relay: what is the difference?
A contactor is a relay built to switch motor and power circuits. This one carries 225 A per pole in AC-3, far beyond a control relay.
AC3 contactor meaning: what does the rating cover?
AC-3 is the IEC duty for starting and stopping squirrel-cage motors. The LC1F225 is rated 225 A AC-3 at 440 V or less.
Which overload relay fits the LC1F225?
The TeSys LRF electronic relays mount directly under it; Schneider lists the LR9F5371 (132-220 A) for the LC1F185, F225 and F265.
Can I run the coil on 60 Hz?
Yes, at 265 to 277 V. The coil plate gives 220-230 V at 50 Hz and 265-277 V at 60 Hz.
What replaces the LC1F225M5?
Schneider names TeSys Giga LC1G225 contactors, for example LC1G225KUEN with a 100-250 V AC/DC coil.
