Product details
About this part
The SCHNEIDER ELECTRIC LC1F185M5, 012241 CONTACTOR LC1F185 is made by Schneider Electric and identified by manufacturer part number 012241.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New – Open Box. Unused. Packaging opened or missing.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × SCHNEIDER ELECTRIC LC1F185M5, 012241 CONTACTOR LC1F185.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Schneider Electric), the part number (012241) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Schneider Electric
- Part number
- 012241
- Model
- LC1F185M5
- Manufacturer
- Schneider Electric (Telemecanique)
- Reference
- LC1F185M5 (box label: LC1 F185M5, TeSys F - 012241)
- Type
- TeSys F contactor, 3 poles
- AC-3 rating
- 185 A at 440 V; 90 kW at 400 V, 100 kW at 440 V
- Thermal current (Ith)
- 275 A
- Insulation / impulse voltage
- Ui 1000 V, Uimp 8 kV
- Coil
- LX1FG220, 220 V 50 Hz (box label 220V 50HZ)
- UL rating
- 600 V AC max, continuous 200 A; 50 HP at 208 V, 150 HP at 600 V
- Short-circuit (UL)
- Withstand 10000 A rms sym., fuse non time delay 400 A max.
- Power terminals
- Bolt-on bars, AWG 3/0-6, 75 °C Cu, 200 lb-in; terminal kit DZ2-FG
- Auxiliary contact
- 03 NO / 04 NO on the coil block
- Standards (label)
- IEC/EN 60947-4-1, JIS C8201-4-1, GB14048.4, UL, CSA, CE, EAC
- Made in
- Czech Republic

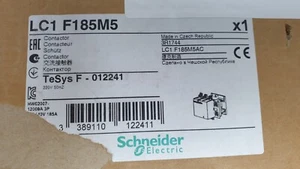

The Schneider Electric LC1F185M5 is a TeSys F 3-pole power contactor rated 185 A in AC-3 (275 A thermal current), fitted with a 220 V 50 Hz control coil. It switches three-phase motors and other heavy AC loads, up to 90 kW at 400 V or 100 kW at 440 V according to its nameplate. The box label gives the reference LC1 F185M5, TeSys F - 012241, 220V 50HZ, made in Czech Republic.
What does the nameplate say?
LC1F185, IEC/EN 60947-4-1, Ith 275 A, Ui 1000 V, Uimp 8 kV. AC-3 ratings: 55 kW at 230 V, 90 kW at 400 V, 100 kW at 415 and 440 V, 110 kW at 500 and 690 V. UL Listed, 600 V AC max, continuous current 200 A, 3-phase horsepower 50 HP at 208 V, 60 HP at 240 V, 125 HP at 480 V and 150 HP at 600 V. Withstand current 10000 A rms sym., fuse non-time-delay 400 A max.
What is the difference between LC1F185M5 and LC1F185M7?
Both are the same 185 A TeSys F contactor with a 220 V coil. The M5 version has a 50 Hz coil and the M7 version a 50/60 Hz coil. The coil on this unit is marked LX1FG220, which Schneider lists as the 50 Hz coil for the LC1F185, matching the M5 box label.
How is it connected?

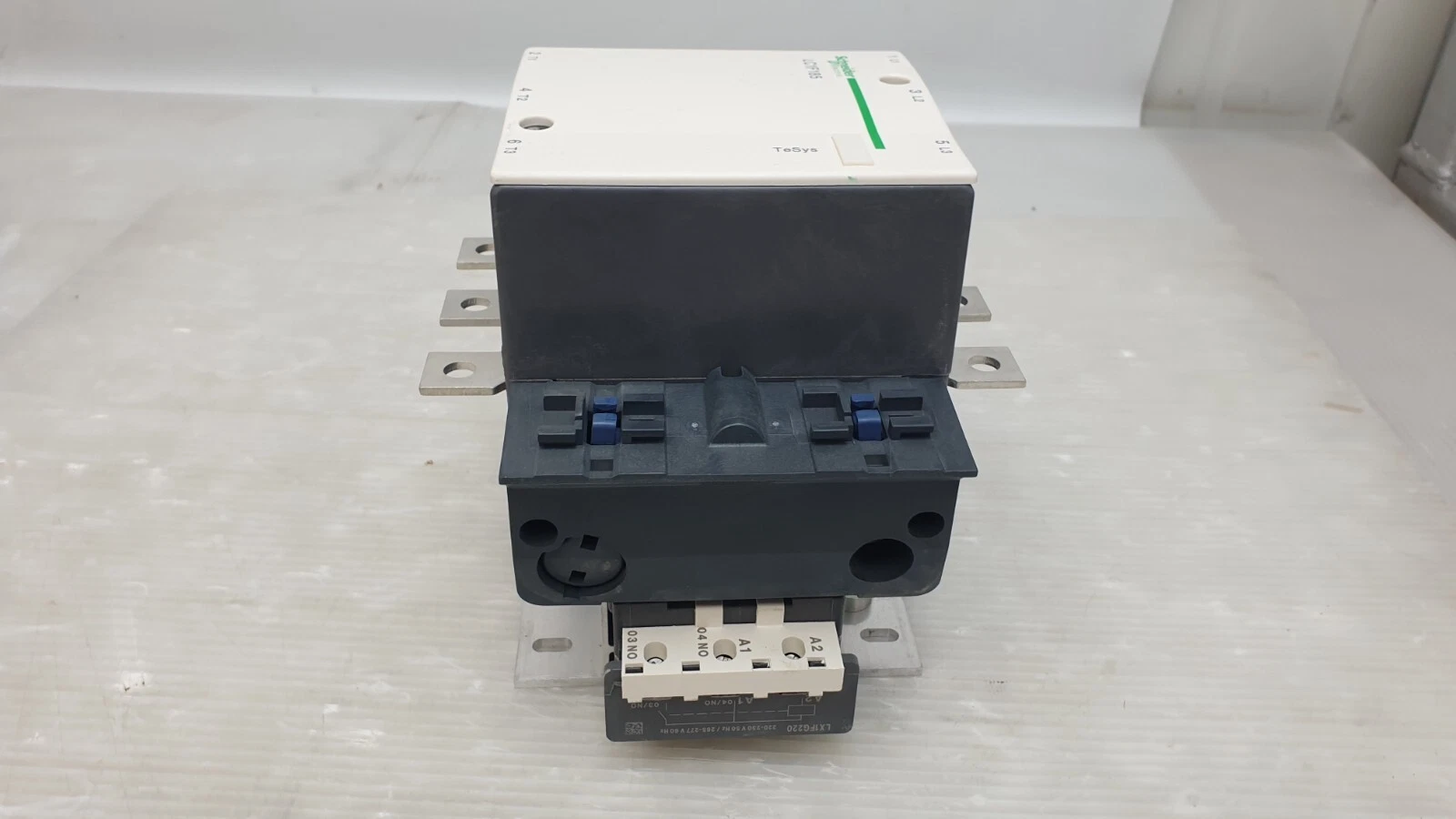

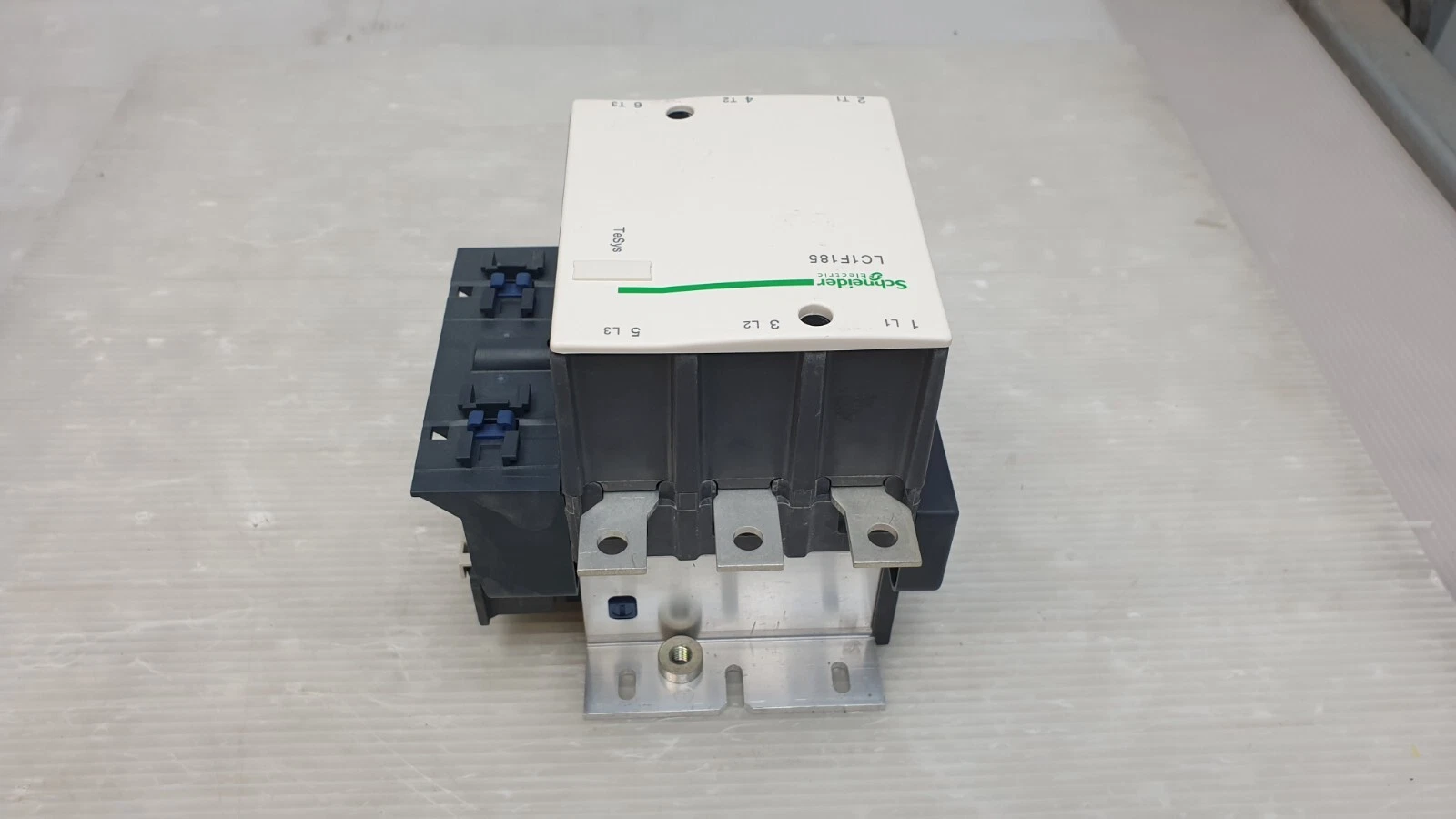

Power terminals are bolt-on bars marked 1/L1, 3/L2, 5/L3 (line) and 2/T1, 4/T2, 6/T3 (load), for bars or cables with lugs. The coil block has terminals A1 and A2 plus an auxiliary contact marked 03 NO / 04 NO. The nameplate gives cable AWG 3/0-6, 75 °C copper, 200 lb-in, and terminal kit DZ2-FG.
What is in the photos?
The Schneider TeSys box with its product label, the contactor from several sides, the nameplate, the coil terminals, and the bag of terminal hardware with the Schneider instruction sheet. Condition: new, open box.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Schneider LC1F185M5?
A TeSys F 3-pole contactor rated 185 A AC-3 / 275 A Ith with a 220 V 50 Hz coil.
What is the difference between LC1F185M5 and LC1F185M7?
Same contactor, different coil: M5 is 220 V 50 Hz, M7 is 220 V 50/60 Hz. This unit has the LX1FG220 50 Hz coil.
What coil is fitted?
LX1FG220, which Schneider lists as the 50 Hz coil for the LC1F185.
How many kW can it switch?
In AC-3 duty, 90 kW at 400 V and 100 kW at 440 V, per the nameplate.
What is 012241?
The Schneider TeSys F commercial code printed on the box label next to LC1 F185M5.
Is mounting hardware included?

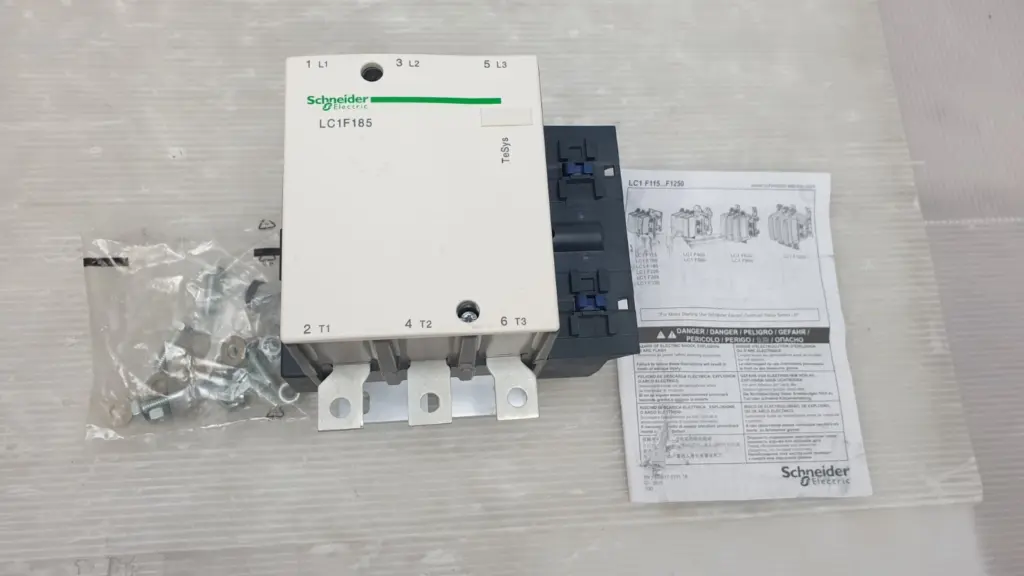

The photos show a bag of terminal bolts, nuts and washers and the Schneider instruction sheet with the contactor.
What condition is it in?
New, open box.
