The Schneider Electric Telemecanique LC1D115 TeSys D Contactor, 115 A, 230 V AC Coil is made by Schneider and identified by manufacturer part number LC1D115.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New – Open Box. Unused. Packaging opened or missing.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Schneider Electric Telemecanique LC1D115 TeSys D Contactor, 115 A, 230 V AC Coil.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Schneider), the part number (LC1D115) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Schneider
- Part number
- LC1D115
- Model
- LC1D115
- Manufacturer
- Schneider Electric (Telemecanique brand)
- Range
- TeSys D, 3-pole contactor, 3 NO main poles
- Rated current
- 115 A AC-3, 200 A AC-1 (≤ 440 V, 60 °C)
- Motor power AC-3 (label)
- 30 kW 230 V, 55 kW 400 V, 80 kW 660 V, 65 kW 1000 V
- Motor power UL/CSA (label)
- 30 hp 200 V, 40 hp 230 V, 75 hp 460 V, 100 hp 575 V
- Coil
- LX1D8P7, 230 V AC 50/60 Hz
- Auxiliary contacts
- 1 NO + 1 NC built in (Ith 10 A, Ui 690 V)
- Insulation / impulse voltage
- Ui 1000 V, Uimp 8 kV (IEC)
- Power connection
- 10-120 mm² (AWG 8-250 MCM), 12 N·m, 4 mm hex
- Connector blocks fitted
- Telemecanique LA9 D115603/604
- Dimensions (W x H x D)
- 120 x 158 x 136 mm (with cover)
- Weight (datasheet)
- 2.5 kg
- Markings (label)
- CE, UL Listed 170M, CSA, CCC, made in Czech Republic
The Telemecanique LC1D115 is a Schneider Electric TeSys D 3-pole power contactor rated 115 A in AC-3 (55 kW at 400 V, 75 hp at 460 V), and this unit carries a 230 V AC 50/60 Hz coil, which makes it the LC1D115P7 version. A contactor is an electrically operated switch for motors and heavy loads: when the coil is energized, the three main poles close and connect the load to the supply. The LC1D115 also has one normally open and one normally closed auxiliary contact built in, for control and interlocking.

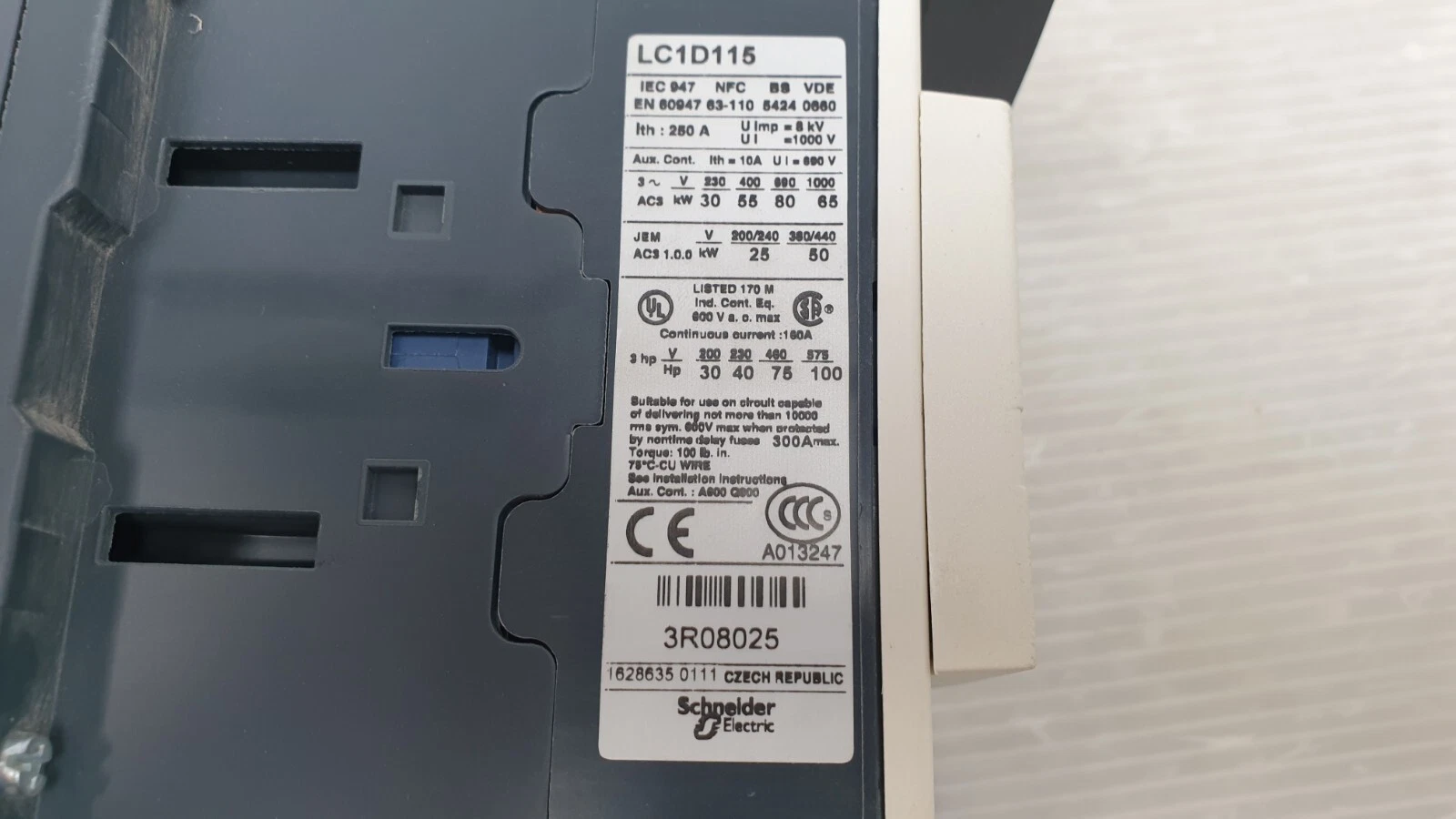

What does the label on the contactor say?
LC1D115, IEC 947, EN 60947, Ith 250 A, Uimp 8 kV, Ui 1000 V, auxiliary contacts Ith 10 A / Ui 690 V. AC-3 ratings on the label: 30 kW at 230 V, 55 kW at 400 V, 80 kW at 660 V, 65 kW at 1000 V. UL/CSA ratings: 30 hp at 200 V, 40 hp at 230 V, 75 hp at 460 V, 100 hp at 575 V, continuous current 160 A. Code 3R08025, made in the Czech Republic, Schneider Electric. The coil marking reads LX1D8 P7 230V 50/60Hz.
What is the difference between AC-1 and AC-3 rating on a contactor?
AC-1 is for resistive or slightly inductive loads such as heaters, and AC-3 is for starting and switching off squirrel-cage motors. Schneider rates the LC1D115P7 at 200 A in AC-1 and 115 A in AC-3, both up to 440 V at 60 °C.
How is it connected and mounted?

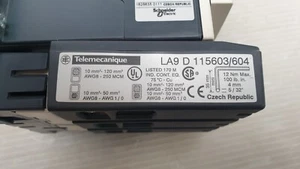

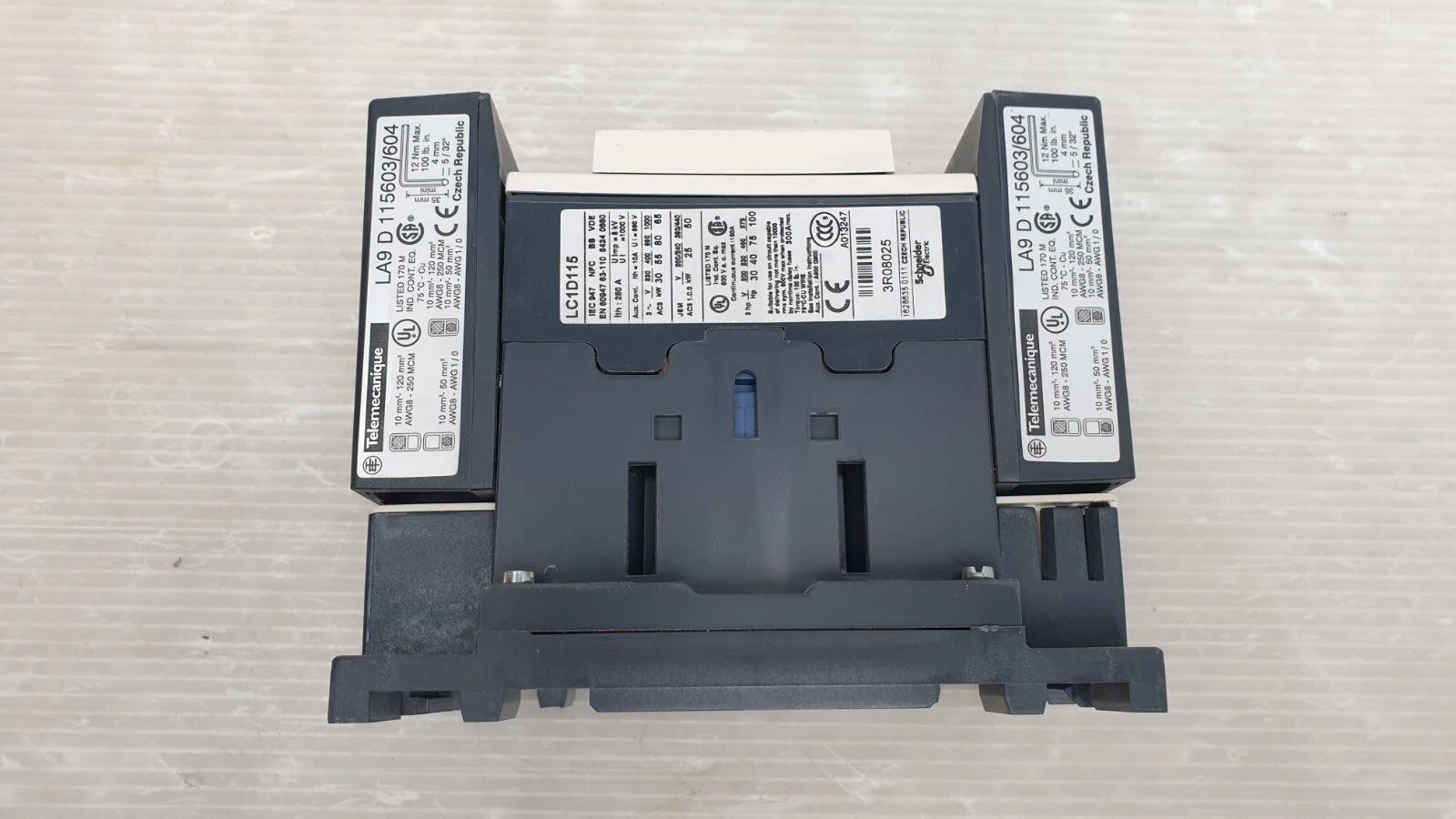

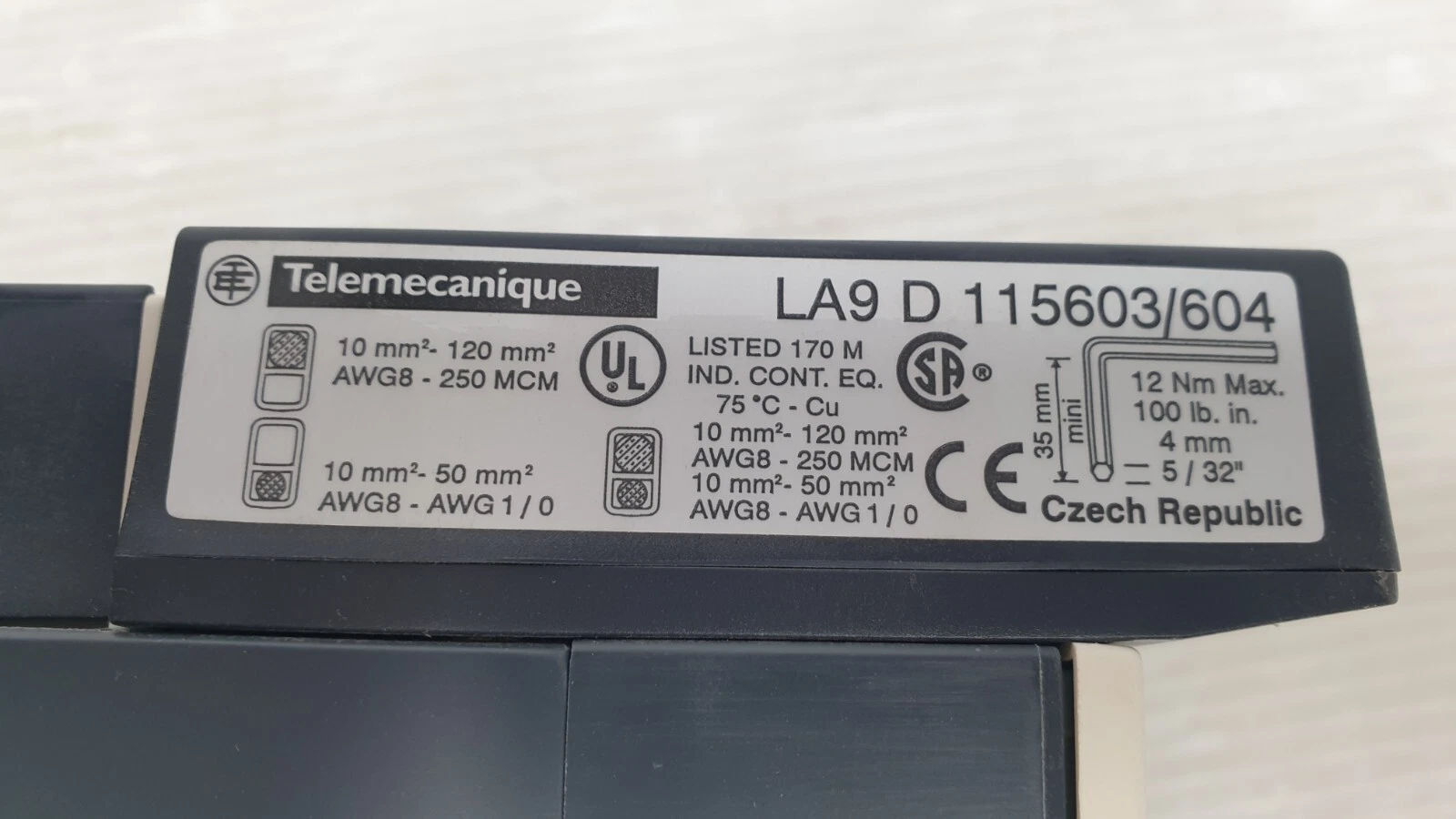

The main terminals are box connectors: one cable of 10 to 120 mm² or two cables of 10 to 50 mm² (AWG 8 to 250 MCM) per terminal, tightened to 12 N·m with a 4 mm hex key. The Telemecanique LA9 D115603/604 connector blocks are fitted on both sides in the photos. The coil terminals A1/A2 are screw clamps. The contactor mounts on a plate or on a rail.
What is in the photos?

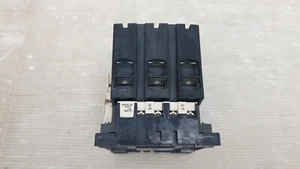

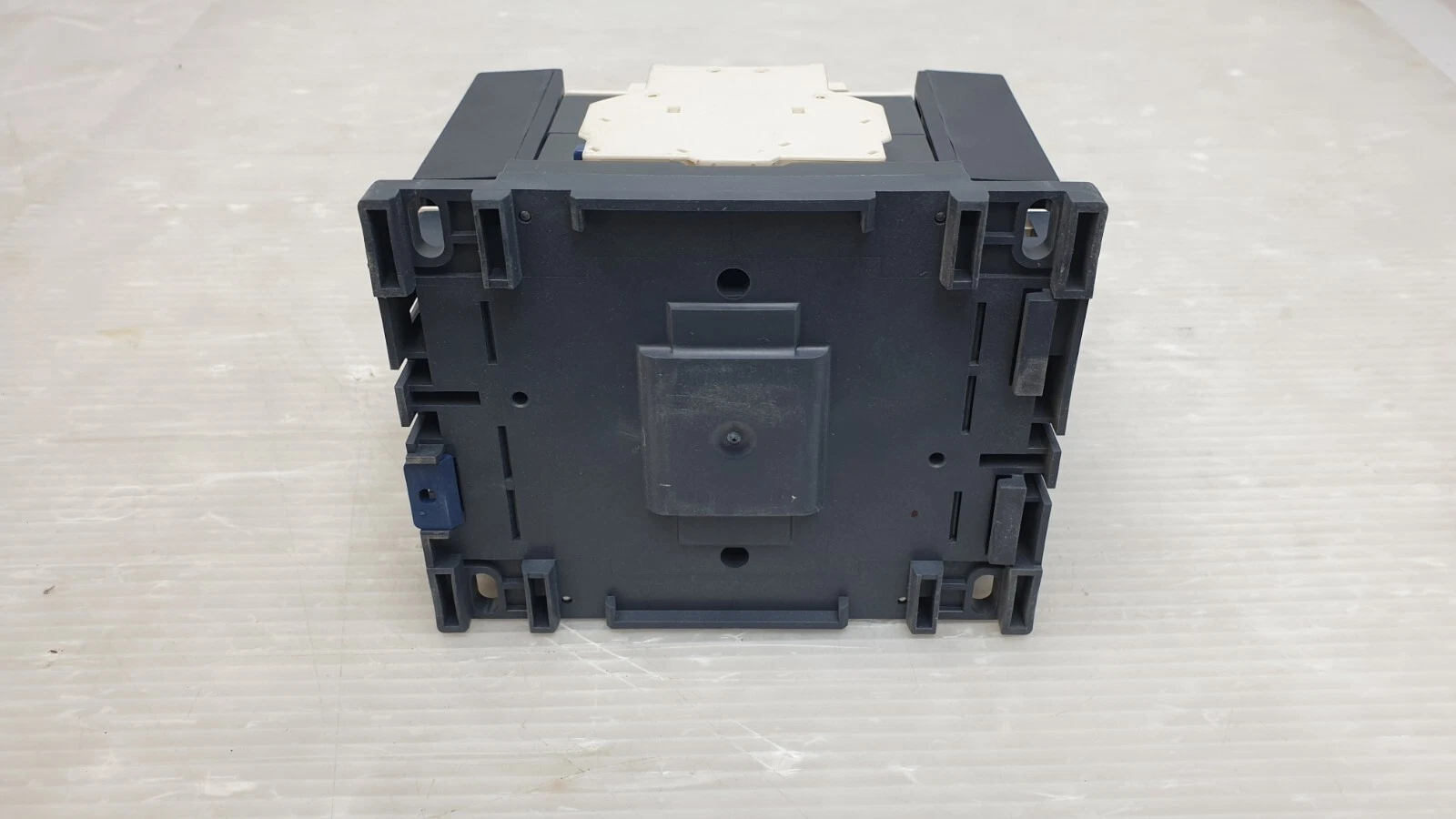

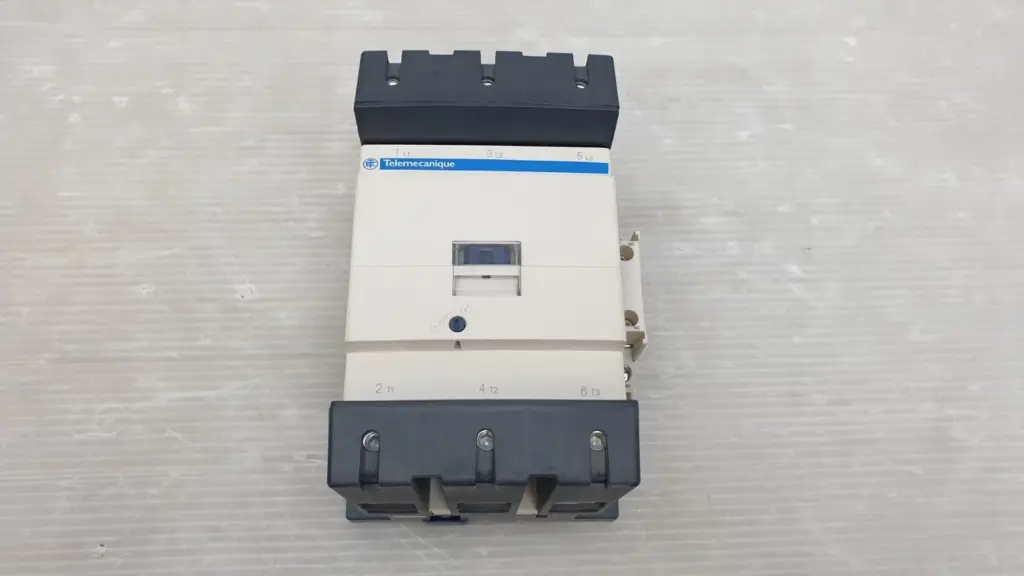

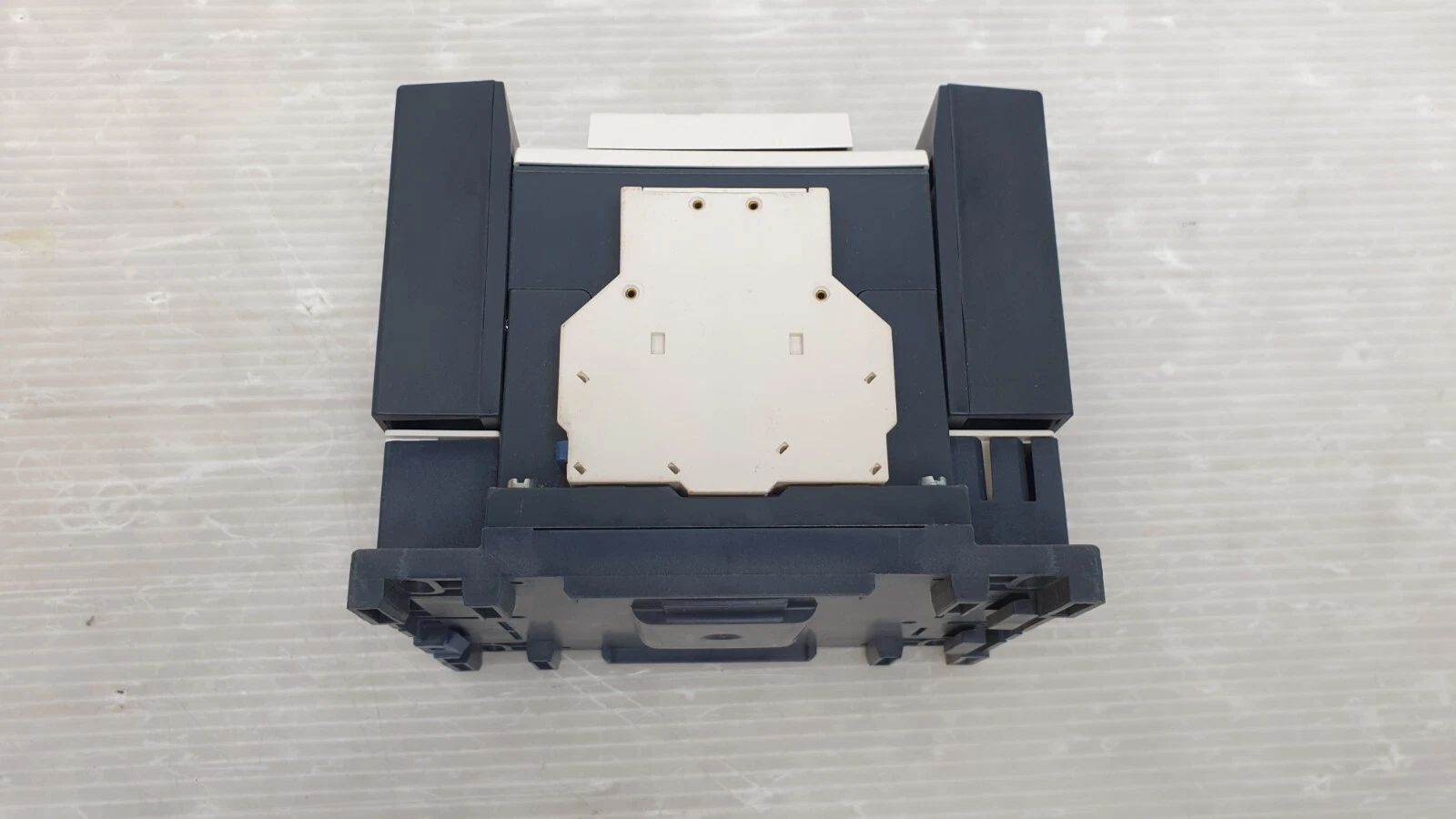

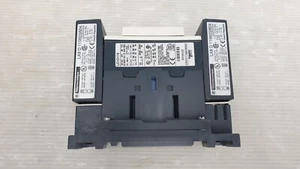

The contactor from the front, the side, the top with the line terminals, the coil terminal side, and close-ups of the rating label and the LA9 D115603/604 connector labels. Condition: new, open box.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Telemecanique LC1D115?
A Schneider Electric TeSys D 3-pole contactor rated 115 A in AC-3, used to switch motors and other heavy three-phase loads.
What coil voltage does this LC1D115 have?
230 V AC 50/60 Hz. The coil is marked LX1D8 P7, so this unit matches the LC1D115P7 reference.
How does a contactor work?
Voltage on the coil terminals A1/A2 pulls in an armature that closes the three main poles. When the coil is de-energized, springs open the poles and disconnect the load.
What is the difference between AC-1 and AC-3 rating?
AC-1 is for resistive loads such as heaters (200 A here); AC-3 is for starting and stopping squirrel-cage motors (115 A here).
What size motor can it switch?
Per the label: 55 kW at 400 V or 75 hp at 460 V, in AC-3 duty.
Does it have auxiliary contacts?
Yes, one NO and one NC auxiliary contact are built in, rated Ith 10 A.
How much does the LC1D115P7 weigh?
Schneider gives 2.5 kg for the LC1D115P7.
What condition is it in?
New, open box.
