Photos show the actual item you will receive.
Product details
About this part
The SOLCON SOLSTART 17 400-S, STARTER FLC 17A is made by SOLCON and identified by manufacturer part number SOLSTART 17 400-S.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × SOLCON SOLSTART 17 400-S, STARTER FLC 17A.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (SOLCON), the part number (SOLSTART 17 400-S) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- SOLCON
- Part number
- SOLSTART 17 400-S
- Model
- SOLSTART 17 400-S
- Starter FLC
- 17 A
- Mains voltage (label)
- 400 V, 50/60 Hz, three-phase
- Control
- Dry (voltage-free) contact, terminals A1–A2 on this unit
- Load
- Three-phase, three-wire squirrel-cage induction motor
- Power section
- Two sets of thyristors with two built-in bypass relays
- Initial voltage
- 10 to 80 % of nominal
- Ramp-up / ramp-down
- 0.5 to 5 s each
- Starting capacity
- 3.5 × In for 5 s at 40 °C; 4 starts per hour at maximum rating
- Indicators
- On (green), Ramp (yellow), Run (green)
- Recommended fuse I²t
- 500 (thyristor protection fuses)
- Protection
- IP20
- Operating temperature
- −10 to +40 °C
- Mounting
- Vertical, with space above and below for airflow
The Solcon SOLSTART 17 400-S is a compact analogue soft starter rated 17 A full-load current, labelled for 400 V, 50/60 Hz three-phase mains. It limits inrush current and mechanical shock when starting a squirrel-cage induction motor and can also ramp the motor down gently. Start and stop come from a dry (voltage-free) contact. For 230 V supplies the matching model is the SOLSTART 17 230-S.
Which motors can the SOLSTART 17 400-S start?
Three-phase, three-wire squirrel-cage induction motors whose nameplate full-load current is 17 A or less, on a 400 V supply. Solcon rates the starter for 3.5 times rated current for 5 seconds at 40 °C and up to 4 starts per hour at full rating; very frequent starting has to be sized separately.
How is it set up?

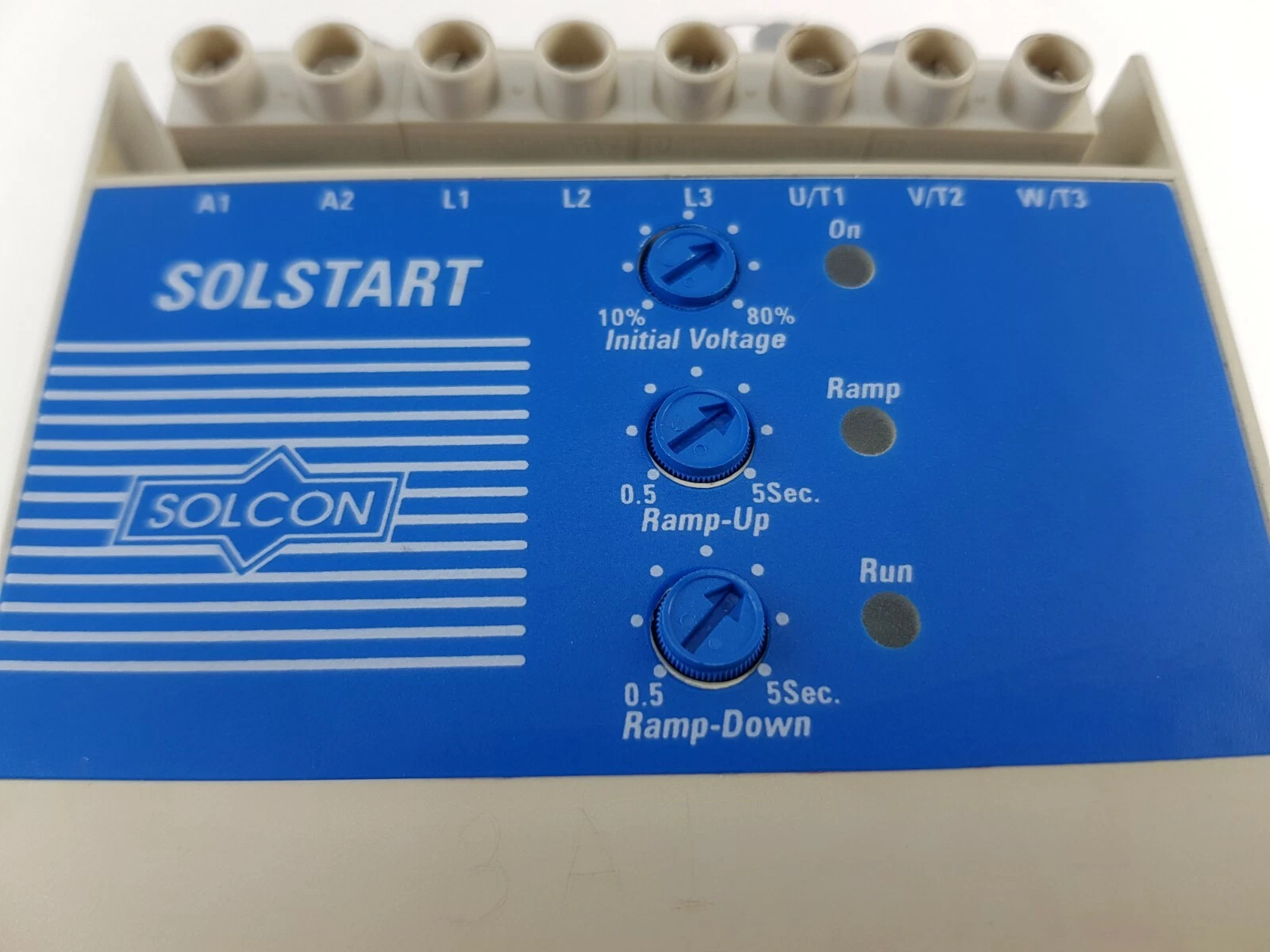

Three front dials set the initial voltage (10 to 80 %), ramp-up time (0.5 to 5 s) and ramp-down time (0.5 to 5 s). Solcon's start-up procedure begins at about 40 % initial voltage and 3 s ramp-up, then adjusts until the motor turns right after the start signal. On, Ramp and Run LEDs show the state, and built-in bypass relays carry the current once the ramp is complete.
What condition is this unit in?

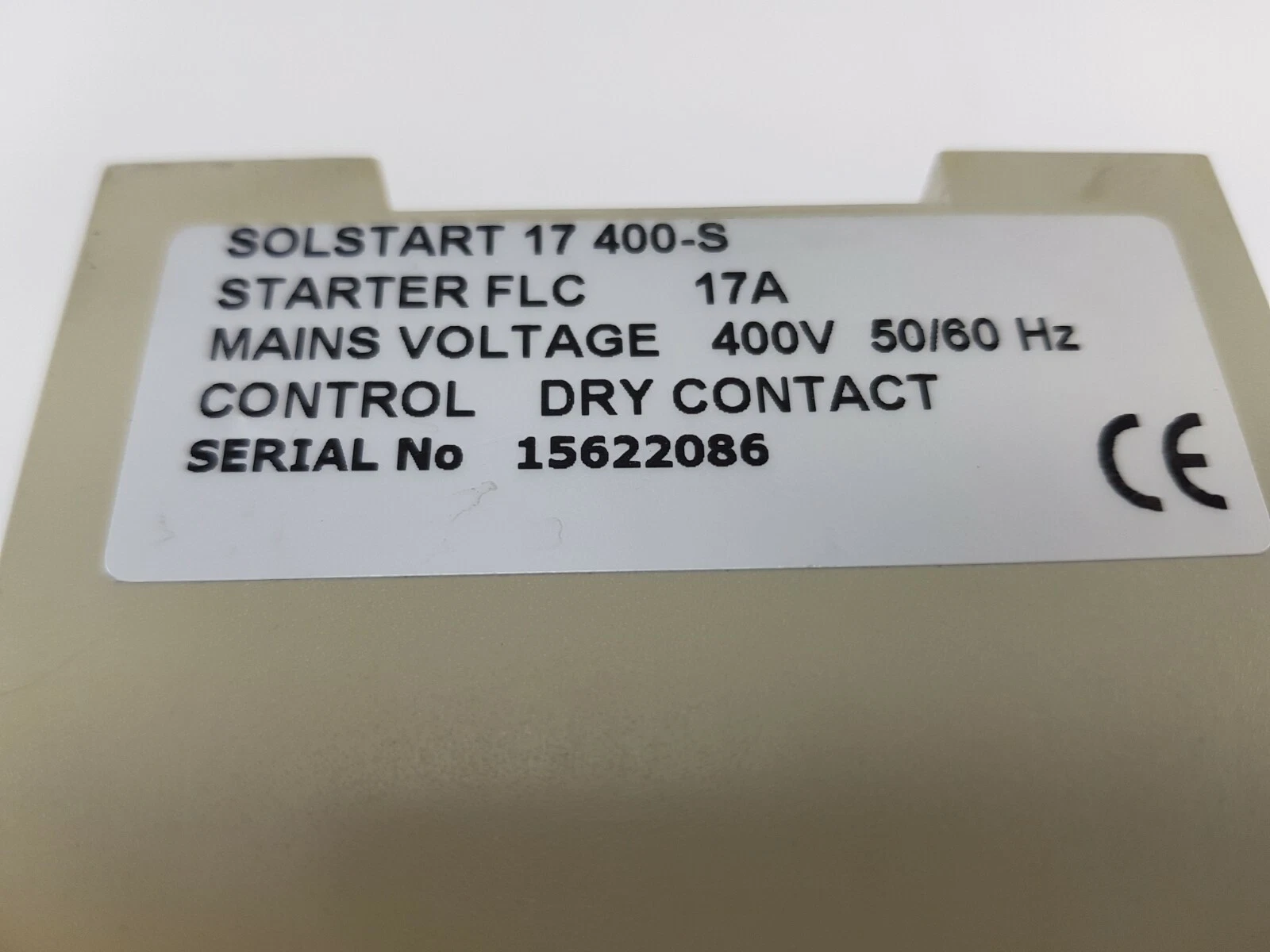

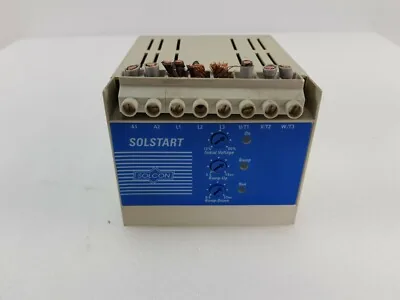

Used. The photos show the blue front panel with its three dials and LEDs, the terminal row marked A1, A2, L1, L2, L3, U/T1, V/T2 and W/T3, and the maker's label reading SOLSTART 17 400-S, STARTER FLC 17A, MAINS VOLTAGE 400V 50/60 Hz, CONTROL DRY CONTACT, with a CE mark.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Free — paid by us
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
Is the SOLSTART 17 400-S suitable for a 230 V supply?
No. This unit is labelled for 400 V mains. The 230 V version is the SOLSTART 17 230-S.
What is the maximum motor current?
17 A full-load current, as shown on the label. Select by the motor's nameplate FLA.
How is the starter controlled?
By a voltage-free contact across the control terminals: closed to start, open to stop. No voltage may be applied to these terminals.
Can I use it with power factor correction capacitors?
Not on the motor side. Solcon states capacitors must be installed on the line side, never on the starter's load side.
