Photos show the actual item you will receive.
Product details
About this part
The KEB 02.91.010-CE07 is made by KEB and identified by manufacturer part number 02.91.010-CE07.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × KEB 02.91.010-CE07.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (KEB), the part number (02.91.010-CE07) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- KEB
- Part number
- 02.91.010-CE07
- Model
- 02.91.010-CE07
- Country of Origin
- Germany
- Product line
- KEB COMBITRON 91 rectifier
- Rectifier type
- Half-wave
- Maximum input voltage
- 275 V AC
- Maximum interrupting voltage
- 450 V AC
- Mains frequency
- 50/60 Hz ±2 Hz
- Rated output voltage
- 0.45 × Uin (DC)
- Rated output current
- 1.2 A (at 45 °C, per label)
- UL rating
- 240 V AC in, 0.6 A; 108 V DC out, 1.2 A
- UL output current derating
- 0.9 A at 60 °C, 0.6 A at 75 °C, 0.5 A at 85 °C
- DC contact switching
- Yes (switch terminals on the unit)
- Protection
- IP20
- Operating temperature
- −10 to 45 °C (up to 85 °C with derating)
- UL fusing
- External Class CC fuse, max. 5 A per ungrounded conductor
- Approvals (label)
- UL recognized-component mark, CE
The KEB 02.91.010-CE07 is a COMBITRON 91 half-wave rectifier that supplies DC power to electromagnetic brakes and clutches. It accepts up to 275 V AC and delivers a DC output of 0.45 × the input voltage at up to 1.2 A, as printed on the unit's label and in KEB's COMBITRON 91 manual. At KEB's UL rating of 240 V AC input, the output is 108 V DC. The part number is also written 0291010-CE07.
What is the COMBITRON 91 used for?
KEB designs the COMBITRON 91 exclusively for supplying electromechanical clutches and brakes. It converts incoming AC into DC and is compact enough to fit inside most motor terminal boxes. Internal varistors protect the switching contacts, and the rectifier can be switched on the AC (line) side or the DC (load) side.
What do the terminals do?

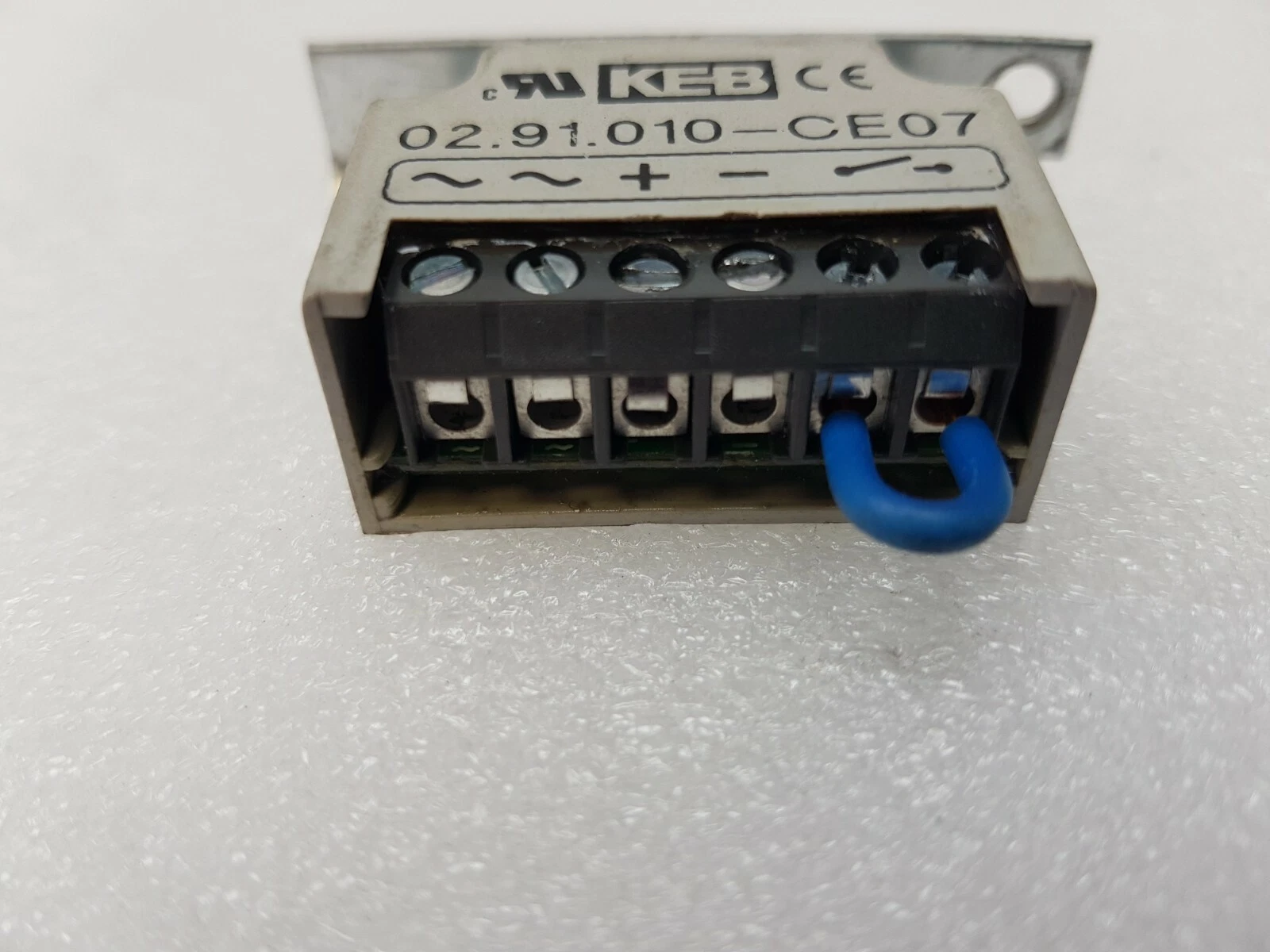

The terminal strip is marked ~ ~ for the AC input, + and − for the DC output to the brake coil, and a switch symbol for the DC-side switching input. For DC-side switching, a DC-rated contact is wired to those terminals, which gives much faster brake engagement. For AC-side switching, KEB fits a wire jumper across the switch terminals. On this unit, a blue wire jumper is fitted across the switch terminals.
What condition is this rectifier in?

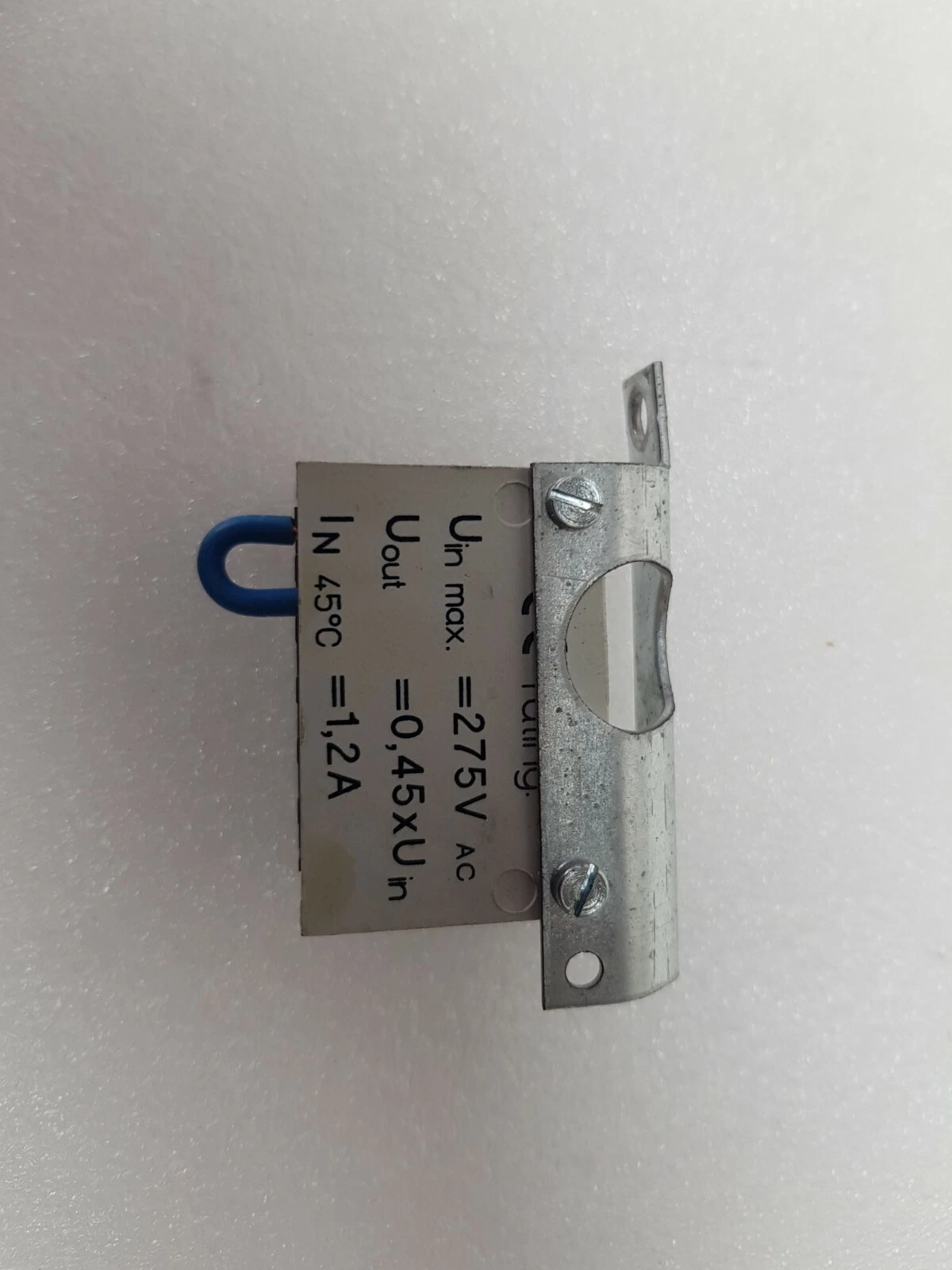

Used. The photos show the grey KEB housing with the part number, UL and CE marks and the terminal legend, the rating label on the side, a blue jumper on the switch terminals, and a metal mounting bracket screwed to the housing. Please review all photos to confirm the condition.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the KEB 02.91.010-CE07?
A KEB COMBITRON 91 half-wave rectifier that turns an AC supply of up to 275 V into DC for brake or clutch coils, with an output of 0.45 × the input voltage at up to 1.2 A.
What DC voltage do I get from 230 V or 240 V AC?
The output is 0.45 × the input voltage. KEB's UL rating is 240 V AC in and 108 V DC out; at 230 V AC input the formula gives about 104 V DC.
What is the blue wire on the terminals?
It is a jumper across the DC-side switching terminals. KEB uses this jumper when the brake is switched on the AC side; for DC-side switching the jumper is replaced by a DC-rated switching contact.
Can I use it with a 400 V supply?
No. The 02.91.010-CE07 is rated for a maximum of 275 V AC input. KEB's 04.91 COMBITRON models are rated up to 500 V AC.
What is the difference between 02.91.010-CE07 and 02.91.020-CE07?
In KEB's COMBITRON 91 table the 010 is the half-wave version (0.45 × Uin output, 1.2 A) and the 020 is the full-wave version (0.9 × Uin output, 2.0 A).
