Photos show the actual item you will receive.
Product details
About this part
The KEB 09.56.080-4008 Braking Resistor is made by KEB and identified by manufacturer part number 09.56.080-4008.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × KEB 09.56.080-4008 Braking Resistor.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (KEB), the part number (09.56.080-4008) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- KEB
- Part number
- 09.56.080-4008
- Model
- 09.56.080-4008
- Country of Origin
- Germany
- Manufacturer (label)
- KEB Antriebstechnik
- Type
- Braking resistor
- Series (KEB manual)
- Phased-out series for COMBIVERT 56
- Voltage class
- 400 V
- Resistance
- 390 Ω
- Continuous rating
- 150 W
- Current (label)
- 0.6 A
- Duty marking (label)
- ED 120s
- Connection
- Ceramic terminal block
- Housing
- Perforated galvanized steel cover, base with slotted mounting feet
The KEB 09.56.080-4008 is a 390 Ω, 150 W braking resistor from KEB's 400 V series made for COMBIVERT 56 frequency inverters. KEB's braking resistor manual lists it in the phased-out series "especially for COMBIVERT 56", voltage class 400 V, 390 Ω, 150 W continuous rating. The part number is also written 0956080-4008.
What does the label say?

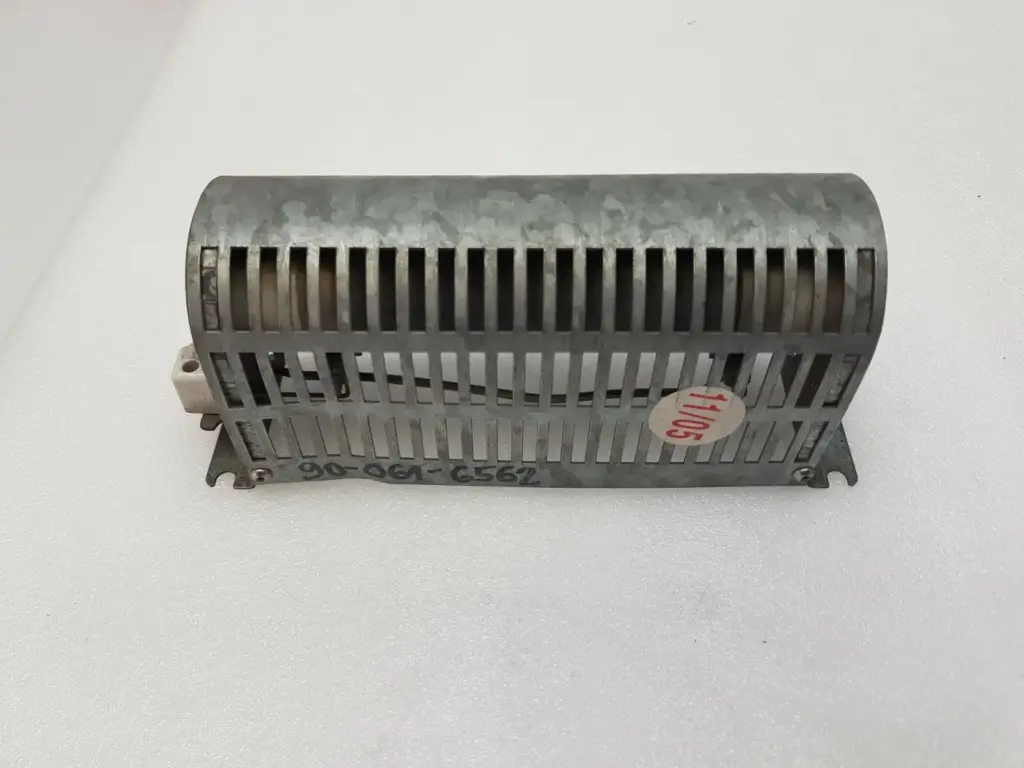

KEB Antriebstechnik, 09.56.080-4008, 150 W, 0,6 A, 390 Ohm, ED 120s. The resistor sits under a perforated galvanized steel cover on a base with slotted mounting feet, and is wired to a ceramic terminal block at one end.
How does a braking resistor work?
When a drive slows a motor down, the motor acts as a generator and feeds energy back into the drive's DC bus. The drive's braking transistor switches that energy into the braking resistor, which turns it into heat, so the drive can stop the load quickly without tripping on overvoltage.
Brake resistor vs brake chopper: what is the difference?
The brake chopper (braking transistor) is the switch, usually inside the drive, that decides when to dump energy. The brake resistor is the external part that absorbs it as heat. This listing is the resistor only.
What should I check before fitting it?
KEB's manual notes that braking resistors can reach very high surface temperatures and recommends connecting temperature monitoring. Match the resistance and power to your drive's documentation. Condition: used; the cover carries a handwritten number and a red 11/05 sticker.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is KEB 09.56.080-4008?
A KEB braking resistor, 390 Ω, 150 W continuous rating, 400 V class, from KEB's series for COMBIVERT 56 drives.
What resistance and power does it have?
390 Ω and 150 W continuous. The label also gives 0.6 A.
How does a braking resistor work?
During braking the motor feeds energy back to the drive; the drive's braking transistor sends it into the resistor, which dissipates it as heat.
What is the difference between a brake resistor and a brake chopper?
The chopper is the switching transistor, usually in the drive. The resistor is the external part that absorbs the energy. This item is the resistor.
Is this part still made?
KEB's braking resistor manual lists this series as phased out.
What condition is it in?
Used.
