Photos show the actual item you will receive.
Product details
About this part
The Jai CV-A50 Compact Industrial Monochrome CCD Camera, W/ RICOH TV LENS is made by JAI and identified by manufacturer part number CV-A50.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Jai CV-A50 Compact Industrial Monochrome CCD Camera, W/ RICOH TV LENS.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (JAI), the part number (CV-A50) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- JAI
- Part number
- CV-A50
- Product Type
- Cameras
- Manufacturer
- JAI, made in Japan
- Model
- CV-A50
- Type
- Monochrome CCD camera, analog video
- Sensor size
- 1/2-inch CCD
- Setup
- RS-232C command protocol (no DIP switches)
- Power
- 12 V DC, fuse 1.0 A (label)
- Power consumption
- 1.5 W
- Camera dimensions
- 29 x 44 x 66 mm
- Camera weight
- 150 g
- Connectors (rear panel)
- BNC VIDEO OUT, DC IN/SYNC, TRIGGER, GAIN adjustment
- Lens
- Ricoh TV LENS 6 mm 1:1.2, aperture 1.2 to 16
- Filter
- Schneider-Kreuznach (B+W) 093, 40.5 mm
- Markings
- CE, RoHS, FCC Part 15
- Included in photos
- Camera, lens, filter, mounting bracket

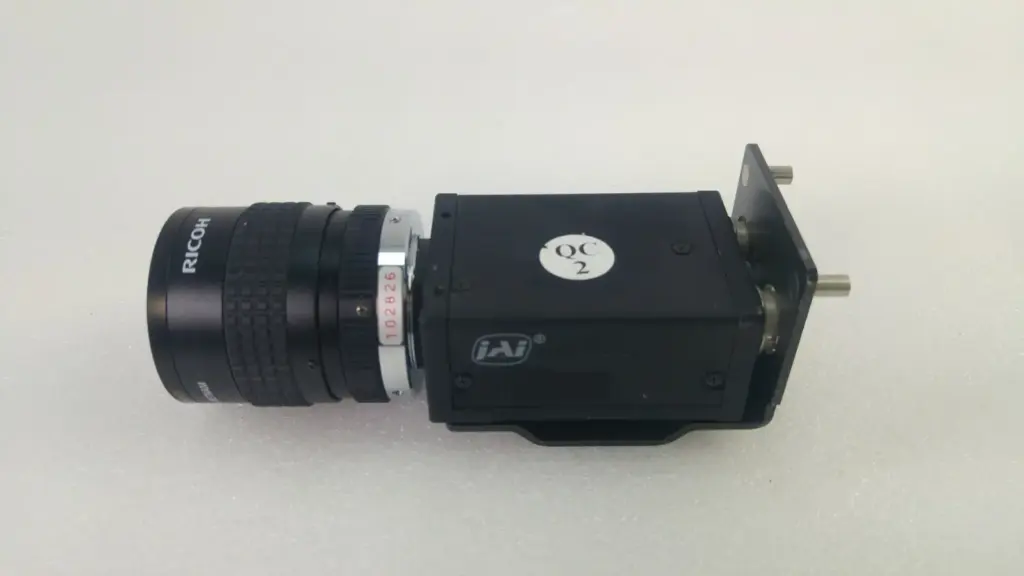

JAI CV-A50 monochrome CCD camera with a Ricoh 6 mm 1:1.2 TV lens on it. 1/2-inch sensor, analog video out on BNC, 12 V DC. There is a 40.5 mm Schneider-Kreuznach 093 filter screwed on the lens, and a black mounting bracket with two guide pins.
Why does the lens look black from the front?
That is the 093 filter. Schneider-Kreuznach lists the B+W 093 as an 830 nm infrared filter that blocks visible light. With it on, the camera sees only near-infrared. Unscrew it for normal visible-light imaging.
How do I power and connect it?

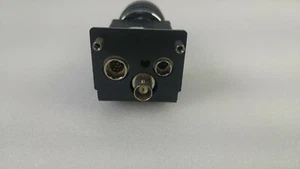

12 V DC, fuse 1.0 A, as printed on the label. The rear panel has VIDEO OUT (BNC), DC IN/SYNC, TRIGGER and a GAIN trimmer. JAI set the CV-A50 up over RS-232C commands instead of DIP switches. Power draw is 1.5 W.
EIA or CCIR?
The label doesn't say, so no resolution or frame rate is quoted here. The serial reads E554050 C. The body is small: 29 x 44 x 66 mm and 150 g without the lens. Label also shows CE, RoHS and the FCC Part 15 statement, made in Japan.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
United States
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
International
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
Which lens is on the CV-A50?
A Ricoh TV LENS marked 6 mm 1:1.2, aperture 1.2 to 16.
What does the 093 filter do?
Schneider-Kreuznach lists the B+W 093 as an 830 nm infrared filter. It blocks visible light, which is why the front looks black.
Does the camera need 12 V or 24 V?
12 V DC, per the label. JAI gives 1.5 W power consumption.
How is the CV-A50 configured?
Over RS-232C commands; there are no DIP switches. Gain also has a trimmer on the rear panel.
Is the mounting bracket part of the sale?

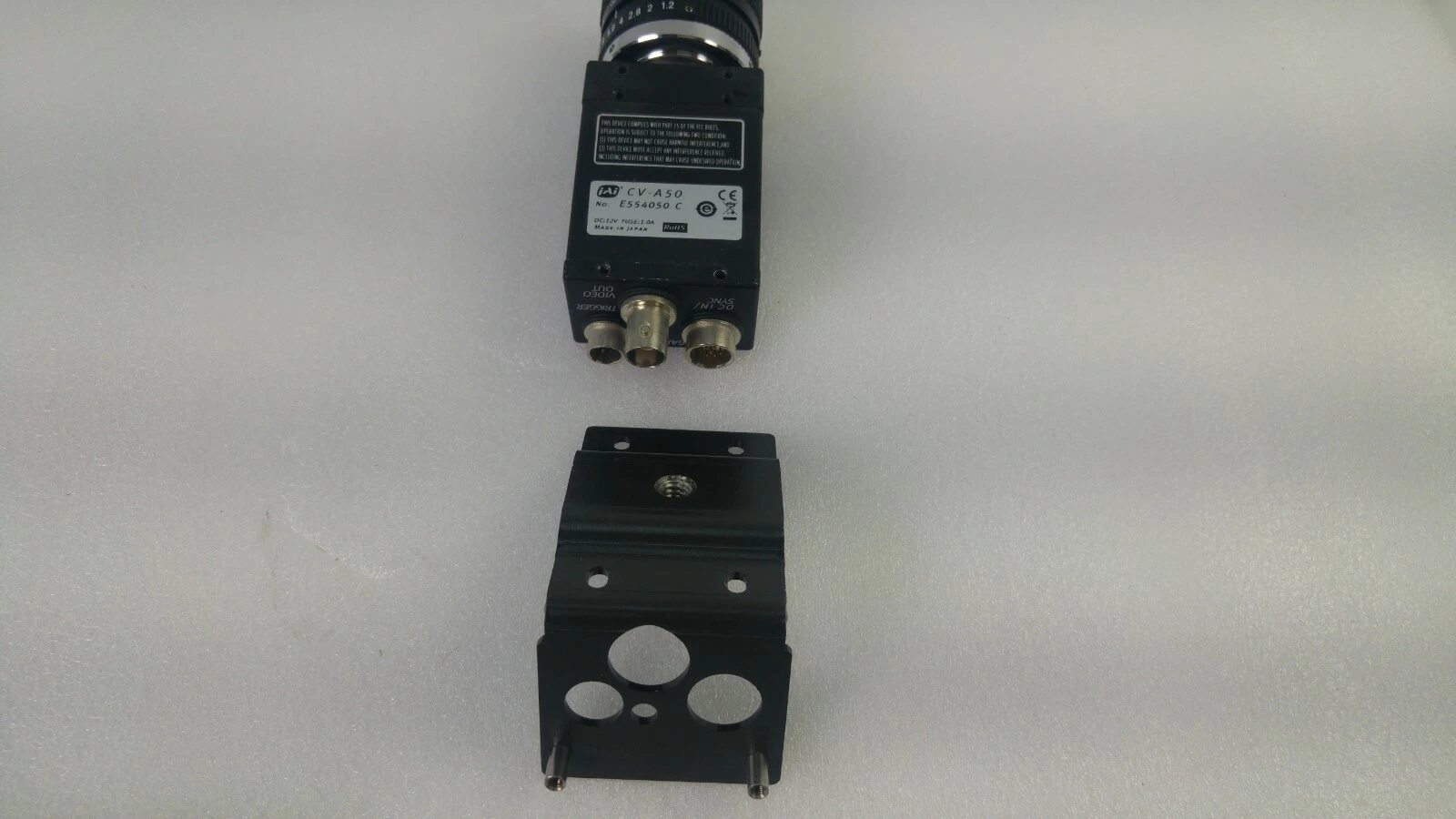

The photos show a black bracket with two guide pins, on the camera and off it.
