The Giddings & Lewis Centurion Micro DSA DSA-030-230-S P/N: 1300.5142 is made by Giddings & Lewis and identified by manufacturer part number 1300.5142.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Giddings & Lewis Centurion Micro DSA DSA-030-230-S P/N: 1300.5142.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Giddings & Lewis), the part number (1300.5142) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Giddings & Lewis
- Part number
- 1300.5142
- Model
- DSA-030-230-S
- Country of Origin
- United States
- Product line
- Giddings & Lewis Centurion Micro DSA
- Part number (nameplate)
- M.1300.5142, REV 05
- Input (nameplate)
- 120/240 V AC, 1-phase, 50/60 Hz, 18 A FLA
- Output (nameplate)
- 120/240 V AC, 0–400 Hz
- Continuous output current
- 10 A (0-peak)
- Peak output current
- 30 A (0-peak)
- Firmware
- V1.07
- Network interface
- SERCOS, fiber-optic Rx/Tx
- SERCOS data rate switch
- 2 MB / 4 MB (as marked on the panel)
- Node address
- Two rotary switches (MSD, LSD)
- Connectors
- J1, J2, J5 (D-sub); screw terminals for DC bus, AC input and motor
- Cooling
- Aluminium heat sink with fan
- Approvals (nameplate)
- cULus listed (Ind. Cont. Eq.), CE
- Country of manufacture
- USA
The Giddings & Lewis DSA-030-230-S is a Centurion Micro DSA servo drive with a SERCOS interface, part number M.1300.5142. Its nameplate lists a single-phase 120/240 V AC, 50/60 Hz input at 18 A FLA, and a 120/240 V AC, 0–400 Hz output rated 10 A continuous and 30 A peak (0-to-peak values). This unit is revision 05 with firmware V1.07, and was made in the USA by Giddings & Lewis in Fond du Lac, Wisconsin. The model is also written DSA 030-230-S or DSA030230S, and the part number 1300.5142.
What is on the front panel?

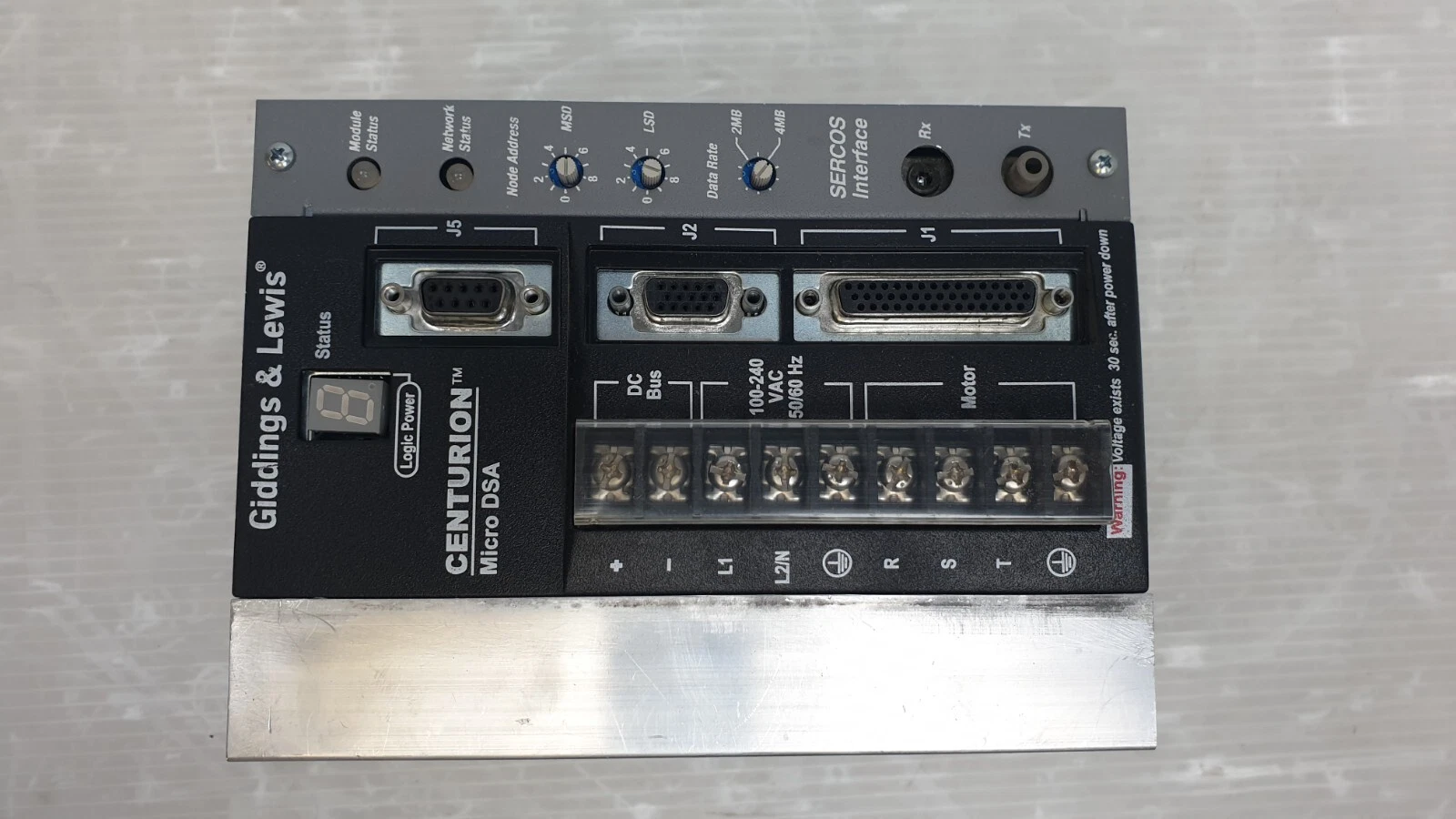

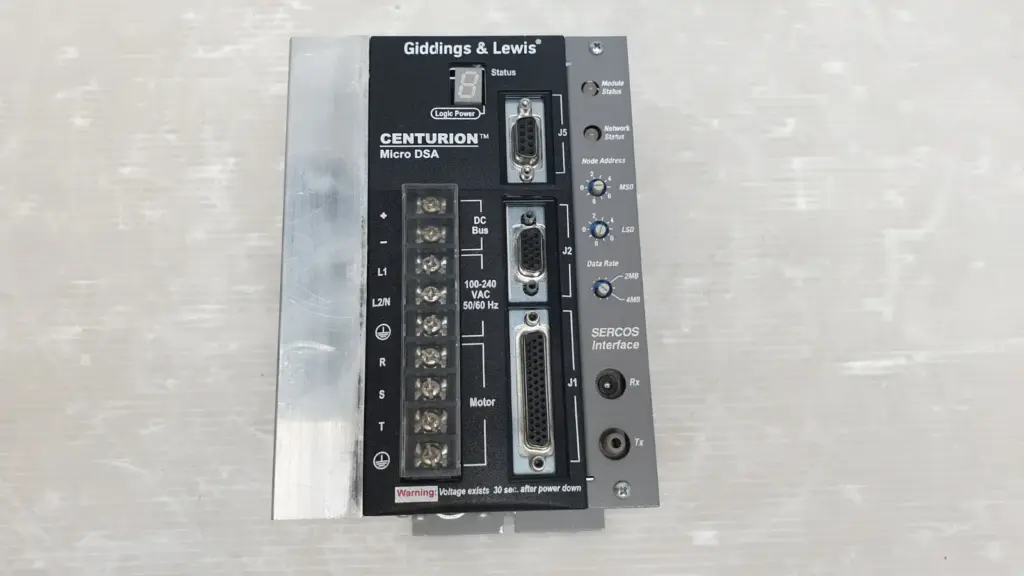

The front carries a screw terminal strip for the DC bus (+ and −), the 100–240 V AC 50/60 Hz supply (L1, L2/N and ground) and the motor (R, S, T and ground). Beside it are three D-sub connectors marked J1, J2 and J5, a 7-segment status display with a Logic Power indicator, Module Status and Network Status LEDs, two rotary switches for the SERCOS node address (MSD and LSD), a data-rate switch marked 2MB and 4MB, and the fiber-optic Rx and Tx ports of the SERCOS interface.
How do I match a replacement Micro DSA?

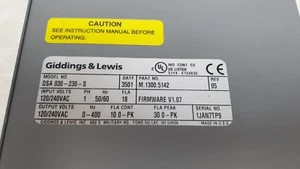

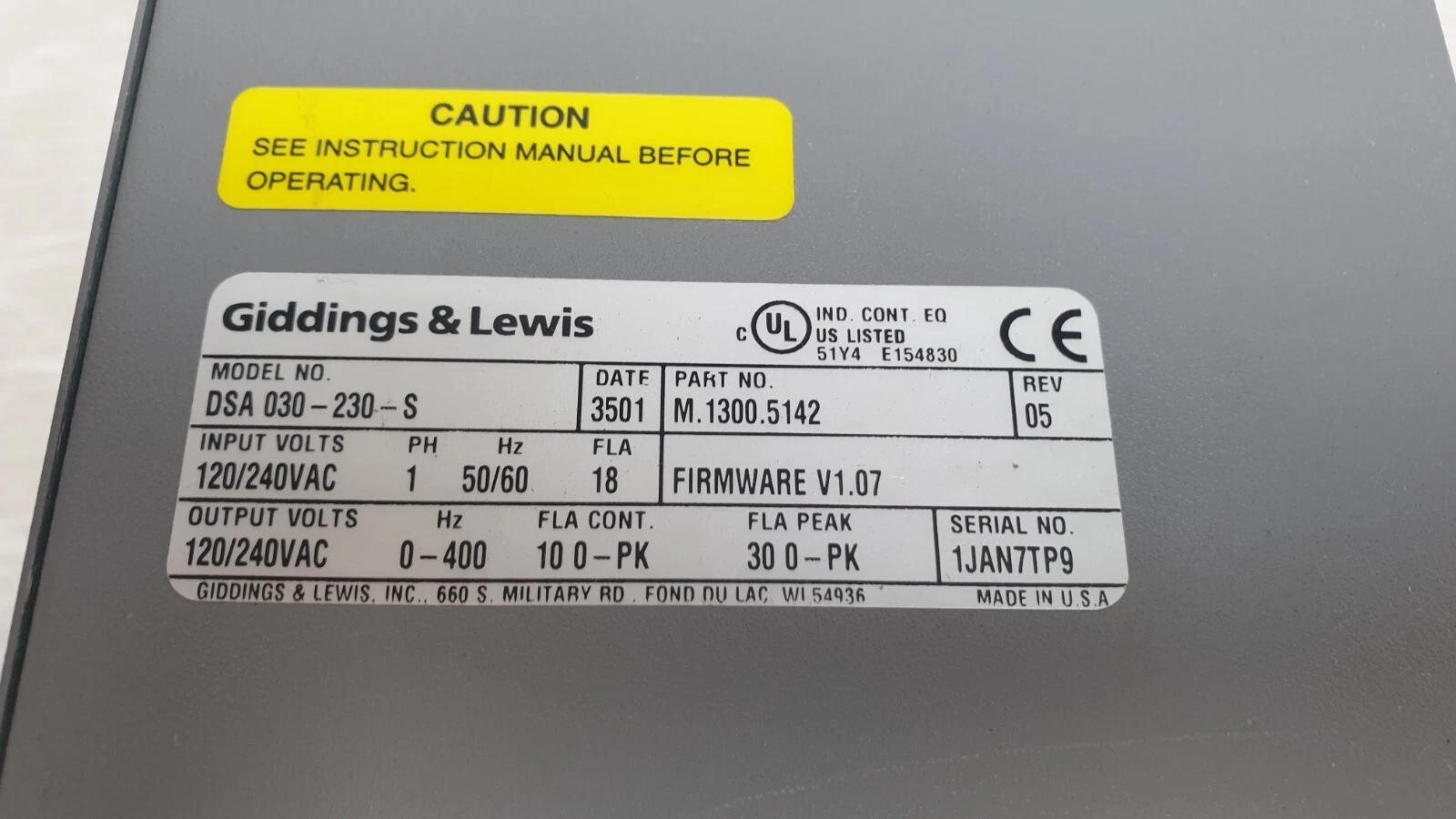

Compare the model number, part number and revision on the side nameplate of your existing drive. This unit reads DSA 030-230-S, part number M.1300.5142, REV 05, firmware V1.07. If your machine documentation specifies a firmware version, check it against V1.07.
What condition is this drive in?

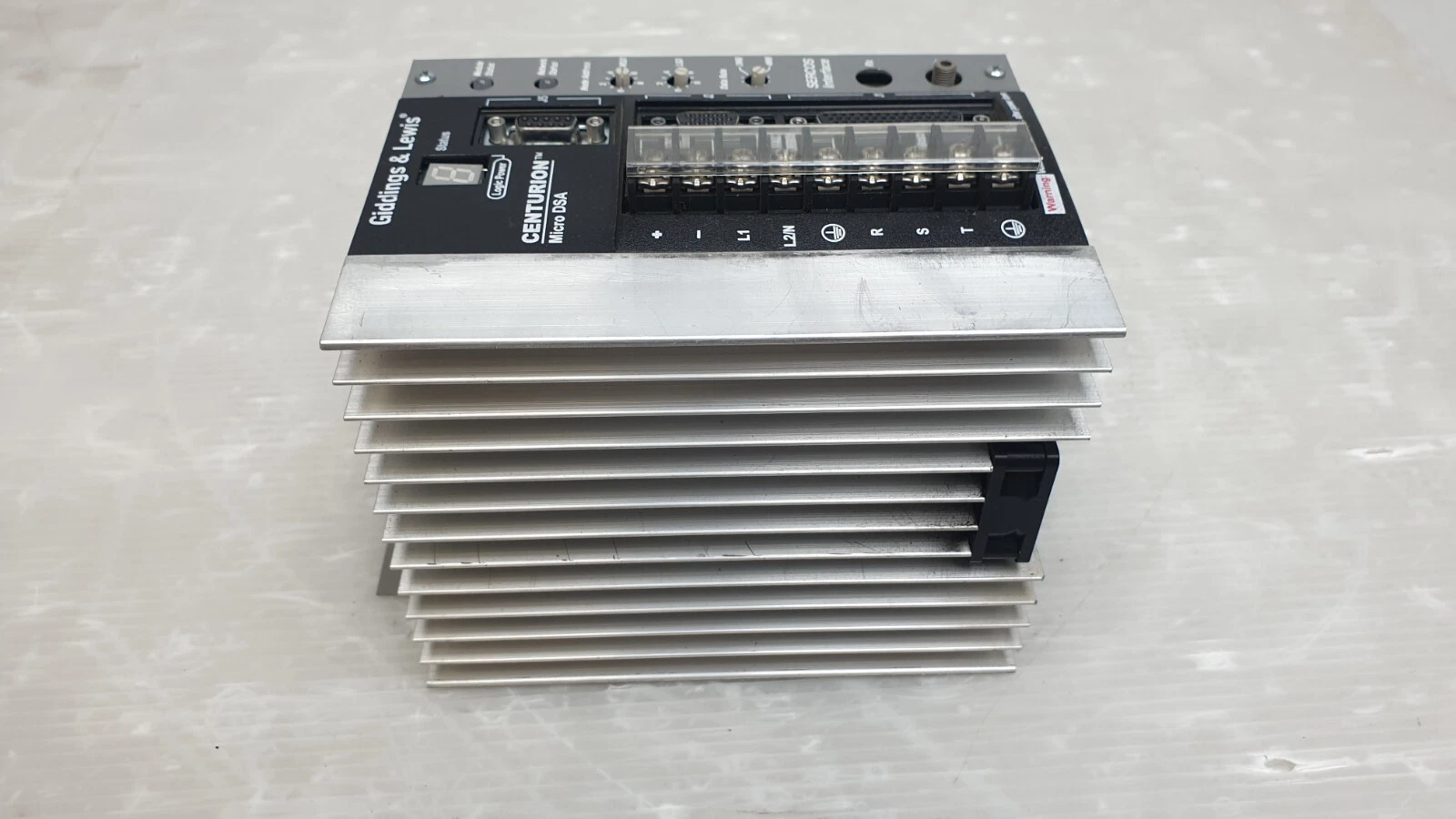

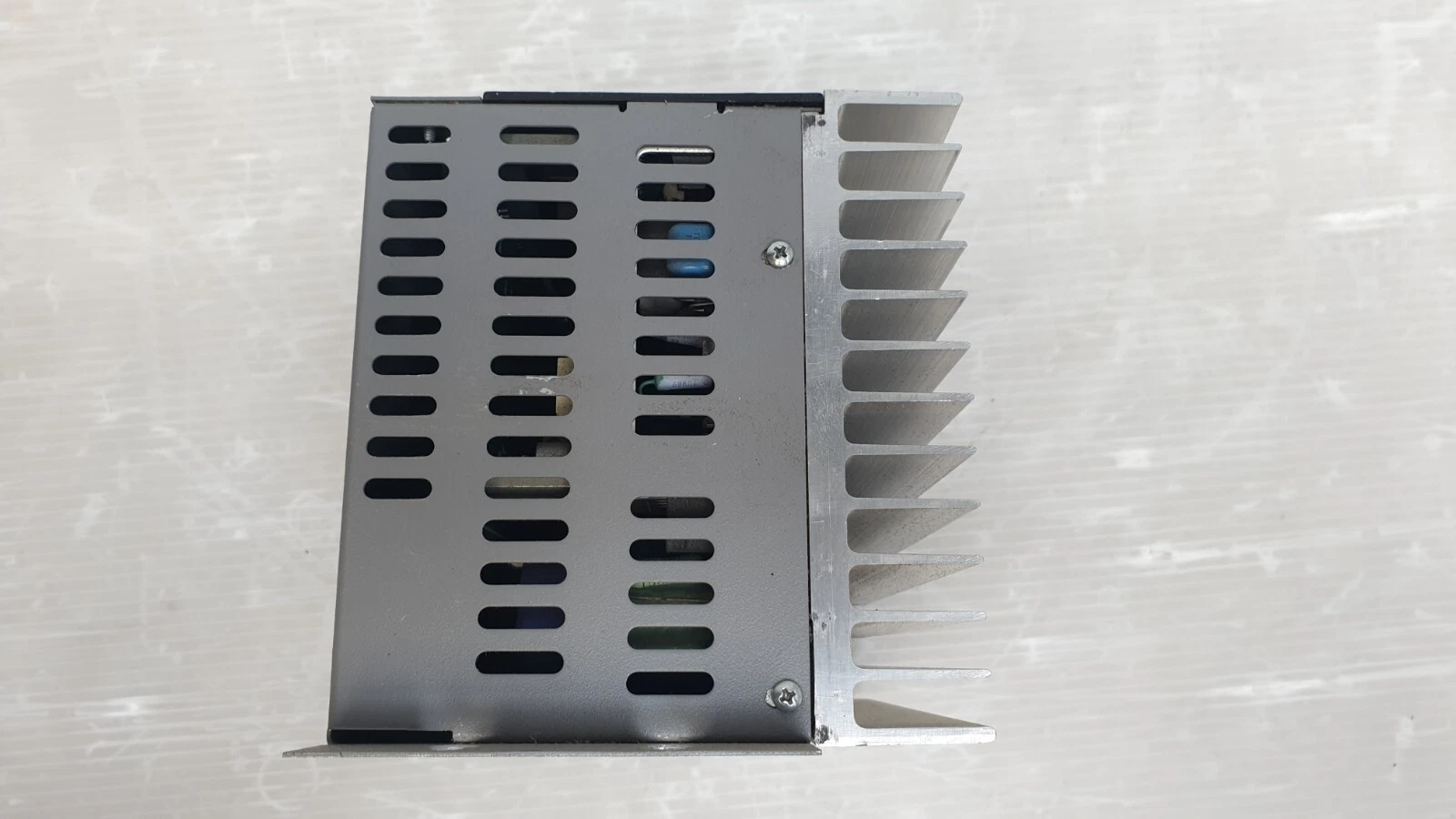

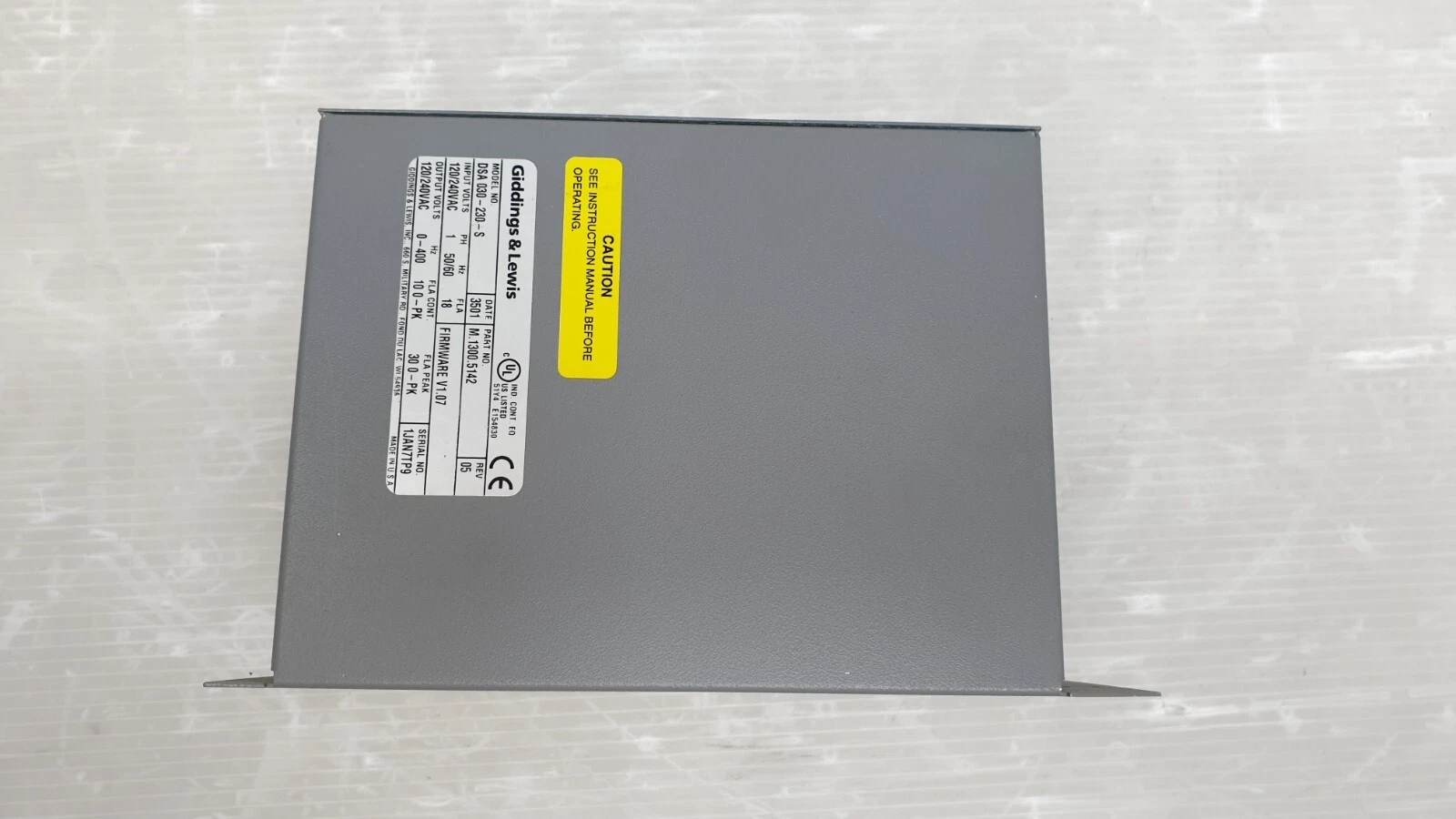

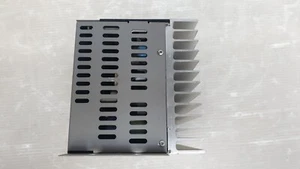

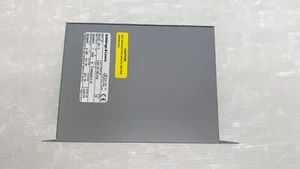

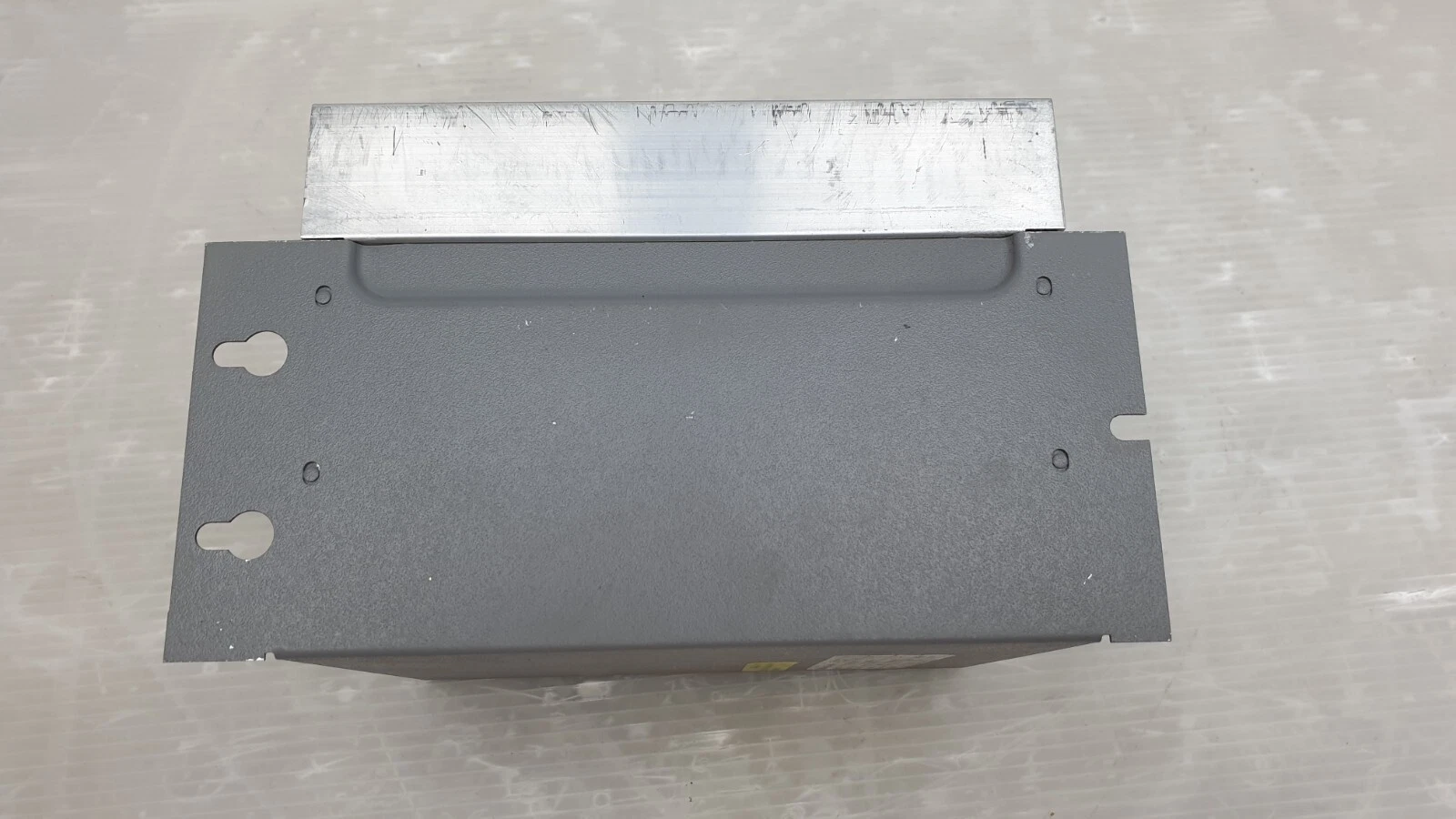

Used. The photos show the drive from all sides: the front panel with terminals and connectors, the finned aluminium heat sink with a cooling fan fitted, the vented steel housing, the mounting plate, and the nameplate with the yellow caution label. Please review all photos to confirm the condition.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Giddings & Lewis DSA-030-230-S?
A Centurion Micro DSA servo drive with a SERCOS fiber-optic interface. Its nameplate gives a 120/240 V AC single-phase input and 10 A continuous / 30 A peak output current.
What is the part number of this drive?
The nameplate reads part number M.1300.5142, revision 05, firmware V1.07.
Does the DSA-030-230-S use SERCOS?
Yes. The front panel has a SERCOS interface with fiber-optic Rx and Tx ports, node address switches and a data-rate switch marked 2MB/4MB.
What supply voltage does it need?
The nameplate lists 120/240 V AC single-phase, 50/60 Hz, at 18 A full-load current; the front panel marks the input terminals 100–240 V AC 50/60 Hz.
Does it have a cooling fan?

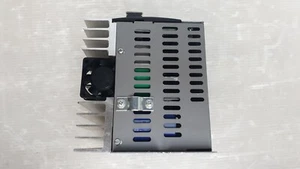

Yes, the photos show a fan mounted on the aluminium heat sink.
