Photos show the actual item you will receive.
Product details
About this part
The Brooks Automation BOARD 013501-16 Load Port FIXLOAD 6 P/N 013096-336-20 is made by Brooks Automation and identified by manufacturer part number 17AEZ02.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Brooks Automation BOARD 013501-16 Load Port FIXLOAD 6 P/N 013096-336-20.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Brooks Automation), the part number (17AEZ02) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Brooks Automation
- Part number
- 17AEZ02
- Model
- 013501-16
- Country of Origin
- United States
- Board marking
- 013501-16, 17AEZ02
- Source equipment
- Brooks Automation FIXLOAD 6M load port, P/N 013096-336-20
- Load port supply (nameplate)
- 100–240 VAC, 50–60 Hz
- Load port pneumatics (nameplate)
- Compressed air max. 1.0 MPa; vacuum 40 kPa
- Connectors
- 2 × RJ-45-style jacks, 1 × smaller modular jack, wire-to-board connectors, 2 × 4 pin header
- Firmware sticker
- FW/00
The Brooks Automation 013501-16 is a circuit board from a Brooks FIXLOAD 6M wafer load port, P/N 013096-336-20. The board is marked 013501-16 and 17AEZ02 on the silkscreen, and is offered used. Buyers also search it as 01350116.
Which load port is this board from?

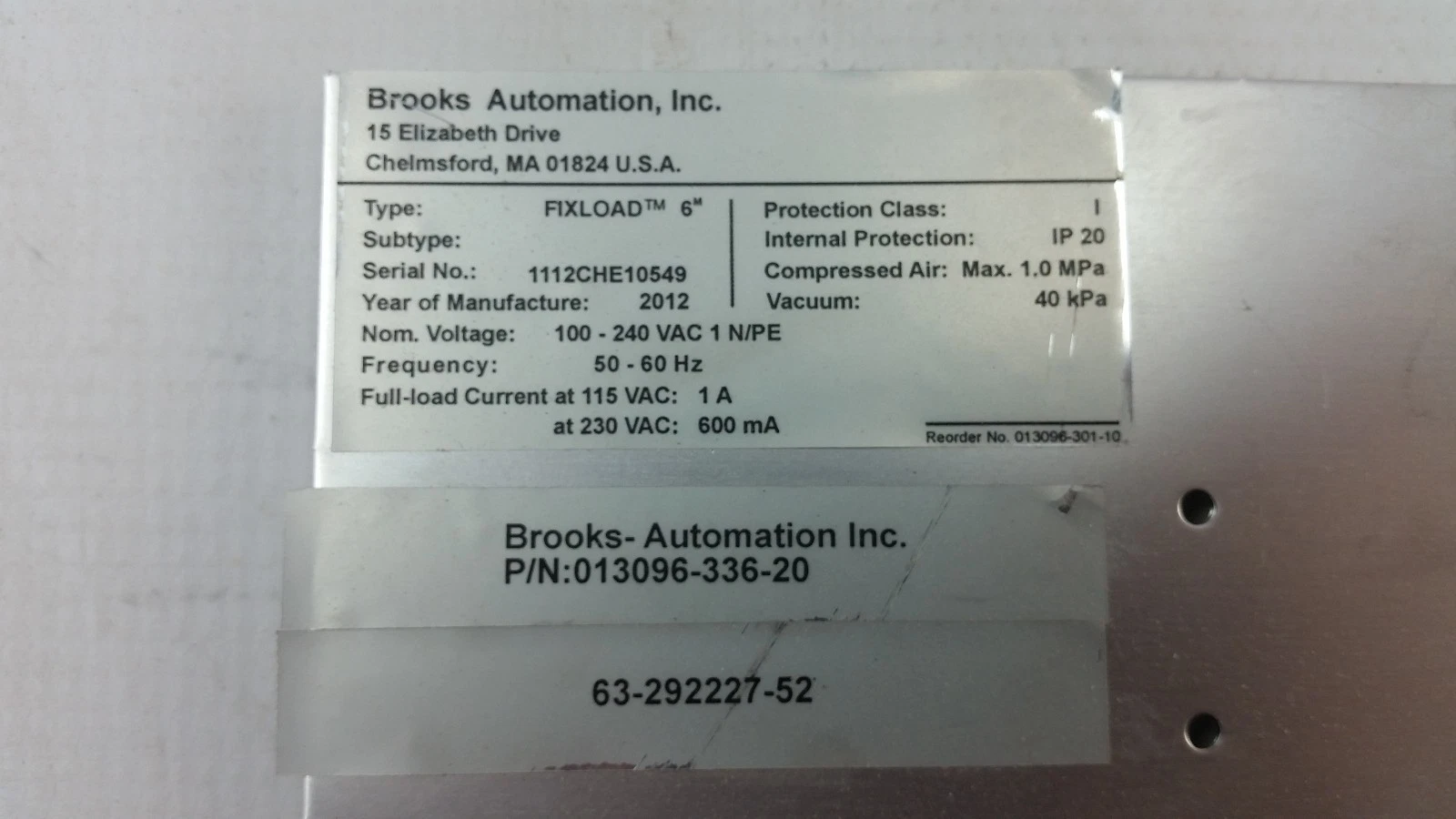

It was removed from a Brooks Automation FIXLOAD 6M load port carrying Brooks P/N 013096-336-20. The load port nameplate, photographed with the board, lists 100–240 VAC, 50–60 Hz supply, compressed air up to 1.0 MPa and 40 kPa vacuum. Check that your load port carries the same Brooks part number before ordering.
What is on the board?

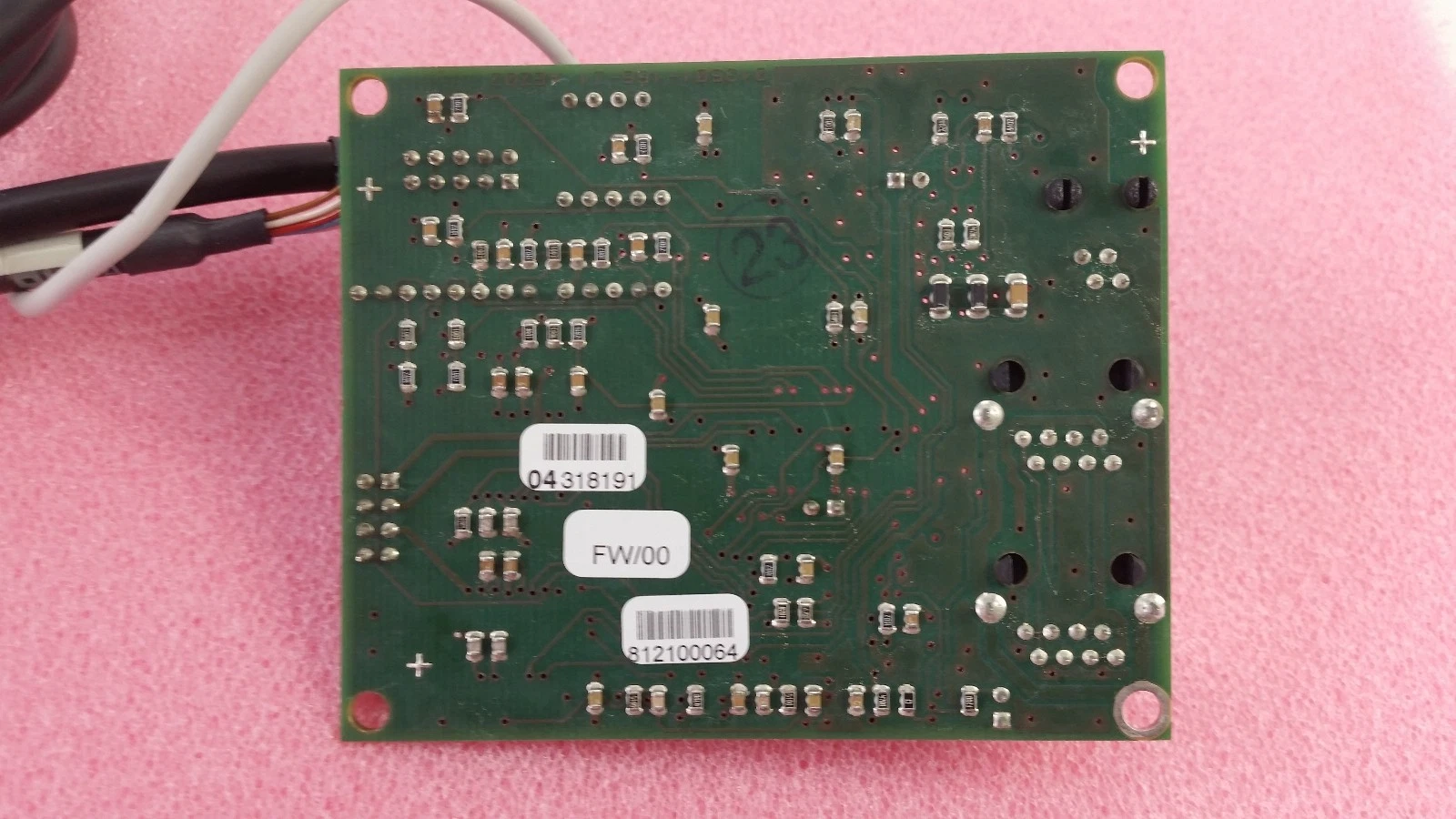

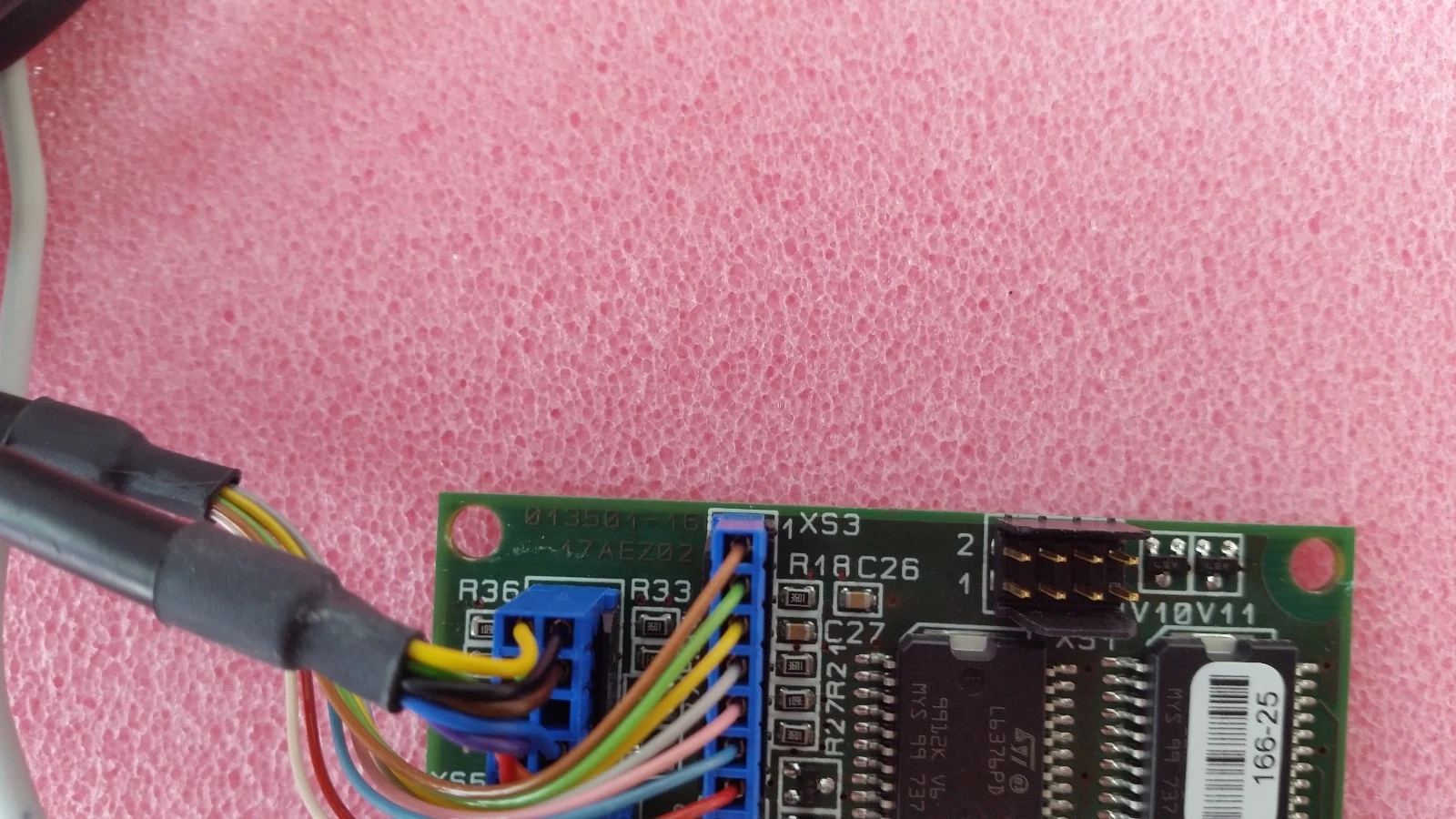

The board has two RJ-45-style jacks and one smaller modular jack along one edge, a push button, blue wire-to-board connectors and a 2 × 4 pin header (XS1). A "FW/00" sticker is on the back.
What is shown with the board?

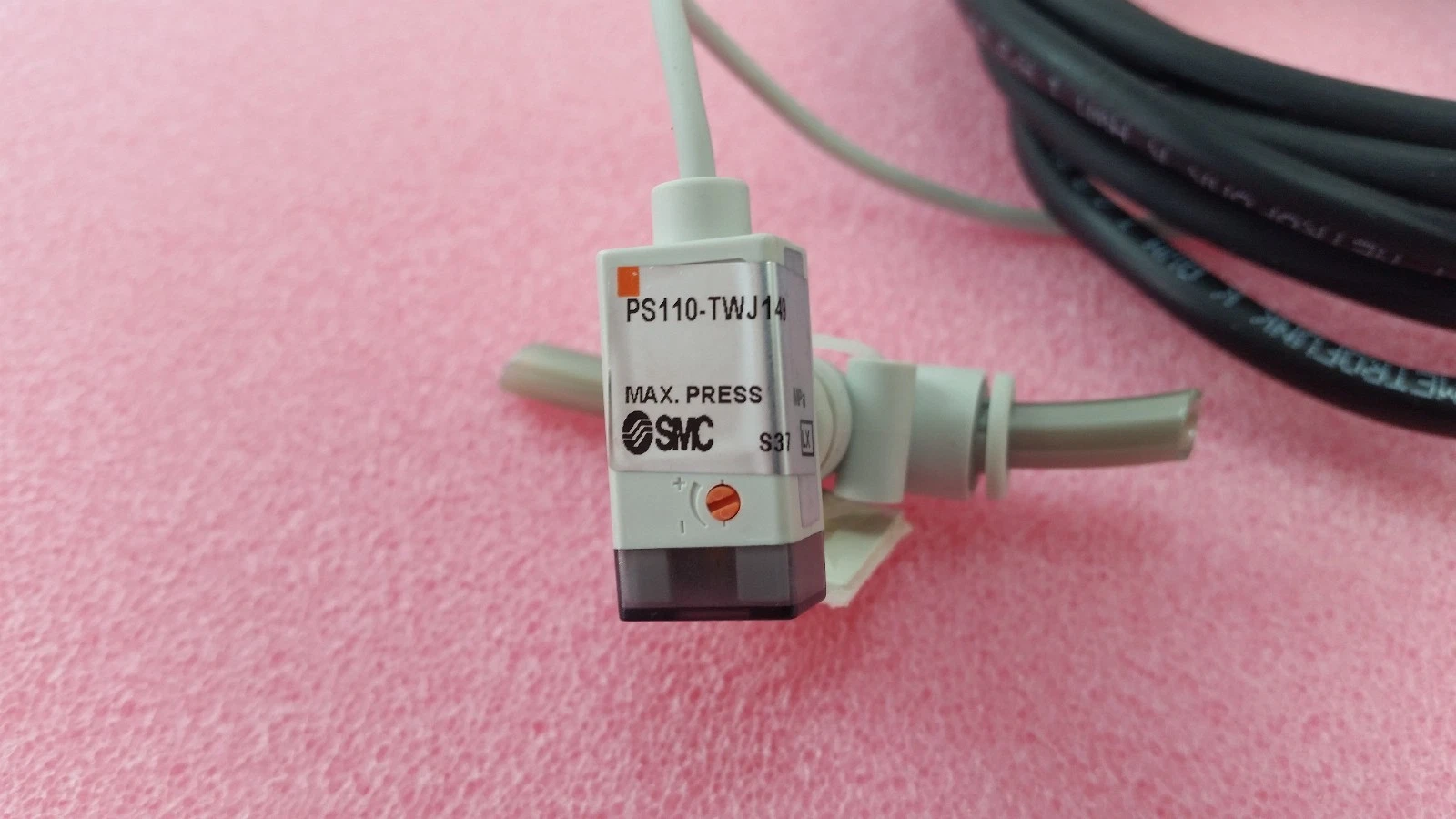

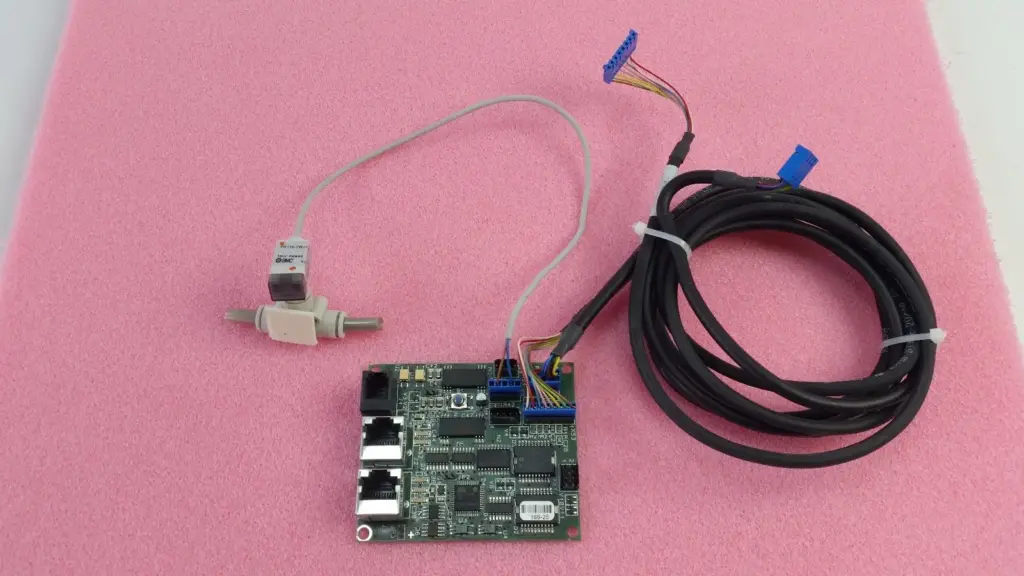

The photos show the board connected to a wiring harness with a long black cable and blue connectors, and to a small SMC pressure switch fitted with tubing.
What condition is this board in?
Used, removed from a load port. The photos show the board front and back with no visible damage.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Brooks 013501-16?
It is a Brooks Automation circuit board, marked 013501-16 and 17AEZ02, taken from a FIXLOAD 6M wafer load port with P/N 013096-336-20.
Which load port does it fit?
This board came from a Brooks FIXLOAD 6M load port, P/N 013096-336-20. Compare that part number with your load port's nameplate.
Are the harness and pressure switch included?
The photos show the board connected to a cable harness and an SMC pressure switch. Please ask before ordering if you need to confirm what ships with the board.
What does 17AEZ02 mean?

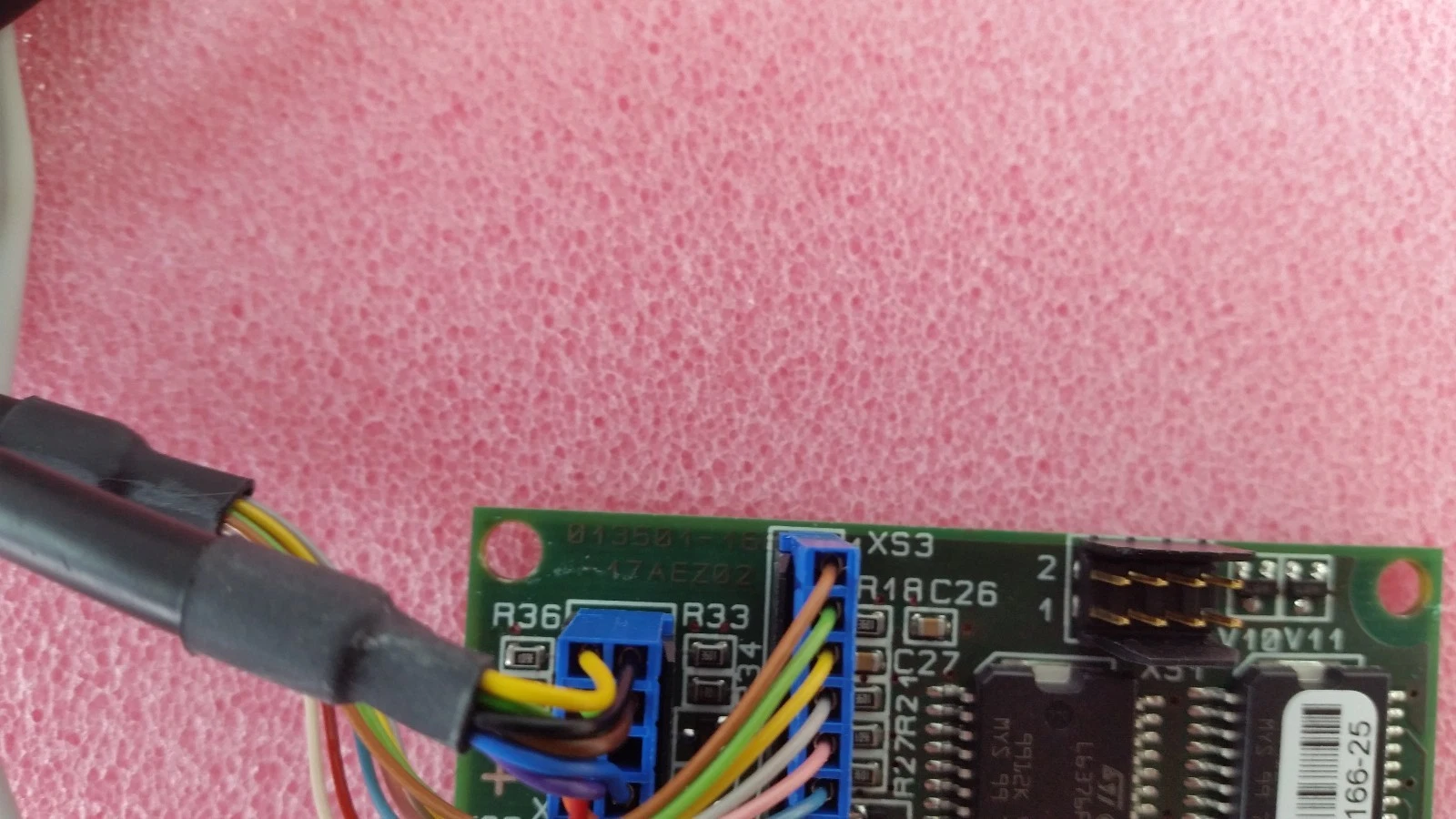

17AEZ02 is printed on the board directly under the 013501-16 part number. Match both codes against the board you are replacing.
