Photos show the actual item you will receive.
Product details
About this part
The BROOKS AUTOMATION BrooksNet DN 002-8421-02 is made by Brooks Automation and identified by manufacturer part number 002-8421-02.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × BROOKS AUTOMATION BrooksNet DN 002-8421-02.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Brooks Automation), the part number (002-8421-02) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Brooks Automation
- Part number
- 002-8421-02
- Model
- 002-8421-02
- Country of Origin
- United States
- Product name
- BrooksNet DN
- Network connectors
- Round IN (male) and OUT (female) connectors, 5 contacts
- Node address
- 2 rotary switches, MSD and LSD
- Baud rate switch
- 125 / 250 / 500 kbaud, PGM
- Indicators
- Power, Status (NET/MOD), Node Address, Output Fault
- Power supervision
- Power LED orange when 24 V is too low
- Output fault
- Short, overload, over-temperature; reset button
- I/O connector
- 50-position D-sub, ITT Cannon DDMG-50S
- Manufacturer address
- Brooks Automation, Chelmsford, MA 01824
- Marking
- CE

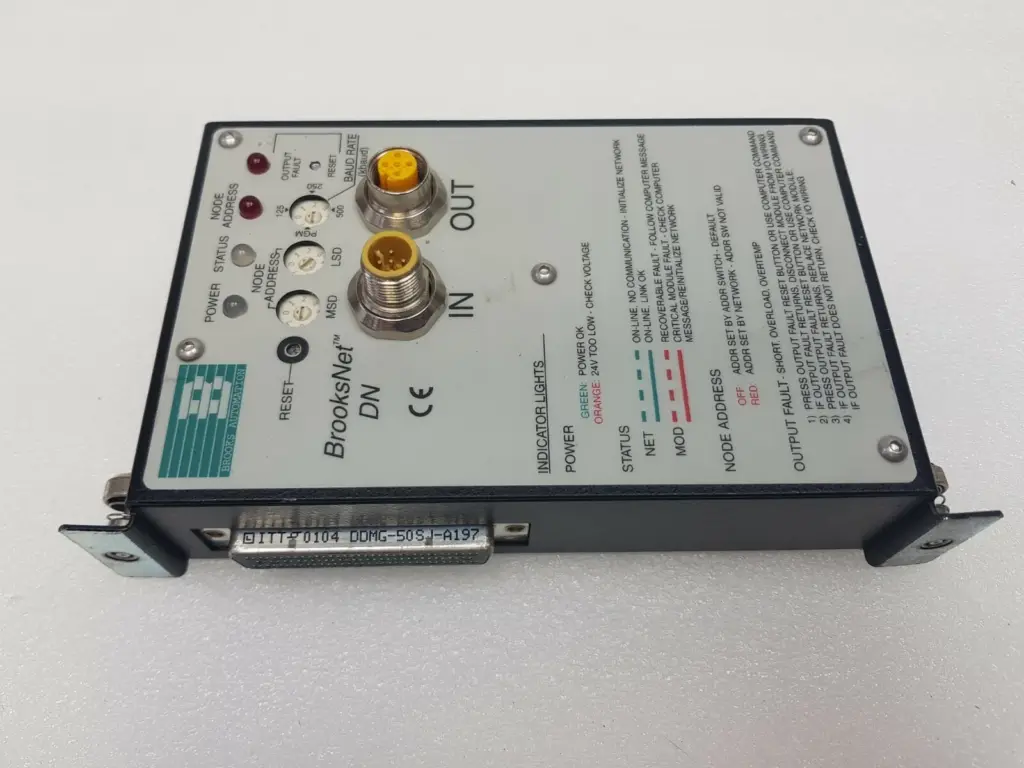

The Brooks Automation 002-8421-02 is a BrooksNet DN network I/O module, made in the USA by Brooks Automation of Chelmsford, Massachusetts. The front panel carries round network IN and OUT connectors, two rotary switches for the node address (MSD and LSD), a baud-rate switch with 125, 250 and 500 kbaud positions plus PGM, a reset button, and LEDs for power, status, node address and output fault. A 50-position ITT Cannon D-sub connector marked DDMG-50S is on the side. Also searched as 002842102 or BrooksNet DN module.
What do the front-panel lights show?
The printed legend explains them. POWER is green for power OK and orange for "24V too low – check voltage". The NET and MOD status lights show network and module state, from on-line with no communication to critical module fault. The NODE ADDRESS light is off when the address comes from the switches (the default) and red when it is set by the network. OUTPUT FAULT indicates a short, overload or over-temperature on the outputs, cleared with the output fault reset button or a computer command.
Which version is this?
This is the -02 version, as printed on the Brooks Automation model label. If your tool's parts list names a different dash number, check with the equipment documentation before substituting.
What condition is this module in?
Used. The photos show the front panel, the switch and connector area, the printed legend, the model label and the D-sub connector.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Brooks 002-8421-02?
The model number of the Brooks Automation BrooksNet DN module, a network I/O module made in the USA with node address and baud rate switches, IN/OUT network ports and a 50-pin D-sub I/O connector.
What baud rates can be selected?
The baud rate switch is marked 125, 250 and 500 kbaud, with a PGM position.
What does an orange power light mean?
According to the legend on the module, orange means the 24 V supply is too low — check the voltage. Green means power is OK.
How is an output fault cleared?
Press the output fault reset button or use the computer command. If the fault comes back, the legend says to disconnect the module from the I/O wiring and check it.
