Photos show the actual item you will receive.
Product details
About this part
The 20PCS BECKHOFF PLC module KL9185 is made by Beckhoff and identified by manufacturer part number KL9185.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × 20PCS BECKHOFF PLC module KL9185.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Beckhoff), the part number (KL9185) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Beckhoff
- Part number
- KL9185
- Model
- KL9185
- Country of Origin
- Germany
- Function
- Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC
- Quantity in lot
- 20 terminals
- Current load
- Up to 10 A
- Nominal voltage
- Arbitrary up to 230 V AC (per Beckhoff)
- Process image
- 0 bits, no K-bus function, K-bus looped through
- Wiring
- Spring-force, 0.08-2.5 mm² (AWG 28-14), strip 8-9 mm
- Dimensions (W x H x D)
- 12 x 100 x 68 mm
- Weight
- Approx. 50 g each
- Mounting
- 35 mm DIN rail (EN 60715)
- Operating temperature
- -25 to +60 °C
- Markings (label)
- CE, GL, UL Listed, II 3G KEMA 02ATEX1235 X EEx nA II T4
- Country of origin (label)
- Germany
- Condition
- Used
This is a lot of 20 Beckhoff KL9185 potential distribution terminals: 12 mm Bus Terminals that give you four 24 V DC and four 0 V DC spring-force connection points on the terminal strip. Beckhoff states that the KL9185 lets the supply voltage be accessed several times, so you do not need extra terminal blocks next to the I/O. Each module front is marked KL9185 BECKHOFF, and the side label reads Power Distribution Terminal, No K-Bus Function, Made in Germany.
How does a potential distribution terminal work?
The KL9185 picks up the 24 V and 0 V from the power contacts of the Bus Terminal strip and brings them out to terminal points 1-8, marked 24V (red) and 0V (blue) on the front. It has no process data (0 bits in the process image) and does not take part in K-bus communication; the K-bus is only looped through to the next terminal. Beckhoff rates the current load at up to 10 A.
KL9185 vs KL9186, KL9187 and KL9184
They are all Beckhoff KL9xxx potential distribution terminals. Per Beckhoff: KL9185 = 4 x 24 V DC and 4 x 0 V DC; KL9186 = 8 x 24 V DC; KL9187 = 8 x 0 V DC; KL9184 = 8 x 24 V DC and 8 x 0 V DC. Pick the one that matches how many 24 V and 0 V points you need.
What do the markings say?
The side label on the module in the photos shows KL9185 0000, serial number 52060001, CE, GL and UL Listed marks, AWG 28-14, and the Ex marking II 3G KEMA 02ATEX1235 X EEx nA II T4.
What is in the lot?

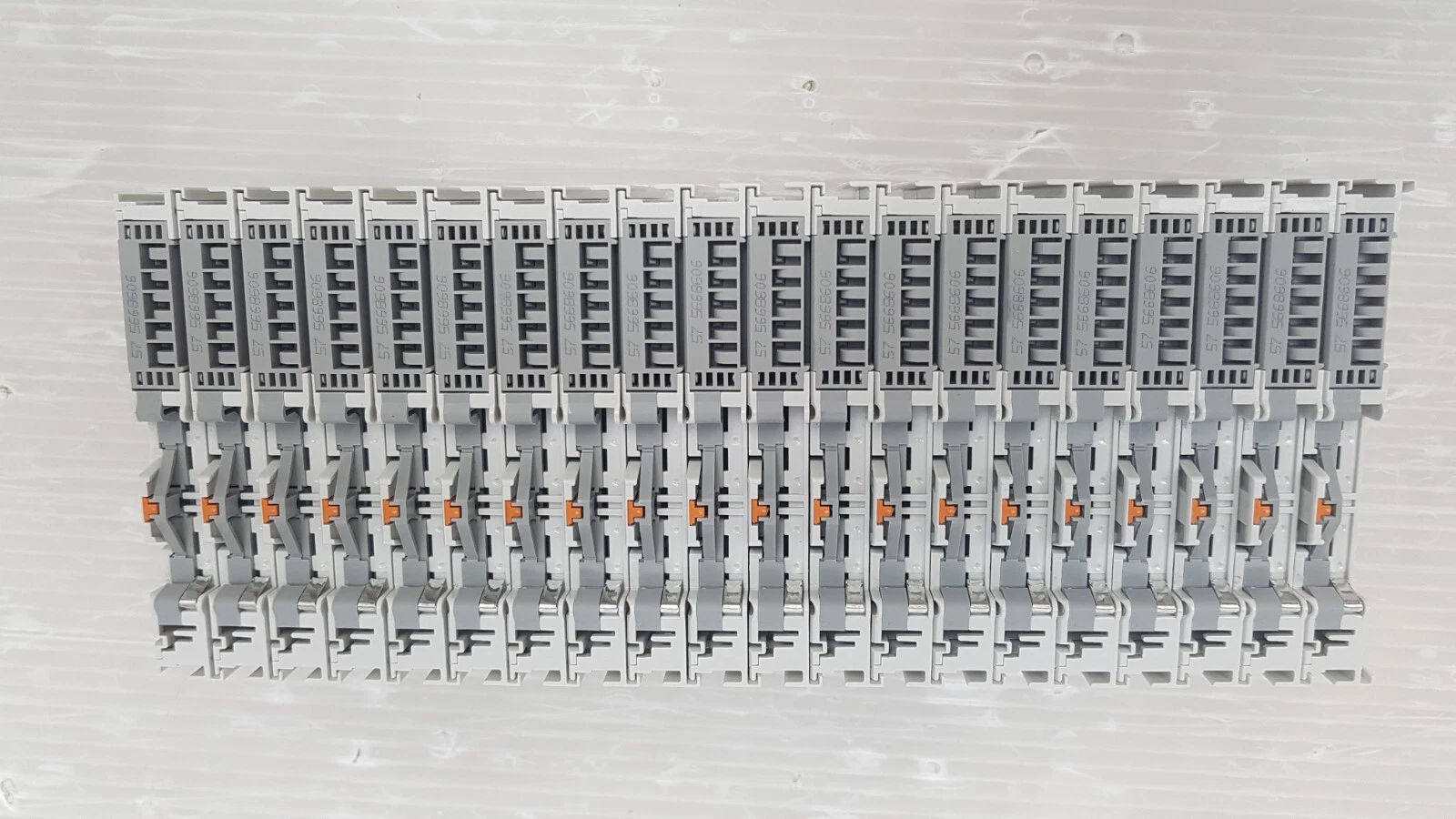

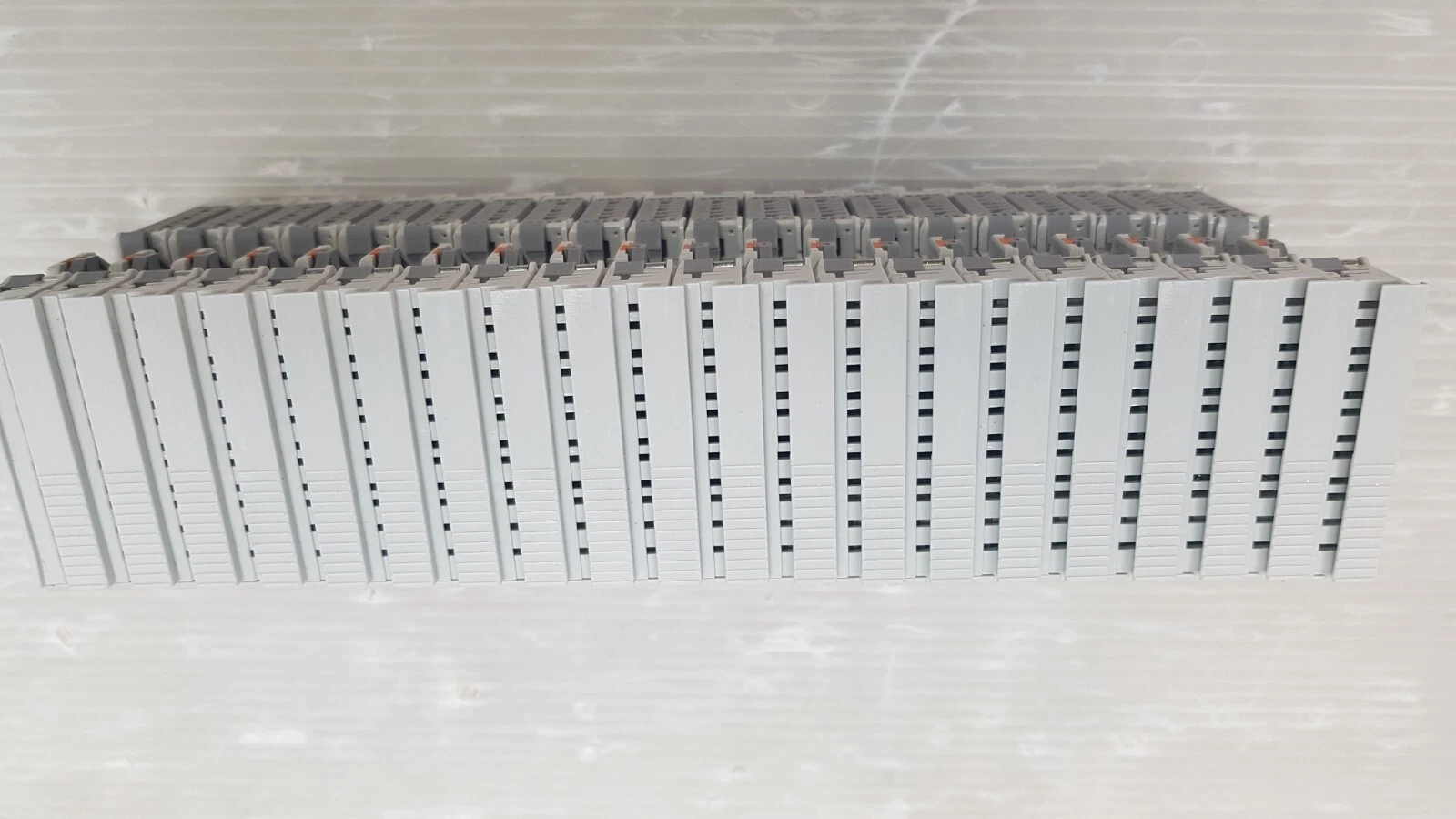

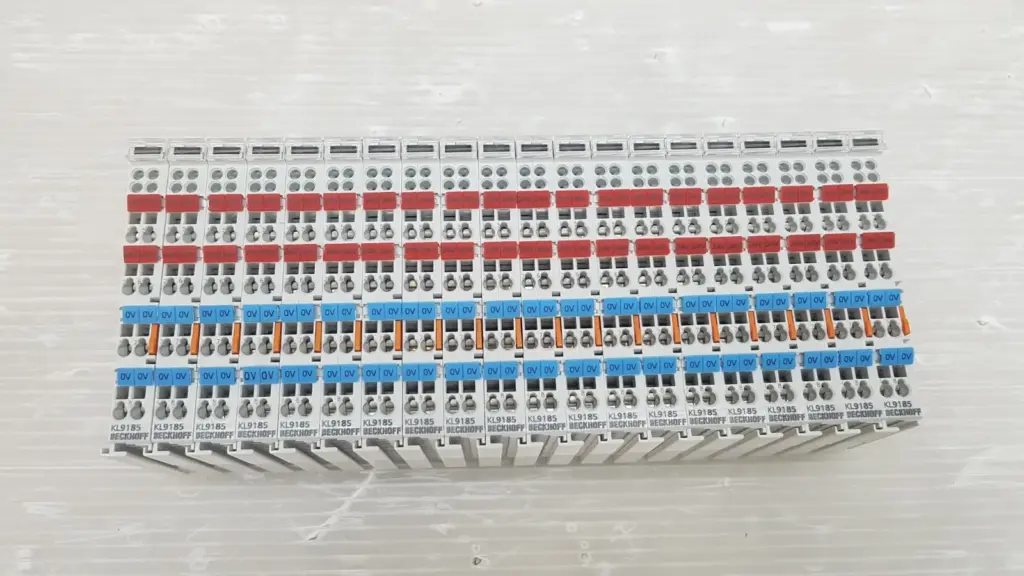

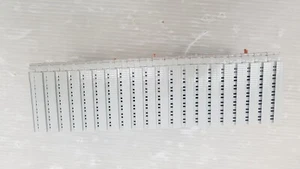

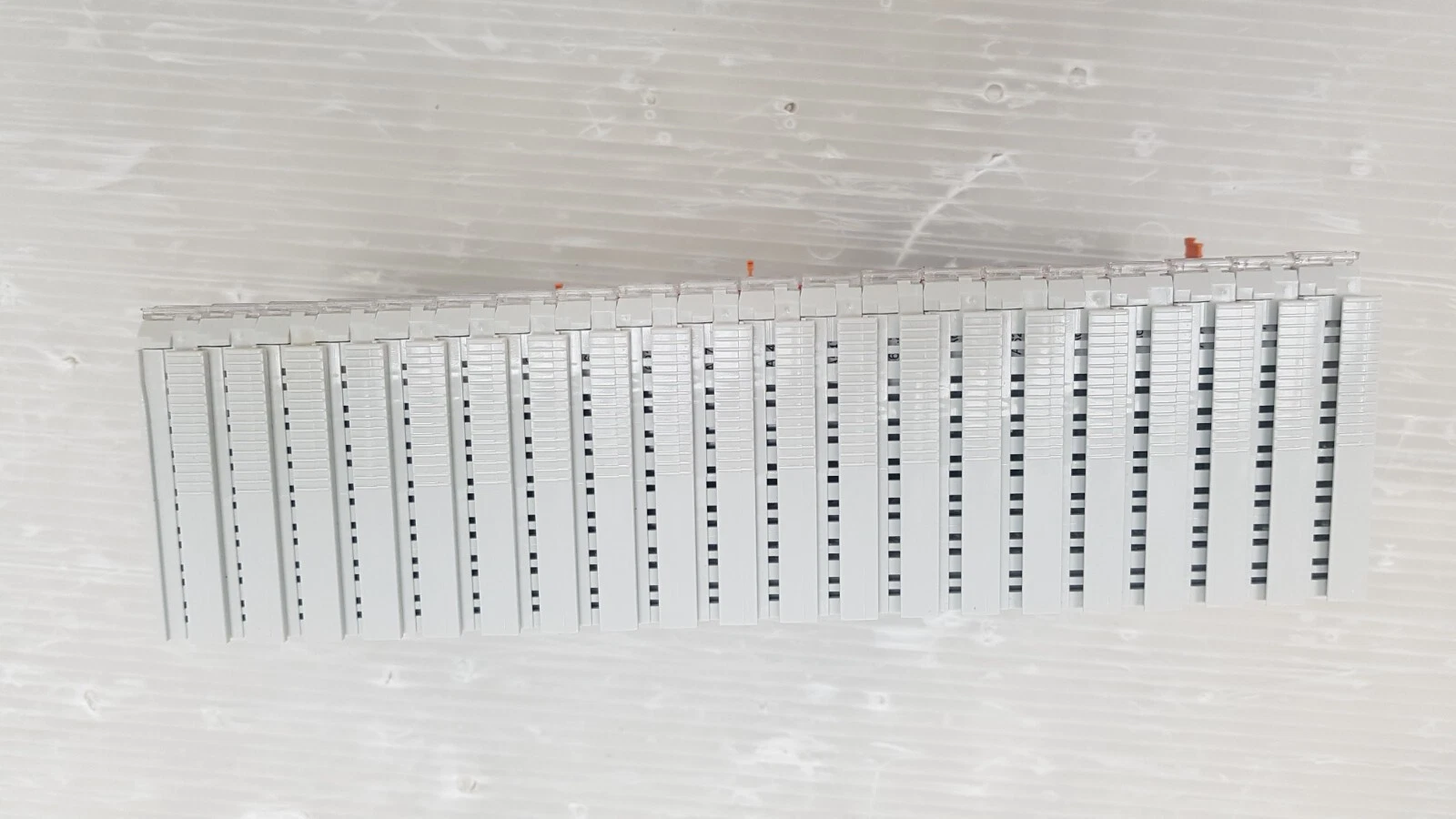

20 KL9185 terminals, photographed clipped together side by side, with the colored 24V / 0V markers on the fronts. The warehouse label reads Qty. 20. Condition: used.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 30 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Beckhoff KL9185?
A 12 mm Bus Terminal that distributes the supply voltage: four 24 V DC and four 0 V DC spring-force connection points, up to 10 A.
How does a potential distribution terminal work?
It takes 24 V and 0 V from the power contacts of the terminal strip and brings them out to front terminal points, so field devices can be wired without extra terminal blocks. It has no I/O data.
Does the KL9185 need a bus coupler address or configuration?
No. It has 0 bits in the process image and no K-bus function; the K-bus is only looped through to the next terminal.
What is the difference between the KL9185 and KL9186?
Per Beckhoff, the KL9185 has 4 x 24 V DC and 4 x 0 V DC points, while the KL9186 has 8 x 24 V DC points.
What wire sizes does it take?
Solid or stranded 0.08-2.5 mm² (AWG 28-14), or 0.14-1.5 mm² with ferrule, stripped 8-9 mm.
How many terminals are included?
20 KL9185 terminals, as shown in the photos and on the warehouse label (Qty. 20).
