Photos show the actual item you will receive.
Product details
About this part
The 31PCS Beckhoff KL1114 Digital Input Module is made by Beckhoff and identified by manufacturer part number KL1114.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × 31PCS Beckhoff KL1114 Digital Input Module.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Beckhoff), the part number (KL1114) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Beckhoff
- Part number
- KL1114
- Model
- KL1114
- Country of Origin
- Germany
- Manufacturer
- Beckhoff Automation, Verl, Germany
- Type
- Bus Terminal, 4-channel digital input
- Nominal voltage
- 24 V DC (-15%/+20%)
- Input filter
- typ. 0.2 ms
- Signal voltage
- "0": -3 to +5 V, "1": 15 to 30 V
- Input current
- typ. 5 mA
- Connection
- 2-/3-wire, spring clamp, 0.08 to 2.5 mm² (AWG 28-14)
- Electrical isolation
- 500 V (K-bus / field potential)
- Dimensions (W x H x D)
- 12 x 100 x 68 mm
- Mounting
- 35 mm DIN rail (EN 60715)
- Operating temperature
- -25 to +60 °C
- Markings (label)
- CE, UL Listed, GL, ATEX II 3G EEx nA II T4 (KEMA 02ATEX1235 X)
- Quantity in lot
- 31 modules (per product name)
This is a lot of 31 Beckhoff KL1114 Bus Terminals, each a 4-channel digital input module for 24 V DC signals with a 0.2 ms input filter and 2-/3-wire connection. The KL1114 reads binary 24 V DC control signals from sensors and switches in the field and passes them, electrically isolated, to the controller over the Beckhoff K-bus. Each channel has a green LED that shows its signal state.

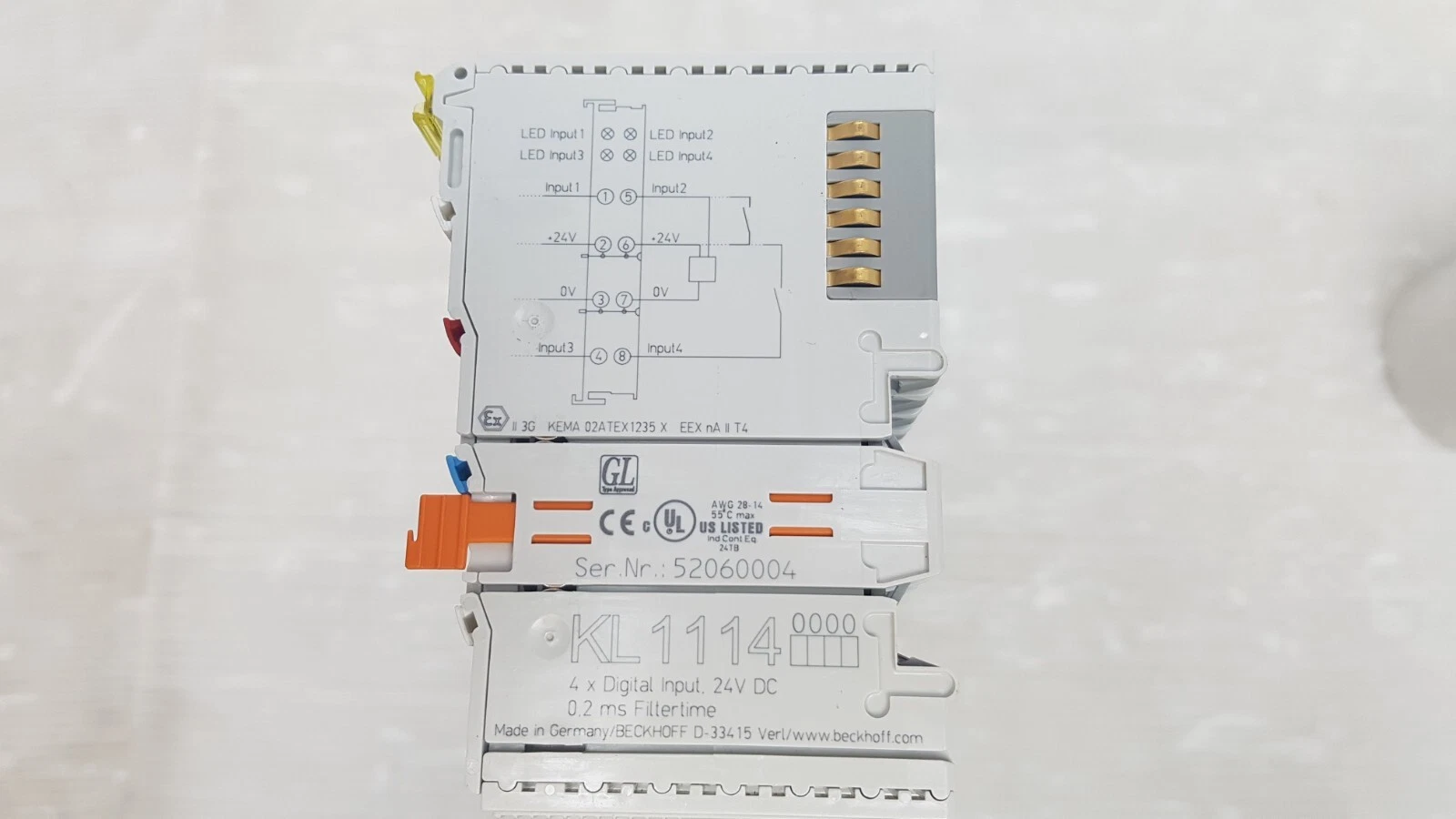

What does the module label say?
KL1114, 4 x Digital Input, 24V DC, 0.2 ms Filtertime, Made in Germany, Beckhoff D-33415 Verl. The side print shows the wiring for Input 1 to Input 4, +24V and 0V, and the markings CE, UL Listed, GL and ATEX II 3G KEMA 02ATEX1235 X EEx nA II T4. One module in the photos shows serial number 52060004.
How is the KL1114 wired?
Each terminal has 8 spring-clamp points: 4 inputs, plus +24 V and 0 V contacts so a 2- or 3-wire sensor can be powered from the same terminal. The +24 V and 0 V come from the power contacts that run through the terminal row, so no extra supply wiring is needed per module.
What is a Beckhoff Bus Terminal?
A Beckhoff Bus Terminal is a slim I/O module that snaps onto a 35 mm DIN rail next to a Bus Coupler or Embedded PC. The terminals connect to each other through the K-bus contacts on the side, and the row is closed with a bus end terminal such as the KL9010.

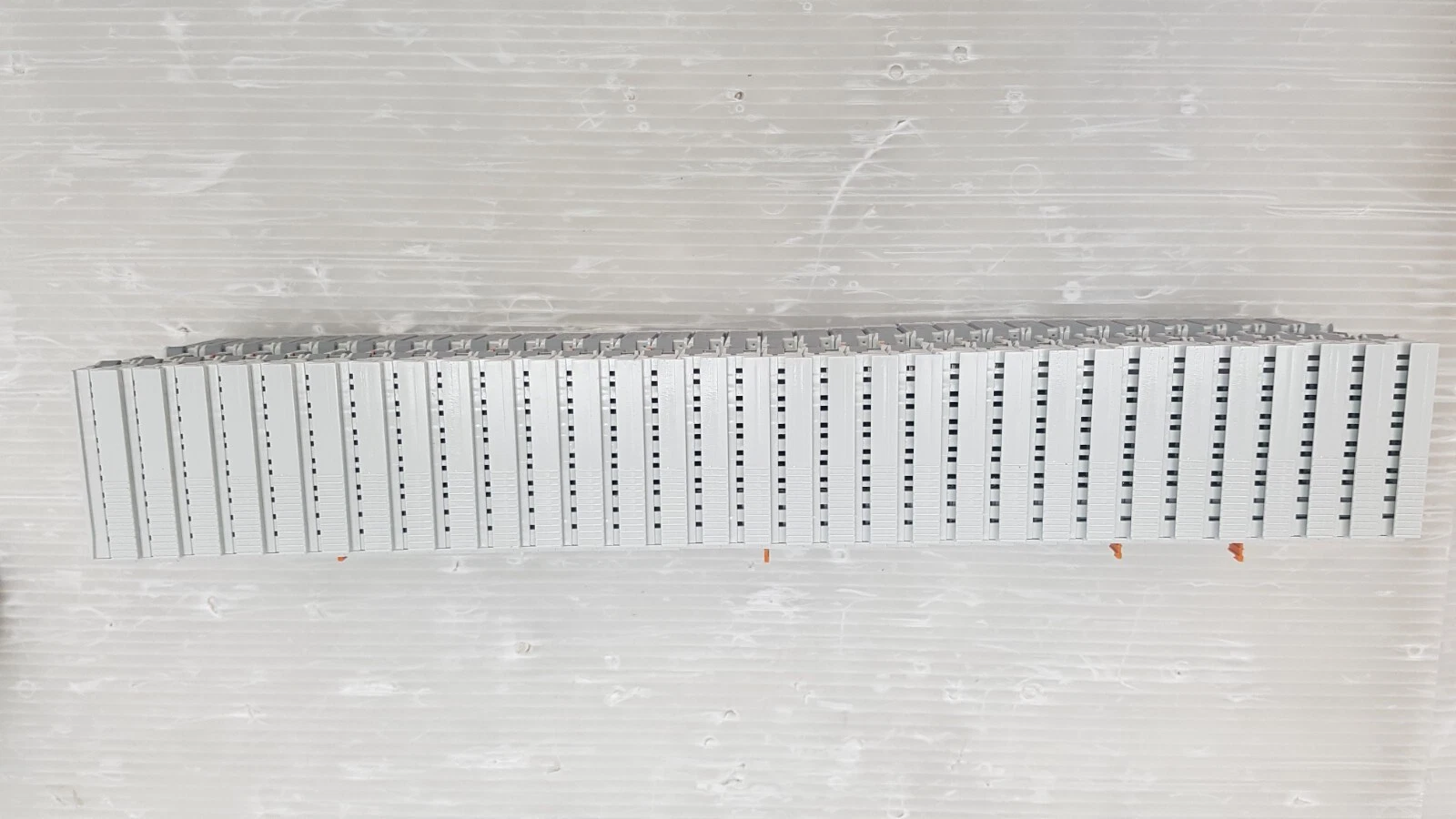

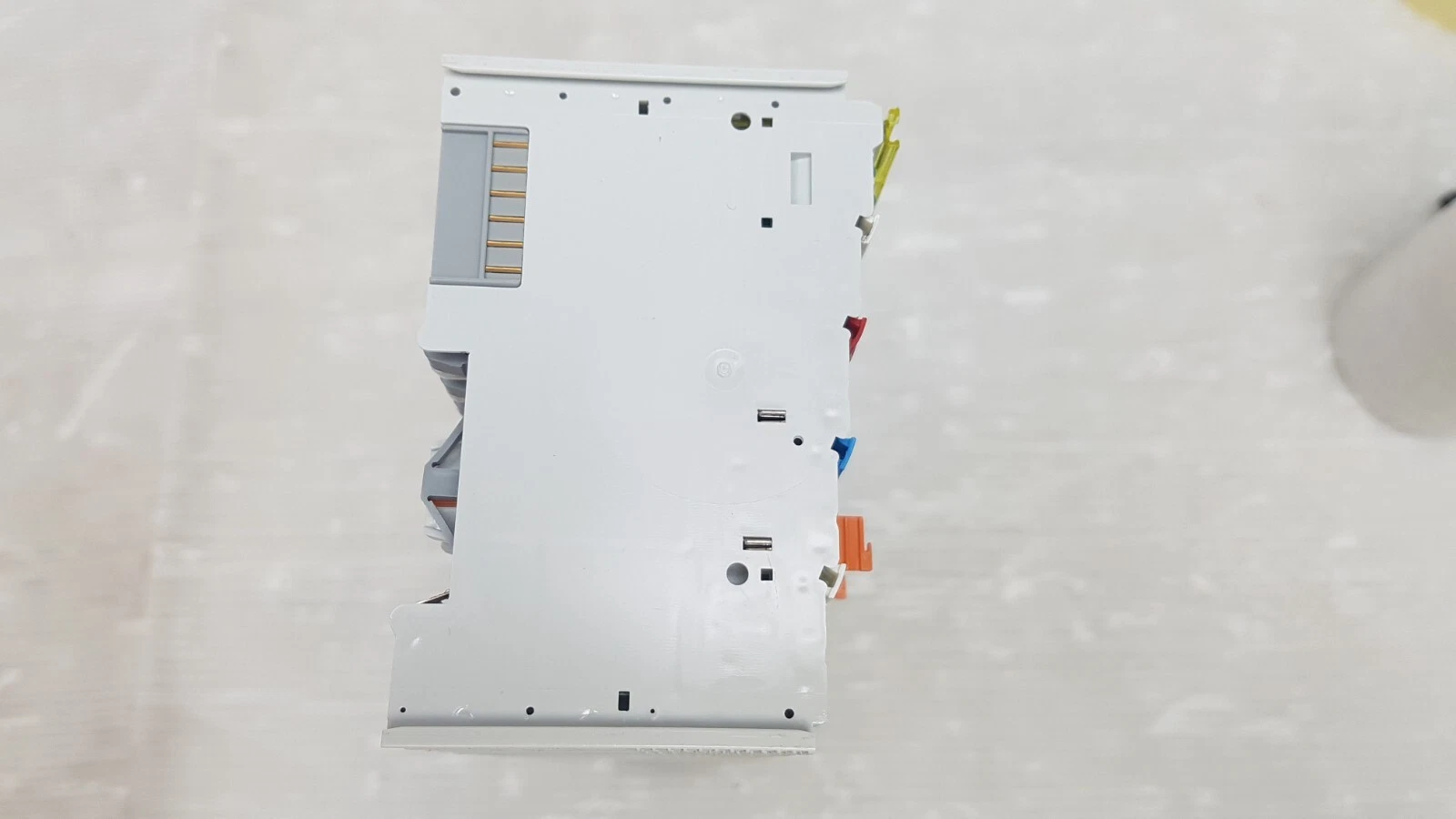

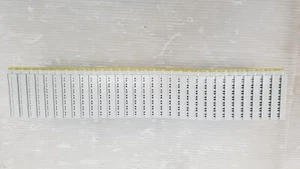

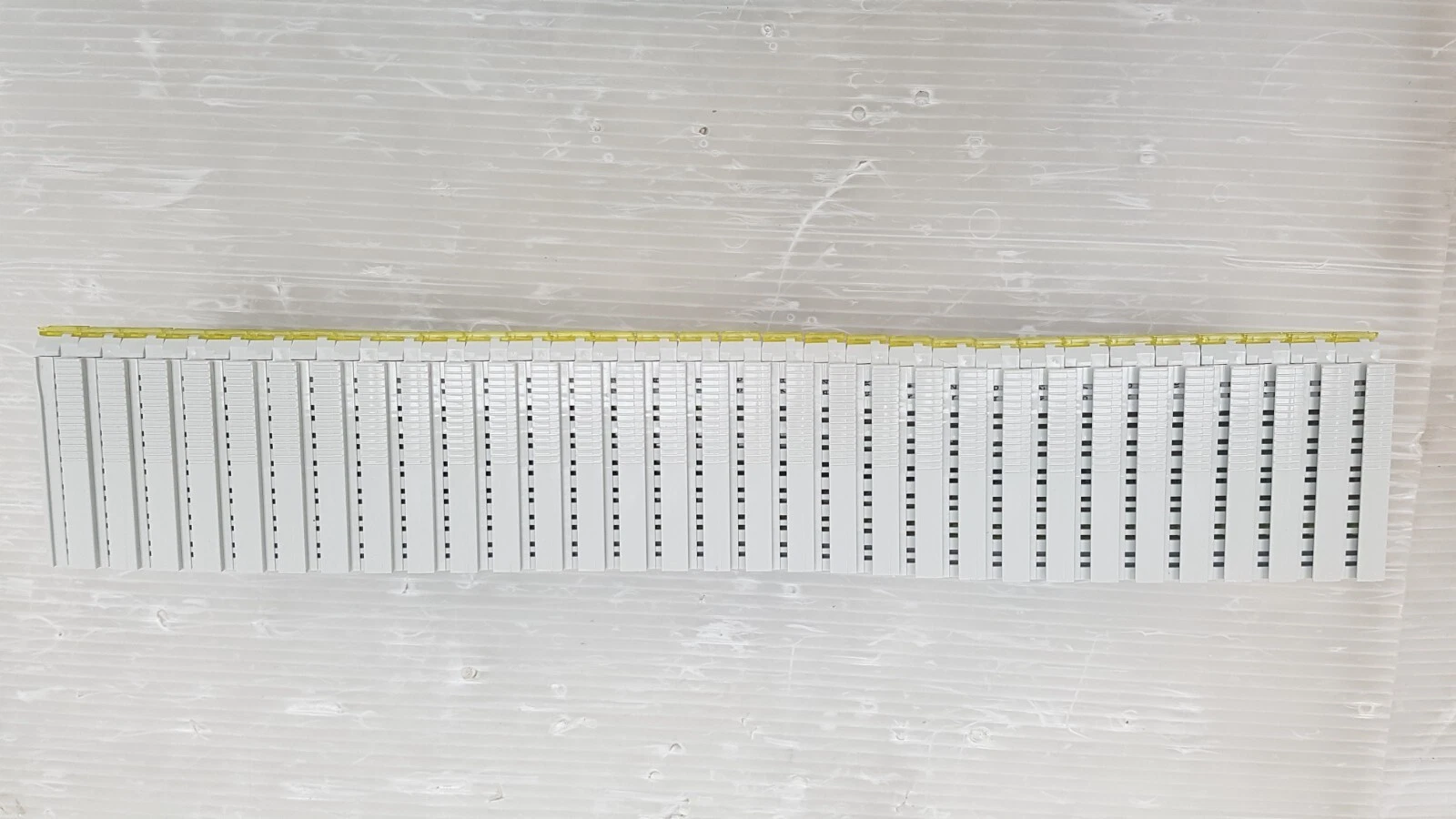

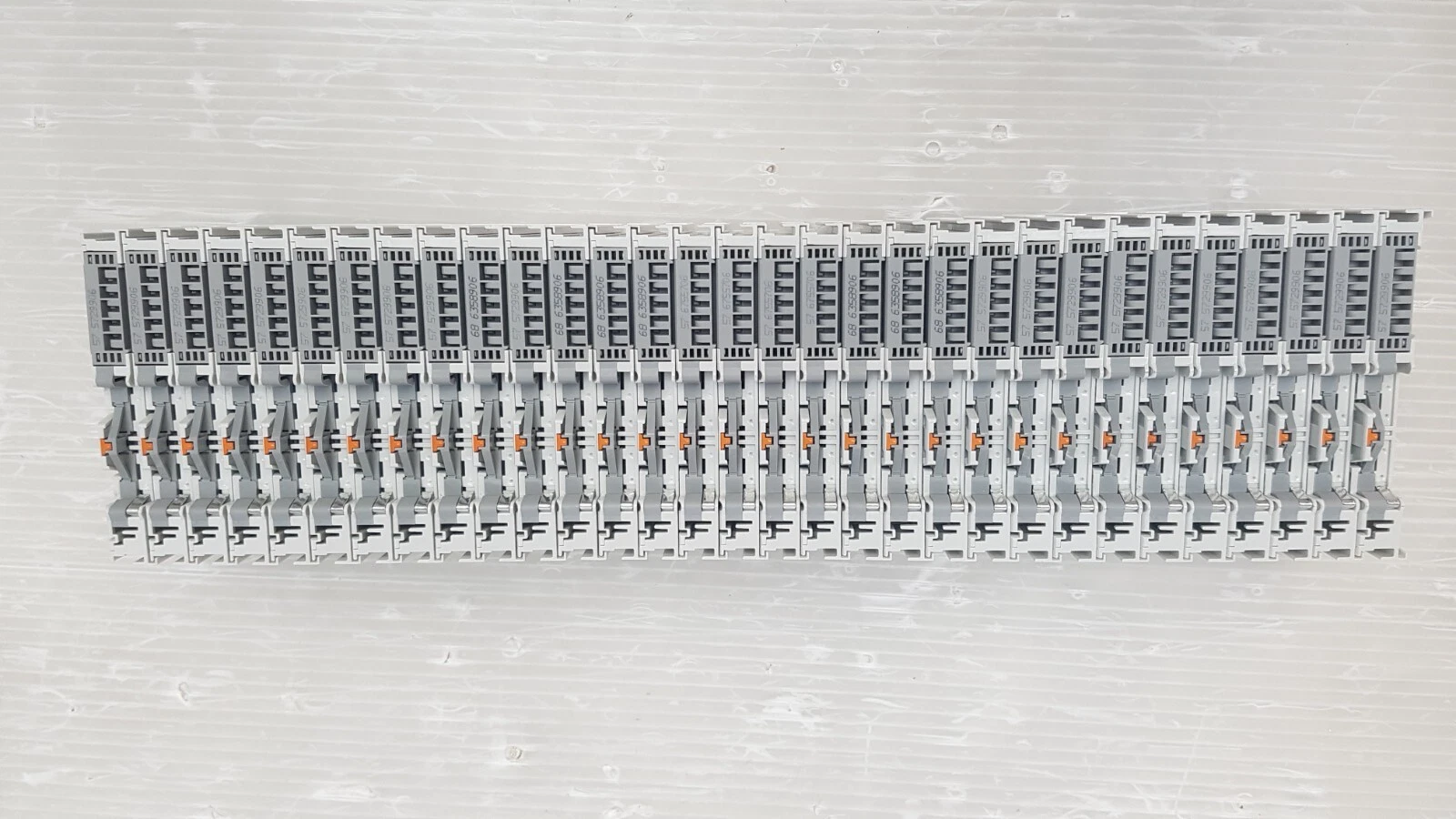

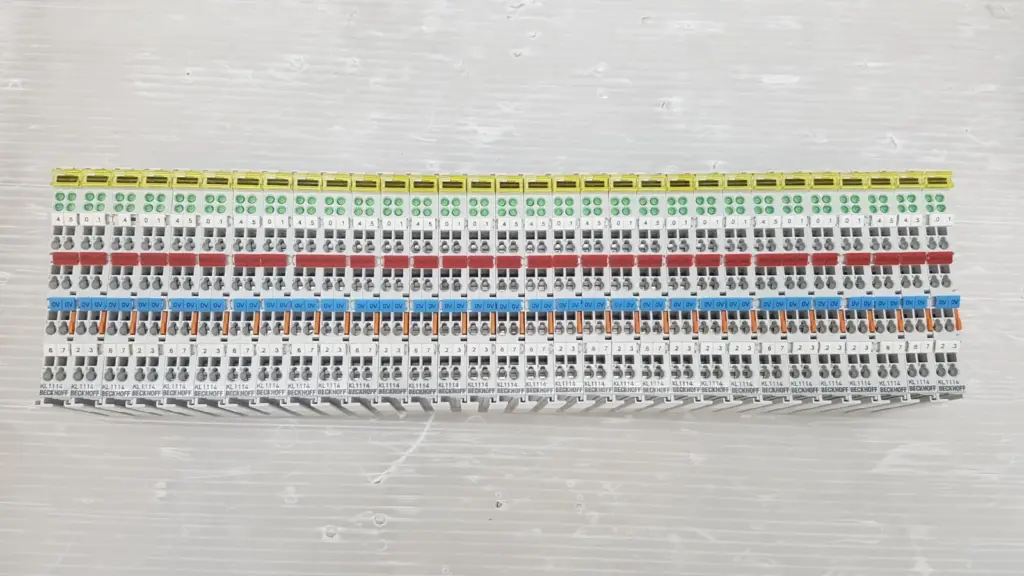

What is in the photos?
The 31 terminals side by side, from the front, top, bottom and back, and close-ups of one module's side label and its K-bus contacts. Condition: used.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 30 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Beckhoff KL1114?
A Beckhoff Bus Terminal with 4 digital inputs for 24 V DC signals, a 0.2 ms input filter and 2-/3-wire connection.
How many modules are in this lot?
31 KL1114 terminals, as stated in the product name.
What is the input filter time?
Typically 0.2 ms, as printed on the label ("0.2 ms Filtertime").
Can I power 3-wire sensors from it?
Yes. Each terminal has +24 V and 0 V contacts next to the inputs, fed from the power contacts of the terminal row.
What is the Beckhoff K-bus?
The internal bus that links Bus Terminals to the Bus Coupler or controller through the contacts on the side of each terminal.
What do I need to use these terminals?
A Beckhoff Bus Coupler or Embedded PC with K-bus, a 24 V DC supply on the power contacts, and a bus end terminal such as the KL9010.
What condition are they in?
Used.
