Photos show the actual item you will receive.
Product details
About this part
The 7PCS BECKHOFF KL3002 2-CHANNEL ANALOG INPUT MODULE is made by Beckhoff and identified by manufacturer part number KL3002.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × 7PCS BECKHOFF KL3002 2-CHANNEL ANALOG INPUT MODULE.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Beckhoff), the part number (KL3002) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Beckhoff
- Part number
- KL3002
- Model
- KL3002
- Country of Origin
- Germany
- Quantity in lot
- 7 terminals (as pictured)
- Inputs
- 2, differential
- Signal range
- -10 to +10 V
- Resolution
- 12 bit (11 bit for 0-10 V range)
- Internal resistance
- > 200 kΩ
- Common-mode voltage
- 35 V max
- Conversion time
- ~2 ms
- Electrical isolation
- 500 V (K-bus / signal voltage)
- Power / K-bus current
- Via the K-bus, typ. 65 mA
- Process image
- Input 2 x 16 bit data (2 x 8 bit control/status optional)
- Mounting / housing

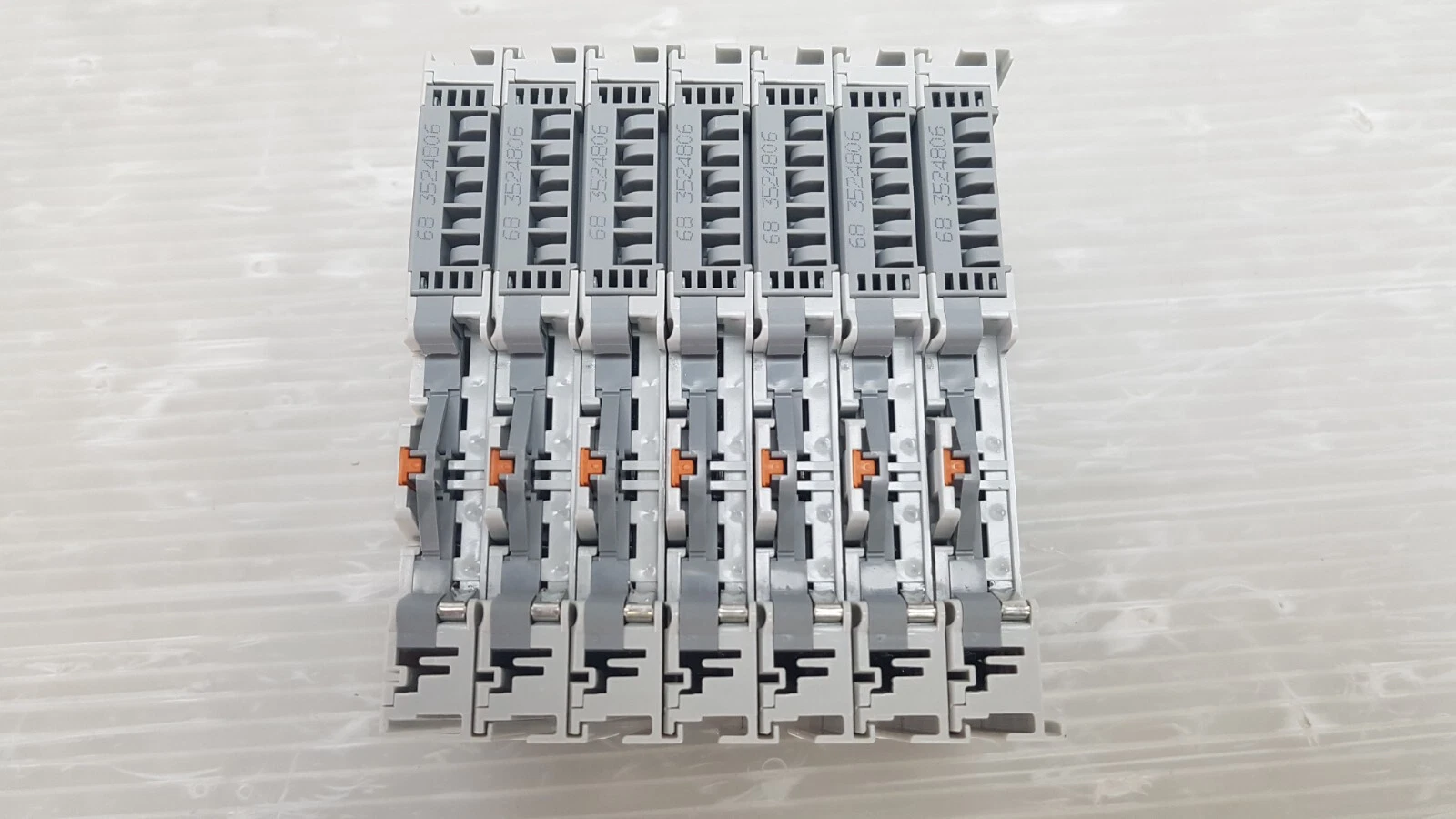

- 35 mm DIN rail, IP20, approx. 70 g each
- Operating temperature
- -25 to +60 °C
- Markings (label)
- CE, UL Listed, Ex II 3G KEMA 02ATEX1235 X EEx nA II T4, Made in Germany

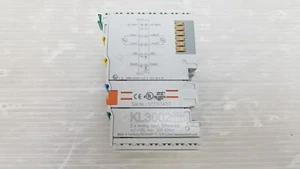

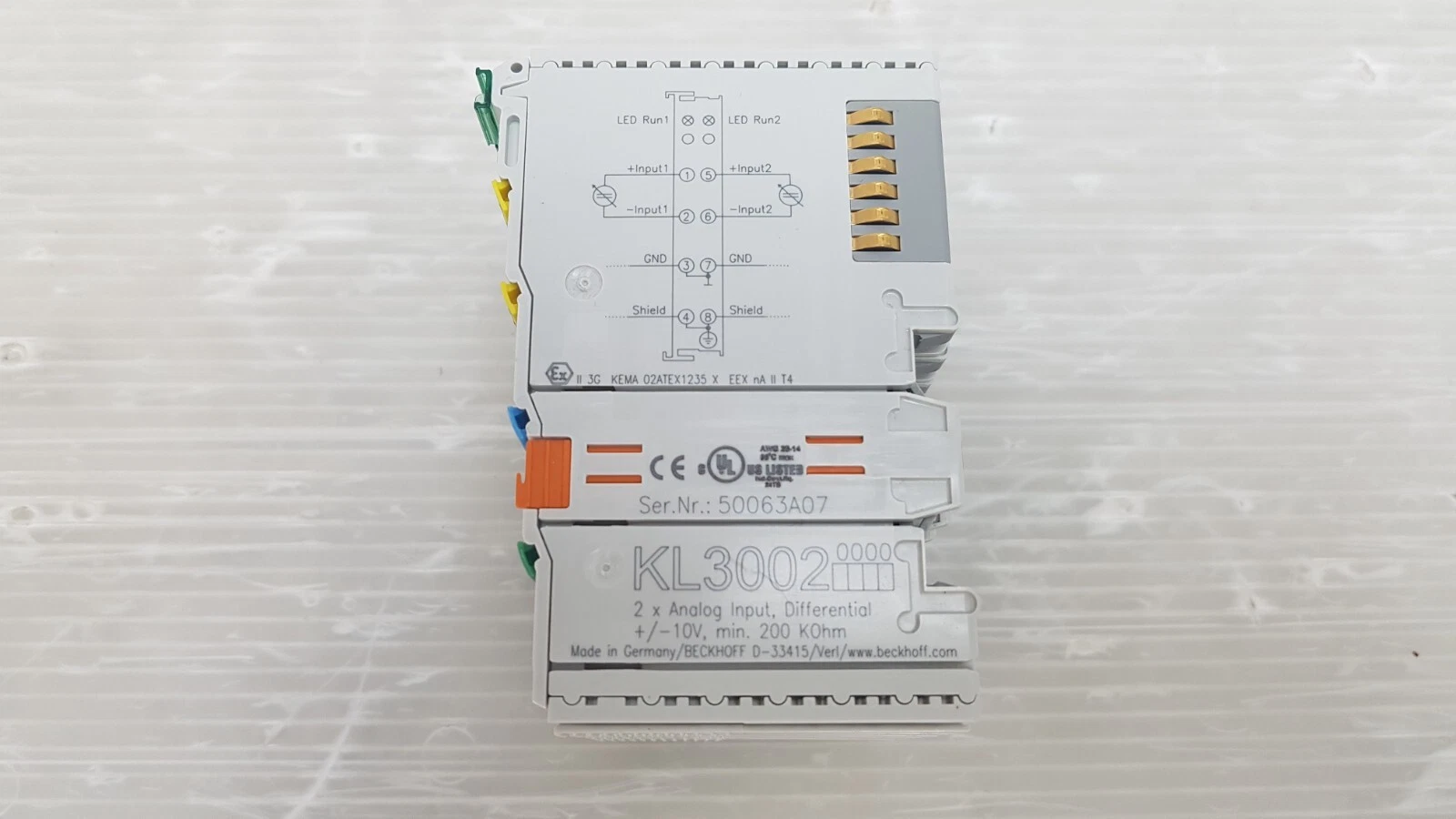

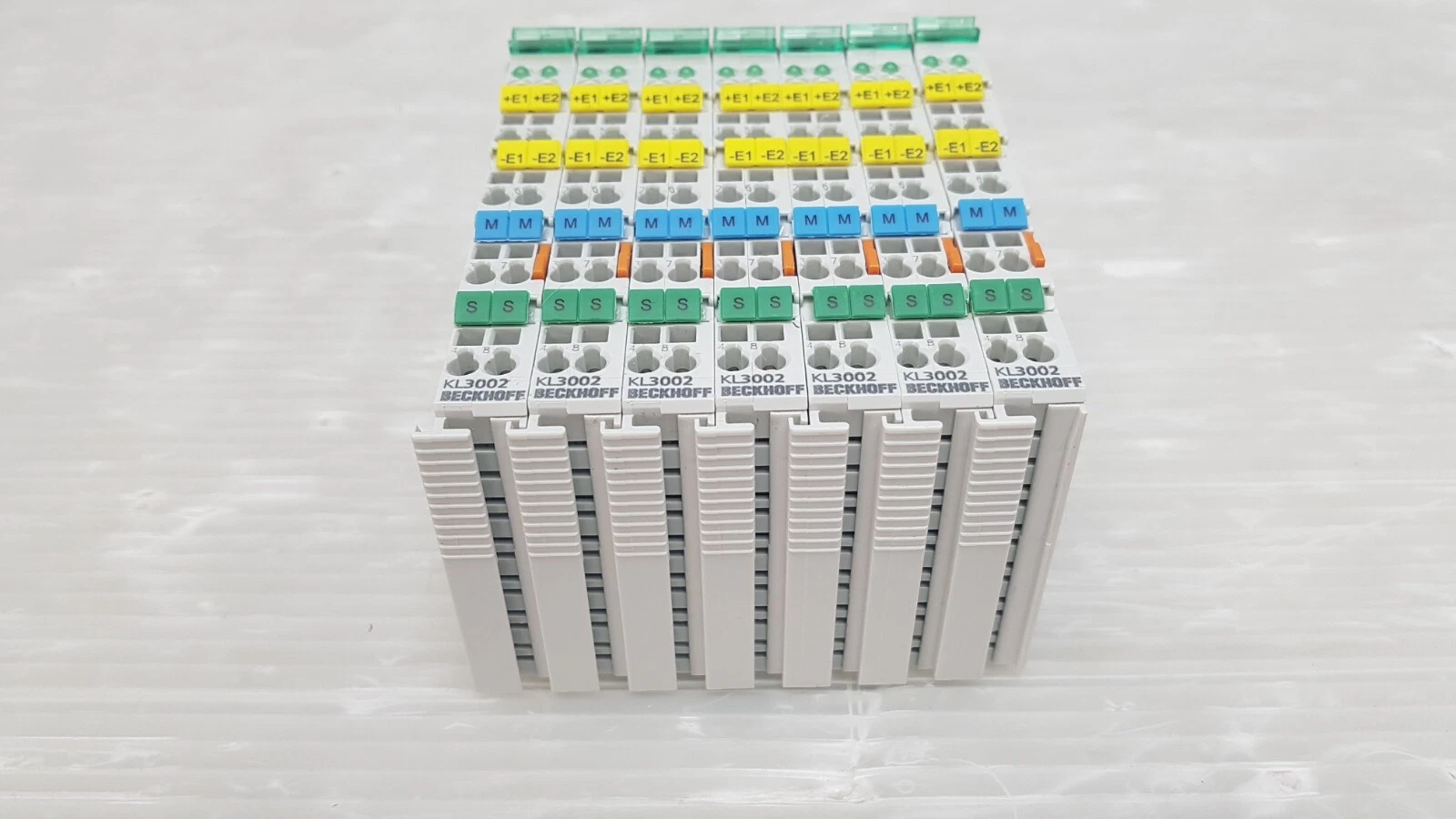

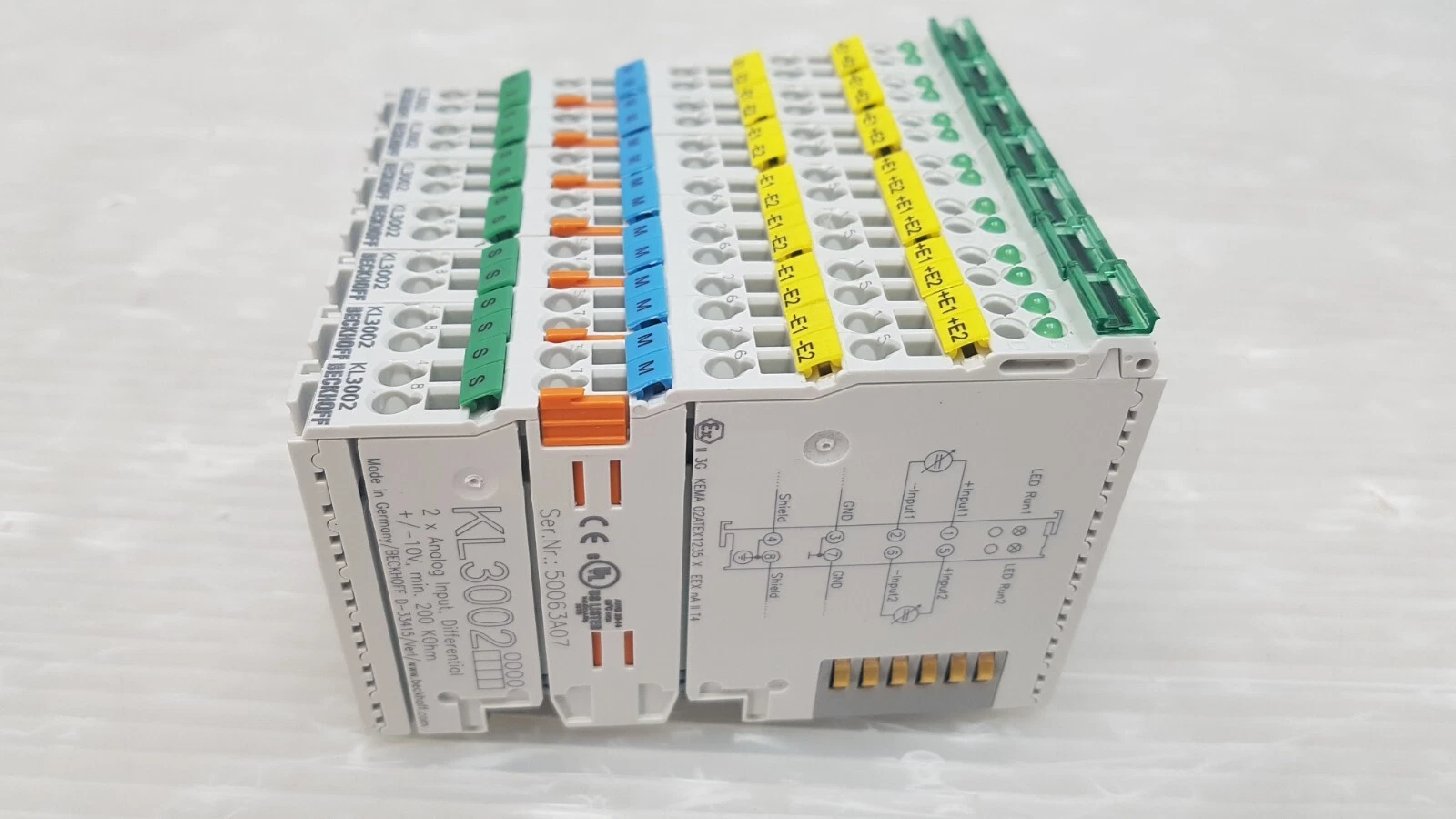

This lot is seven Beckhoff KL3002 Bus Terminals, each a 2-channel analog input module for -10 to +10 V signals with differential inputs and 12-bit resolution. The KL3002 sits in a Beckhoff Bus Terminal row on a 35 mm DIN rail, gets its power over the K-bus and passes the digitized values, electrically isolated, to the Bus Coupler. Side label: KL3002-0000, "2 x Analog Input, Differential +/-10V, min. 200 KOhm", Made in Germany. Condition: used.
How is the KL3002 wired?

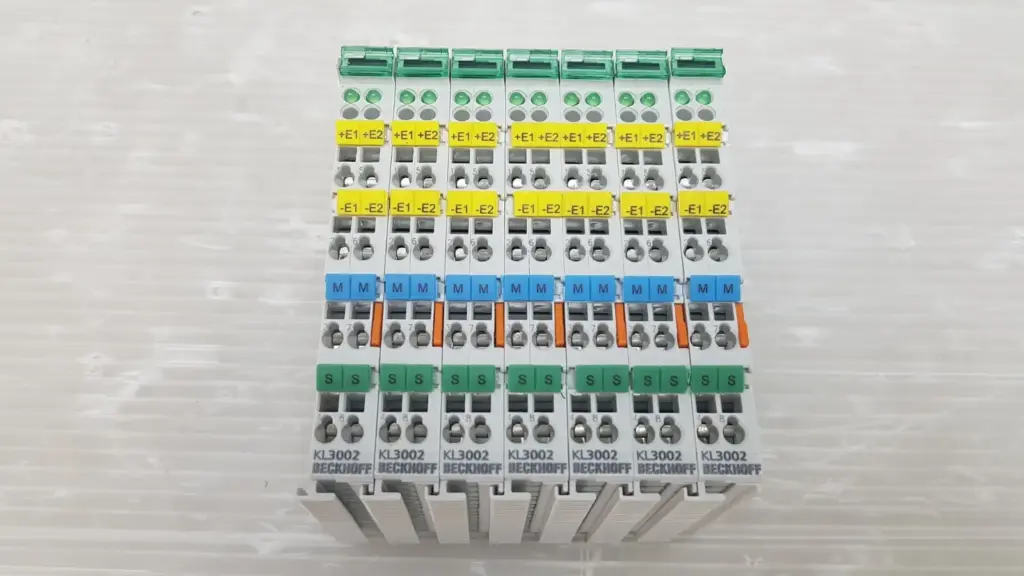

Per the side print, terminal points 1 and 5 are +Input1 and +Input2, 2 and 6 are -Input1 and -Input2, 3 and 7 are GND, and 4 and 8 are Shield. Two green LEDs (Run1, Run2) show data exchange with the Bus Coupler. Each terminal in the photos has yellow +E1/+E2 and -E1/-E2, blue M and green S marker tags fitted.
What is the difference between a differential and a single-ended analog input?
A differential input measures the voltage between its own + and - wires, so it rejects noise and ground offsets that appear on both wires. A single-ended input measures each signal against a shared ground. Beckhoff gives the KL3002 a common-mode voltage limit of 35 V max; its two channels share a common internal ground potential.
What do I need to run it?
The KL3002 is a K-bus terminal (KL series), so it needs a Beckhoff Bus Coupler or Bus Terminal Controller at the head of the row and a bus end terminal at the end. Beckhoff states no address or configuration setting is needed on the terminal; each channel delivers 16-bit data in the process image.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 30 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Beckhoff KL3002?
A Bus Terminal with two differential analog inputs for -10 to +10 V, digitized at 12 bits and passed, electrically isolated, to the Bus Coupler over the K-bus.
How many modules are included?
Seven KL3002 terminals, as shown in the photos.
Differential vs single-ended analog input: which is the KL3002?
Differential. Each channel measures between its + and - terminal, which rejects common noise; common-mode voltage is limited to 35 V.
What is the difference between Beckhoff KL and EL terminals?
KL terminals like the KL3002 are K-bus Bus Terminals that connect through a Bus Coupler. EL terminals are Beckhoff's EtherCAT terminal line. Check that your coupler matches the terminal family.
Does it need configuration?
Beckhoff states no address or configuration setting is needed. It takes power from the K-bus.
What wire sizes does it accept?
Spring terminals for 0.08 to 2.5 mm² solid or stranded wire (AWG 28 to 14), or 0.14 to 1.5 mm² with ferrules.
What condition are they in?
Used, with marker tags still fitted.
