Photos show the actual item you will receive.
Product details
About this part
The Beckhoff EL2904 4 Kanal-Digital L-Ausgang 24V Dc/05A EL2904 Ethercat - Terminal is made by Beckhoff and identified by manufacturer part number EL2904.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Beckhoff EL2904 4 Kanal-Digital L-Ausgang 24V Dc/05A EL2904 Ethercat - Terminal.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Beckhoff), the part number (EL2904) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Beckhoff
- Part number
- EL2904
- Model
- EL2904
- Type
- TwinSAFE EtherCAT terminal, digital output
- Outputs
- 4 fail-safe digital outputs
- Rated voltage
- 24 V DC
- Output current
- 0.5 A per channel (min. 20 mA with active current measurement)
- Protocol
- TwinSAFE / Safety over EtherCAT (FSoE)
- Safety level
- SIL 3 (EN 61508:2010), Cat. 4, PL e (DIN EN ISO 13849-1:2008)
- Connection
- 1-wire / 2-wire, AWG 28-14 (label)
- Ex marking (label)
- II 3 G Ex nA IIC T4 Gc, KEMA 10ATEX0075 X, Ta 0-55 °C
- Approvals (label)
- CE, cULus listed Ind. Cont. Eq., TÜV
- Dimensions (W x H x D)
- 24 x 100 x 68 mm
- Weight
- Approx. 100 g
- Serial / date code (label)
- 00988731 / 32160409
- Country of origin (label)
- Germany

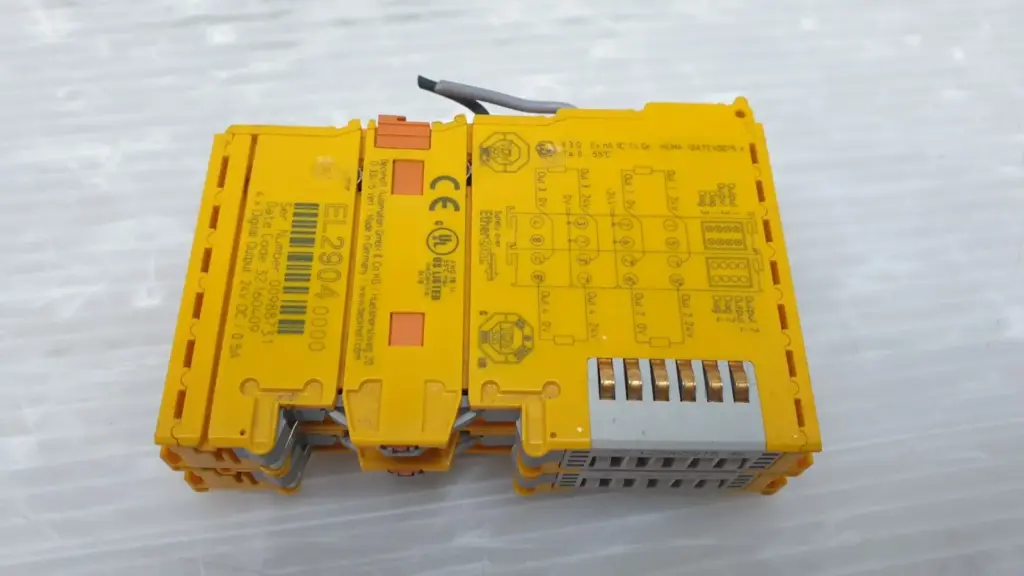

The Beckhoff EL2904 is a TwinSAFE EtherCAT terminal with four fail-safe digital outputs for 24 V DC actuators at up to 0.5 A per channel. Its outputs are controlled over Safety over EtherCAT (FSoE) by a TwinSAFE Logic-capable component, and it switches off on error (fail-stop). Beckhoff rates it for SIL 3 (EN 61508) and Category 4, PL e (EN ISO 13849-1). The side label reads EL2904 0000, "4 x Digital Output 24V DC / 0.5A".
What do the labels say?
EL2904 0000, serial number 00988731, date code 32160409, Beckhoff Automation GmbH & Co KG, Verl, made in Germany. The front carries the Safety over EtherCAT logo, TÜV marks, CE, cULus listed (Ind. Cont. Eq.), wire size AWG 28-14, and the ATEX marking II 3 G Ex nA IIC T4 Gc, KEMA 10ATEX0075 X, Ta 0-55 °C.
How does a TwinSAFE output terminal work?
The EL2904 sits in an EtherCAT terminal segment like any other I/O terminal, but its outputs only switch when a TwinSAFE logic sends valid safety telegrams. Safety parameters are not stored in the terminal; the TwinSAFE logic sends them when the safety application starts. Each output can be wired 1-wire or 2-wire, and each channel has its own output and diagnostic LEDs.

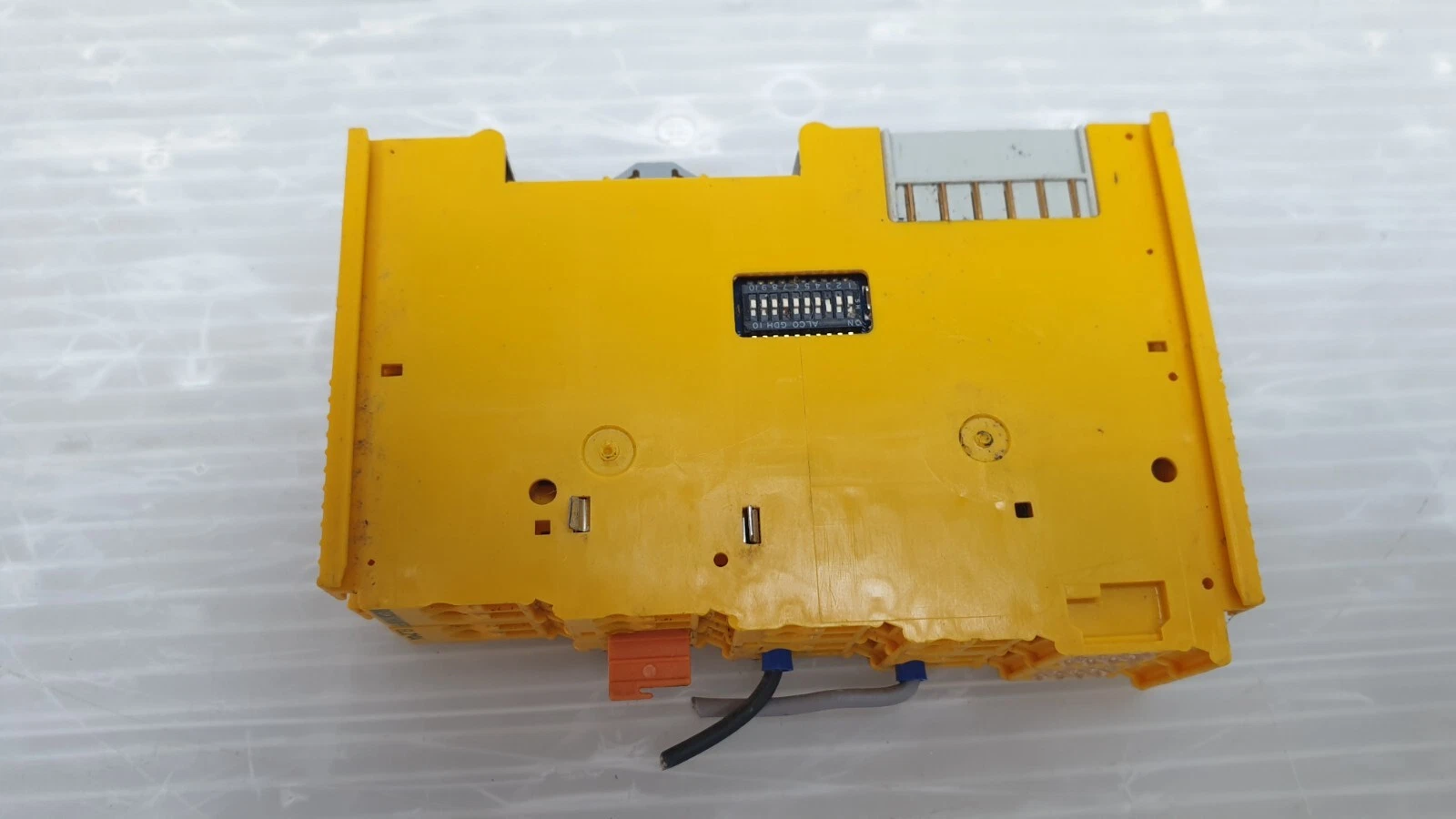

What is the DIP switch on the side for?
It sets the terminal's FSoE (TwinSAFE) address, which has to match the address in the TwinSAFE project. Beckhoff also describes setting the safe address in software.
What is in the photos?

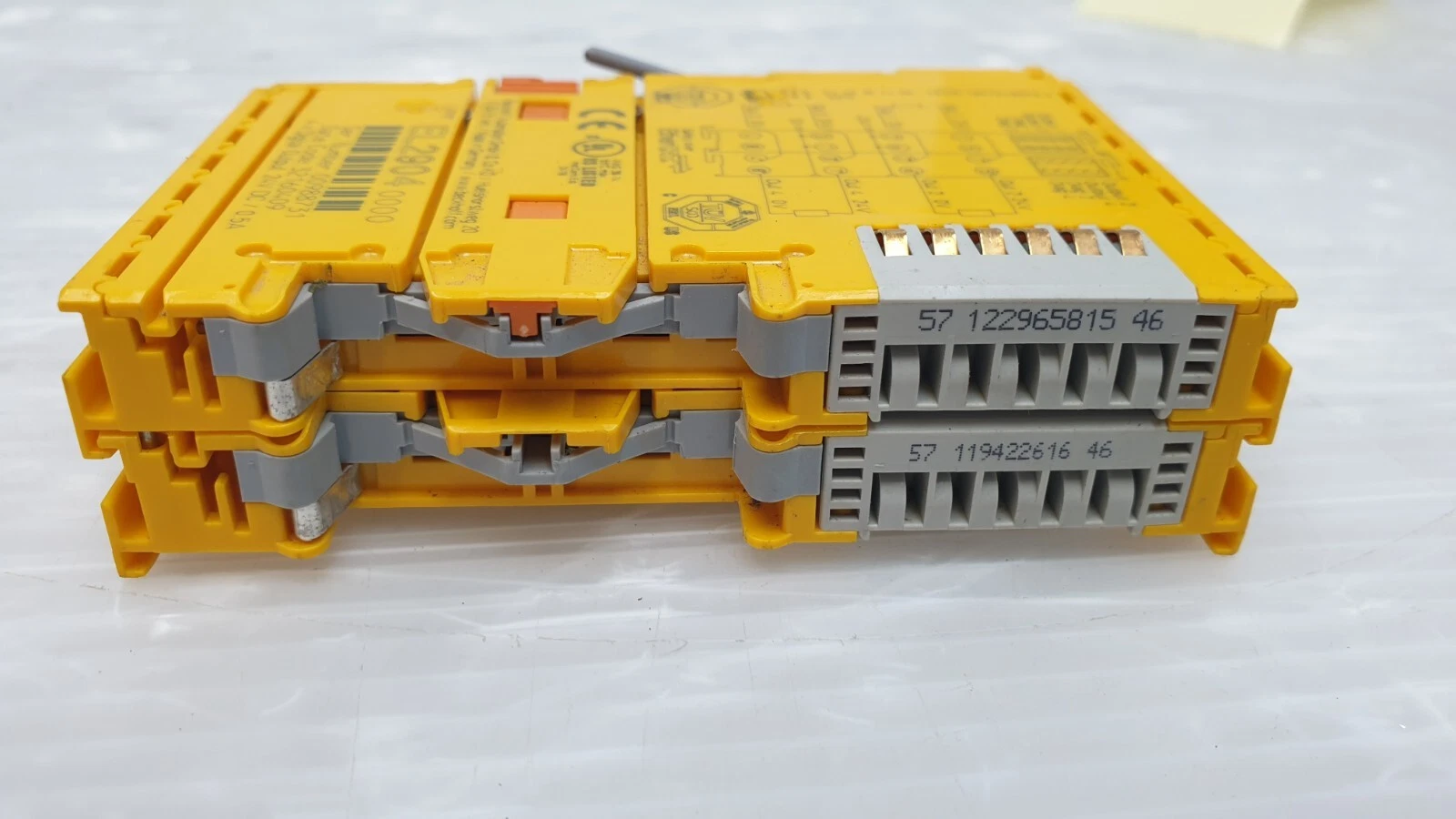

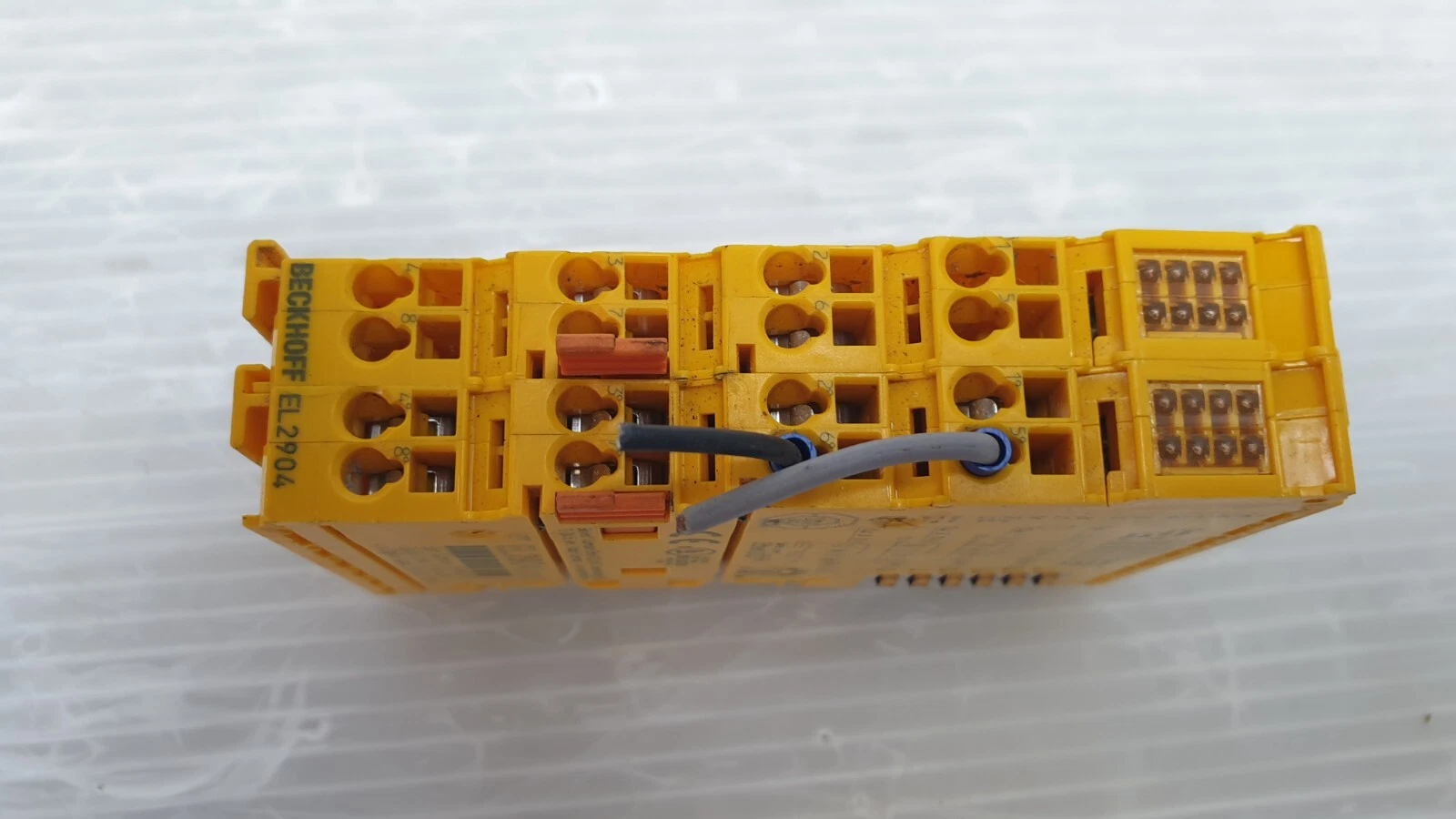

Used EL2904 terminals with grey and black wires in some terminal points. Some photos show two EL2904 terminals together; please confirm the number of units with us before ordering.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Beckhoff EL2904?
A TwinSAFE EtherCAT terminal with four fail-safe 24 V DC digital outputs, 0.5 A per channel, controlled over Safety over EtherCAT.
How does a TwinSAFE output terminal work?
A TwinSAFE logic (for example a TwinSAFE logic terminal or a controller with TwinSAFE) sends safety telegrams over EtherCAT. The EL2904 switches its outputs only on valid telegrams and switches off on any error.
What are the Beckhoff EL2904 DIP switch settings for?
The DIP switch sets the terminal's FSoE (TwinSAFE) address. It must match the address configured for this terminal in the TwinSAFE project.
What safety level does it reach?
Beckhoff rates the EL2904 for SIL 3 per EN 61508 and Category 4, PL e per DIN EN ISO 13849-1.
How much current can each output switch?
Up to 0.5 A per channel at 24 V DC. With active current measurement the minimum load current is 20 mA.
Where can I find the Beckhoff EL2904 manual?
Beckhoff publishes the EL2904 operating instructions as a PDF on its download site (document el2904_en.pdf), including wiring diagrams and address setting.
What condition is it in?
Used, with some wires still in the terminal points as shown in the photos.
