Photos show the actual item you will receive.
Product details
About this part
The TR ELECTRONIC CE100M 100-00100/340 ENCODER is made by Tr and identified by manufacturer part number 100-00100/340.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × TR ELECTRONIC CE100M 100-00100/340 ENCODER.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Tr), the part number (100-00100/340) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Tr
- Part number
- 100-00100/340
- Model
- CE100M
- Country of Origin
- Germany
- Type (label)
- CE100M
- Article number
- 100-00100/340
- Steps per revolution
- Programmable, max. 1024
- Revolutions
- Programmable, max. 4096
- Data output
- Parallel, max. 16 bit
- Code
- 8 cams (8 Nocken)
- Output stages
- 1602 push-pull (Gegentakt)
- Options (label)
- PT 100 NSW
- Supply voltage
- 11-27 V
- Label date
- 20.08.93
- Connector
- Rectangular multi-pin connector with locking lever

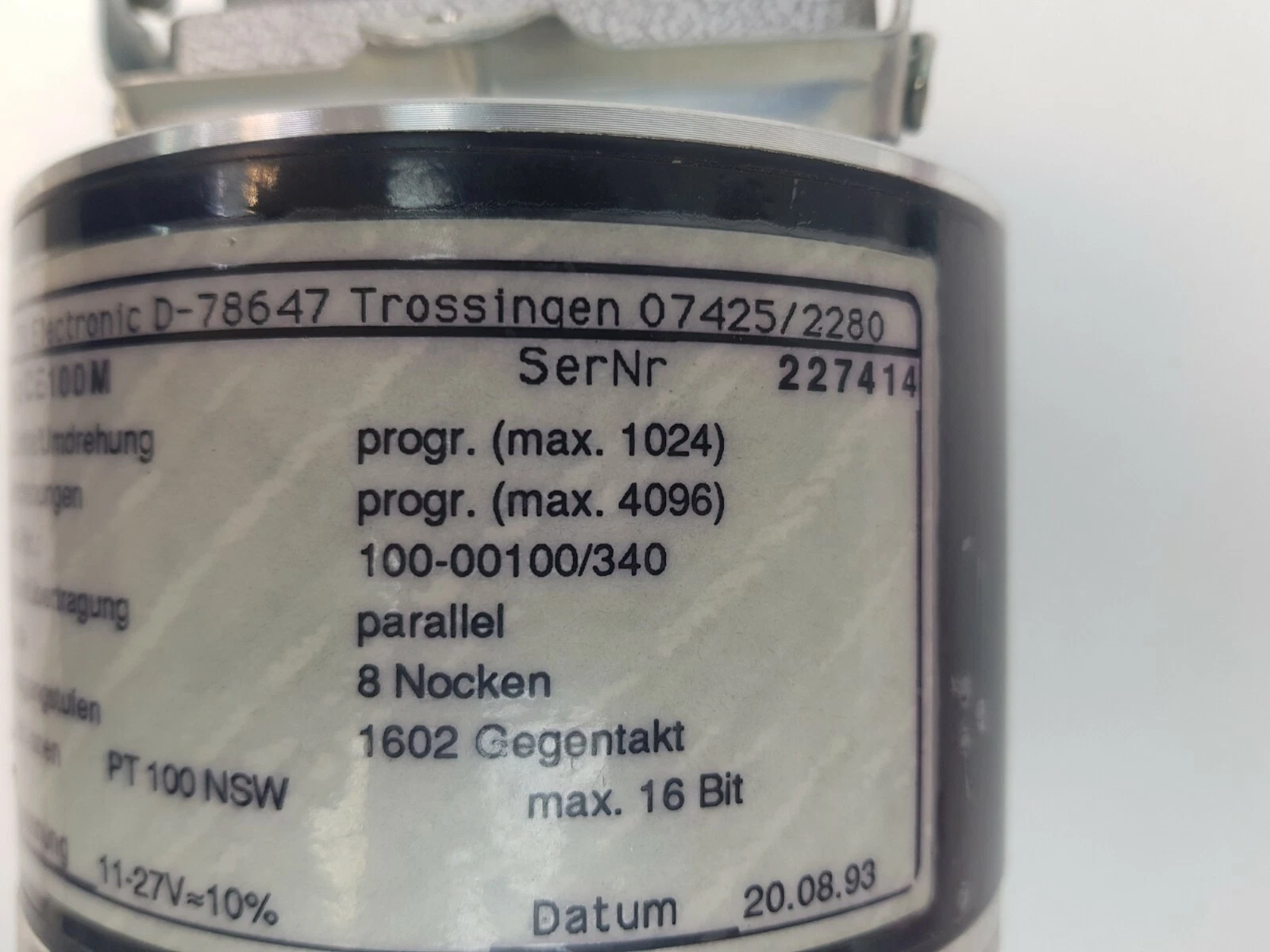

The TR Electronic CE100M with article number 100-00100/340 is a programmable absolute rotary encoder with parallel output, made in Germany. Its label lists programmable steps per revolution (max. 1024), programmable number of revolutions (max. 4096), parallel data transfer, an 8-cam code (8 Nocken), push-pull output stages (1602 Gegentakt), max. 16 bit, option PT 100 NSW and a supply of 11-27 V. The part number is also searched as CE-100M, CE 100 M or 10000100/340.
What does the CE100M label tell you?

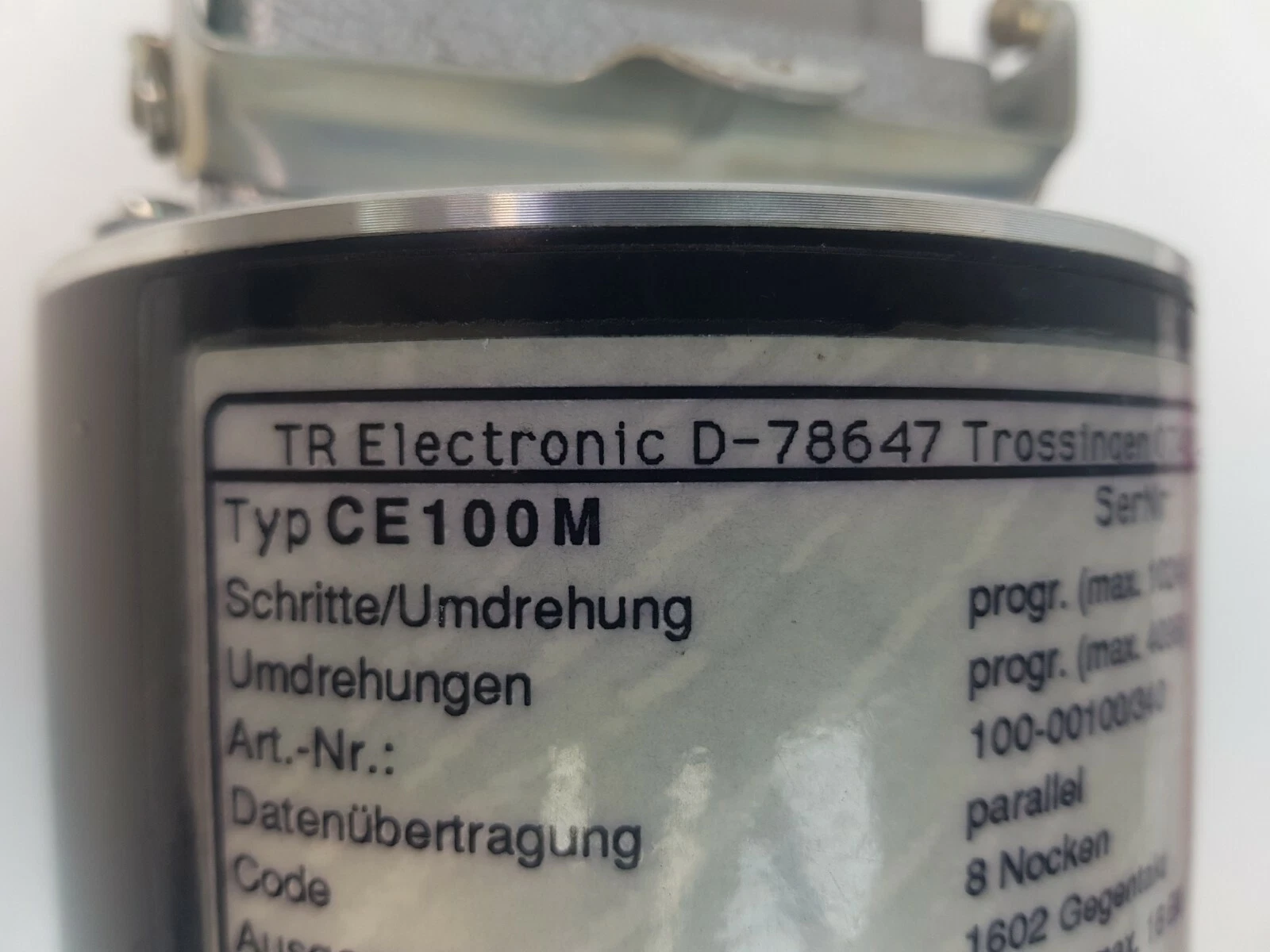

The label is in German. Schritte/Umdrehung means steps per revolution, Umdrehungen means revolutions, Datenübertragung parallel means parallel data output, and Ausgangsstufen Gegentakt means push-pull output stages. This unit carries the TR Electronic D-78647 Trossingen address and a date of 20.08.93.
How does it connect?

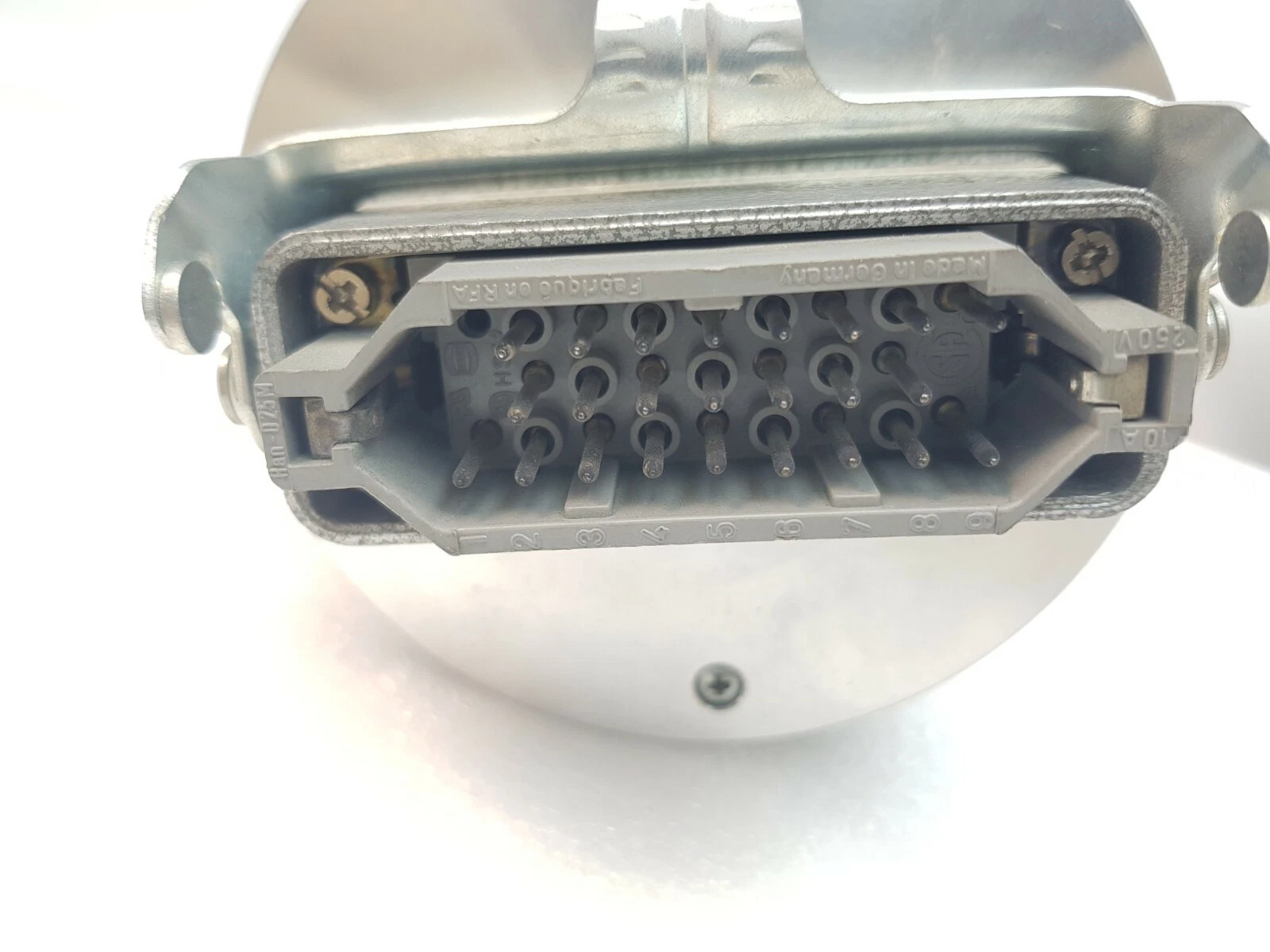

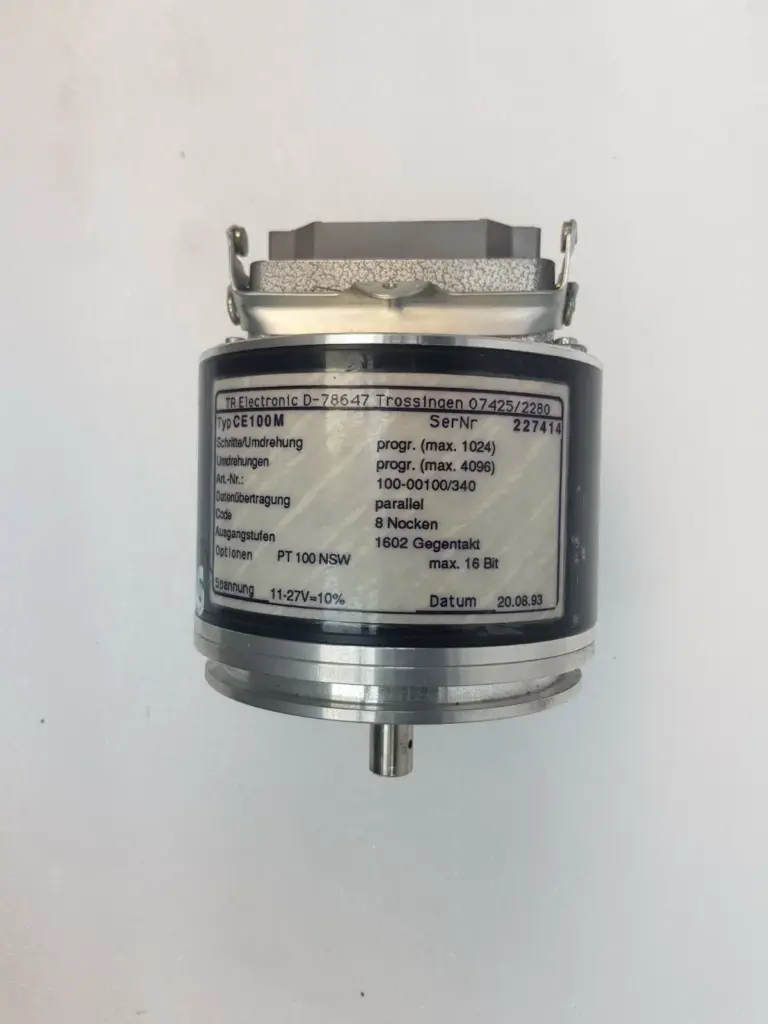

The encoder has a solid shaft on a round flange with threaded mounting holes, and a rectangular multi-pin industrial connector with a locking lever on the rear cover.
What condition is this encoder in?
Used. The photos show the housing, label and connector intact, and a handwritten marker number on the flange face.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What resolution does the TR Electronic CE100M 100-00100/340 have?
The label lists programmable steps per revolution up to 1024 and programmable revolutions up to 4096, with parallel output of max. 16 bit.
What supply voltage does it need?
11-27 V, as printed on the label.
What output type does it have?
Parallel data output with push-pull output stages (Gegentakt), and an 8-cam code.
What is the difference between this unit and the new-open-box CE100M?
Both are CE100M, article number 100-00100/340, with the same label data. This used unit is dated 20.08.93 and has the later D-78647 Trossingen address on its label.
