The TMP Shimadzu EI-3203MD Turbomolecular Pump Controller is made by Shimadzu and identified by manufacturer part number EI-3203MD.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × TMP Shimadzu EI-3203MD Turbomolecular Pump Controller.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Shimadzu), the part number (EI-3203MD) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Shimadzu
- Part number
- EI-3203MD
- Model
- EI-3203MD
- Country of Origin
- Japan
- Type
- TMP power unit (turbomolecular pump controller)
- Matching pumps
- Shimadzu TMP-3203LM, TMP-3203LMC (magnetically levitated, 3200 L/s N2)
- Power supply
- Single-phase 200–240 V AC ±10 %, 50/60 Hz
- Maximum power
- 1.8 kVA
- Rated output frequency
- 350 Hz (pump rated speed 21,000 rpm)
- Backup battery
- Not required
- Operating environment
- 0–45 °C, 40–80 % RH
- Mass
- 16 kg
- Standards (Shimadzu)
- EN 61010-1, UL 3101-1, SEMI S2-93A, EN 1012-2; EMC EN 50081-2 / EN 50082-2

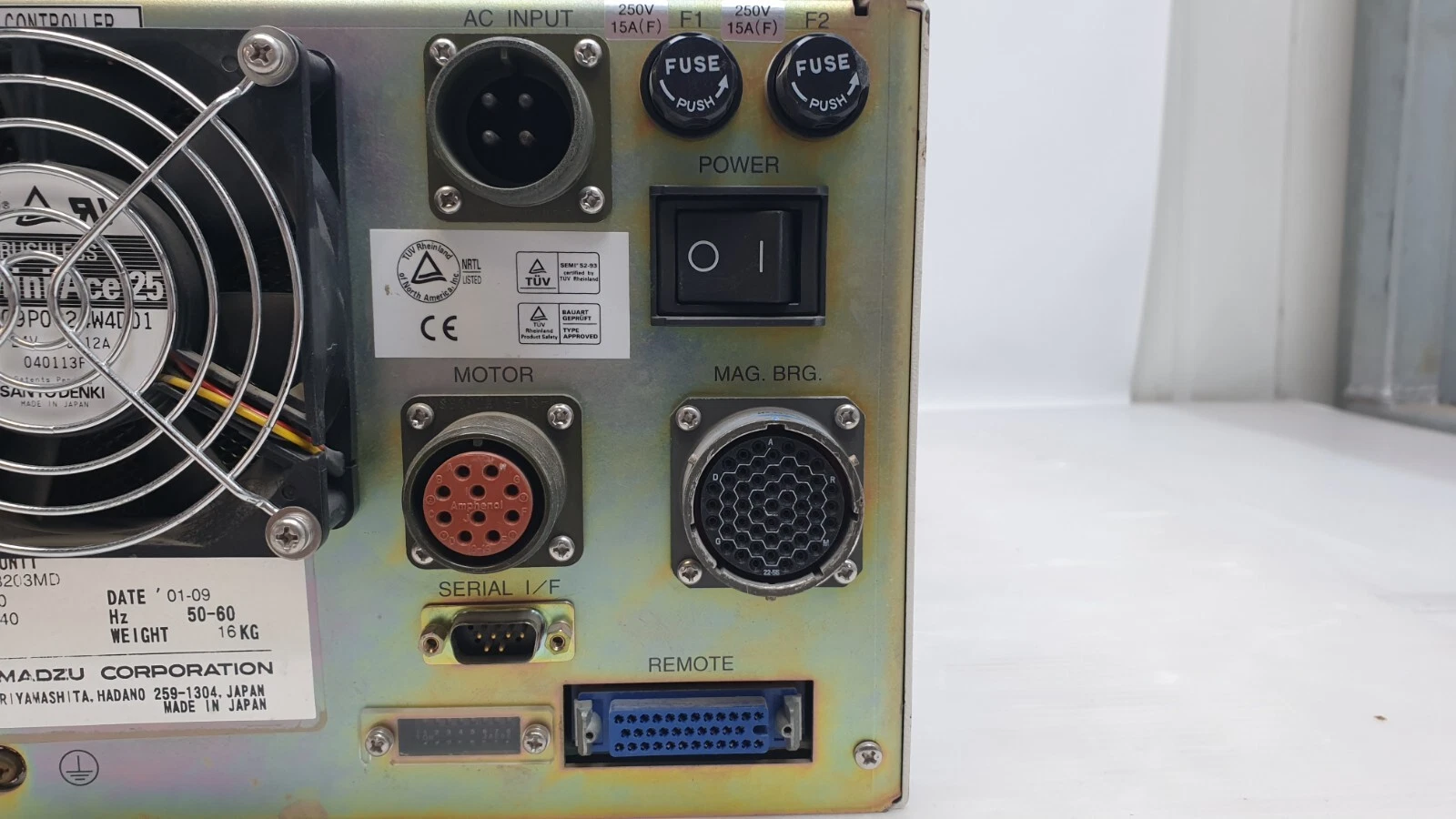

- Rear connectors
- AC INPUT, MOTOR, MAG. BRG., 9-pin D-sub interface port, REMOTE
- Fuses
- F1, F2: 250 V, 15 A (F)
- Front-panel alarm indicators
- Motor, Mag. Bearing, Controller Temp., Pump Temp., Power Failure, 1–4
- Front-panel operation
- Power, Rotation, Normal, Acceleration, Brake lamps; Start, Stop, Reset keys; Local / Remote switch
- Marks on rear panel
- CE; TÜV Rheinland NRTL listed; SEMI S2-93 certified by TÜV Rheinland; TÜV Bauart geprüft
- Nameplate date code
- '01-09
- Made in
- Japan

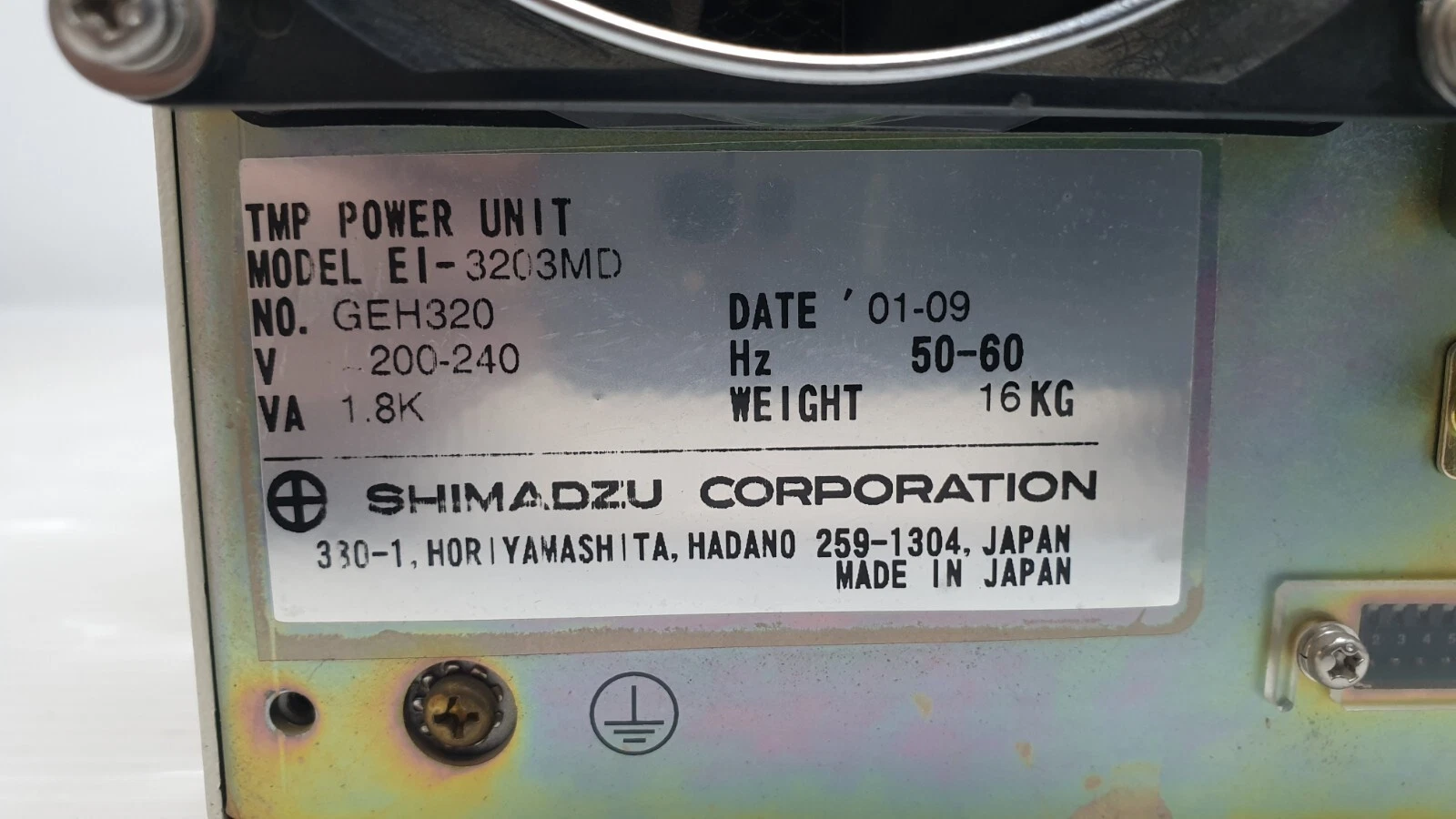

The Shimadzu EI-3203MD is the TMP power unit, i.e. the controller, for Shimadzu's TMP-3203LM and TMP-3203LMC magnetically levitated turbomolecular pumps. Shimadzu rates it for single-phase 200–240 V AC, 1.8 kVA maximum, driving the pump at a rated frequency of 350 Hz (21,000 rpm), and the unit weighs 16 kg. Its nameplate reads "TMP POWER UNIT, MODEL EI-3203MD", made in Japan by Shimadzu Corporation, Hadano. Also searched as EI3203MD or EI-3203 MD.
Which pump does the EI-3203MD drive?
Shimadzu lists the EI-3203MD as the power unit of the TMP-3203LM series: the TMP-3203LM and the high-gas-flow TMP-3203LMC, 3200 L/s (N2) magnetic-levitation pumps. Shimadzu states that pump and power unit combinations can be changed without readjustment and that no backup battery is needed. Its later catalogue replaced this unit with the EI-D3203M.
What is on the front and rear panels?

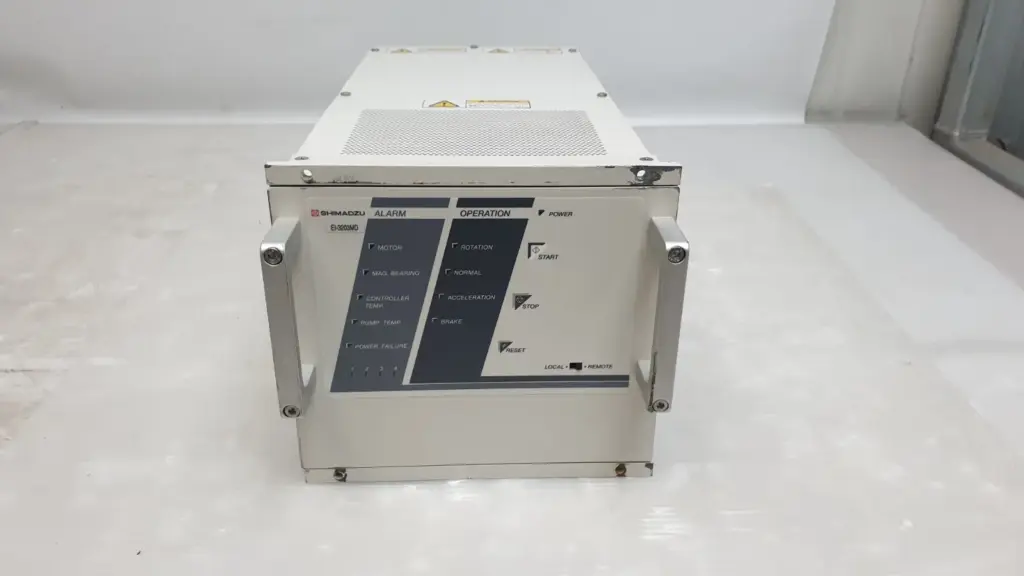

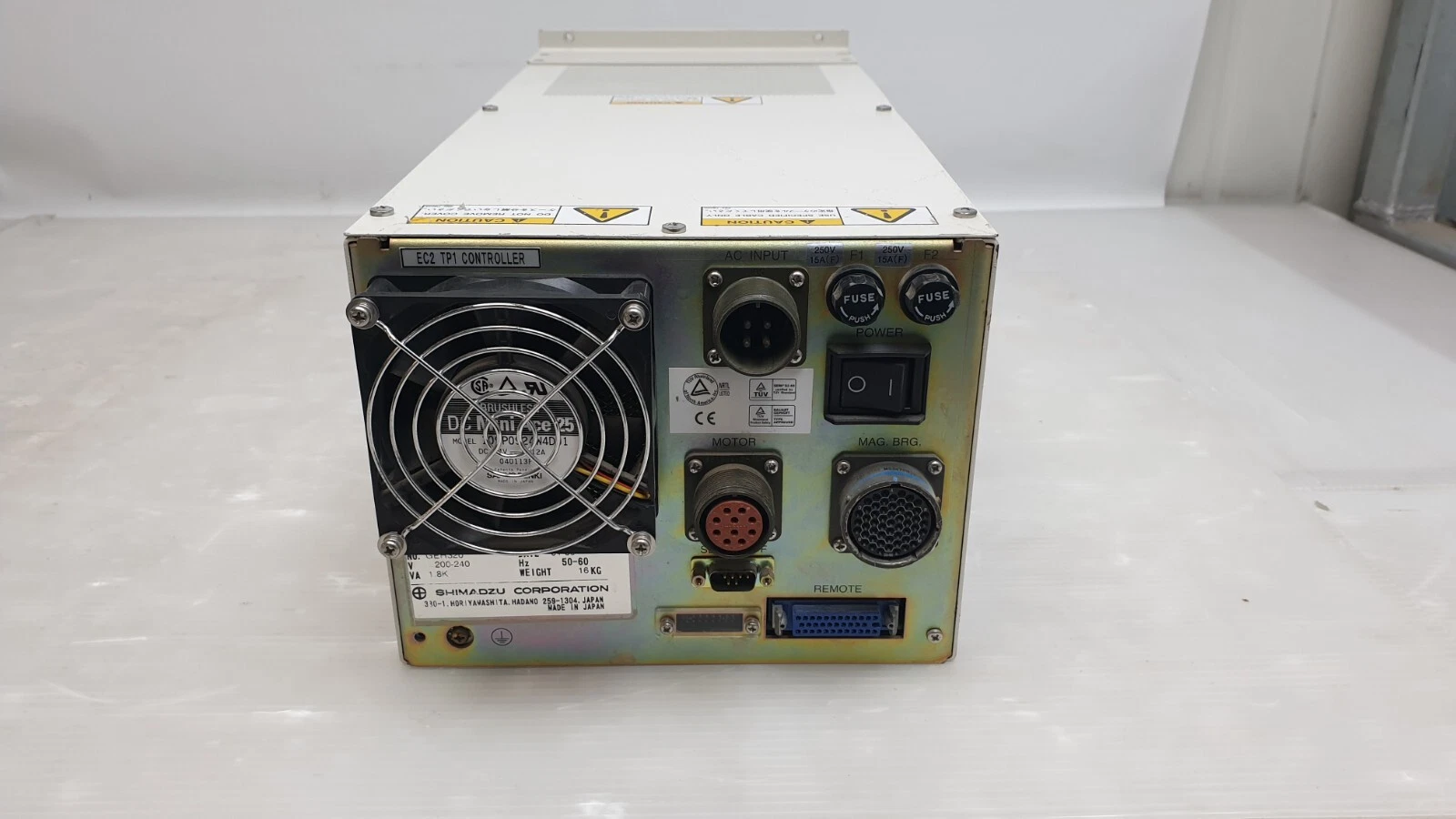

The front carries alarm lamps for Motor, Mag. Bearing, Controller Temp., Pump Temp. and Power Failure, operation lamps for Rotation, Normal, Acceleration and Brake, Start / Stop / Reset keys and a Local / Remote switch. At the rear are the AC input, two 15 A fuses, the power switch, MOTOR and MAG. BRG. pump-cable connectors, a 9-pin D-sub interface port, a REMOTE connector and a cooling fan.
What condition is this unit in?
Used. The photos show an intact front membrane panel and clear nameplate, with normal handling marks on the case. An equipment tag above the fan reads "EC2 TP1 CONTROLLER"; the nameplate date code is '01-09.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
Which turbomolecular pump works with the Shimadzu EI-3203MD?
Shimadzu lists it as the power unit for the TMP-3203LM and TMP-3203LMC magnetically levitated pumps (3200 L/s for N2).
What power supply does the EI-3203MD need?
Single-phase 200–240 V AC ±10 %, 50/60 Hz, 1.8 kVA maximum, per Shimadzu's specification and the nameplate.
Does the EI-3203MD need a backup battery?
No. Shimadzu's specification lists the battery as not required.
Can I swap it onto a different TMP-3203 pump?
Shimadzu states that no readjustment is needed when the pump and power unit combination is changed within the series.
What does the EC2 TP1 tag mean?
It is an equipment tag applied by the machine builder or user, not a Shimadzu model code; the Shimadzu model is EI-3203MD.
