Photos show the actual item you will receive.
Product details
About this part
The TMP Shimadzu EI-3203MD-A1 Turbomolecular Pump Controller is made by Shimadzu and identified by manufacturer part number EI-3203MD-A1.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × TMP Shimadzu EI-3203MD-A1 Turbomolecular Pump Controller.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Shimadzu), the part number (EI-3203MD-A1) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Shimadzu
- Part number
- EI-3203MD-A1
- Model
- EI-3203MD-A1
- Country of Origin
- Japan
- Type
- TMP power unit (turbomolecular pump controller)
- Supply (nameplate)
- ~200–240 V AC, 50–60 Hz
- Rated capacity (nameplate)
- 1.8 kVA
- Weight (nameplate)
- 16 kg

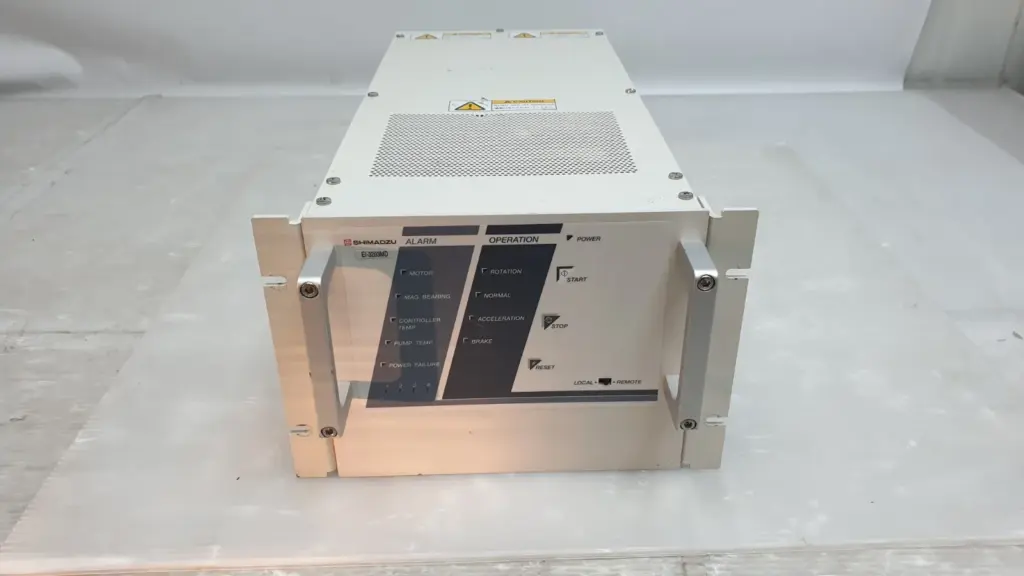

- Front panel

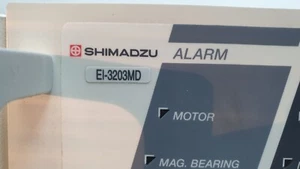

- Rack-mount flanges with slotted holes and two carry handles; badge reads EI-3203MD

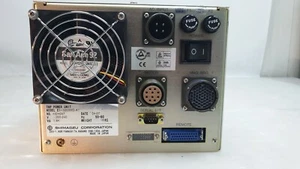

- Rear connectors
- AC INPUT, MOTOR, MAG. BRG., 9-pin D-sub interface port, REMOTE
- Fuses
- F1, F2: 250 V, 15 A (F)
- Front-panel alarm indicators
- Motor, Mag. Bearing, Controller Temp., Pump Temp., Power Failure, 1–4
- Front-panel operation
- Power, Rotation, Normal, Acceleration, Brake lamps; Start, Stop, Reset keys; Local / Remote switch
- Marks on rear panel
- CE; TÜV Rheinland NRTL listed; SEMI S2-93 certified by TÜV Rheinland; TÜV Bauart geprüft
- Nameplate date code
- '04-07
- Made in
- Japan

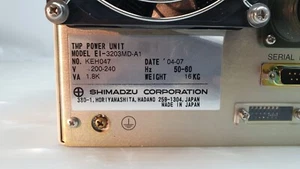

This Shimadzu EI-3203MD-A1 is a turbomolecular pump controller, labelled by Shimadzu as a "TMP power unit". The nameplate gives ~200–240 V AC, 50–60 Hz, 1.8 kVA and a weight of 16 kg, with date code '04-07 and "Made in Japan". It has a front panel with rack-mount flanges, and the badge on the front reads EI-3203MD. You may also find it as EI3203MD-A1.
Which pump does it run?
The rear panel has separate MOTOR and MAG. BRG. connectors, and the front has a Mag. Bearing alarm, so it is built for a magnetic-bearing turbo pump. Shimadzu's published data for the base EI-3203MD names the TMP-3203LM and TMP-3203LMC, but we found no Shimadzu document that covers the -A1 version, so please check it against the pump fitted to your system.
How is it operated?

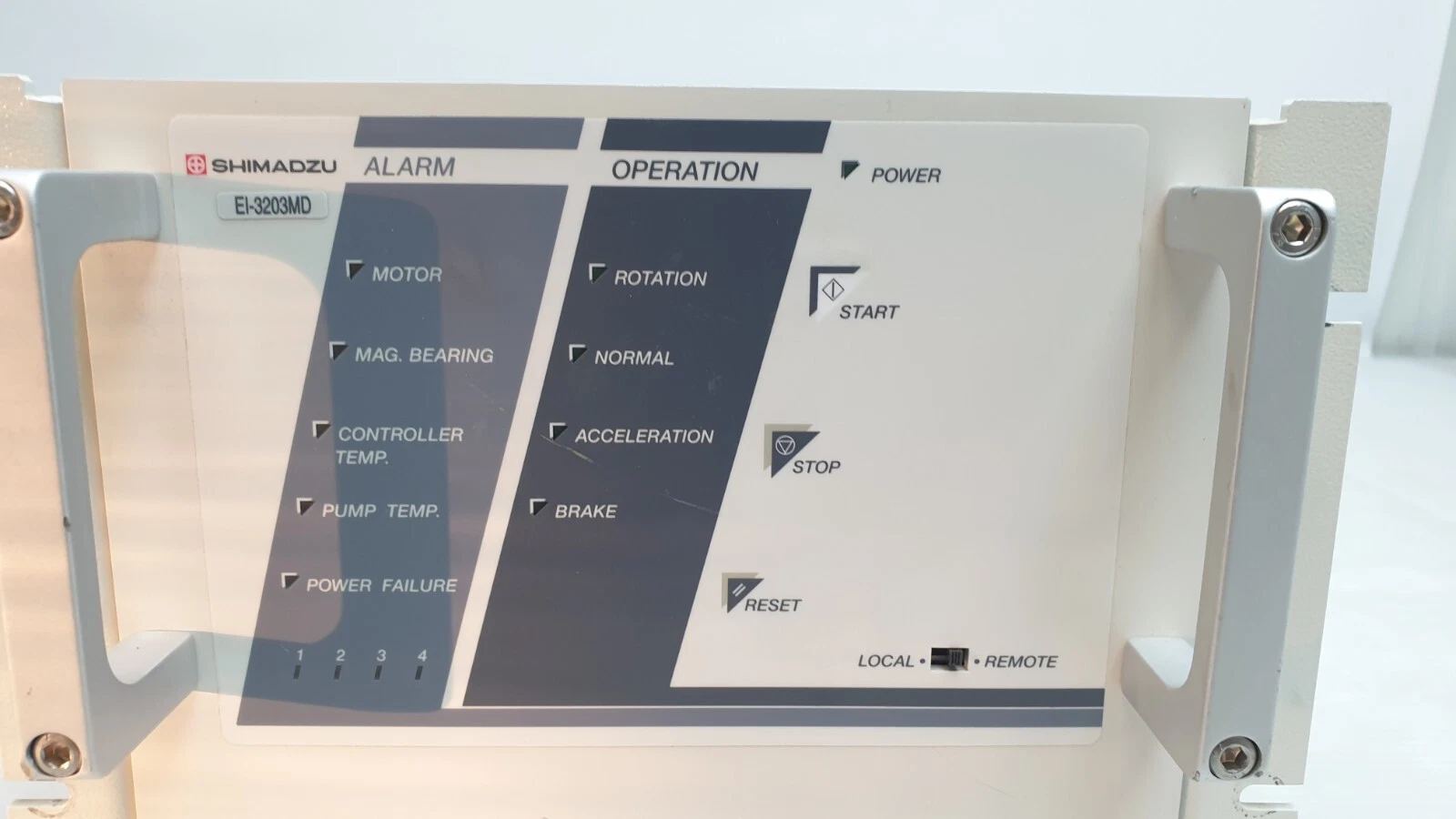

Start, Stop and Reset keys sit next to a Local / Remote switch. Lamps report Rotation, Normal, Acceleration and Brake, and alarm lamps cover Motor, Mag. Bearing, Controller Temp., Pump Temp. and Power Failure, with four numbered indicators beneath. On the back are a REMOTE connector and a 9-pin D-sub interface port, plus the AC input, two 15 A fuses and the power switch.
What condition is this unit in?
Used. The photos show a clean front membrane and flanges, a clear nameplate, and complete rear connectors and fuse holders.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What input voltage does the EI-3203MD-A1 use?
~200–240 V AC at 50–60 Hz, 1.8 kVA, as stated on its nameplate.
Is this controller for a magnetically levitated pump?
It has a MAG. BRG. connector and a Mag. Bearing alarm, so it is built for a magnetic-bearing pump. Check the exact pump model on your system, as the -A1 variant is not covered in the Shimadzu documents found.
Can it be rack mounted?
Yes, the front panel has rack-mount flanges with slotted holes, as shown in the photos.
Does it have remote control?
It has a Local / Remote switch on the front and a REMOTE connector on the rear panel.
