Product details

About this part

The Texas Instruments LM3710XQMM-308/NOPB Voltage Supervisor, VSSOP-10, Reel of 1000 is made by Texas Instruments and identified by manufacturer part number LM3710XQMM-308/NOPB.

This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.

Condition

This item is listed as New. Factory new, in original packaging.

The photos are part of the description — check them for labels, connectors, markings and any visible wear.

What's included

1 × Texas Instruments LM3710XQMM-308/NOPB Voltage Supervisor, VSSOP-10, Reel of 1000.

Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.

Identification & compatibility

Check the manufacturer (Texas Instruments), the part number (LM3710XQMM-308/NOPB) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.

Price match

Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.

Important information

Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.

Brand
Texas Instruments
Part number
LM3710XQMM-308/NOPB
Model
LM3710XQMM-308/NOPB
Manufacturer
Texas Instruments
Type
Microprocessor supervisory circuit with watchdog, power-fail input, low-line output, manual reset
Reset threshold
3.08 V, ±0.5% at 25 °C, ±2% over temperature
Reset output
Active-low, totem-pole (push-pull)
Reset timeout
200 ms typical (140 to 280 ms)
Watchdog timeout
1.6 s typical (1.12 to 2.4 s)
Power-fail input threshold
1.225 V
Operating voltage
1.0 V to 5.5 V, 6.0 V absolute max
Supply current
28 µA typical
Package
VSSOP-10 (DGS), 3 x 4.9 mm, marking R37B
Operating temperature
-40 to 85 °C

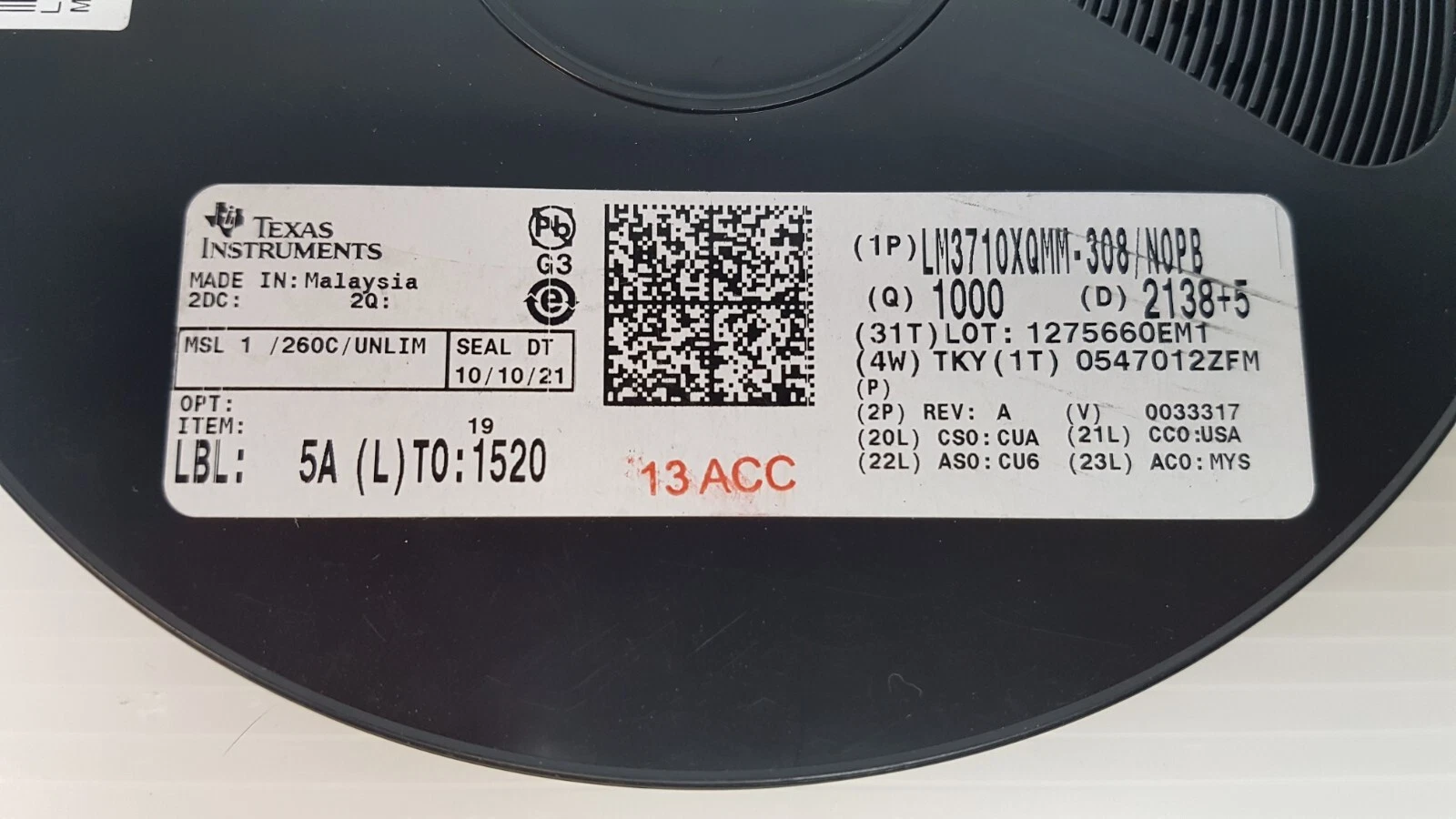

Reel label
Q 1000, D 2138+5, lot 1275660EM1, made in Malaysia, MSL 1 / 260C / UNLIM, seal date 10/10/21
Quantity
1000 pieces on one reel (per label)

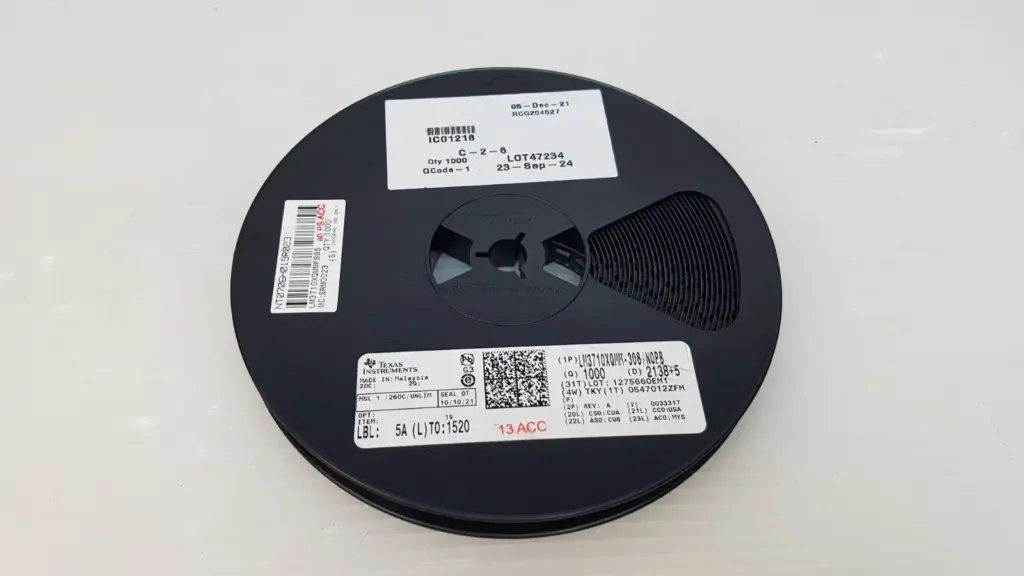

Texas Instruments LM3710XQMM-308/NOPB, one TI reel labelled 1000 pieces. Microprocessor supervisor with watchdog timer, power-fail input and low-line output. Reset threshold 3.08 V. VSSOP-10 package. Date code 2138+5, made in Malaysia.

What do X, Q and 308 mean in LM3710XQMM-308?

From TI's datasheet: X is the totem-pole (push-pull) reset output. Q sets a 200 ms reset timeout and a 1.6 s watchdog timeout. 308 is the 3.08 V reset threshold. MM is the 10-pin VSSOP (DGS) on 1000-piece reels, and /NOPB is the lead-free version.

Is the LM3710 a good voltage supervisor for a 3.3 V rail?

That is the standard use. TI's application circuits show it on a 3.3 V supply, and the 3.08 V threshold holds ±2% over temperature. The low-line output warns first, at about 2% above the reset point.

How does the watchdog timer work?

The WDI pin watches a line from your processor. If that line does not change state within the watchdog period, 1.6 s on this version, the LM3710 pulls reset. Any edge on WDI restarts the count.

Ships from
Israel
Tracking
Included on every order

Import duties and taxes may apply in your country and are paid by the buyer on delivery.

Returns
Not accepted

Return terms differ from item to item — this item's own policy is shown above.

Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.

Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.

Read the full returns & warranty policy

Questions about this part

How many pieces are on the reel?

The TI label reads 1000.

Push-pull or open-drain reset output?

Push-pull. The X in the part number is TI's code for the totem-pole output.

What is the PFI pin for?

It is a separate comparator with a 1.225 V threshold. Use it with a divider to watch the raw supply or a second rail.

Does the reel need baking before reflow?

No. The label states MSL 1, 260 °C, unlimited floor life.

How low does reset stay valid?

TI specifies the reset output down to 1.0 V VCC on the LM3710.
