Product details
About this part
The TELEMECANIQUE LD5 LC.30. STARTER INTEGRAL 32 SWITCH 32A 660V is made by Telemecanique and identified by manufacturer part number LD5 LC.30..
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New – Open Box. Unused. Packaging opened or missing.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × TELEMECANIQUE LD5 LC.30. STARTER INTEGRAL 32 SWITCH 32A 660V.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Telemecanique), the part number (LD5 LC.30.) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Telemecanique
- Part number
- LD5 LC.30.
- Model
- LD5 LC.30.
- Country of Origin
- France
- Type
- Reversing self-protected motor starter (combination motor controller)
- Rated current (Ie)
- 32 A
- Rated insulation voltage (Ui)
- 660 V
- AC-3 motor power
- 7.5 kW at 220 V; 15 kW at 380/415/440 V; 18.5 kW at 500/660 V
- Breaking capacity Icn P2
- 50 kA at 220/380 V, 40 kA at 415 V, 30 kA at 440 V, 15 kA at 500 V, 4 kA at 660 V
- UL/CSA rating
- 600 V AC max; 10 hp at 230 V, 20 hp at 460 V, 30 hp at 575 V; 32 A continuous
- Protection module
- LB1LC03M series (range 0.25-32 A per label), not identified in photos
- Wiring
- AWG 8-18 Cu, 60/75 °C, torque 12 lb-in
- Group fusing
- Suitable for group fusing, 1600 A fuse max (label)
- Standards (label)
- IEC 158-1, 157-1, 292-1; NF-C 63-110, 63-120, 63-650; BS 5424, 4752, 4941; VDE 0660
- Condition
- New - open box
The Telemecanique LD5 LC.30. is an Integral 32 reversing self-protected motor starter (combination motor controller) rated 32 A, with a rated insulation voltage of 660 V. The front plate reads LD5-LC030 and the rating label reads LD5 LC.30.; Schneider Electric lists it as LD5LC030 followed by a coil voltage code. Integral 32 combines a disconnect, short-circuit protection, overload protection and contactors in one unit, and the LD5 version carries two contactors for forward and reverse motor control.
What does the rating label say?
Ie 32 A, Ui 660 V. AC-3 motor ratings: 7.5 kW at 220 V, 15 kW at 380, 415 and 440 V, 18.5 kW at 500 and 660 V. UL/CSA: 600 V AC max, 10 hp at 230 V, 20 hp at 460 V, 30 hp at 575 V, continuous current 32 A. Wiring AWG 8-18 copper, 60/75 °C, terminal torque 12 lb-in. The label lists IEC 158-1, 157-1 and 292-1, NF-C 63-110, 63-120 and 63-650, BS 5424, 4752 and 4941, and VDE 0660, and it is marked made in France.
Which protection module does it use?
The label says "Used with cat. LB. LC." and gives a range of 0.25-32 A; its wiring diagram shows an LB.LC03M module. In the Schneider Integral catalog, the reversing Integral 32 base unit is paired with an LB1LC03M thermal-magnetic protection module chosen for the motor current, from 0.25-0.40 A up to 23-32 A. The module rating is not identified in the photos, so check it with us before ordering.
How does a reversing motor starter work?
A reversing starter has two contactors that swap two of the three motor phases, so the motor runs forward on one contactor and in reverse on the other. The Integral wiring diagram on the label shows both coils (A1/A2) feeding outputs 2T1, 4T2 and 6T3 from supply terminals 1L1, 3L2 and 5L3.
What is in the photos?

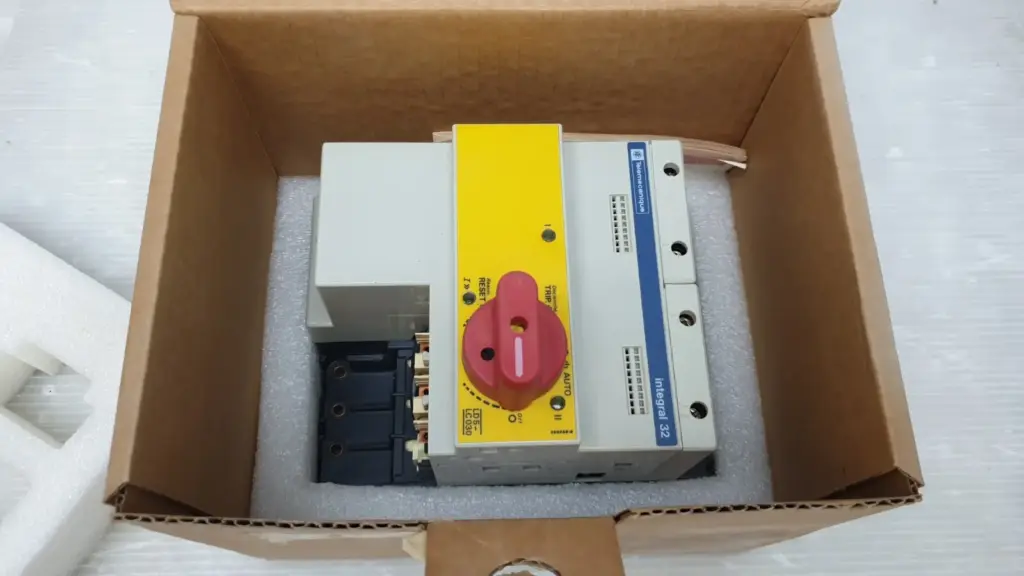

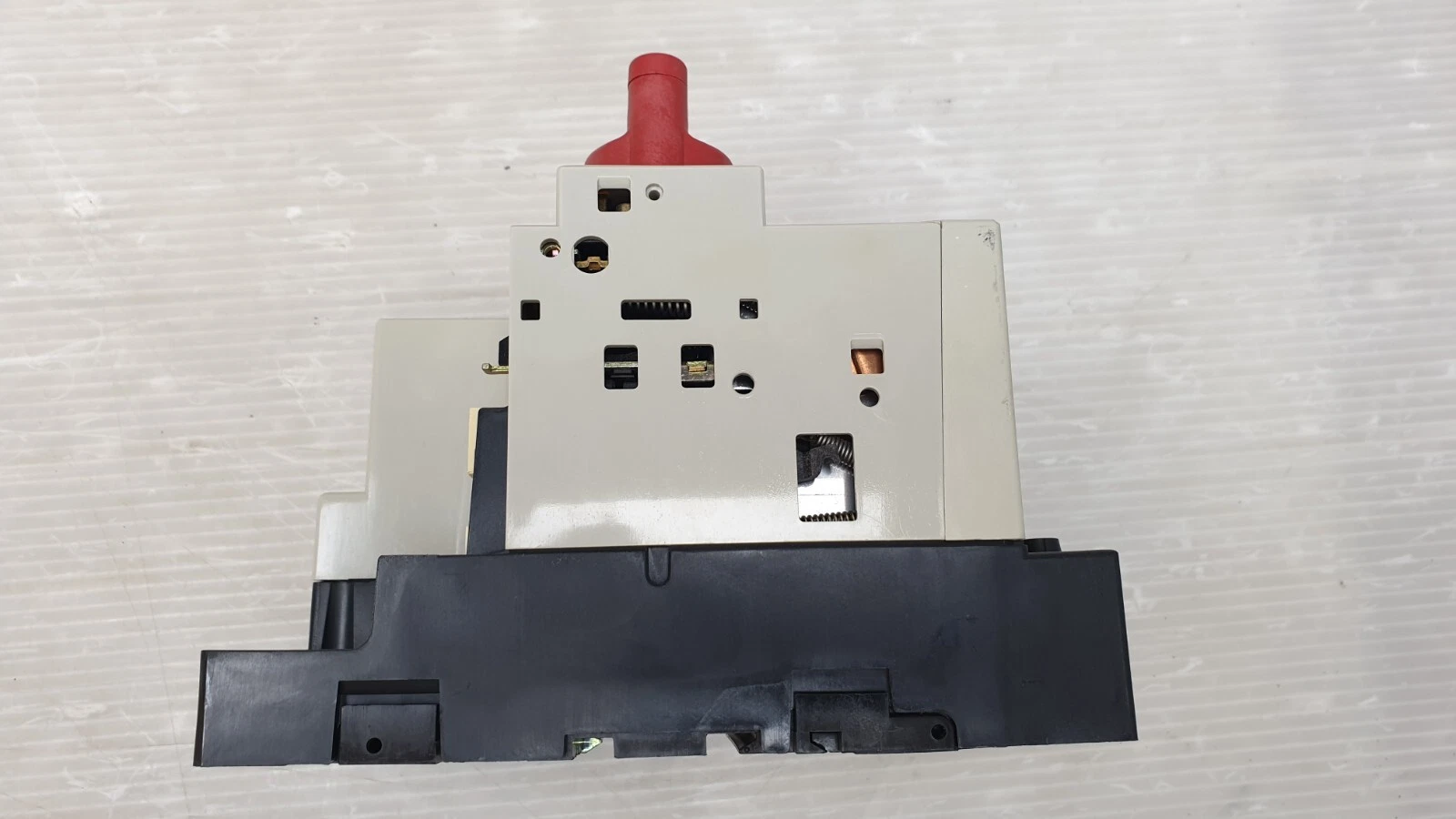

The starter in its box with foam packing, the red isolating knob with I, O, TRIP, RESET and AUTO positions, the black base plate, the side rating label and wiring diagram, and an Integral 32/63 instruction leaflet (W9 0380852 01 31). Condition: new, open box.
