Product details
About this part
The TELEMECANIQUE LR2 F5369, W/ LR2DD1064 Thermal Overload Relay is made by Telemecanique and identified by manufacturer part number LR2 F5369, W/ LR2DD1064.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New – Open Box. Unused. Packaging opened or missing.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × TELEMECANIQUE LR2 F5369, W/ LR2DD1064 Thermal Overload Relay.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Telemecanique), the part number (LR2 F5369, W/ LR2DD1064) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Telemecanique
- Part number
- LR2 F5369, W/ LR2DD1064
- Model
- LR2 F5369, W/ LR2DD1064
- Country of Origin
- France
- Overload block
- LR2 F5369, 100 A - 160 A
- Thermal relay
- LR2 D1305, class 10
- Adapter
- LA7-D1064
- Setting table
- 101 / 112 / 128 / 144 / 160 A = relay setting 0.63 / 0.7 / 0.8 / 0.9 / 1
- Insulation voltage (Ui)
- 1000 V IEC 947; 1500 V VDE 0660
- Max voltage (UL/CSA)
- 600 V a.c.
- Fuse protection
- gI 250 A, aM 160 A; max non time delay fuse 400 A
- Auxiliary contacts
- 95-96 N.C., 97-98 N.O., Ith 5 A
- Withstand current
- 10000 A rms sym
- Wire range
- AWG 3/0-6, 75 °C Cu, 200 lb-in
- Terminal kit
- Cat. No DZ2-FG..
- Approvals (label)
- UL Listed 170M, CSA
- Condition
- New, open box
The Telemecanique LR2 F5369 is a thermal overload relay block for motor currents of 100 A to 160 A, supplied here as a set with an LR2 D1305 thermal relay on an LA7-D1064 adapter. A thermal overload relay protects a motor against overcurrent: when the motor draws more than the set full-load current for too long, the relay opens its N.C. contact and the contactor drops out. In this set the LR2 F5369 block carries the motor current on its three bar terminals, and the LR2 D1305 relay, wired to it, does the tripping and carries the setting dial, test, stop and reset controls.
How is the current set?
The setting table on the relay reads LR2F5369 (A) 101 / 112 / 128 / 144 / 160 against relay settings 0.63 / 0.7 / 0.8 / 0.9 / 1. So the LR2 D1305 dial range of 0.63 to 1 corresponds to a motor full-load current of about 101 A to 160 A. The LR2 F5369 label notes "Numbers on dial are full load motor currents".
What do the labels say?

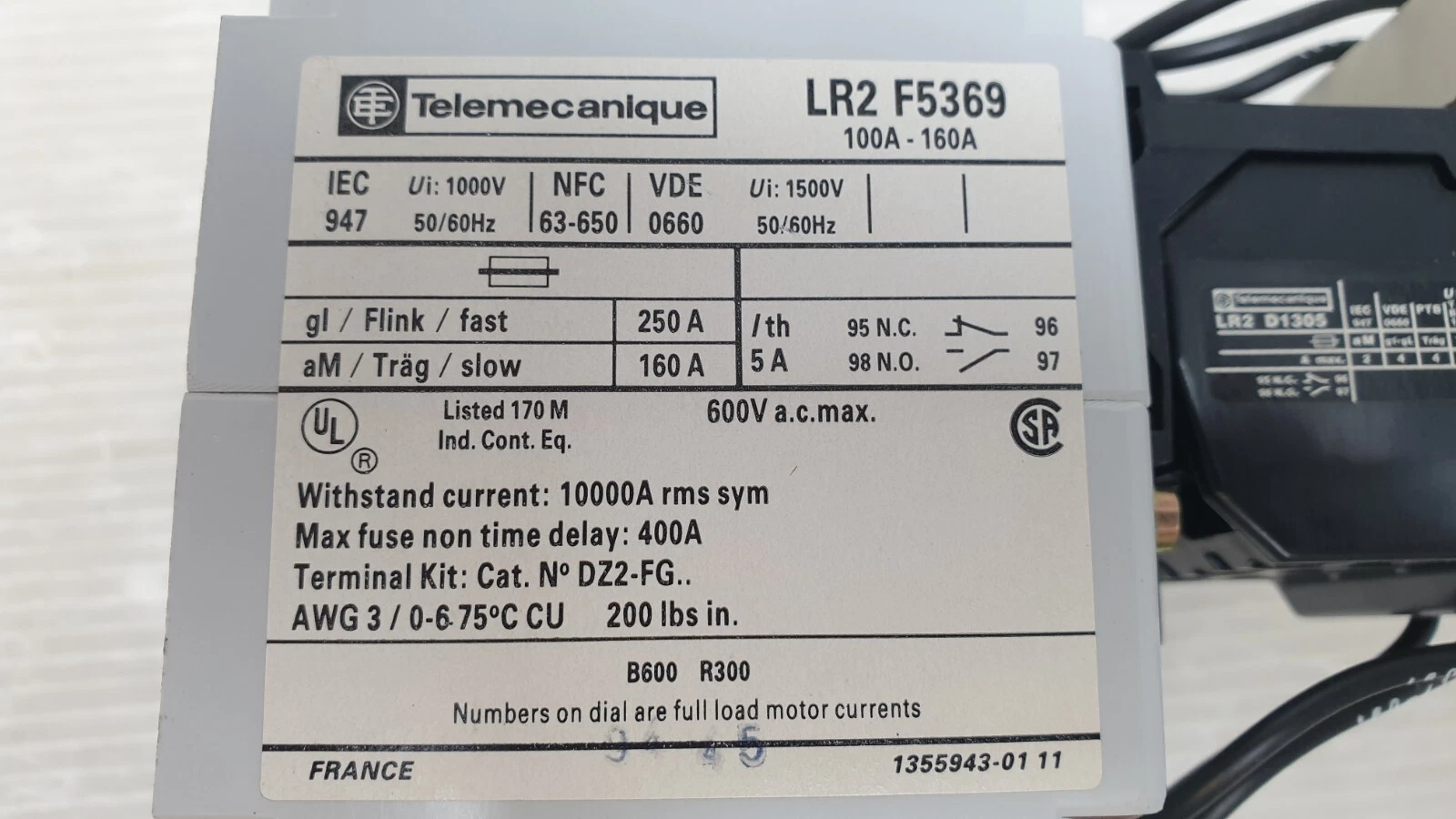

LR2 F5369, 100A-160A: IEC 947 Ui 1000 V, NFC 63-650, VDE 0660 Ui 1500 V, 50/60 Hz; fuse gI 250 A, aM 160 A; contacts Ith 5 A, 95-96 N.C. and 97-98 N.O.; UL Listed 170M Ind. Cont. Eq., CSA, 600 V a.c. max; withstand current 10000 A rms sym; max fuse non time delay 400 A; terminal kit Cat. No DZ2-FG..; AWG 3/0-6 75 °C CU, 200 lbs in; B600 R300; France; 1355943-01 11.

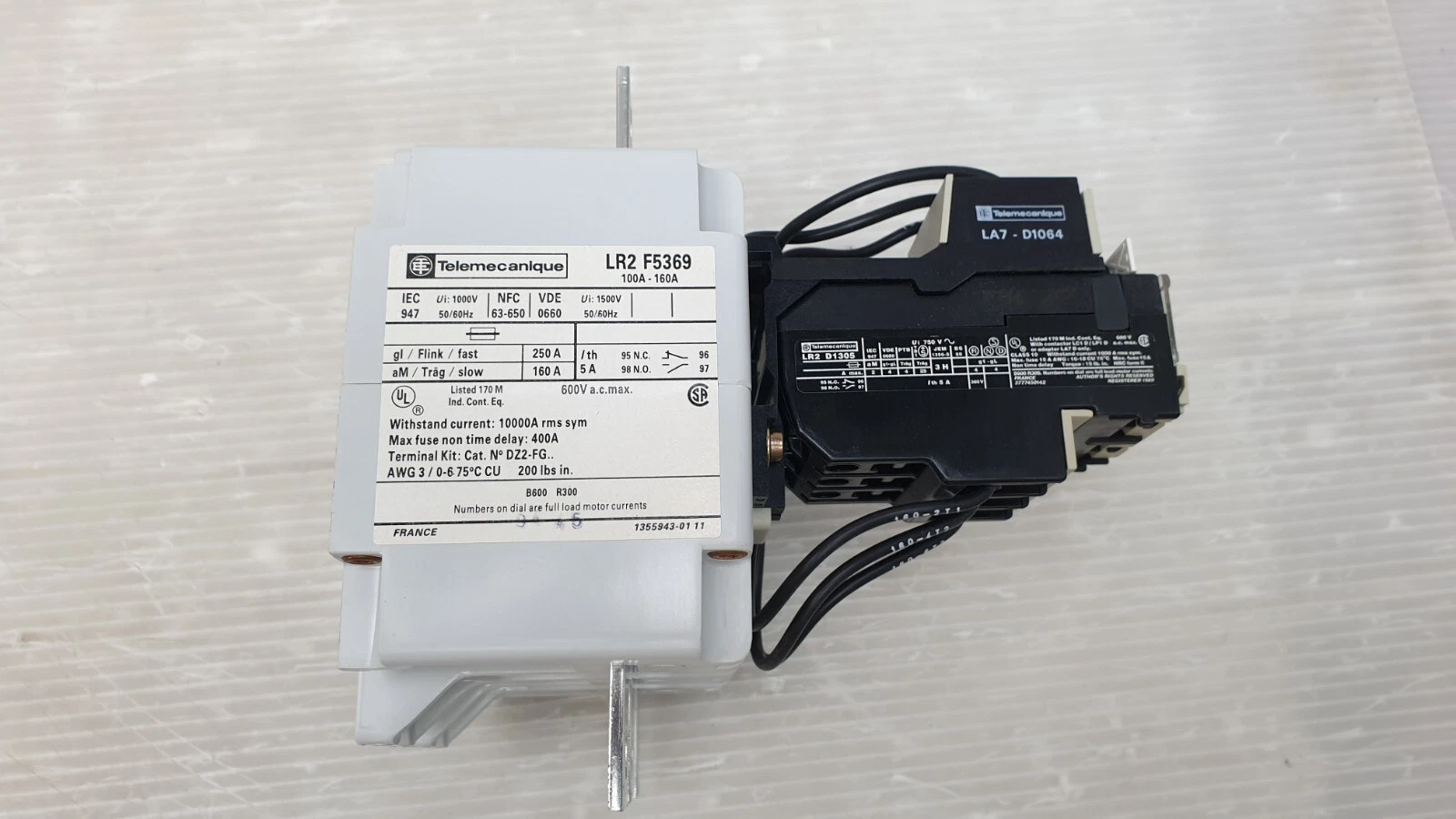

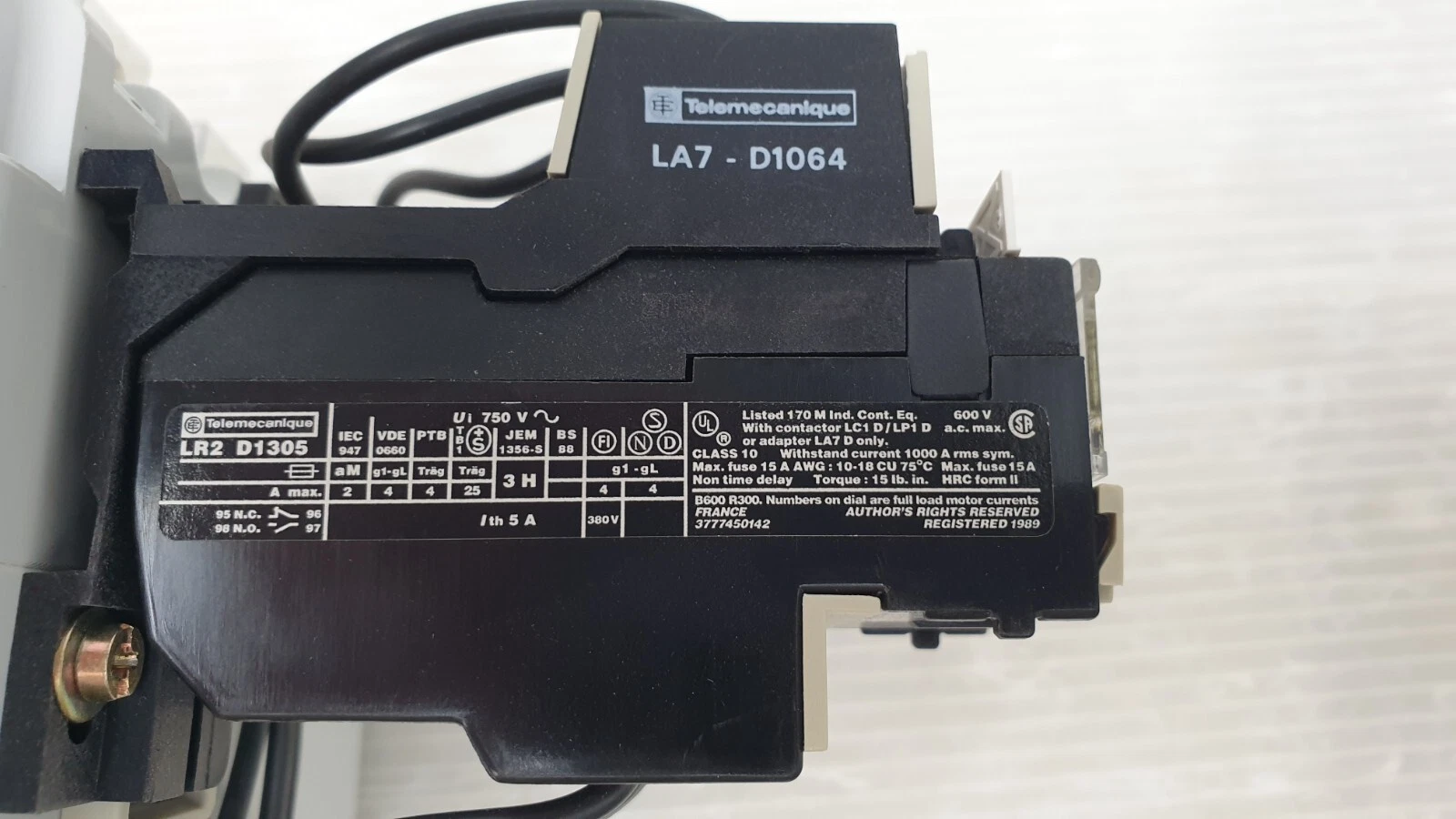

LR2 D1305: Ui 750 V~, class 10, Ith 5 A, UL Listed 170M Ind. Cont. Eq., 600 V a.c. max, for use with contactor LC1 D / LP1 D or adapter LA7 D only; France; 3777450142. The adapter is marked LA7-D1064.
What is in the box?

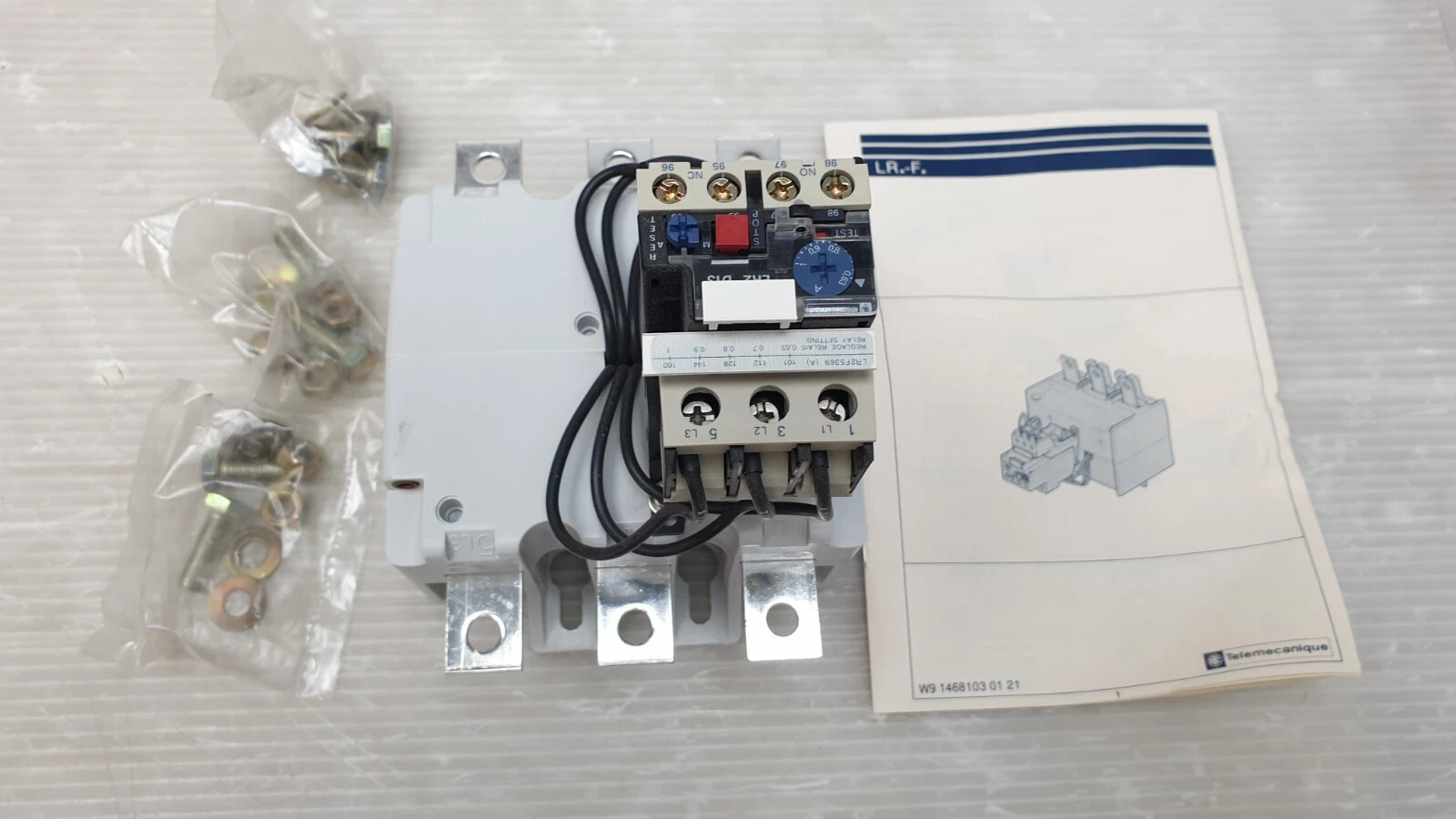

The LR2 F5369 block with the LR2 D1305 relay mounted on the LA7-D1064 adapter and pre-wired, three bags of terminal bolts and washers, and the Telemecanique LR.-F. instruction leaflet (W9 1468103 01 21) with the wiring diagram. Condition: new, open box, in the original carton.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the setting range of the LR2 F5369?
100 A to 160 A motor full-load current. The relay dial 0.63 to 1 maps to 101, 112, 128, 144 and 160 A.
How does a thermal overload relay work?
It senses the motor current and, if the current stays above the set full-load value too long, opens its N.C. contact (95-96) so the contactor coil drops out and the motor stops.
Why is there an LR2 D1305 relay on it?

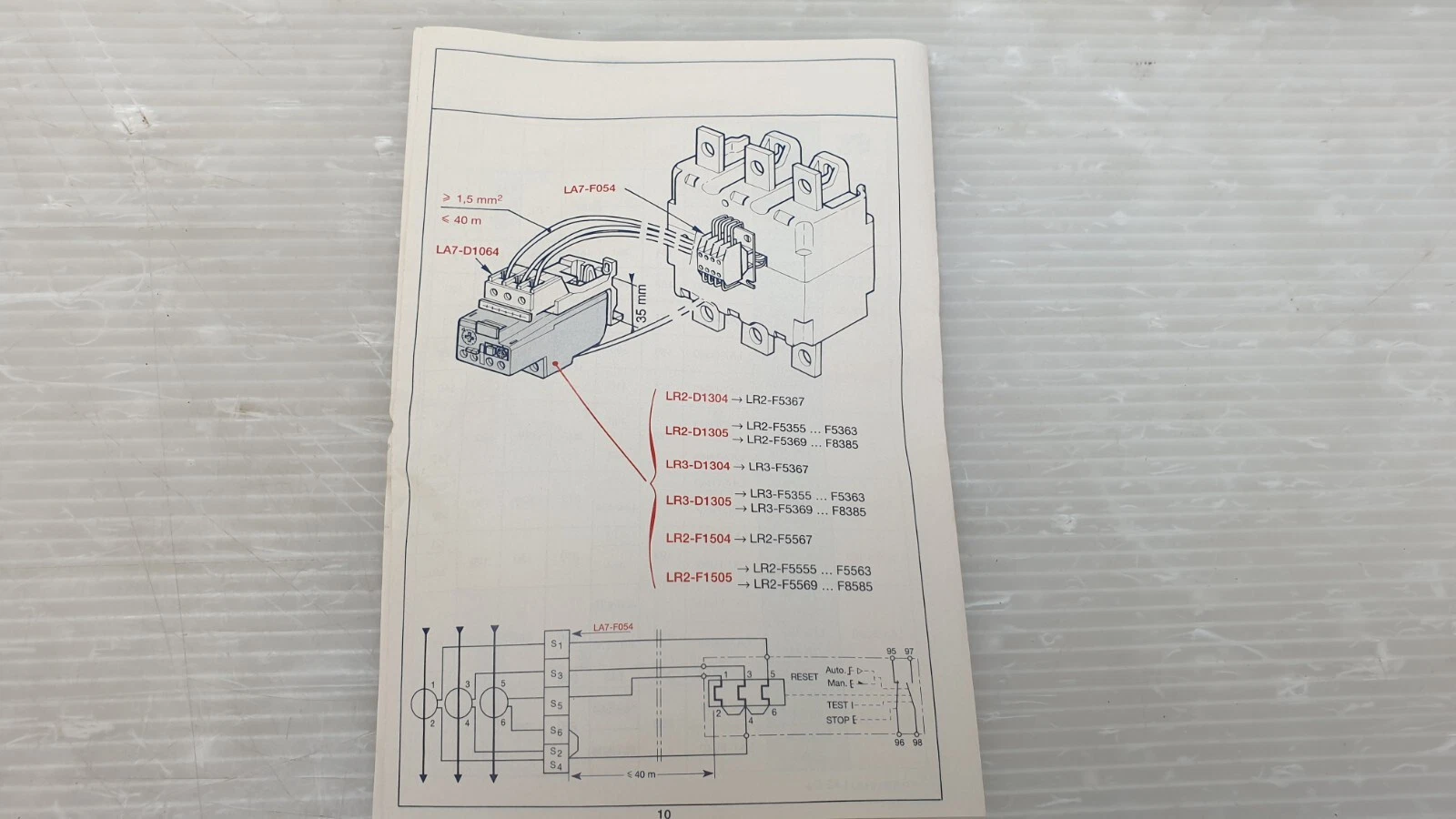

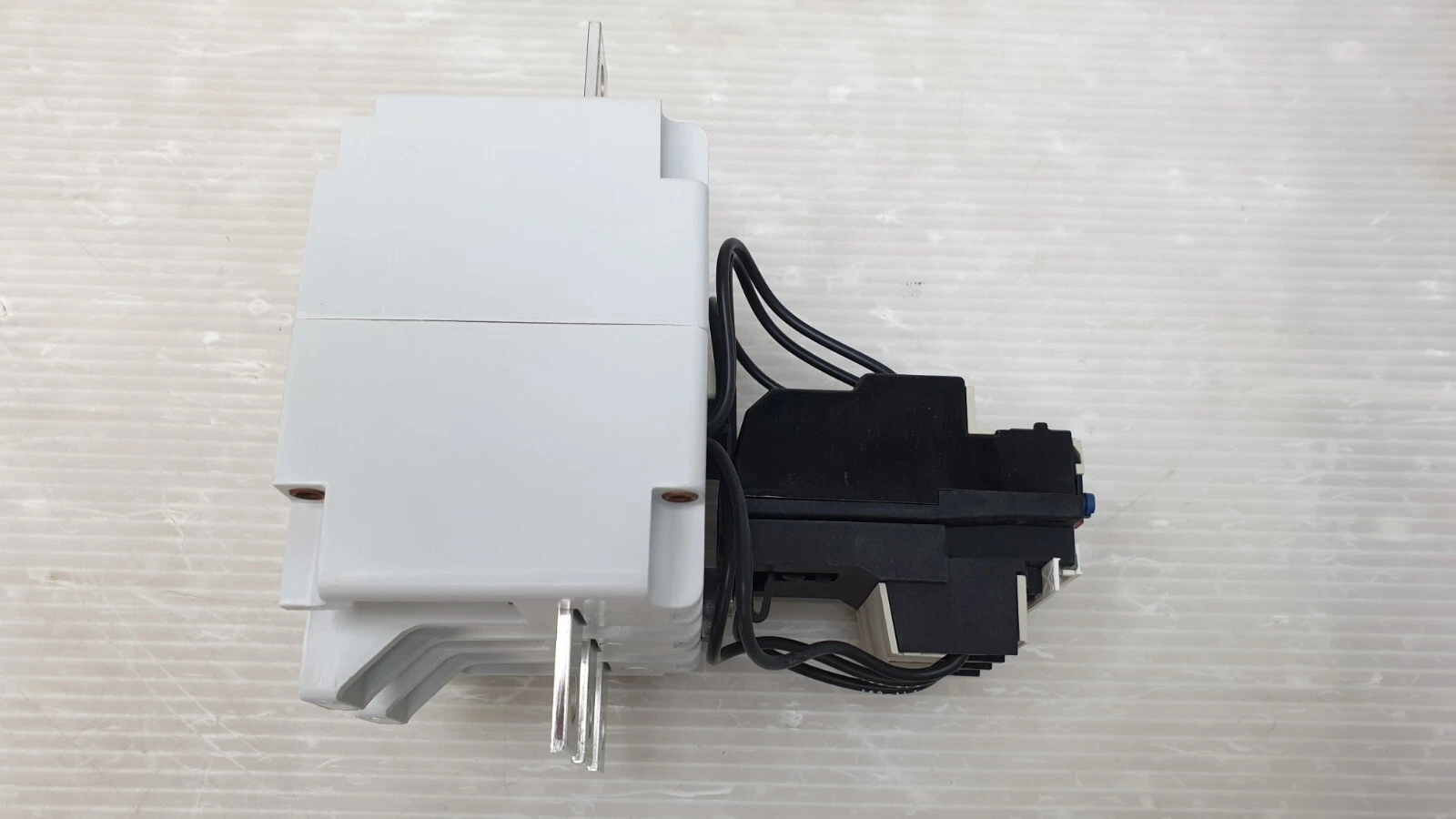

In this set the LR2 F5369 block carries the motor current and the LR2 D1305 relay, wired to it, does the tripping and holds the dial, test, stop and reset controls. The leaflet lists the LR2-D1305 for the LR2-F5369.
What is the LA7-D1064?
The adapter the LR2 D1305 relay is mounted on, as marked on the part and shown in the leaflet diagram.
What trip class is it?
The LR2 D1305 relay label says class 10.
What is included?

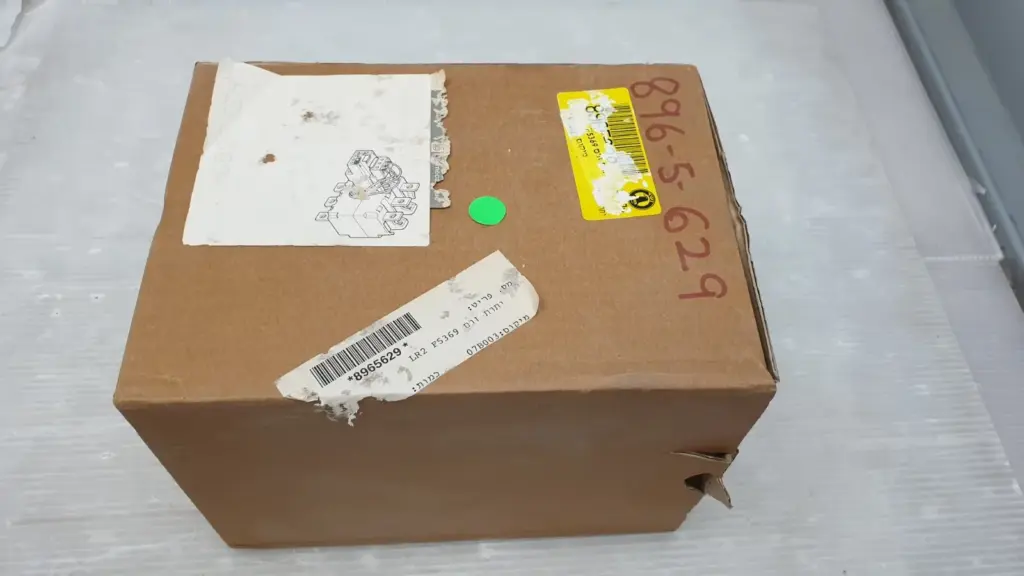

The overload block with relay and adapter, three bags of terminal bolts and washers, the instruction leaflet and the original carton.
