Photos show the actual item you will receive.
Product details
About this part
The Siemens 6ES7 131-4BD01-0AA0 SIMATIC ET 200S is made by Siemens and identified by manufacturer part number 6ES7 131-4BD01-0AA0.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New. Factory new, in original packaging.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Siemens 6ES7 131-4BD01-0AA0 SIMATIC ET 200S.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Siemens), the part number (6ES7 131-4BD01-0AA0) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Siemens
- Part number
- 6ES7 131-4BD01-0AA0
- Model
- 6ES7 131-4BD01-0AA0
- Country of Origin
- Germany
- Manufacturer
- Siemens
- Order number
- 6ES7131-4BD01-0AA0 (6ES7 131-4BD01-0AA0)
- System
- SIMATIC ET 200S distributed I/O
- Module type
- Digital input electronic module, 4 DI DC24V ST (standard)
- Number of inputs
- 4
- Input voltage
- 24 V DC rated; "0" -30 to +5 V, "1" +15 to +30 V
- Input characteristic
- IEC 61131 type 1
- Input current
- 7 mA typical at 24 V
- Input delay
- 3 ms typical (2 to 4.5 ms), not parameterizable
- Sensors
- 2-wire sensors, max. 1.5 mA quiescent current
- Status LEDs
- Green per channel; no diagnostics, no SF LED
- Dimensions (W x H x D)
- 15 x 81 x 52 mm
- Weight (data sheet)
- Approx. 35 g
- Box label
- FS: 03, date 06.2017
The Siemens 6ES7131-4BD01-0AA0 is a SIMATIC ET 200S digital input electronic module with 4 inputs for 24 V DC signals (4 DI DC24V ST, standard version), 15 mm wide. It belongs to the ET 200S distributed I/O system (Siemens lists it under SIMATIC DP) and reads on/off signals from sensors, switches and pushbuttons in the field. The part number is also written 6ES7 131-4BD01-0AA0 and 6ES71314BD010AA0.
What are the input specifications?
Per the Siemens data sheet: 4 digital inputs, IEC 61131 type 1 characteristic, rated 24 V DC. Signal "0" is -30 to +5 V and signal "1" is +15 to +30 V, with a typical input current of 7 mA at 24 V. The input delay is fixed (not parameterizable) at typically 3 ms, 2 to 4.5 ms. 2-wire sensors can be connected with up to 1.5 mA quiescent current. Cable length is up to 1,000 m shielded or 600 m unshielded.
How is it powered and what does it show?
The module takes 24 V DC from the ET 200S power module, with reverse polarity protection. Each channel has a green status LED. This standard version has no diagnostics function and no red group-error (SF) LED. The inputs are not isolated from each other but are isolated from the backplane bus.

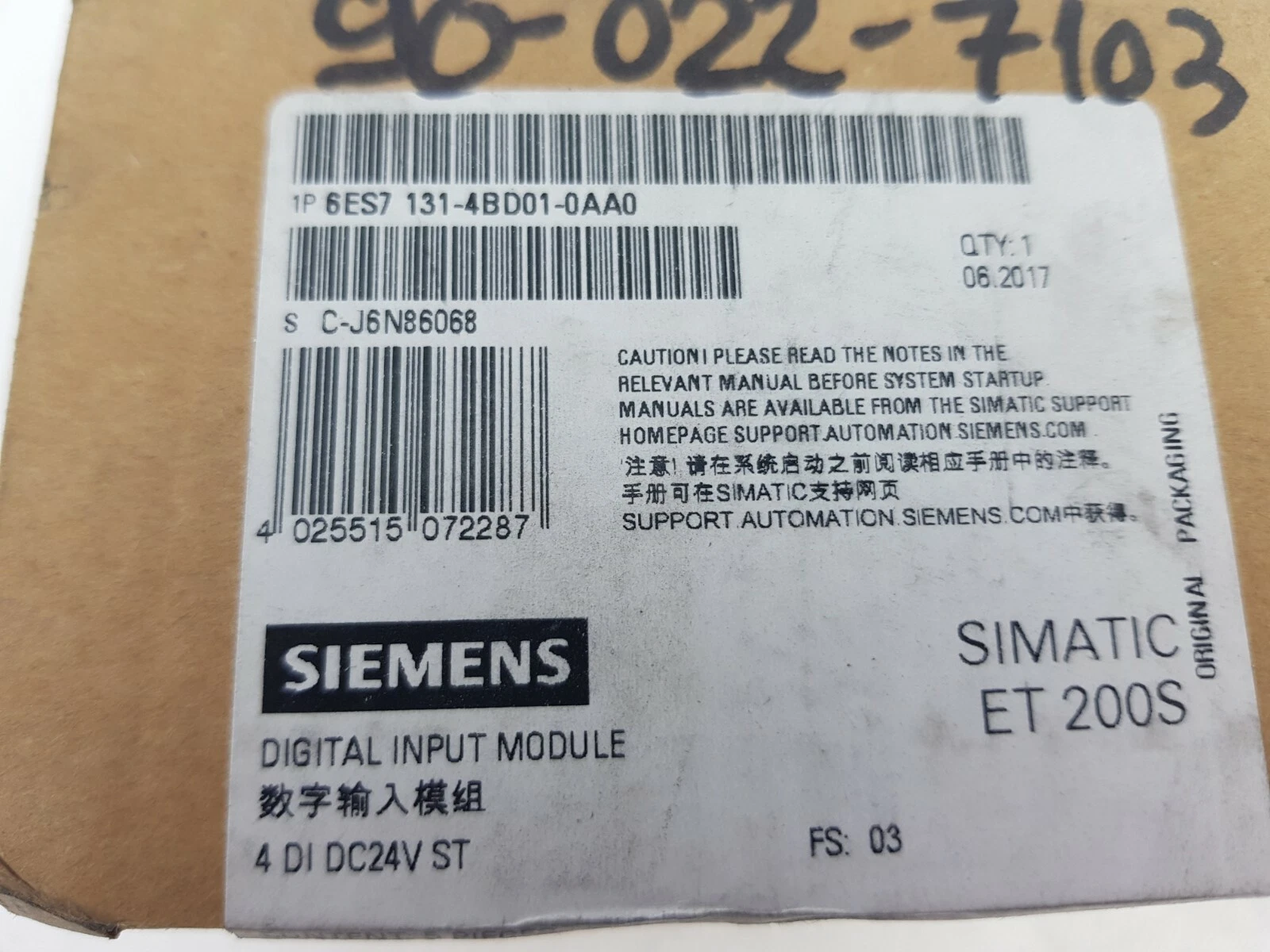

What does the box label say?
1P 6ES7 131-4BD01-0AA0, S C-J6N86068, QTY: 1, 06.2017, FS: 03, Siemens Digital Input Module, 4 DI DC24V ST, SIMATIC ET 200S, original packaging. A number, 90-022-7103, is handwritten on the box.
What condition is it in?

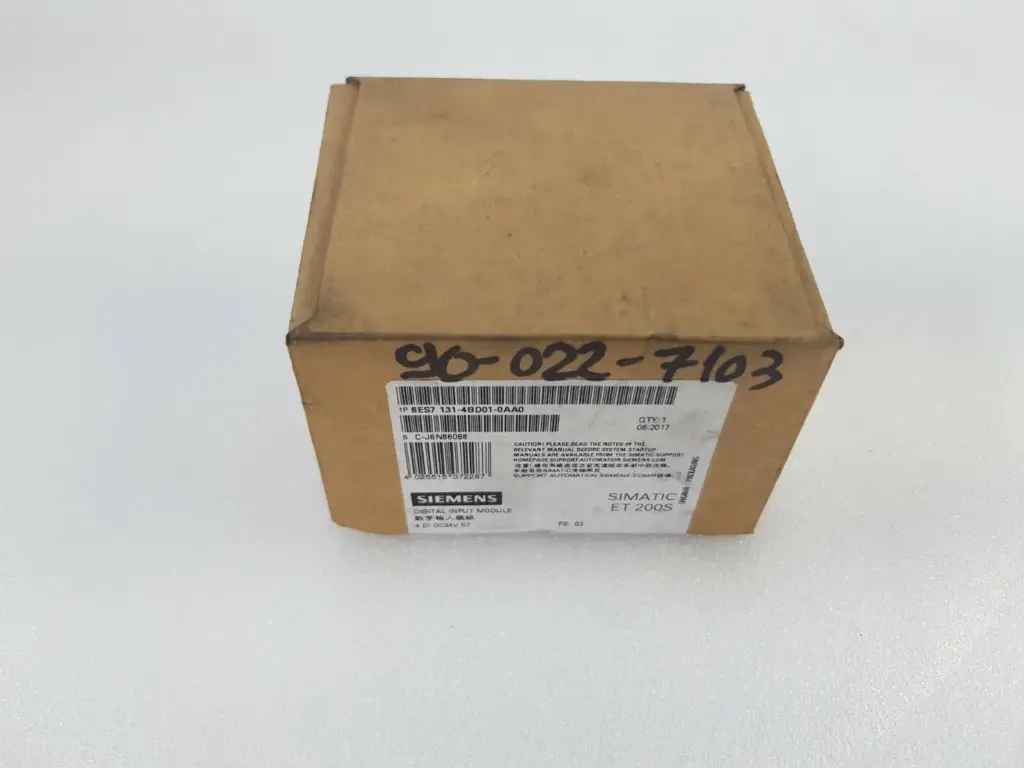

New, in the Siemens box shown in the photos.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Free — paid by us
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the 6ES7131-4BD01-0AA0?
A Siemens SIMATIC ET 200S electronic module with 4 digital inputs for 24 V DC, standard version, 15 mm wide.
What does 4DI DC24V ST mean?
4 digital inputs, 24 V DC, standard (ST) version. The standard version has a fixed input delay and no diagnostics, unlike the High Feature versions.
Can I connect 2-wire sensors?
Yes. Siemens allows 2-wire sensors with a quiescent current of up to 1.5 mA.
What voltage counts as a "1" signal?
+15 to +30 V DC. -30 to +5 V is read as "0". Typical input current is 7 mA at 24 V.
How much does the 6ES7131-4BD01-0AA0 weigh?
Siemens gives approx. 35 g for the module, which is 15 x 81 x 52 mm (W x H x D).
Where is the wiring diagram?
In the Siemens manual for the ET 200S digital electronic module 4DI DC24V ST, available from Siemens Industry Online Support.
What condition is it in?
New, in the Siemens box dated 06.2017, function state FS: 03.
