Photos show the actual item you will receive.
Product details
About this part
The SIEMENS 3TF54 CONTACTOR is made by Siemens and identified by manufacturer part number 3TF54.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New – Open Box. Unused. Packaging opened or missing.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × SIEMENS 3TF54 CONTACTOR.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Siemens), the part number (3TF54) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Siemens
- Part number
- 3TF54
- Model
- 3TF54
- Country of Origin
- Germany
- Manufacturer
- Siemens
- Poles
- 3 (L1-T1, L2-T2, L3-T3)
- AC-3 rating at 400/380 V
- 132 kW / 177 HP
- AC-3 rating at 690/660 V
- 235 kW / 315 HP
- AC-1 rated current (Ie)
- 300 A
- UL rating
- 260 A, 600 V AC; 200 HP at 460 V, 250 HP at 575 V (3-phase)
- Short-circuit rating
- Ik ≤ 50 kA at 690 V; UL: 18,000 A rms sym., 600 V max.
- Auxiliary contact rating
- A600 / P600

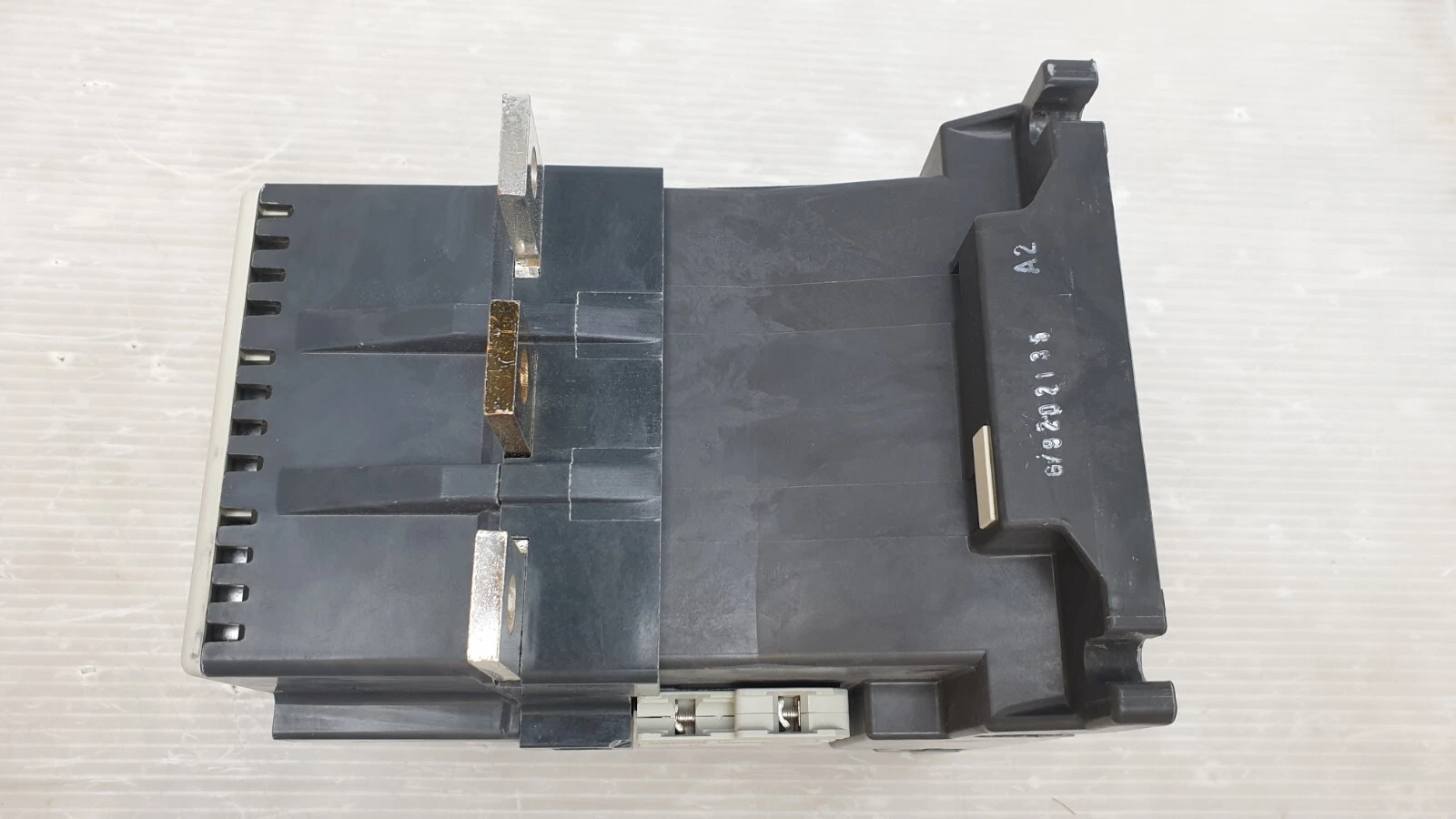

- Terminals
- Bar terminals; terminal kit 3TX6546-3C, 38 Nm (340 lb-in)
- Mounting (base marking)
- M8, 120 x 180 mm
- Standards
- IEC 947, VDE 0660; UL listed 165C
- Coil voltage
- Not shown in photos (ask)
- Included

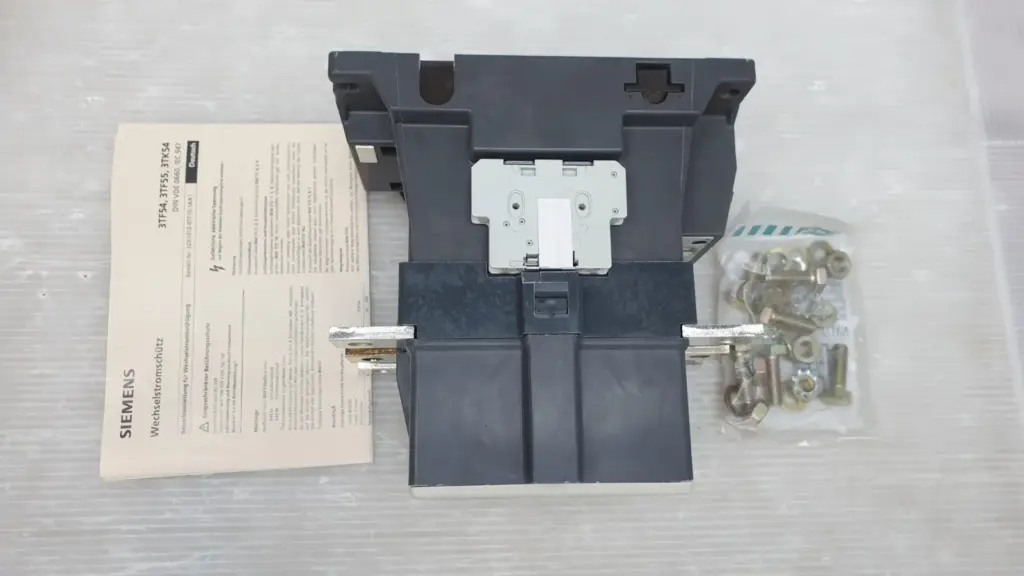

- Original Siemens box, instructions 3ZX1012-0TF10-1AA1, bag of bolts and washers
The Siemens 3TF54 is a 3-pole AC contactor for switching motors and other three-phase loads, rated 132 kW (177 HP) in AC-3 at 400/380 V and 300 A in AC-1. This unit is in its original Siemens box, made in Germany, with the Siemens operating instructions for the 3TF54, 3TF55 and 3TK54 and a bag of terminal bolts and washers. Auxiliary contact blocks are fitted on both sides of the housing.

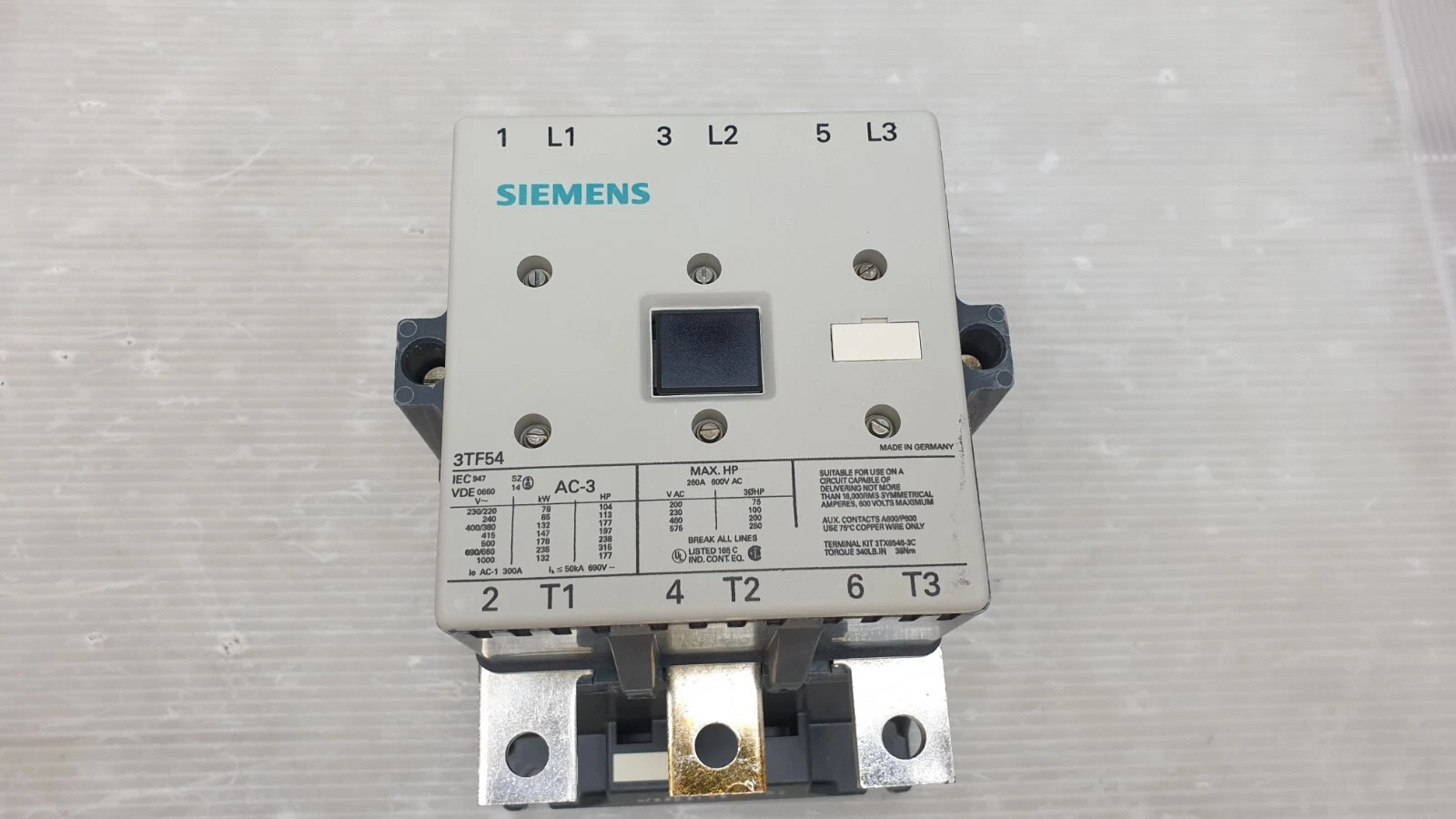

What does the nameplate say?
3TF54, IEC 947, VDE 0660. AC-3 ratings: 78 kW (104 HP) at 230/220 V, 85 kW (113 HP) at 240 V, 132 kW (177 HP) at 400/380 V, 147 kW (197 HP) at 415 V, 178 kW (238 HP) at 500 V, 235 kW (315 HP) at 690/660 V and 132 kW (177 HP) at 1000 V. Ie AC-1 300 A, short-circuit rating Ik ≤ 50 kA at 690 V.
What are the UL ratings?
The plate lists 260 A at 600 V AC with maximum three-phase horsepower of 75 HP at 200 V, 100 HP at 230 V, 200 HP at 460 V and 250 HP at 575 V, break all lines, UL listed 165C industrial control equipment. It is suitable for circuits delivering not more than 18,000 rms symmetrical amperes at 600 V maximum. Auxiliary contacts are rated A600/P600. Use 75 °C copper wire only. Terminal kit 3TX6546-3C, tightening torque 340 lb-in (38 Nm).
What is the difference between AC-1 and AC-3?
AC-1 is for non-inductive or slightly inductive loads such as resistive heaters, so the contactor can carry more current: 300 A here. AC-3 is for starting squirrel-cage motors and switching them off while running, which is harder on the contacts, so the rating is given in motor kW and HP for each voltage.
What coil voltage does it have?
The coil voltage is not shown in the photos, so please ask before ordering. The enclosed Siemens instructions are the version for AC-operated contactors (Wechselstrombetätigung).
What condition is it in?
New, open box. The box shows wear and handwritten numbers.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the current rating of a Siemens 3TF54 contactor?
300 A in AC-1 (resistive loads). In AC-3 motor duty it is rated 132 kW / 177 HP at 400/380 V. The UL rating is 260 A at 600 V AC.
What is the difference between AC-1 and AC-3 contactor ratings?
AC-1 is for resistive, non-motor loads and allows a higher current. AC-3 is for starting and stopping squirrel-cage motors, which is harder on the contacts, so the rating is lower and given in kW or HP.
What motor size can it switch at 460 V?
The nameplate lists 200 HP three-phase at 460 V, and 250 HP at 575 V.
What is the coil voltage?
It is not visible in the photos. The included Siemens instructions are for AC-operated contactors. Ask us before ordering if you need a specific coil voltage.
Does it come with the terminal hardware?

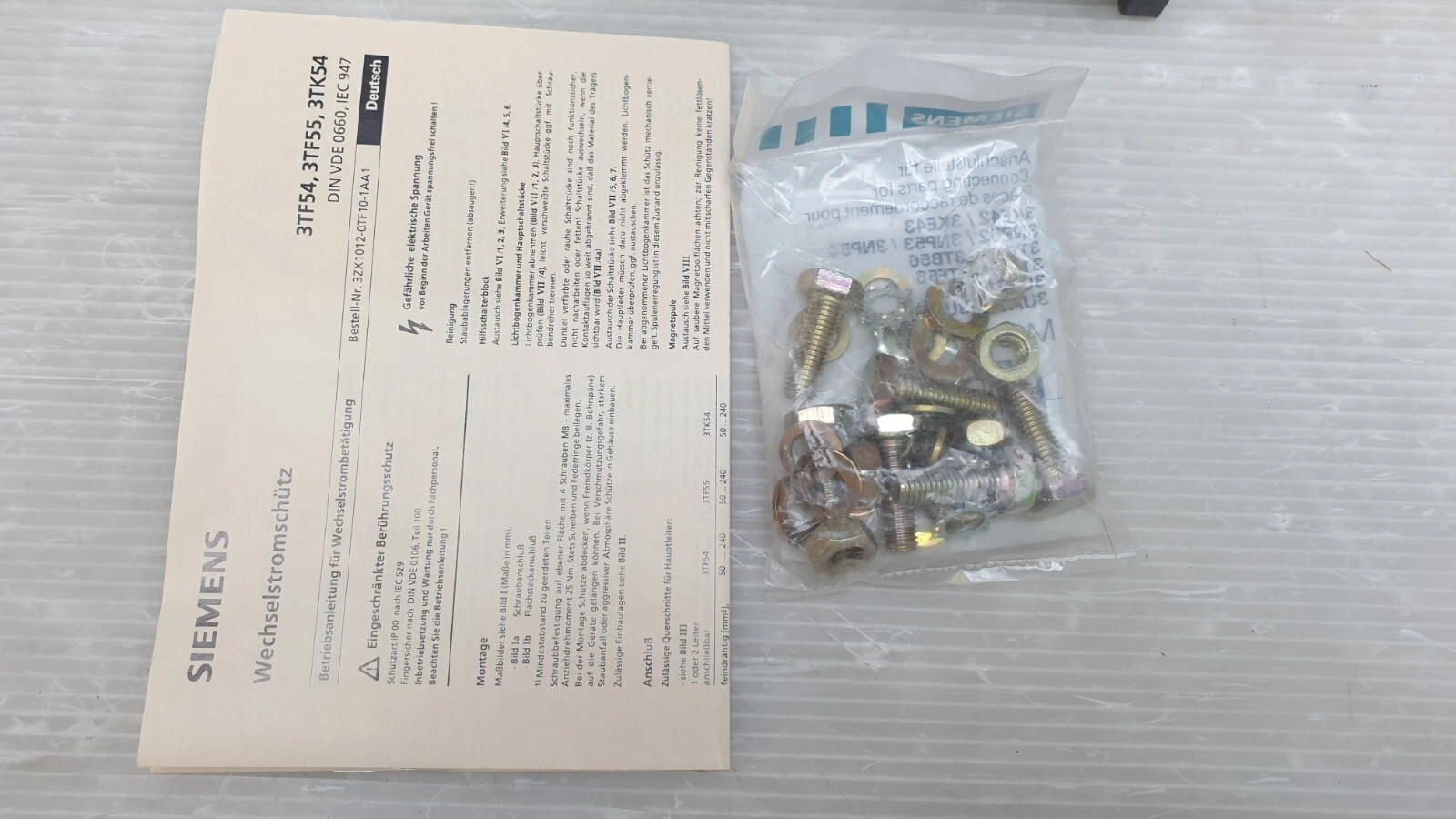

Yes, a bag of bolts and washers is in the photos, together with the Siemens operating instructions for 3TF54, 3TF55 and 3TK54.
How is it mounted?

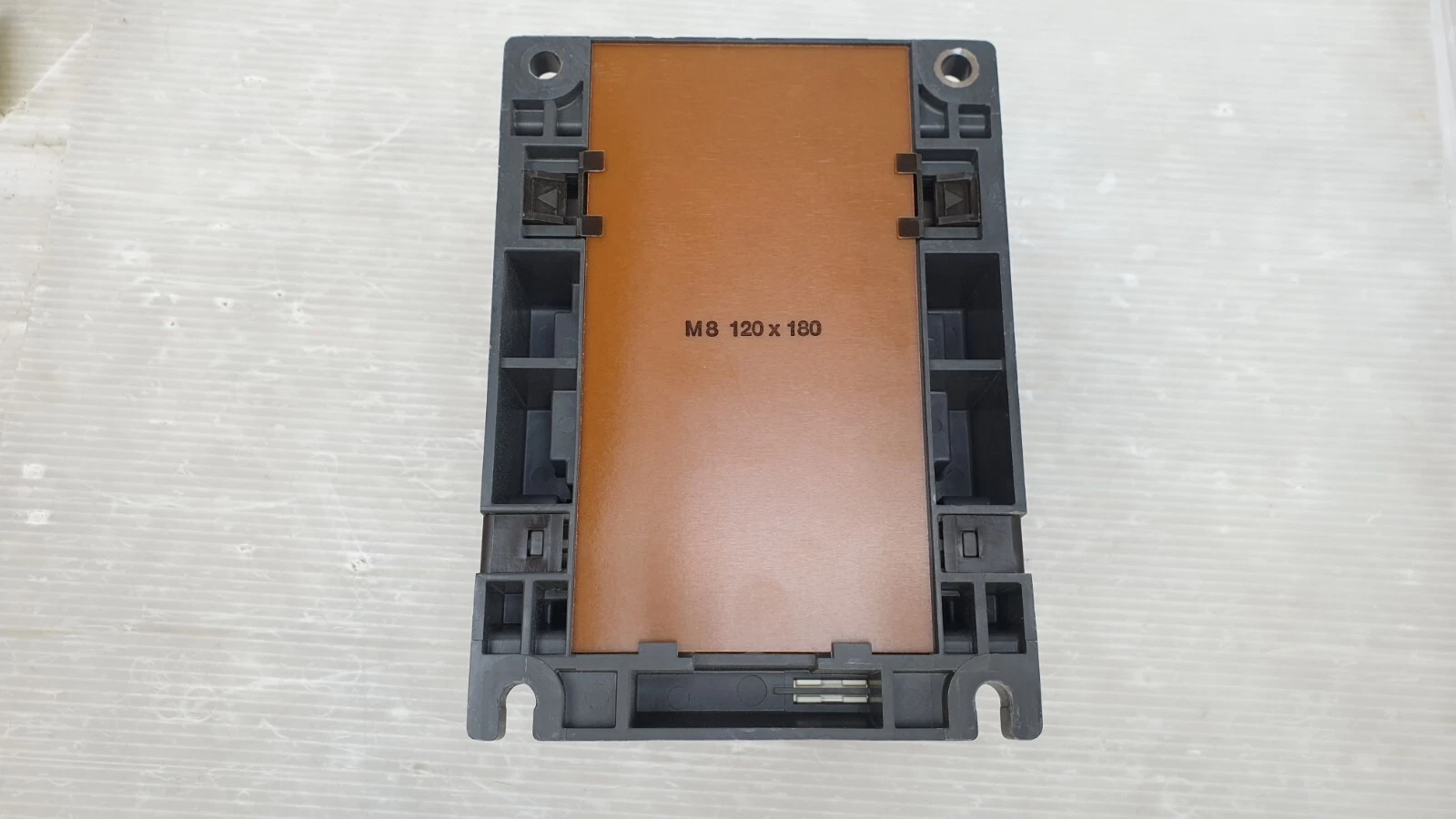

The base is marked M8, 120 x 180 mm, which gives the screw size and mounting hole spacing.
What condition is it in?
New, open box, in the original Siemens box. The box shows wear.
