Product details
About this part
The OMRON E3X-NH11 Photoelectric Switch LOT OF 3 is made by Omron and identified by manufacturer part number E3X-NH11.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × OMRON E3X-NH11 Photoelectric Switch LOT OF 3.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Omron), the part number (E3X-NH11) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Omron
- Part number
- E3X-NH11
- Model
- E3X-NH11
- Country of Origin
- Japan
- Quantity
- 3 amplifiers
- Series
- E3X-NH fine-tuning fiber amplifier, general-purpose model
- Control output
- NPN open collector, 50 mA max.
- Alarm output
- NPN open collector, 50 mA max., residual voltage 1 V max.
- Power supply
- 12 to 24 VDC ±10%, ripple (p-p) 10% max.
- Current consumption
- 75 mA max.
- Light source
- Red LED, 680 nm
- Response time
- 1 ms max. for operation and reset
- Sensitivity setting
- Teaching, with automatic or manual fine threshold adjustment (13 levels)
- Indicators
- Operation (orange), 8-level incident level (green), 13-level threshold (red)
- Protection circuits
- Output short-circuit, reverse polarity, mutual interference prevention
- Ambient temperature
- −25 to 55 °C operating (no icing)
- Degree of protection
- IP50 (IEC 60529)
- Material
- Case PBT, cover polycarbonate
- Removed from
- Shinko SMART SELOP3 load port
The Omron E3X-NH11 is a fine-tuning fiber-optic photoelectric amplifier from Omron's E3X-NH series, with an NPN control output and a separate alarm output. This lot contains three used E3X-NH11 amplifiers (also written E3XNH11), removed from a Shinko SMART SELOP3 load port. Each amplifier runs on 12 to 24 VDC, uses a red LED light source (680 nm) and responds in 1 ms or less. Full ratings are in the Specifications tab.
What does the E3X-NH11 do?
The E3X-NH11 is the amplifier half of a fiber-optic sensor: it sends light out through a fiber unit, measures the light that comes back and switches its output. Omron built the E3X-NH for high-precision positioning. Sensitivity is set by teaching, and the threshold can then be fine-tuned automatically or manually in 13 levels. An 8-level incident-light indicator and a 13-level threshold indicator show the operating margin at a glance.
How is the E3X-NH11 wired?

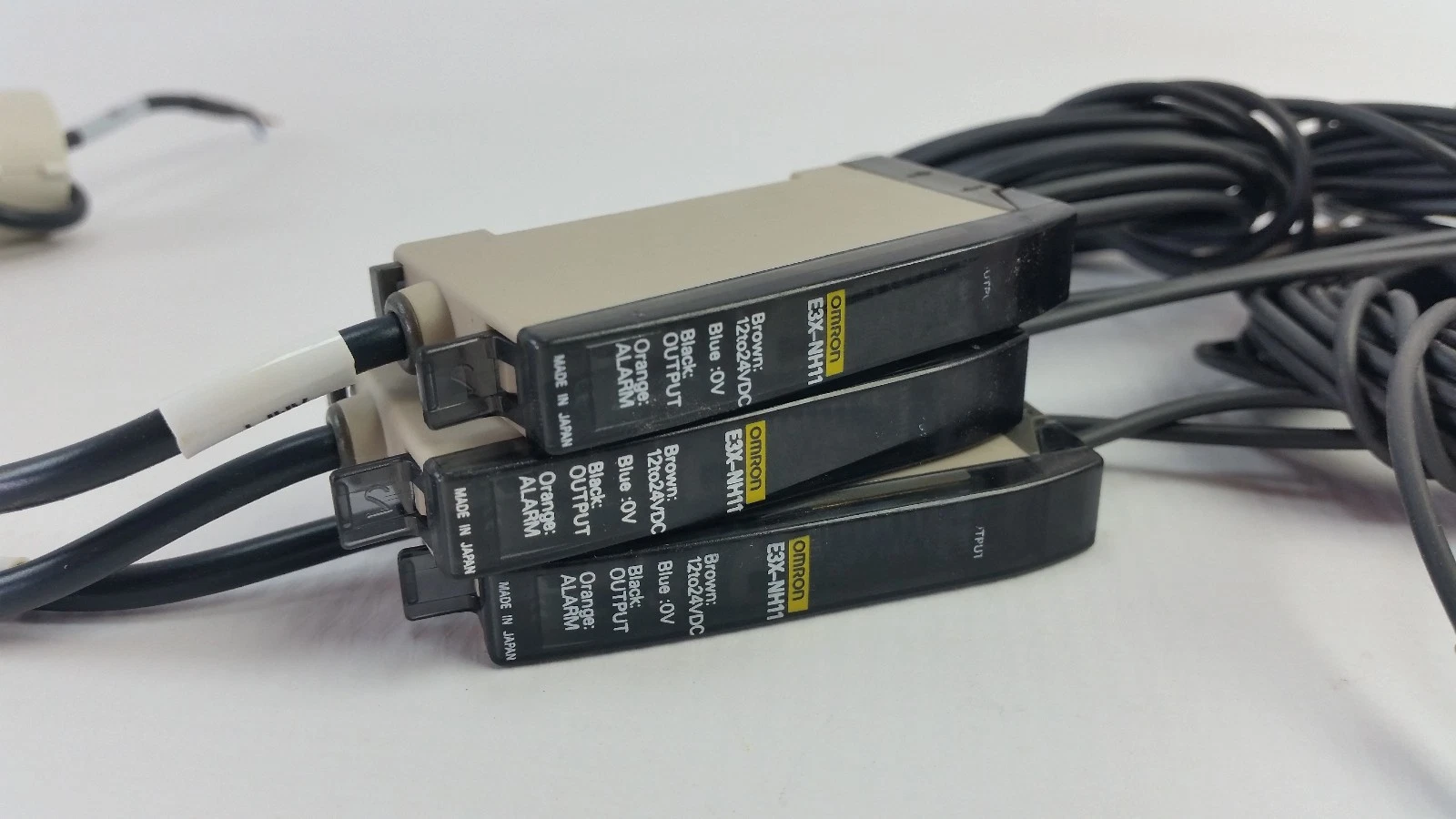

The label on each amplifier gives the colour code: brown 12–24 VDC, blue 0 V, black control output and orange alarm output. Both outputs are NPN open collector, rated 50 mA maximum. If your machine needs PNP outputs, the matching Omron model is the E3X-NH41.
What condition are these amplifiers in?

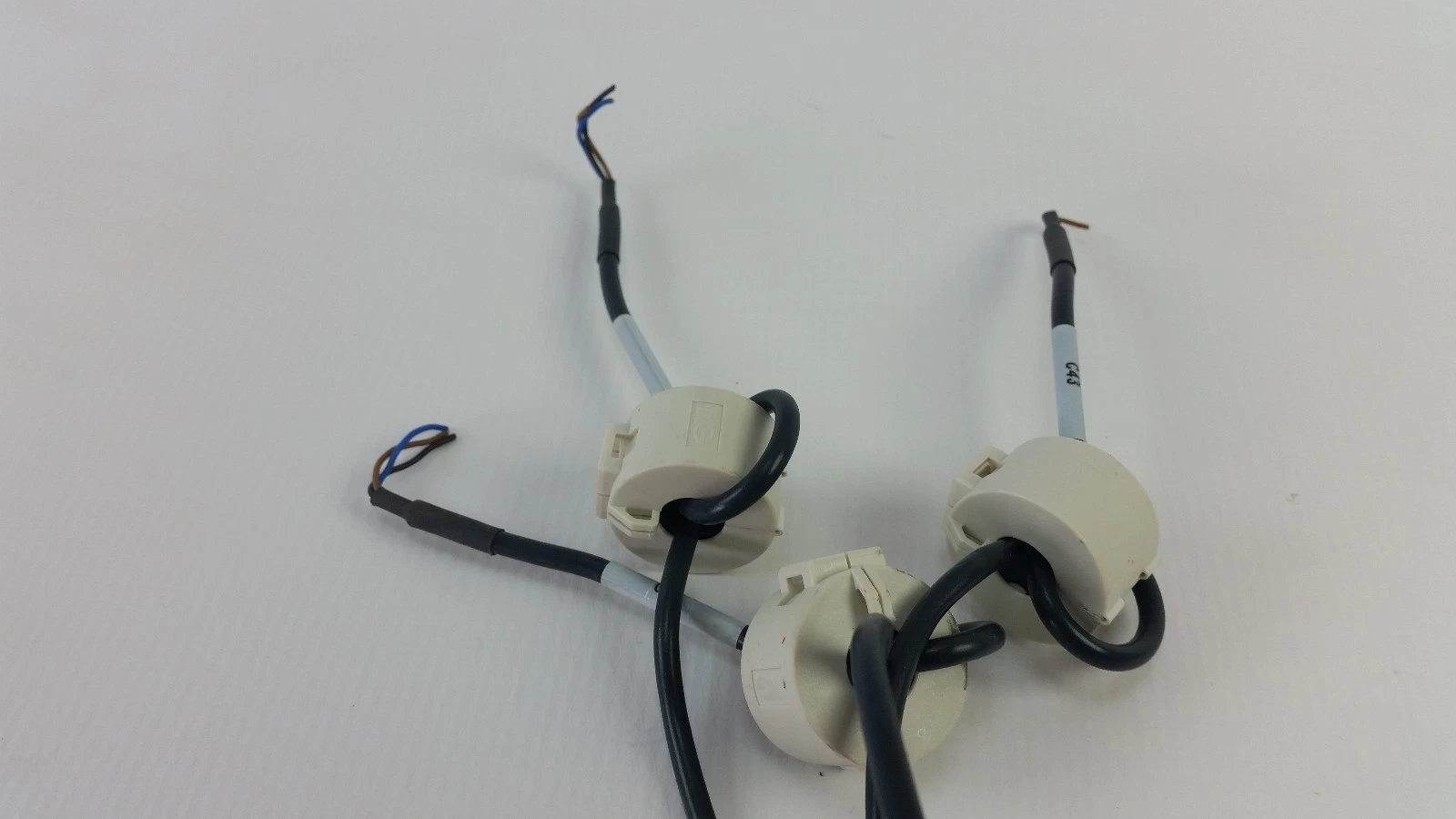

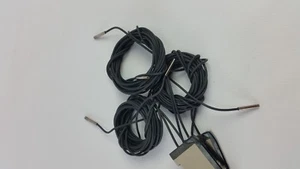

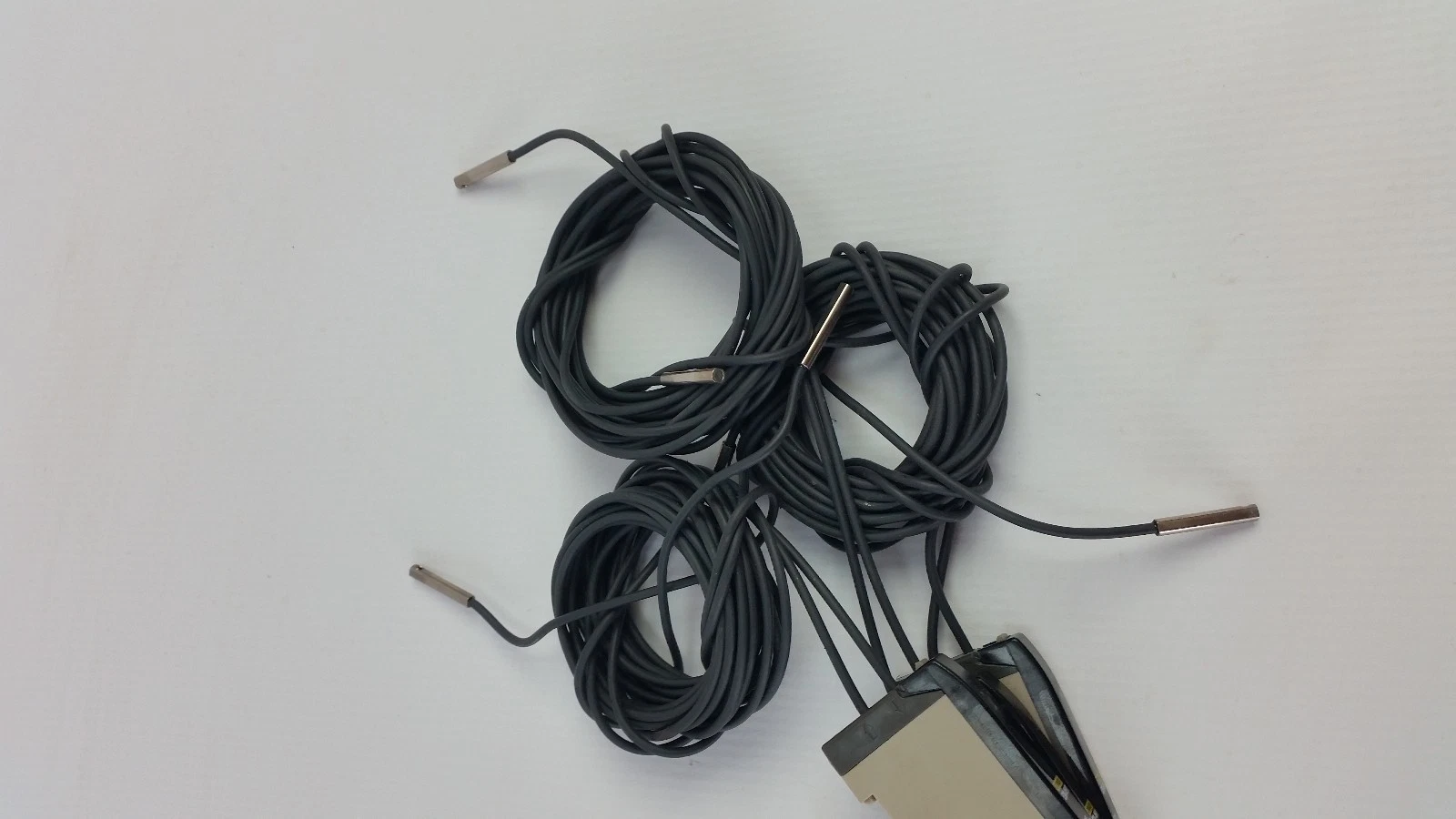

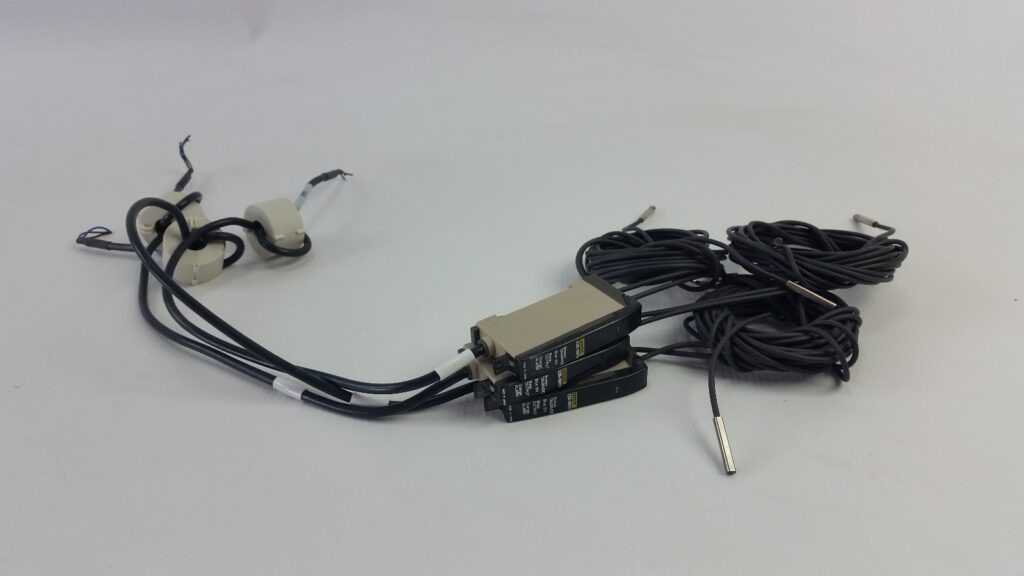

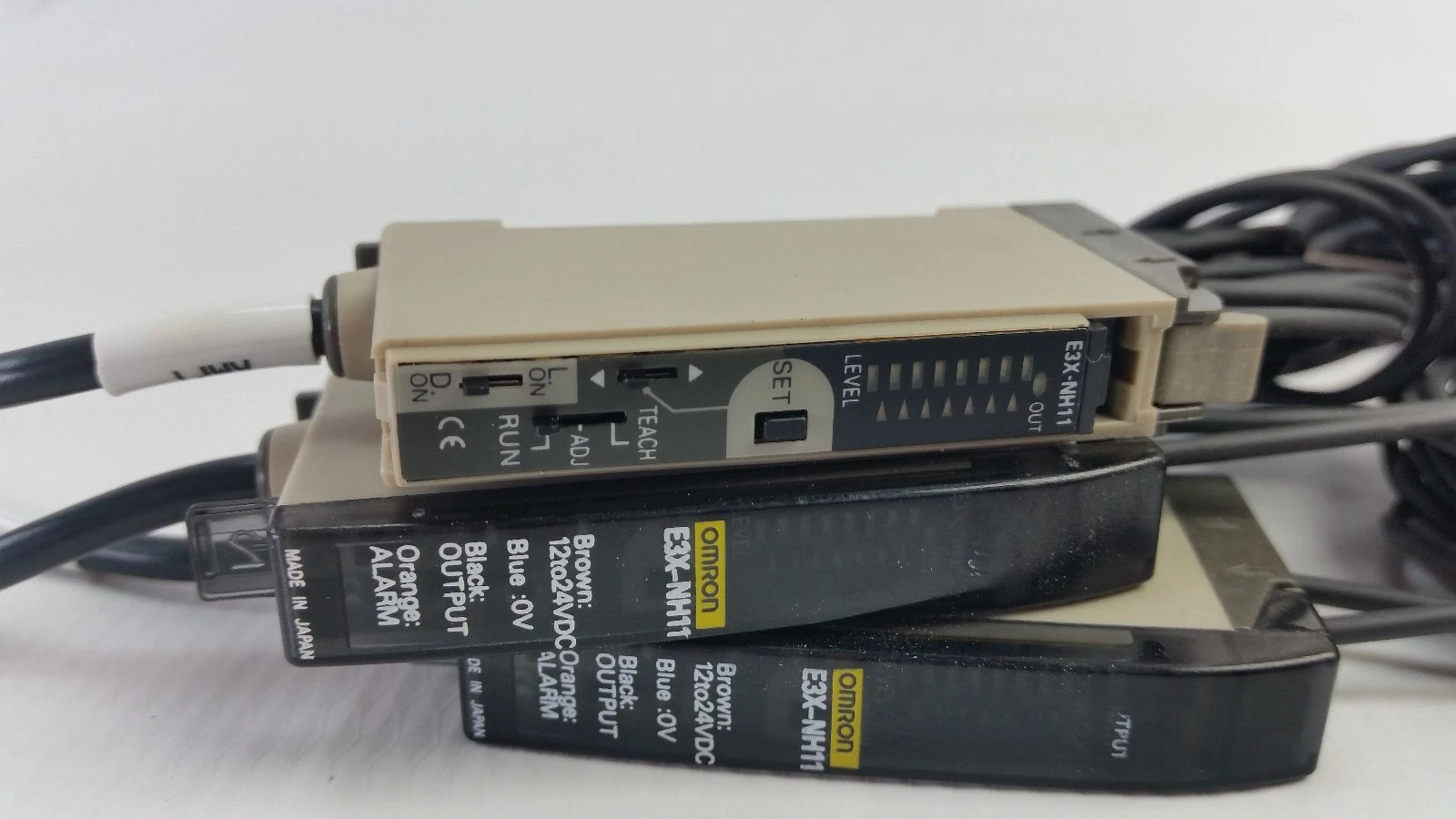

Used. The photos show three amplifiers, each with fiber-optic cables still fitted and clip-on ferrite cores on the power leads. The TEACH / ADJ / RUN and L-ON / D-ON selector switches and the SET button are visible on the top panel.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
How many E3X-NH11 amplifiers are in this lot?
Three. Each carries its own E3X-NH11 label, and the photos show all three with fiber cables fitted.
Is the E3X-NH11 NPN or PNP?
NPN. Both the control output and the alarm output are NPN open collector, 50 mA max. The PNP version in the same series is the E3X-NH41.
What is the orange wire on the E3X-NH11?
The alarm output. The amplifier label lists brown 12–24 VDC, blue 0 V, black output and orange alarm.
What power supply does the E3X-NH11 need?
12 to 24 VDC ±10%, with ripple of 10% or less. Current consumption is 75 mA max. per amplifier.
Where were these amplifiers used?
They were removed from a Shinko SMART SELOP3 load port.
