Photos show the actual item you will receive.
Product details
About this part
The MKS Baratron Pressure Switch, Model 51B11TGA2BA010, Range 1.38 kPa, Used is made by MKS and identified by manufacturer part number 51B11TGA2BA010.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as For Parts / Not Working. Sold as-is, for parts or repair.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × MKS Baratron Pressure Switch, Model 51B11TGA2BA010, Range 1.38 kPa, Used.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (MKS), the part number (51B11TGA2BA010) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- MKS
- Part number
- 51B11TGA2BA010
- Model
- 51B11TGA2BA010
- Country of Origin
- Japan
- Type
- Single-ended, absolute (referenced to vacuum)
- Full scale range
- 10 Torr (1.33 kPa / 13.33 mbar)
- Trip point
- 10 Torr (1.33 kPa), factory set
- Relay mode
- Energized below trip point
- Output
- SPDT relay, up to 1 A at 30 VDC resistive
- Input power
- 20 to 30 VDC, 30 mA max.
- Fitting
- NW 16 KF
- Connector
- 9-pin Type D male
- Accuracy (catalog)
- ±0.5% of full scale; response under 20 ms
- Wetted materials
- Inconel and 316L stainless steel
- Overpressure
- 2 x F.S. or 45 psia, whichever is greater
- Operating temperature
- 0 to 50 °C ambient
- Condition
- For parts / not working
The MKS 51B11TGA2BA010 is a Baratron single-ended absolute pressure switch with a 10 Torr (1.33 kPa) full scale and a factory-set 10 Torr trip point, sold here for parts / not working. The 51B is a capacitance-manometer based vacuum switch with a relay output instead of an analog signal, used for soft pumping, gas box switching and safety interlocks. MKS has discontinued the 51B; the model is also searched as MKS 51B and MKS Baratron pressure switch.
What does the model code mean?
In the MKS ordering code, 51B is the single-ended absolute switch, 11T is 10 Torr full scale, GA is an NW 16 KF fitting, 2 is 20-30 VDC input, B means the relay energizes with pressure below the set point, A is a 9-pin Type D male connector and 010 is the trip point, 10 Torr.
How does a Baratron pressure switch work?
A metal diaphragm deflects with pressure and the change in capacitance against a fixed electrode is measured by the electronics, which switch an SPDT relay at the trip point. MKS rates the 51B at ±0.5% of full scale trip point accuracy and under 20 ms response, with only 316L stainless steel and Inconel exposed to the process gas. Because this unit energizes below the trip point, a loss of power gives the same relay state as high pressure, which is the fail-safe setup MKS describes for vacuum systems.
What do the labels say?

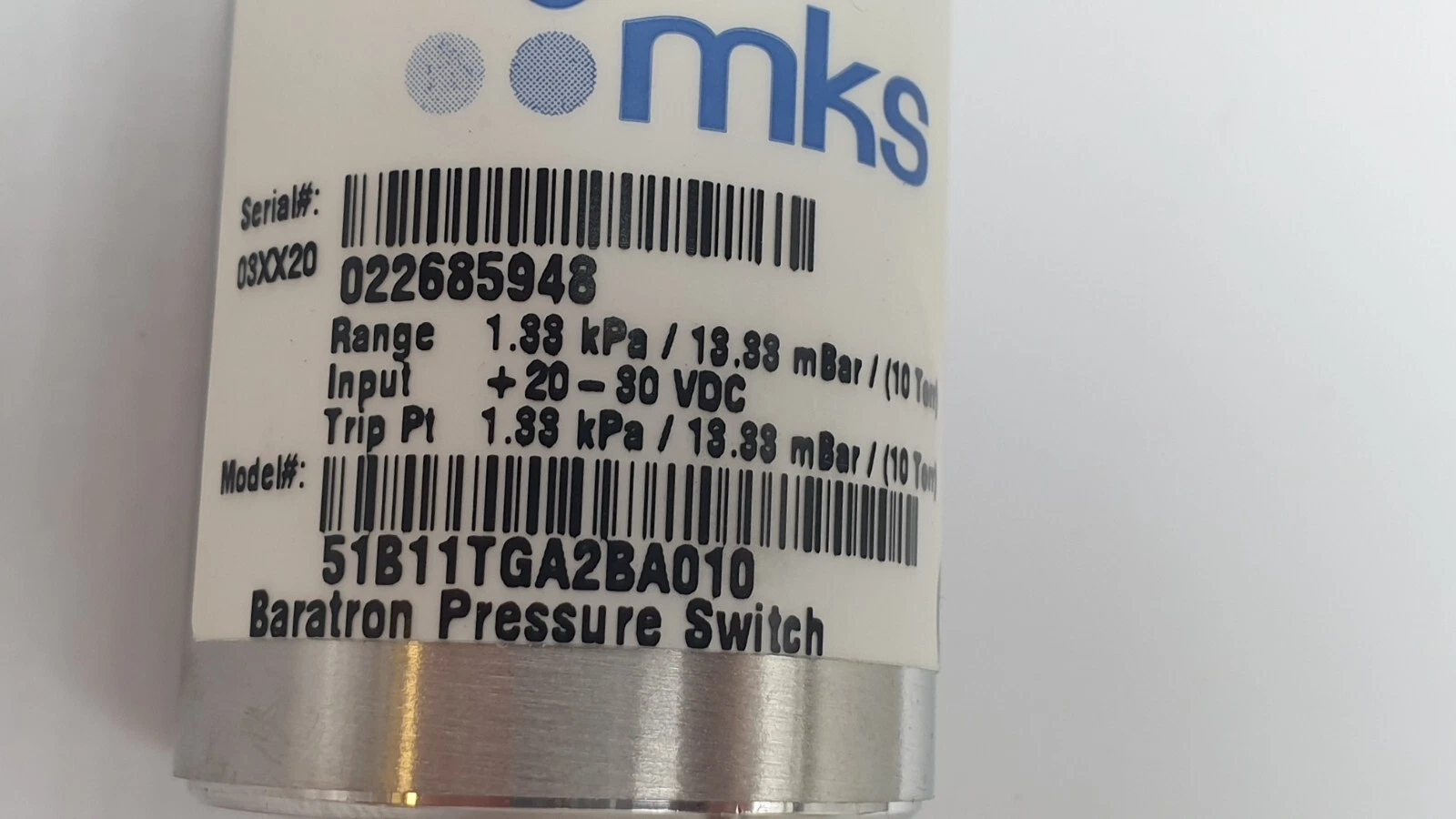

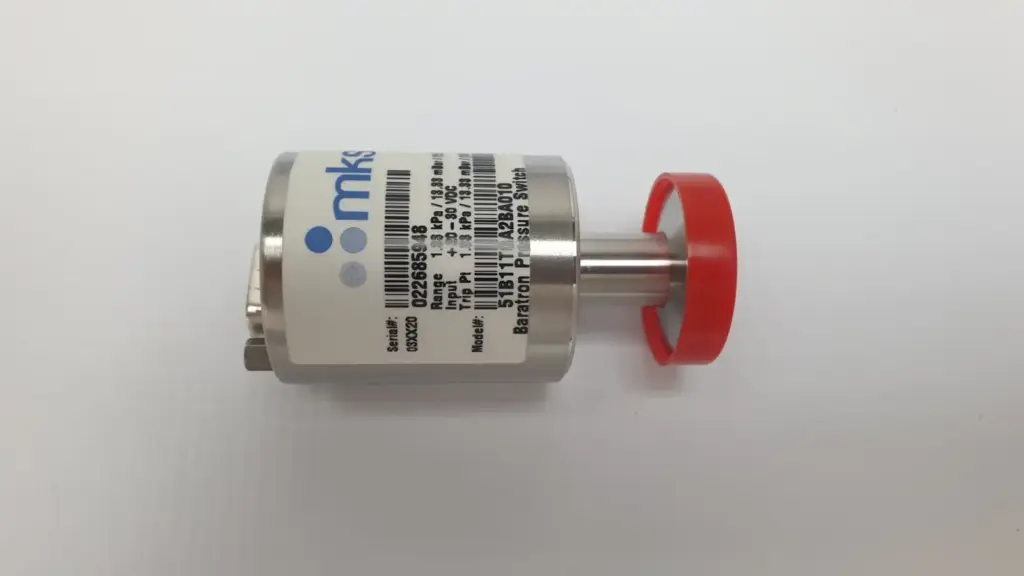

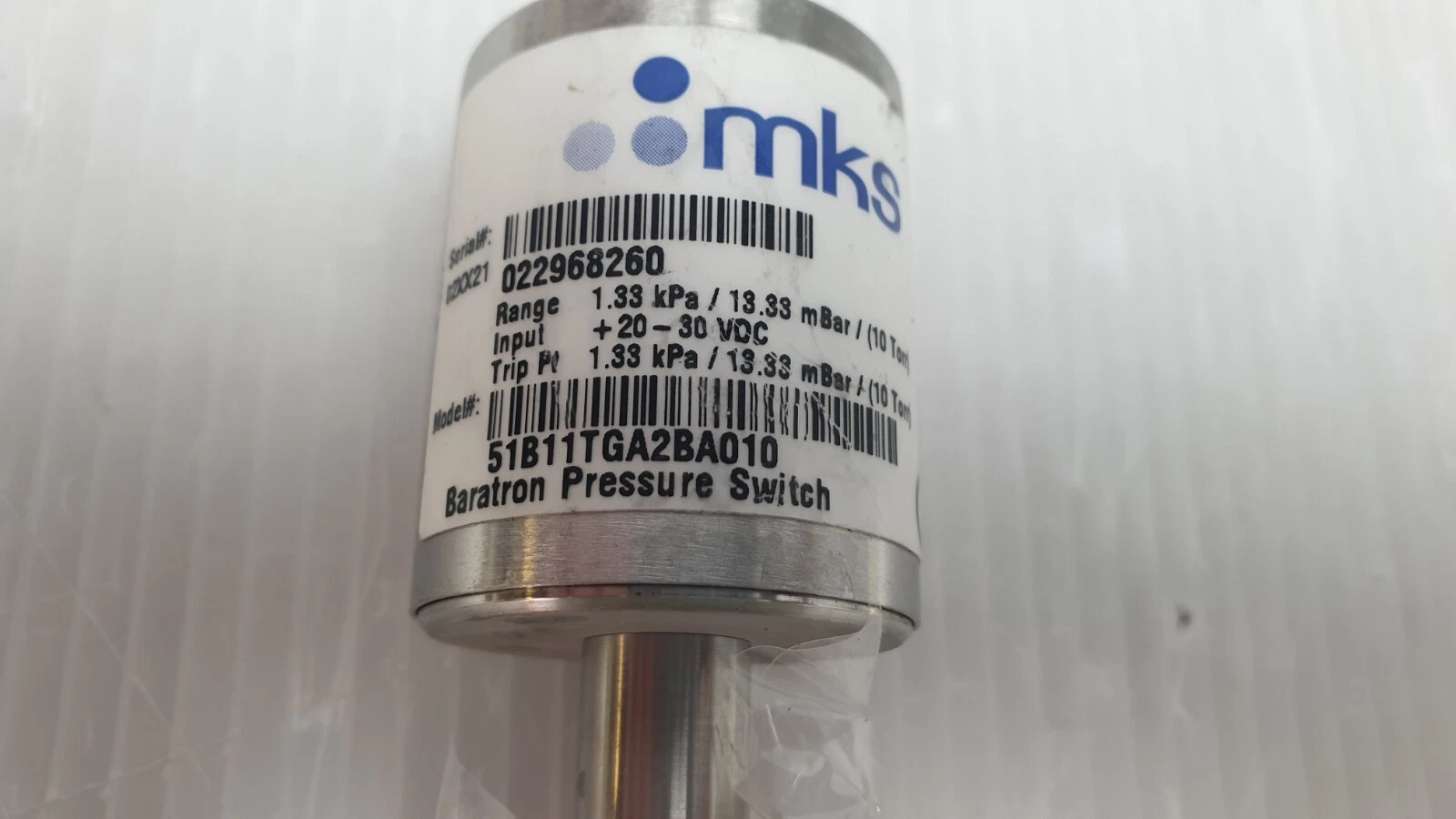

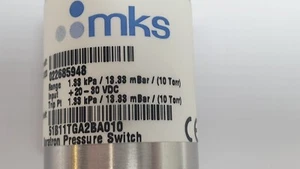

The MKS label reads Range 1.33 kPa / 13.33 mBar / (10 Torr), Input +20-30 VDC, Trip Pt 1.33 kPa / 13.33 mBar / (10 Torr), Model 51B11TGA2BA010, Baratron Pressure Switch, with a CE mark. The connector end is labeled ENERGIZED BELOW TRIP POINT. The photos show two units of this model. Condition: for parts / not working.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the MKS 51B11TGA2BA010?
An MKS Baratron 51B single-ended absolute pressure switch with a 10 Torr range and a 10 Torr trip point, NW16 KF fitting, 20-30 VDC power and a 9-pin D connector.
How does a Baratron pressure switch work?
Pressure deflects a metal diaphragm; the electronics measure the capacitance change and switch a relay when the pressure crosses the trip point.
What does 'energized below trip point' mean?
The relay is energized when pressure is below 10 Torr. If pressure rises or power is lost, the relay drops out, which is the fail-safe state for vacuum systems.
Does it give an analog pressure output?
No. The 51B gives an SPDT relay output only, rated up to 1 A at 30 VDC resistive.
What is the pinout?
Per MKS: pin 1 power return, pin 2 power input +, pin 3 relay NO, pin 4 relay common, pin 5 relay NC, pin 9 chassis ground.
Is the 51B still made?
No. MKS marks the 51B datasheet as discontinued.
Does it work?
No. It is sold for parts / not working.
