About this part
The Maxim Integrated MAX823SEUK+T Microprocessor Supervisor with Watchdog, SOT23-5, Reel of 2500 is made by Maxim Integrated and identified by manufacturer part number MAX823SEUK+T.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New. Factory new, in original packaging.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Maxim Integrated MAX823SEUK+T Microprocessor Supervisor with Watchdog, SOT23-5, Reel of 2500.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Maxim Integrated), the part number (MAX823SEUK+T) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Maxim Integrated
- Part number
- MAX823SEUK+T
- Model
- MAX823SEUK+T
- Manufacturer
- Maxim Integrated (now Analog Devices)
- Type
- Microprocessor supervisory circuit: reset, watchdog, manual reset
- Reset threshold
- 2.93 V typ. (2.89 to 2.96 V at 25 °C)
- Supply voltage (S version)
- 3 V to 3.6 V specified; RESET valid down to 1 V
- Reset timeout
- 140 ms min, 200 ms typ, 280 ms max
- Watchdog timeout
- 1.6 s typ (1.12 to 2.40 s)
- Reset output
- Active-low RESET, push-pull (sources and sinks)
- Manual reset input
- MR, active low, internal 52 kΩ pull-up
- Supply current
- 5 µA typ, 12 µA max
- Package
- 5-pin SOT23-5
- Operating temperature
- -40 to +85 °C
- Reel label
- Qty 2500, date code 2217, origin TH, RoHS 2011/65/EU, halogen free, e3, 260 °C max
- Quantity
- 2500 pcs (one reel)

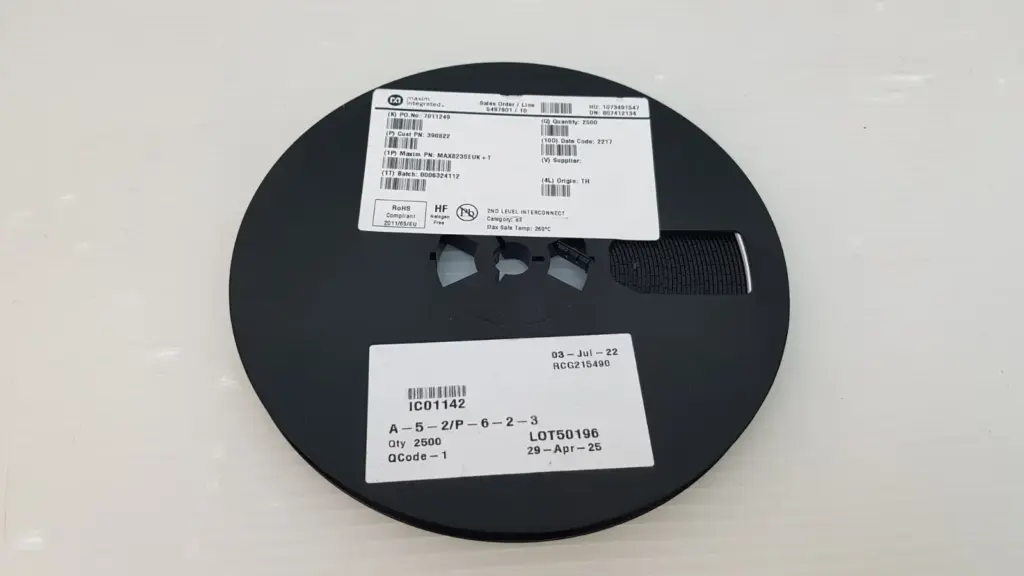

Maxim MAX823SEUK+T, a full reel of 2500. 5-pin microprocessor supervisor with a 2.93 V reset threshold, watchdog and manual reset. The Maxim reel label reads MAX823SEUK+T, quantity 2500, date code 2217, origin TH, RoHS and halogen free, category e3, 260 °C max. Some buyers search it as MAX823SEUK T or just MAX823SEUK. Maxim's datasheet gives AAAL as the top marking on the chips.
Is the S version right for a 3.3 V rail?
Yes. The S suffix trips at 2.93 V typical (2.89 to 2.96 V at 25 °C), and Maxim specs it on a 3 V to 3.6 V supply. For a 5 V rail you want the L or M version, for a 3.0 V rail the R (2.63 V).
How does the watchdog work on the MAX823?
Your processor toggles the WDI pin. If WDI sits high or low for longer than 1.6 s (1.12 to 2.40 s), the chip pulls RESET low for about 200 ms. Leave WDI open or tri-stated and the watchdog is off, so you can use it as a plain reset IC.
What is on each pin?
Pin 1 RESET (active low, push-pull), pin 2 GND, pin 3 MR, pin 4 WDI, pin 5 VCC. MR has an internal 52 kΩ pull-up, so a pushbutton to ground is all a manual reset needs. No external parts are required.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What does a microprocessor supervisory circuit do?
It holds the processor in reset while the supply is too low and releases it about 200 ms after the rail is good. The MAX823 adds a watchdog and a manual-reset input.
Can I use the MAX823SEUK+T as an external watchdog timer IC?
Yes. Toggle WDI from firmware at least every 1.12 s; if the code hangs, it resets the processor.
How do I turn the watchdog off?
Leave WDI unconnected or drive it from a tri-stated output. The reset and MR functions keep working.
What is the difference between MAX823S and MAX823T?
Only the reset threshold: S trips at 2.93 V, T at 3.08 V. Pinout and timing are the same.
What does the marking AAAL mean?
The SOT23 is too small for the full part number, so Maxim prints AAAL on top for the MAX823S.
Is it a watchdog reset IC with push-pull output?
Yes. RESET on the MAX823 drives high and low, so no pull-up resistor is needed.
