Product details
About this part
The Maxim Integrated MAX823SEUK+T Microprocessor Supervisor with Watchdog, SOT23-5, Reel of 2500 is made by Maxim Integrated and identified by manufacturer part number MAX823SEUK+T.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New. Factory new, in original packaging.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Maxim Integrated MAX823SEUK+T Microprocessor Supervisor with Watchdog, SOT23-5, Reel of 2500.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Maxim Integrated), the part number (MAX823SEUK+T) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Maxim Integrated
- Part number
- MAX823SEUK+T
- Model
- MAX823SEUK+T
- Manufacturer
- Maxim Integrated
- Function
- Microprocessor supervisory circuit with watchdog and manual reset
- Reset threshold (S)
- 2.93 V typ. (2.89 to 2.96 V at 25 °C)
- Reset output
- Active-low RESET, valid down to VCC = 1 V
- Reset timeout
- 140 ms min, 200 ms typ, 280 ms max
- Watchdog timeout
- 1.12 s min, 1.6 s typ, 2.4 s max
- Manual reset
- MR input, active low, internal 52 kohm pull-up
- Supply range (S version)
- 3.0 to 3.6 V
- Package
- SOT23-5
- Operating temperature
- -40 to +85 °C
- Label data
- Date code 2207, batch 0006197937, origin TH
- Compliance (label)
- RoHS 2011/65/EU, halogen free, Pb-free, e3, 260 °C max
- Quantity (Maxim label)
- 2500
This is a Maxim Integrated reel of MAX823SEUK+T chips, a 5-pin microprocessor supervisory circuit with a 2.93 V reset threshold, watchdog timer and manual-reset input in a SOT23-5 package; the Maxim label reads quantity 2500. The MAX823 holds a microcontroller or microprocessor in reset while its supply is too low, during power-up, power-down and brownouts, and resets it again if the software stops toggling the watchdog input. It needs no external components.
What does the Maxim label say?

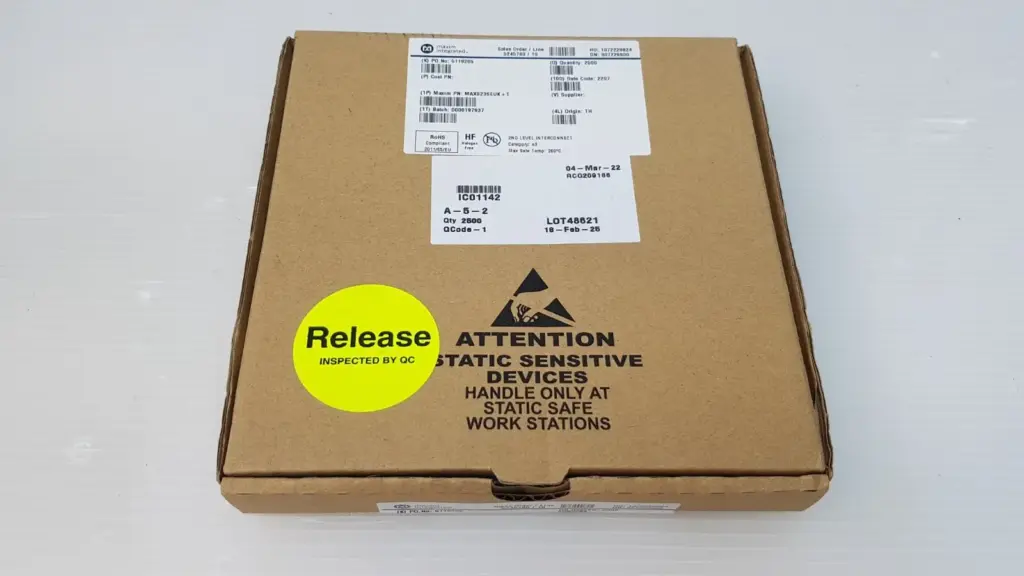

(1P) Maxim PN: MAX823SEUK+T, (Q) Quantity: 2500, (10D) Date Code: 2207, (1T) Batch: 0006197937, (4L) Origin: TH. RoHS compliant 2011/65/EU, halogen free, Pb-free, 2nd level interconnect category e3, max safe temperature 260 °C. The reel is in an anti-static bag inside the Maxim box.
What does the part number mean?
MAX823 is the version with an active-low RESET output, a watchdog input (WDI) and a manual-reset input (MR). The suffix S sets the reset threshold at 2.93 V typical (2.89 to 2.96 V at 25 °C), for 3 V and 3.3 V supplies. E is the -40 to +85 °C range, UK is the 5-pin SOT23 package, and +T is the ordering suffix of this lead-free, tape-and-reel supply (the label is marked Pb-free and the parts come on a reel).
How does a microprocessor supervisory circuit work?
The chip compares VCC with its fixed threshold. Below 2.93 V, RESET goes low and stays low; once VCC is back above the threshold, RESET stays low for another 200 ms typical (140 ms min) so the supply and clock can settle. If the WDI pin sees no edge for 1.6 s typical, the watchdog fires a reset as well. Pulling MR low, for example with a push button, also forces a reset. Per the datasheet, RESET stays a valid logic low down to VCC = 1 V.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the MAX823SEUK+T?
A Maxim 5-pin microprocessor supervisory circuit in SOT23-5 with a 2.93 V reset threshold, 1.6 s watchdog timer and manual-reset input.
What does the S in MAX823S mean?
The reset threshold: S is 2.93 V typical. Other versions are L 4.63 V, M 4.38 V, T 3.08 V and R 2.63 V.
What is the difference between MAX823, MAX824 and MAX825?
MAX823 has watchdog and manual-reset inputs. MAX824 has a watchdog and an extra active-high reset output. MAX825 has manual reset and an active-high reset output, but no watchdog.
How does the watchdog work?
If the WDI pin stays high or low for longer than about 1.6 s, the chip resets the processor. Leaving WDI unconnected disables the watchdog.
What is the difference between MAX823SEUK+T and MAX823TEUK+T?
Only the reset threshold: S trips at 2.93 V, T at 3.08 V. Both are SOT23-5, -40 to +85 °C.
How many chips are on the reel?
The Maxim reel label reads quantity 2500.
What condition are they in?

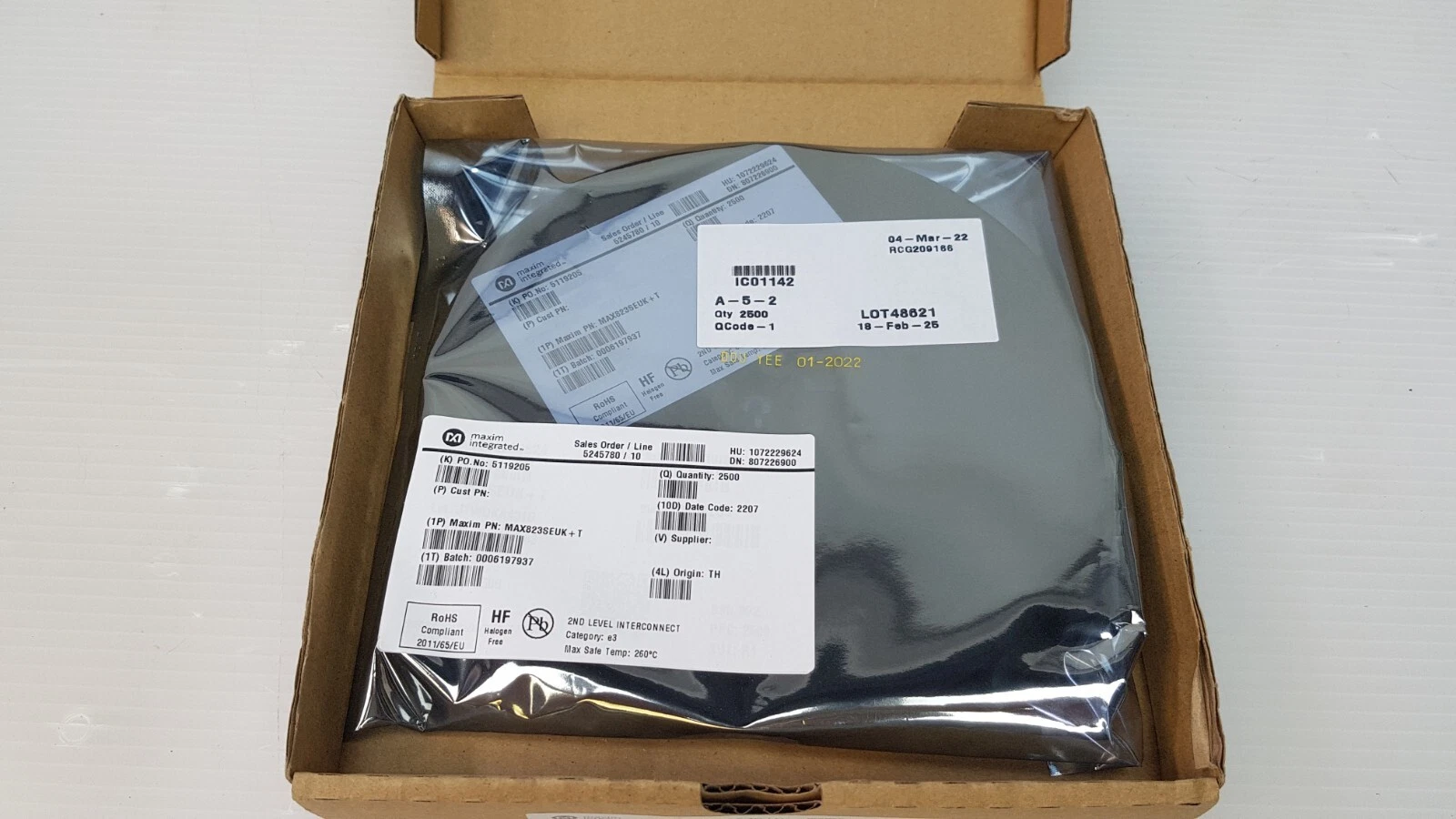

New, on the Maxim reel in an anti-static bag inside the Maxim box shown in the photos.
