Photos show the actual item you will receive.
Product details
About this part
The Lumenis MUST Relay Unit Assy SA-10032600 for Lumenis SlimMe GA-3100000 System is made by Lumenis and identified by manufacturer part number SA-10032600.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Lumenis MUST Relay Unit Assy SA-10032600 for Lumenis SlimMe GA-3100000 System.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Lumenis), the part number (SA-10032600) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Lumenis
- Part number
- SA-10032600
- Model
- SA-10032600
- Part number (label)
- SA-10032600
- Description (label)
- MUST RELAY UNIT ASSY
- Serial / lot (label)
- 150514986
- Listed for
- Lumenis SlimME, GA-3100000
- RF ports
- RFin + RF1-RF6, SMA sockets
- US ports
- USin + US1-US6, SMA sockets
- Control connections
- Two D-sub connectors (cables tagged TO US, TO RF); harness tagged TO Joint Cont J4, Rev B
- Housing
- Two-section aluminum enclosure with mounting flange
- Condition
- Used

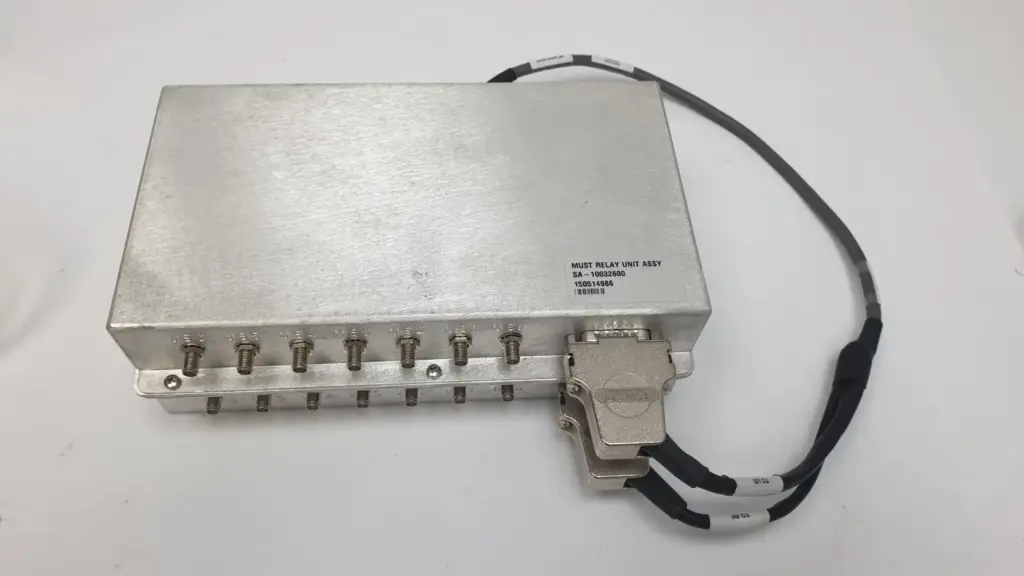

The SA-10032600 is a Lumenis MUST Relay Unit Assy, an aluminum switching box with one RF input and six RF outputs, and one US input and six US outputs, all on SMA connectors. It is listed for the Lumenis SlimME body-contouring system (GA-3100000). The SlimME combines ultrasound with multi-polar radiofrequency, which fits the RF and US port groups on this unit. It is a system part, not a stand-alone device.

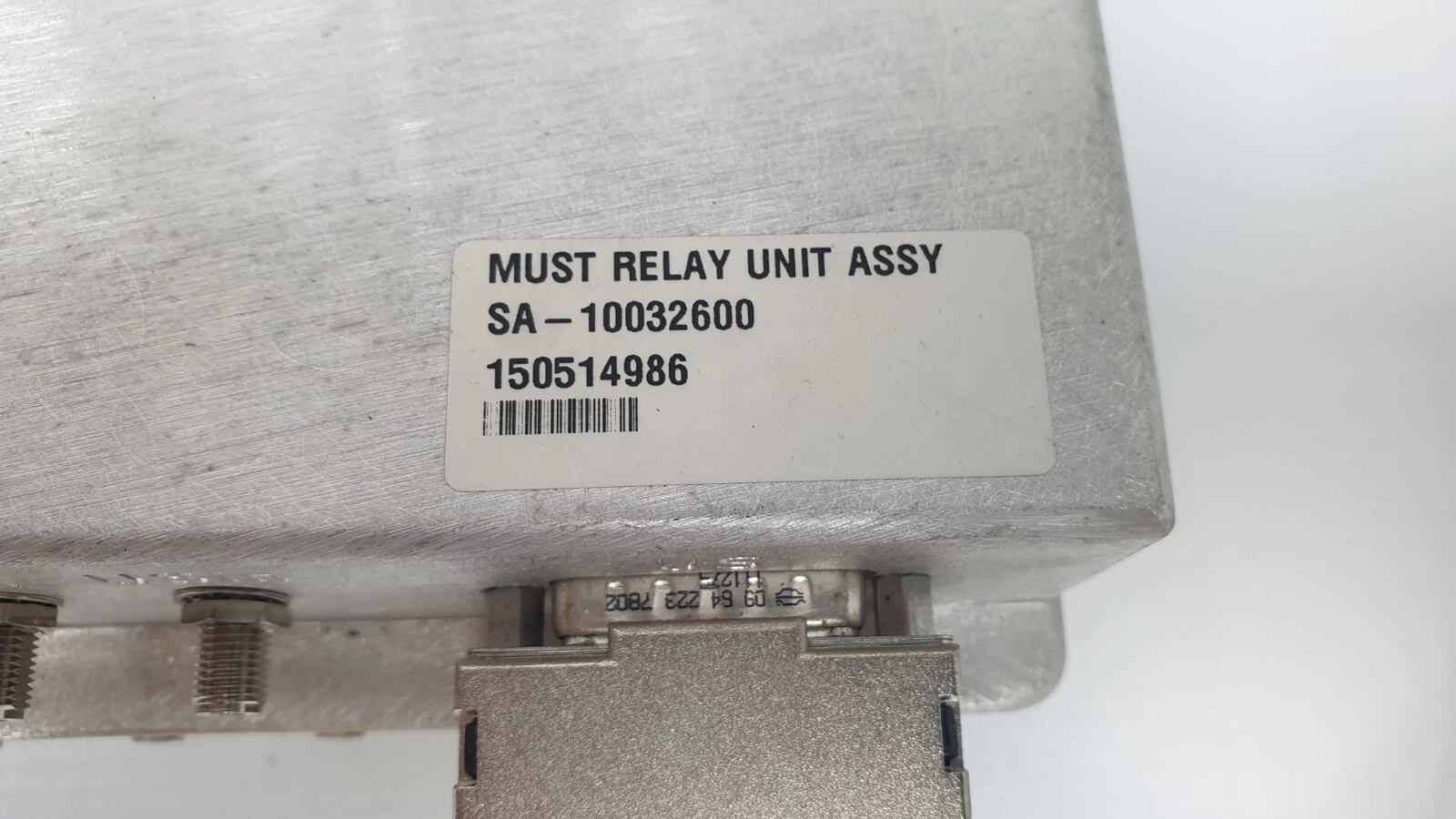

What does the label say?
MUST RELAY UNIT ASSY, SA-10032600, 150514986, with a barcode. The Lumenis name is not printed on the label; the SA part number format and the listing identify it as a Lumenis part.

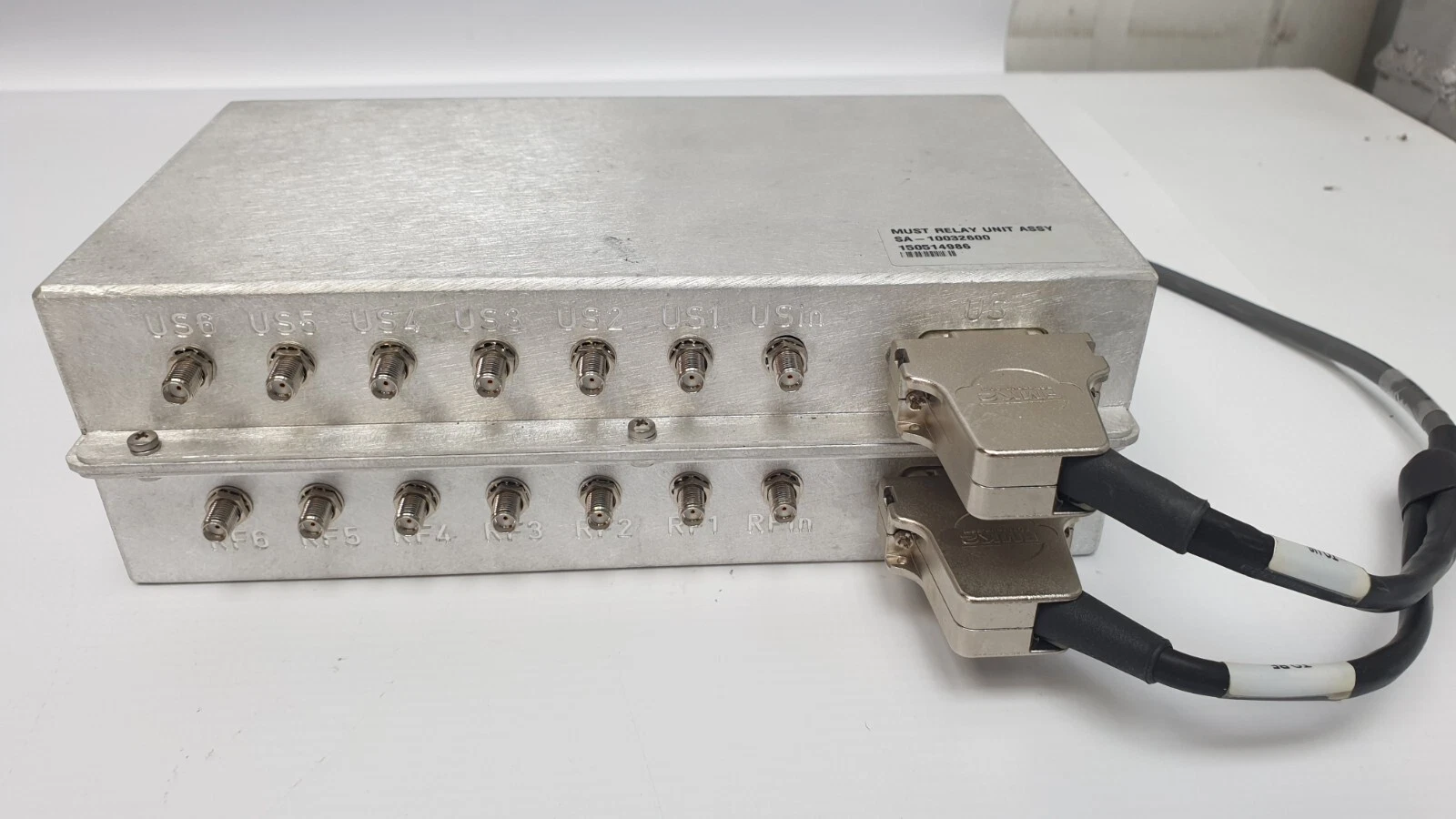

What connectors does it have?
The upper section has seven SMA sockets marked US6, US5, US4, US3, US2, US1 and USin, and the lower section seven SMA sockets marked RF6 to RF1 and RFin. Two D-sub connectors with metal hoods are attached, on cables tagged "TO US" and "TO RF". A further cable leads to a small multi-pin plug and is tagged "TO Joint Cont J4", Rev B.
What is a relay unit used for?
A relay (switch) unit routes a signal from one input to one of several outputs. From the port markings, this unit takes one RF input and one US input and switches each to six outputs, under control through its D-sub and harness connections.
What condition is it in?
Used, with its cables attached, as shown in the photos.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Lumenis SA-10032600?
The MUST Relay Unit Assy: an aluminum box that switches one RF input and one US input to six outputs each, on SMA connectors.
Which system is it for?
It is listed for the Lumenis SlimME body-contouring system, GA-3100000. The system name is not printed on the unit.
What is a relay or RF switch unit?
A unit that routes a signal from one input to one of several outputs. The port markings here show RFin to RF1-RF6 and USin to US1-US6.
What connectors does it have?
14 SMA sockets (RFin, RF1-RF6, USin, US1-US6), two D-sub connectors on cables tagged TO US and TO RF, and a harness to a small multi-pin plug.
Are the cables included?
Yes, the attached cables shown in the photos are included.
What condition is it in?
Used.
