Photos show the actual item you will receive.
Product details
About this part
The Lumenis REAR CONNECTORS BOARD PC-10004711 REV. B, LM-EA-10004711-B is made by Lumenis and identified by manufacturer part number LM-EA-10004711-B.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Lumenis REAR CONNECTORS BOARD PC-10004711 REV. B, LM-EA-10004711-B.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Lumenis), the part number (LM-EA-10004711-B) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Lumenis
- Part number
- LM-EA-10004711-B
- Model
- LM-EA-10004711-B
- Manufacturer
- Lumenis (logo on PCB)
- Board name
- Rear Connectors Board
- PCB number
- PC-10004711 Rev. B
- Assembly PN
- LM-EA-10004711-B
- Serial number
- 201220096 (unit in photos)
- Connectors
- Modular RJ-style jack (J1), stacked dual USB-A (J3)
- Unfitted position
- J4, 9 pads, no connector in photos
- Components
- U1, U2 8-pin ICs; R1, R2; C1, C2; D1-D4, D9
- PCB marking
- UL 94V-0, E251497
- Condition
- Used

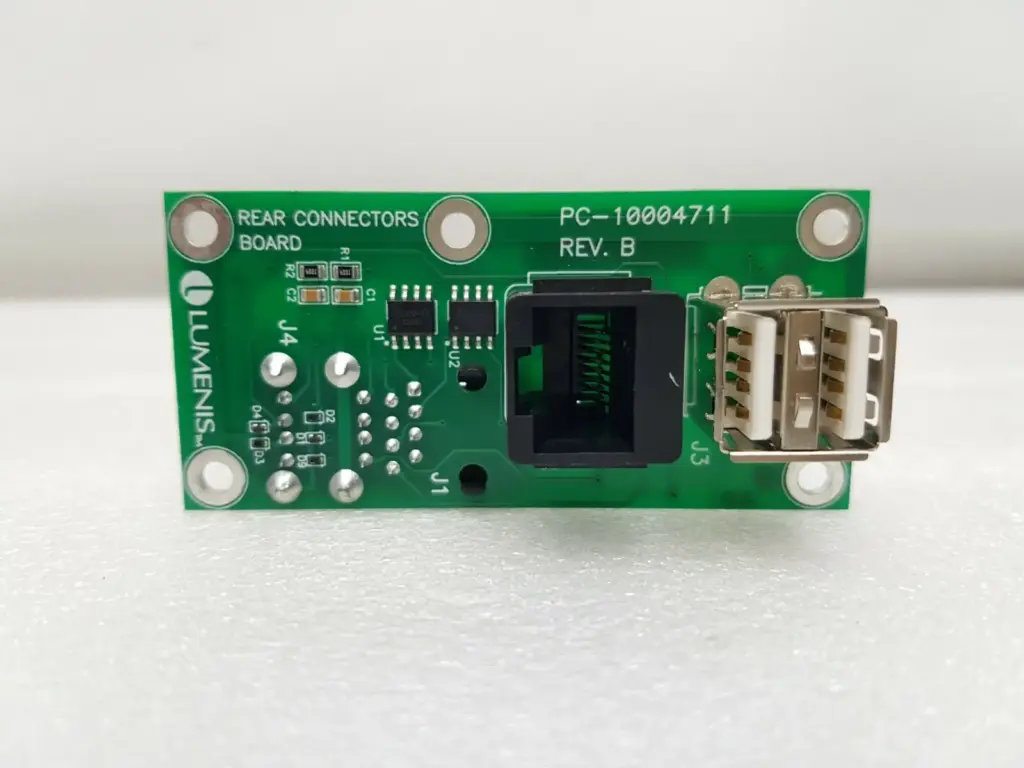

Lumenis PC-10004711 Rev. B Rear Connectors Board, assembly LM-EA-10004711-B. A small interface PCB that carries rear-panel ports: a modular RJ-style jack (J1) and a stacked dual USB-A connector (J3). Lumenis printed its logo and the board name on the PCB, so this is a Lumenis part, not a third-party board. Used.
How do I match it to the board in my Lumenis system?

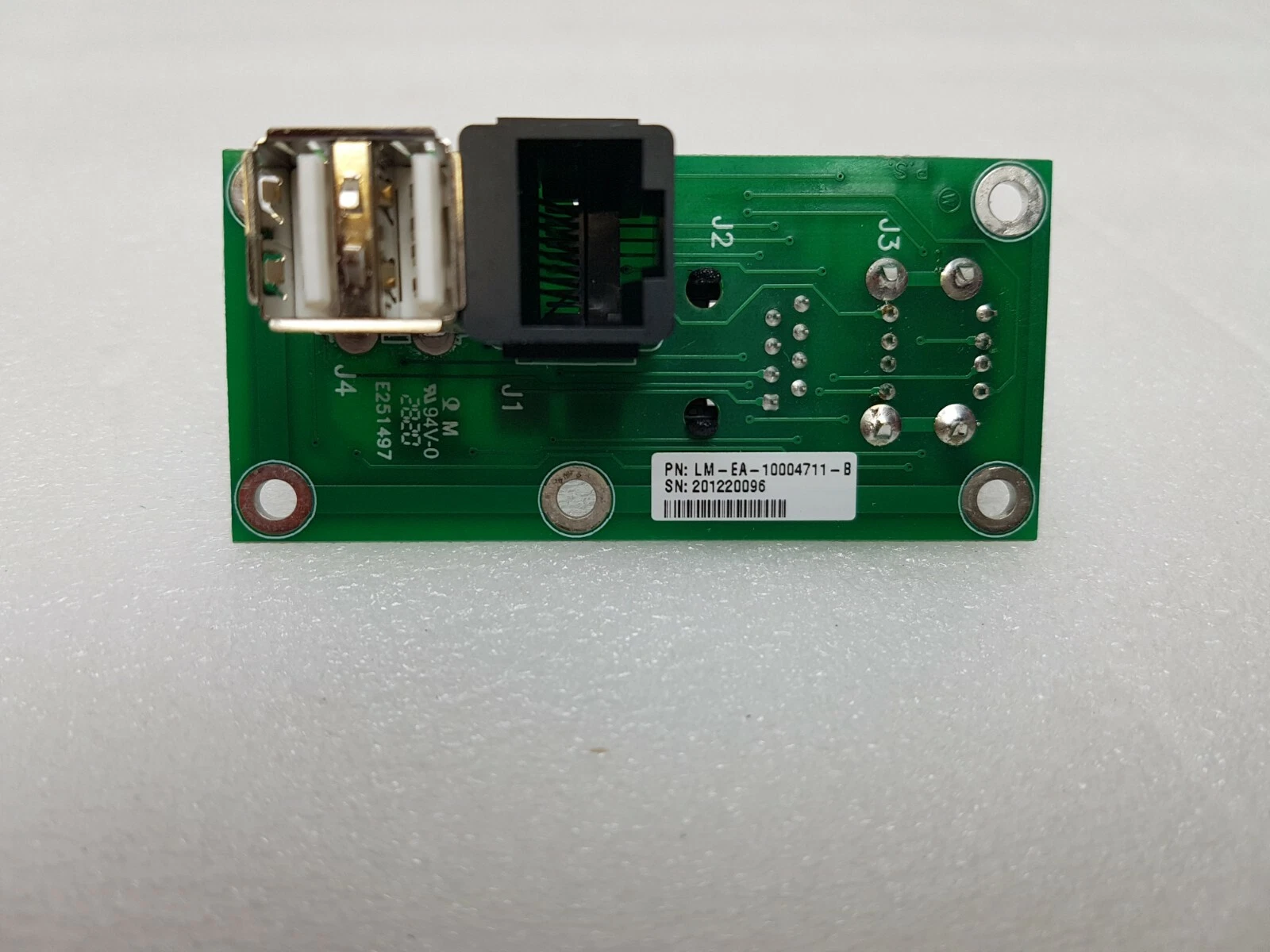

Check two numbers. The silkscreen on the front reads PC-10004711 REV. B. The white sticker on the back reads PN: LM-EA-10004711-B, SN: 201220096 on the unit photographed. The part number is also written PC10004711 or LM-EA-10004711.
What is on the board?
Besides the two ports, there are two 8-pin ICs (U1, U2), resistors R1 and R2, capacitors C1 and C2, and small diodes D1 to D4 and D9. Position J4 has two fixings and nine pads with no connector fitted in the photos. The back carries the PCB maker's UL marking 94V-0, file E251497.
Which Lumenis laser does it fit?
The board does not name the system, and we could not find a Lumenis document listing this number. As with most Lumenis laser parts, match it by part number and revision against the board you are replacing.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
Which part numbers are printed on the board?
PC-10004711 REV. B on the PCB silkscreen and PN: LM-EA-10004711-B on the label on the back.
Which ports does the PC-10004711 have?
One modular RJ-style jack (J1) and one stacked dual USB-A port (J3).
Is the J4 connector included?
No connector is fitted at J4 in the photos; only the pads and two fixings are there.
Is it a bare PCB or a populated board?
Populated. The connectors and components are fitted, and the assembly label LM-EA-10004711-B is on the back.
Which Lumenis system is it from?
The board does not say, and we found no Lumenis document listing it. Match it by part number and revision.
