Product details
About this part
The Lumenis LightSheer LCD Panel Assembly, P/N ALCD-12P2-LM, G121X1-L04, Rev. C1 is made by Lumenis and identified by manufacturer part number ALCD-12P2-LM.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Lumenis LightSheer LCD Panel Assembly, P/N ALCD-12P2-LM, G121X1-L04, Rev. C1.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Lumenis), the part number (ALCD-12P2-LM) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Lumenis
- Part number
- ALCD-12P2-LM
- Model
- G121X1-L04
- Assembly label P/N
- ALCD-12P2-LM (90IL0012P01X1)
- Assembly serial (label)
- LCD12P2NL09008
- Bezel print
- LightSheer INFINITY, Lumenis
- LCD panel
- Chi Mei Optoelectronics G121X1 -L04, Rev. C1
- Panel size
- 12.1 inch TFT-LCD
- Resolution
- 1024 x 768 (XGA)
- Panel interface
- LVDS, 1 channel, 20-pin connector
- Backlight
- WLED, 12 V input to built-in LED driver
- Panel brightness
- 500 cd/m² typical
- Panel operating temperature
- -30 to 70 °C
- Flex board label
- 7662100012X00, F/W:75E7 v1000, 122H18A5
- Panel origin (label)
- Made in Taiwan, UL E207943, RoHS

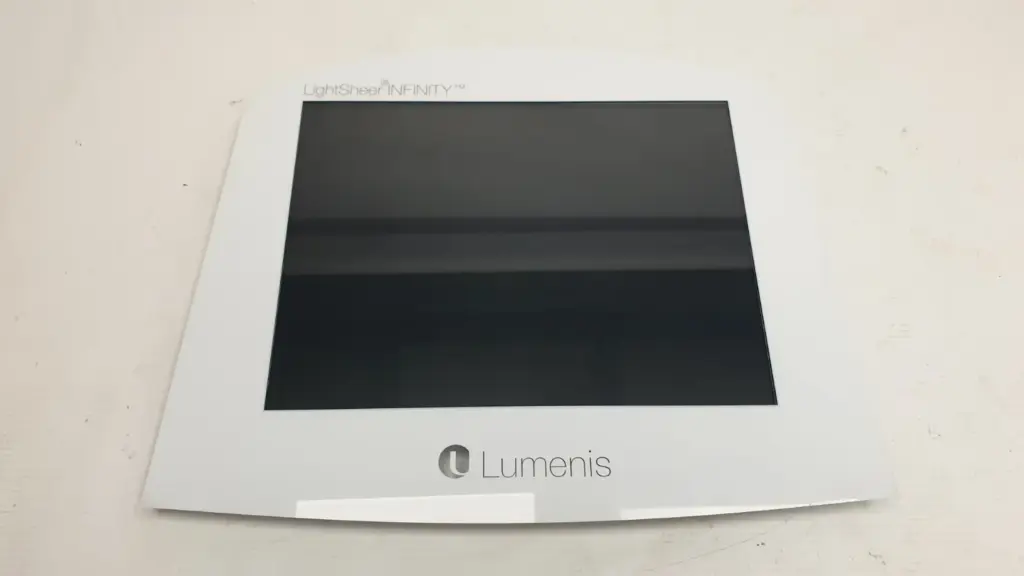

LCD panel assembly from a Lumenis LightSheer INFINITY, used. The white front bezel carries the LightSheer INFINITY and Lumenis print. Behind it sits a 12.1 inch Chi Mei G121X1-L04 Rev. C1 panel (also searched as G121X1 L04) with its harness and a flex board already mounted. The assembly label reads ALCD-12P2-LM.
Is it just the panel or the whole front?
The whole front. Bezel, steel mounting brackets, the LCD, two cable bundles with connectors and an orange flex board taped to the back, as shown. Strips of 3M VHB tape are still on the bezel edge.
Which labels are on the back?

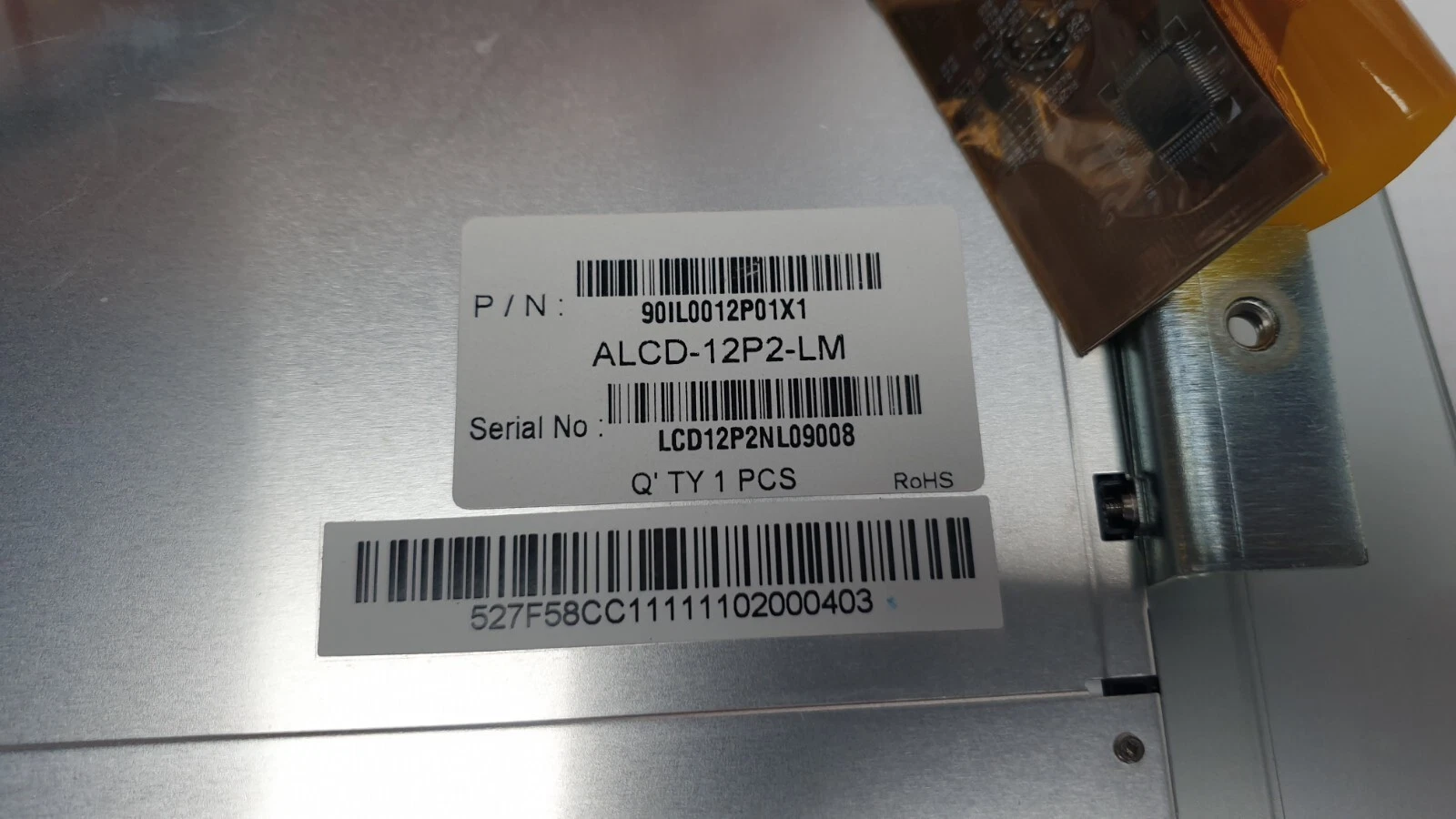

Three. The panel label is Chi Mei Optoelectronics: G121X1 -L04, Rev. C1, made in Taiwan. The assembly label: P/N 90IL0012P01X1, ALCD-12P2-LM, serial LCD12P2NL09008, Q'TY 1 PCS. The flex board label: 7662100012X00, F/W:75E7 v1000. Those are the component makers' markings; Lumenis appears only on the bezel print.
What are the G121X1-L04 panel specs?
12.1 inch TFT, 1024 x 768 (XGA), single-channel LVDS on a 20-pin connector, WLED backlight with its own driver. Chi Mei Optoelectronics is now part of Innolux, so current datasheets carry the Innolux name.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
Which LightSheer is it from?
The bezel is printed LightSheer INFINITY.
Who makes the G121X1-L04?
Chi Mei Optoelectronics, per the label on this panel. Chi Mei merged into Innolux, which sells the G121X1 line today.
What resolution is the G121X1-L04?
1024 x 768 XGA on a 12.1 inch panel.
Can I buy the bare G121X1-L04 panel from this?
The panel is mounted in the bezel with brackets and tape. It comes as the full assembly shown.
What revision is the panel?
Rev. C1, printed next to the model on the Chi Mei label.
What connectors are on the harness?
A fine-pitch two-row connector, a 7-pin white housing and a small black plug, as in the photos.
