Product details

About this part

The LUMENIS COHERENT MEDICAL GRAPHICS TERMINAL ASSY 0633-476-01 REV. Y is made by Lumenis and identified by manufacturer part number 0633-476-01 REV. Y.

This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.

Condition

This item is listed as Used. Previously used. See condition notes and photos.

The photos are part of the description — check them for labels, connectors, markings and any visible wear.

What's included

1 × LUMENIS COHERENT MEDICAL GRAPHICS TERMINAL ASSY 0633-476-01 REV. Y.

Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.

Identification & compatibility

Check the manufacturer (Lumenis), the part number (0633-476-01 REV. Y) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.

Price match

Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.

Important information

Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.

Brand
Lumenis
Part number
0633-476-01 REV. Y
Assembly
Coherent Medical Graphics Terminal, ASSY 0633-476-01
Revision
Y
System
Lumenis VersaPulse PowerSuite (Display Controller, service manual drawing 0633-476-01)
Processor
Motorola MC68EC030
Firmware ICs
0638-380-01 (U30), 0638-381-01 (U31), 0638-382-01 (U12), 0638-383-01 (U16), all Rev. B
Internal module
Cabinet Power Suite 0642-327-01 Rev B
Cable tag
P9 (VP2) / P4 (VP3)

The Lumenis (Coherent Medical) 0633-476-01 is the graphics terminal, or display controller, of the VersaPulse PowerSuite holmium surgical laser: a Lumenis-branded screen housing on a tilt stand, built around the Coherent Medical Graphics Terminal board. The PowerSuite service manual lists 0633-476-01 as the Display Controller drawing. This unit is revision Y and used.

What is inside the terminal?

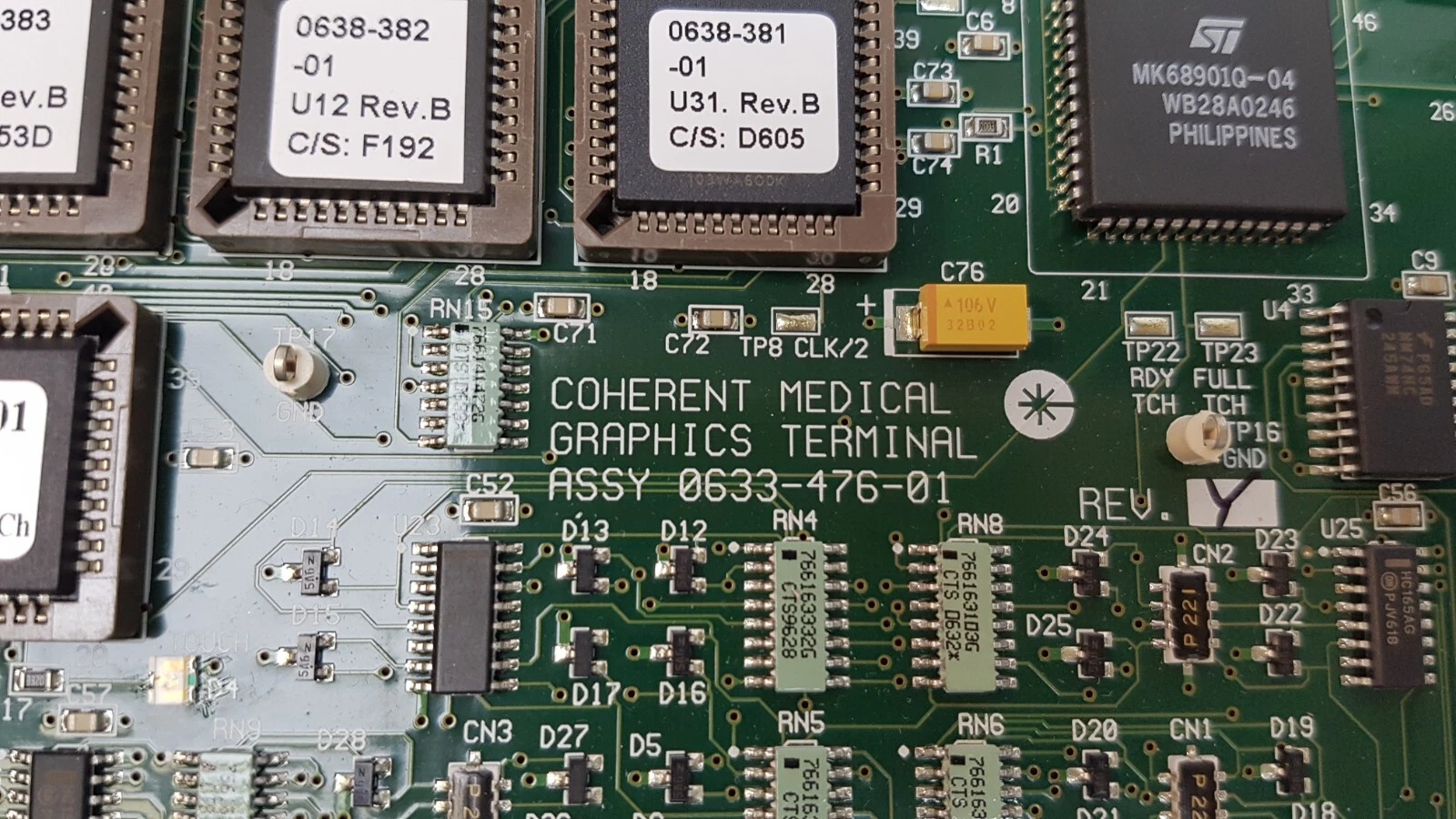

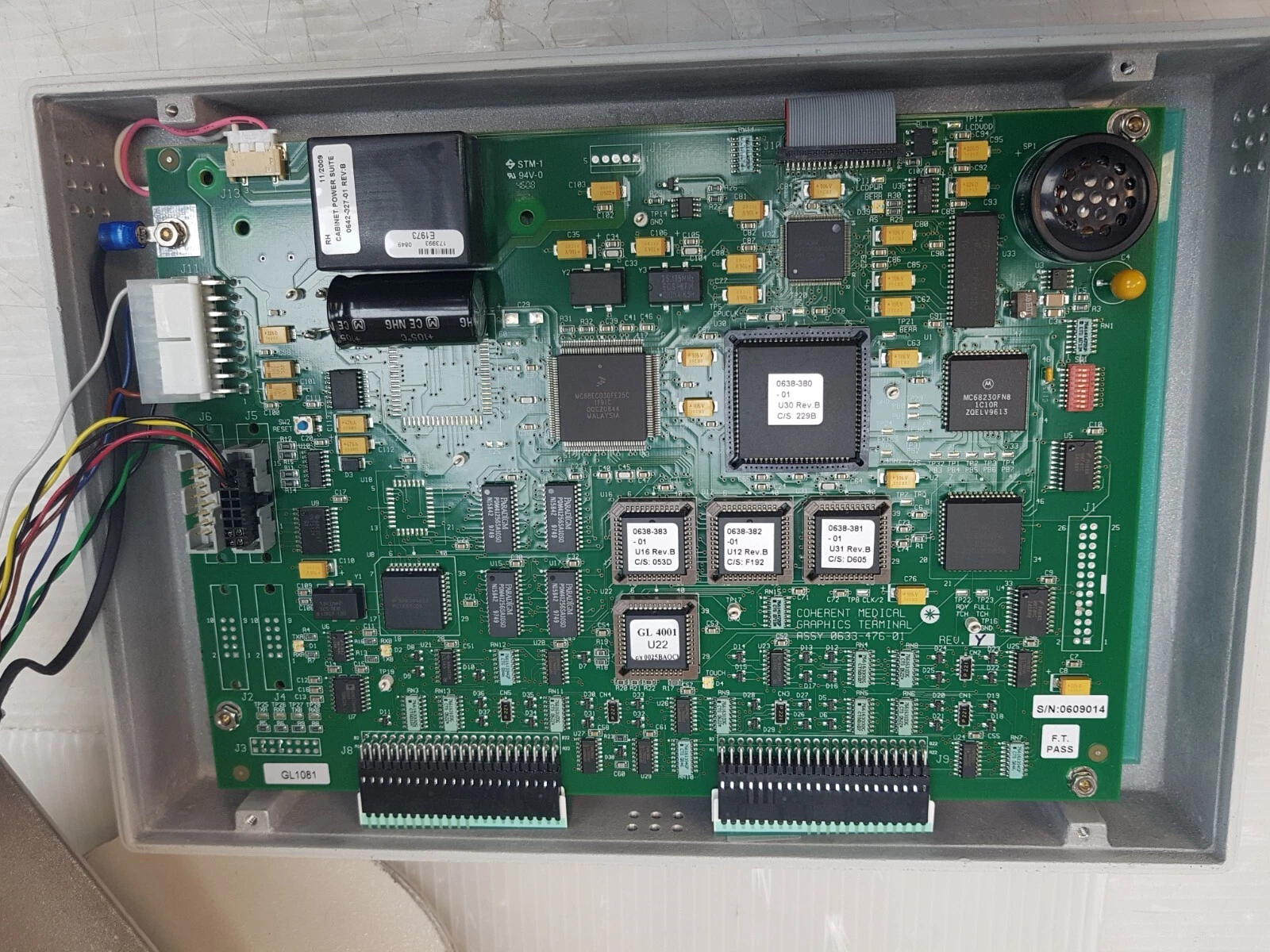

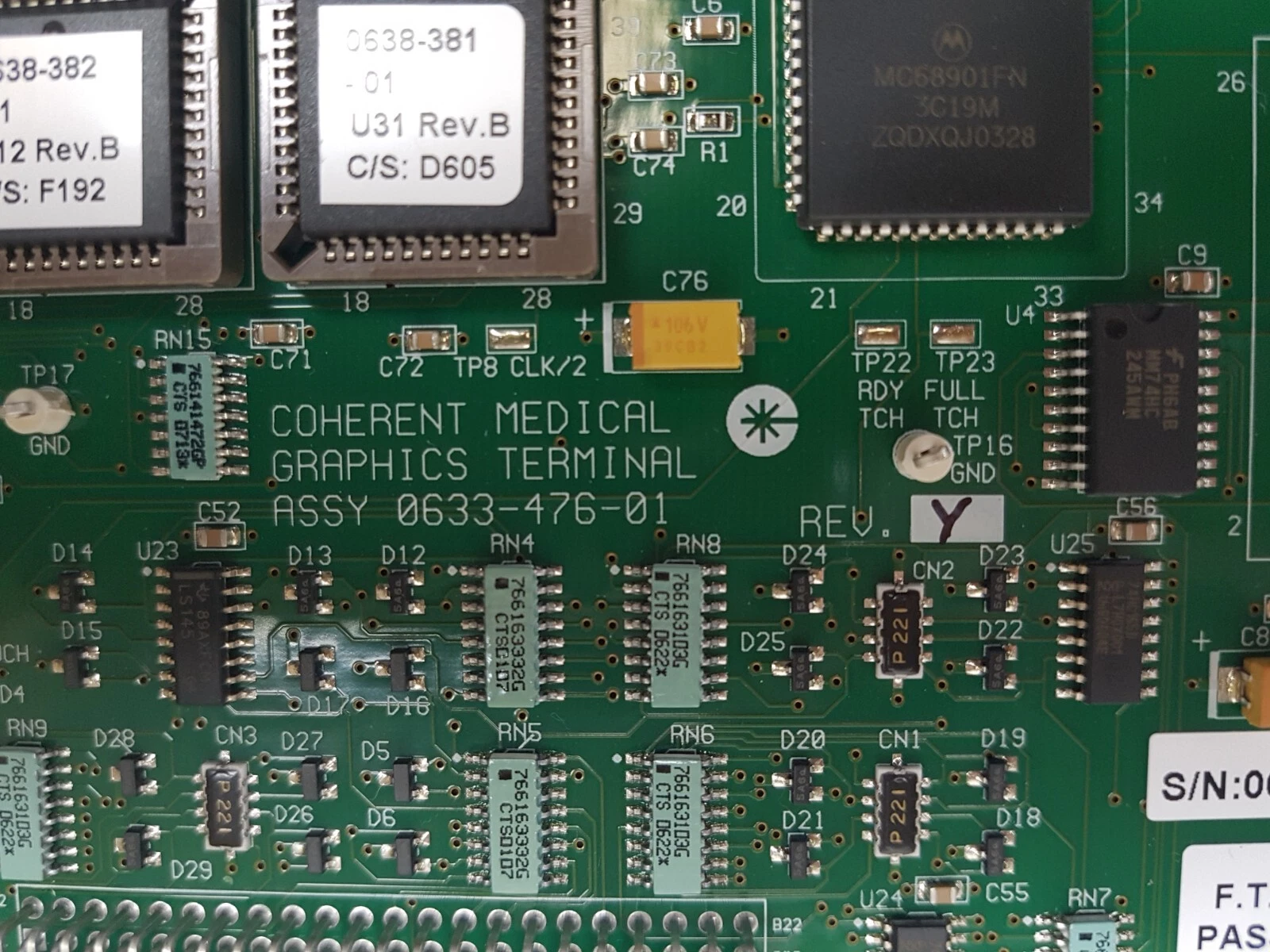

With the rear cover open, the photos show the board silkscreened COHERENT MEDICAL GRAPHICS TERMINAL ASSY 0633-476-01, REV. Y. It carries a Motorola MC68EC030 processor and an MC68230 interface chip, labelled firmware chips 0638-380-01 (U30), 0638-381-01 (U31), 0638-382-01 (U12) and 0638-383-01 (U16), all Rev. B, a small speaker and a reset switch. A module labelled CABINET POWER SUITE 0642-327-01 REV B is mounted on the board.

What comes with it?

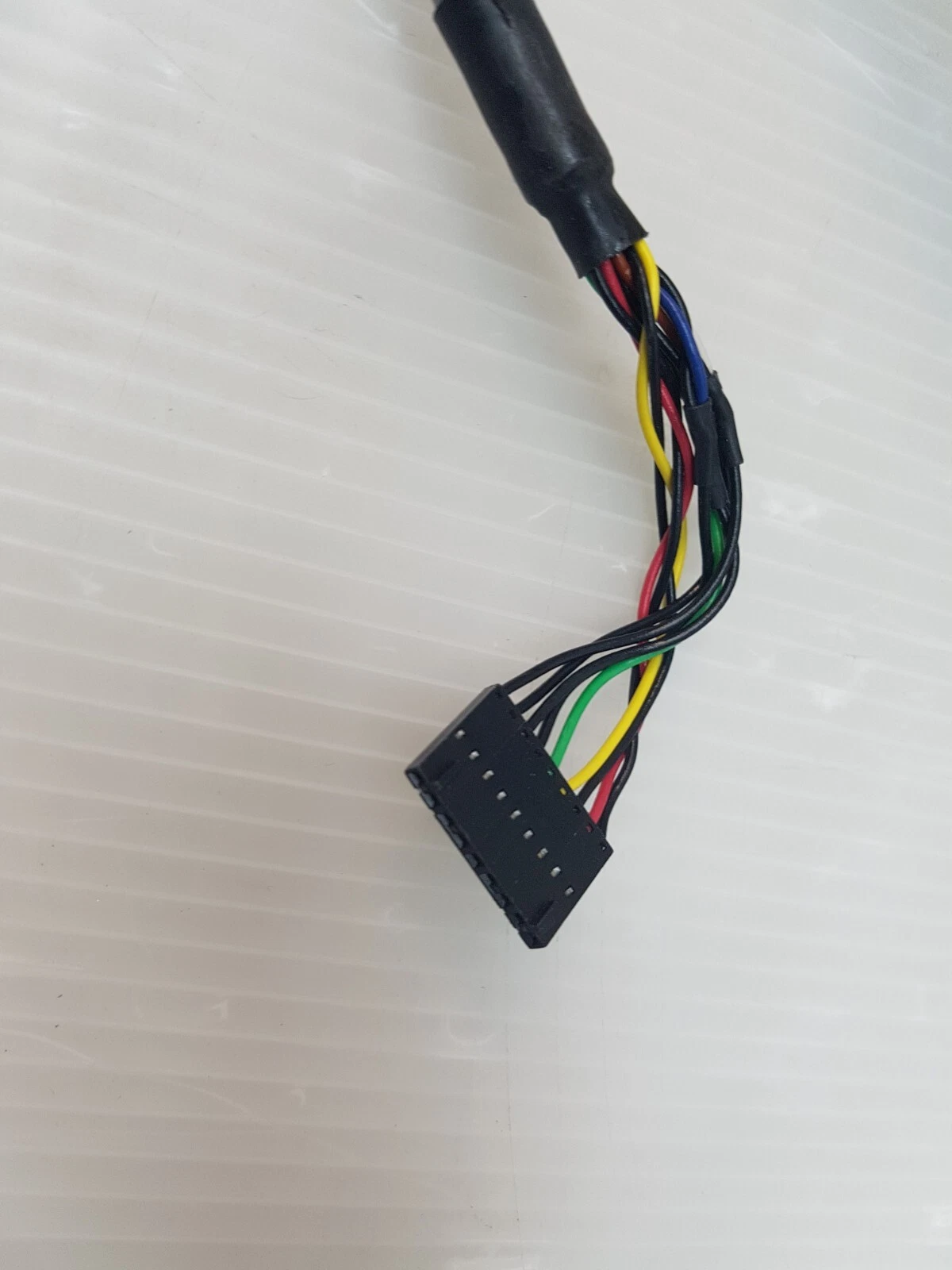

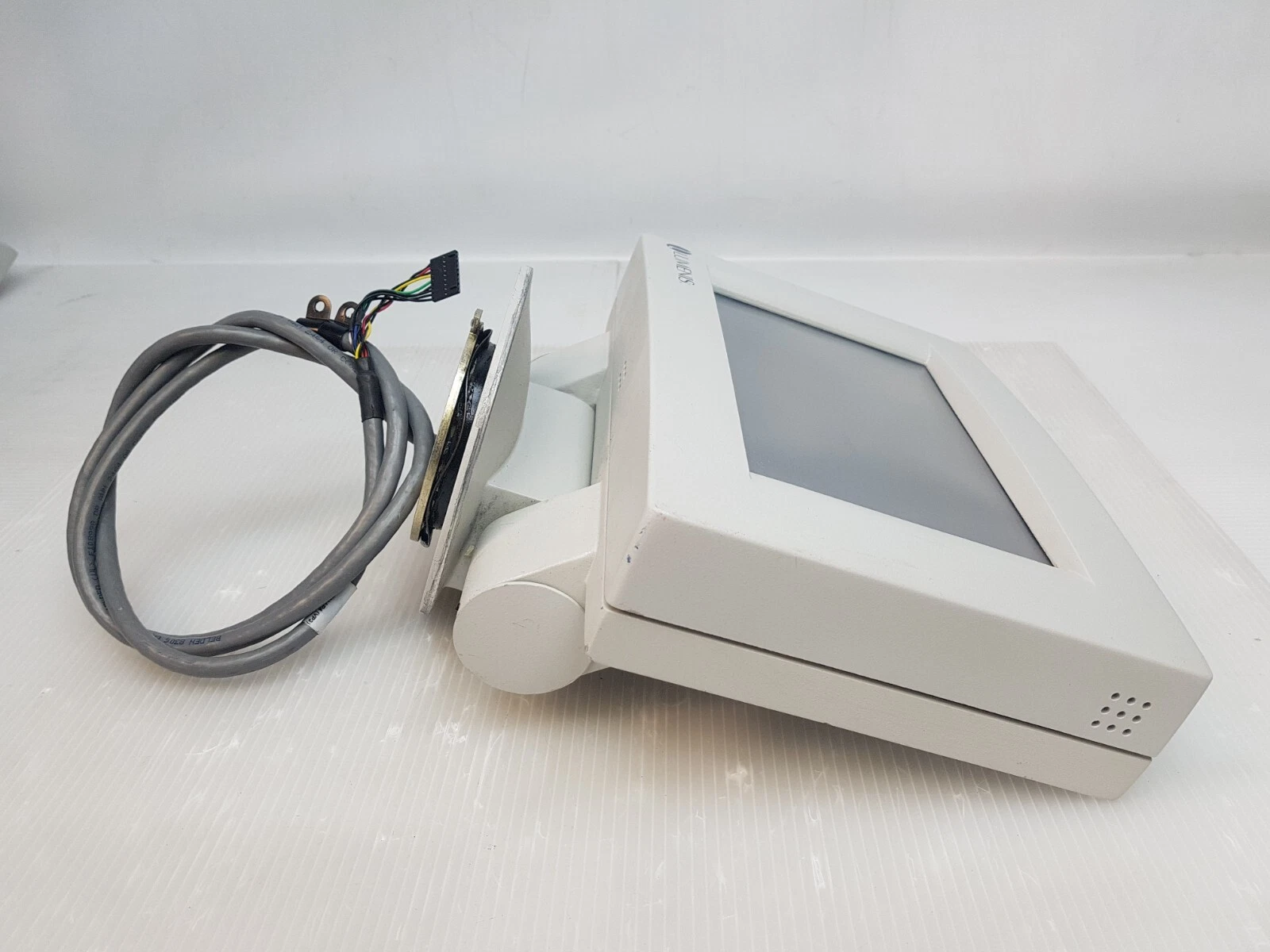

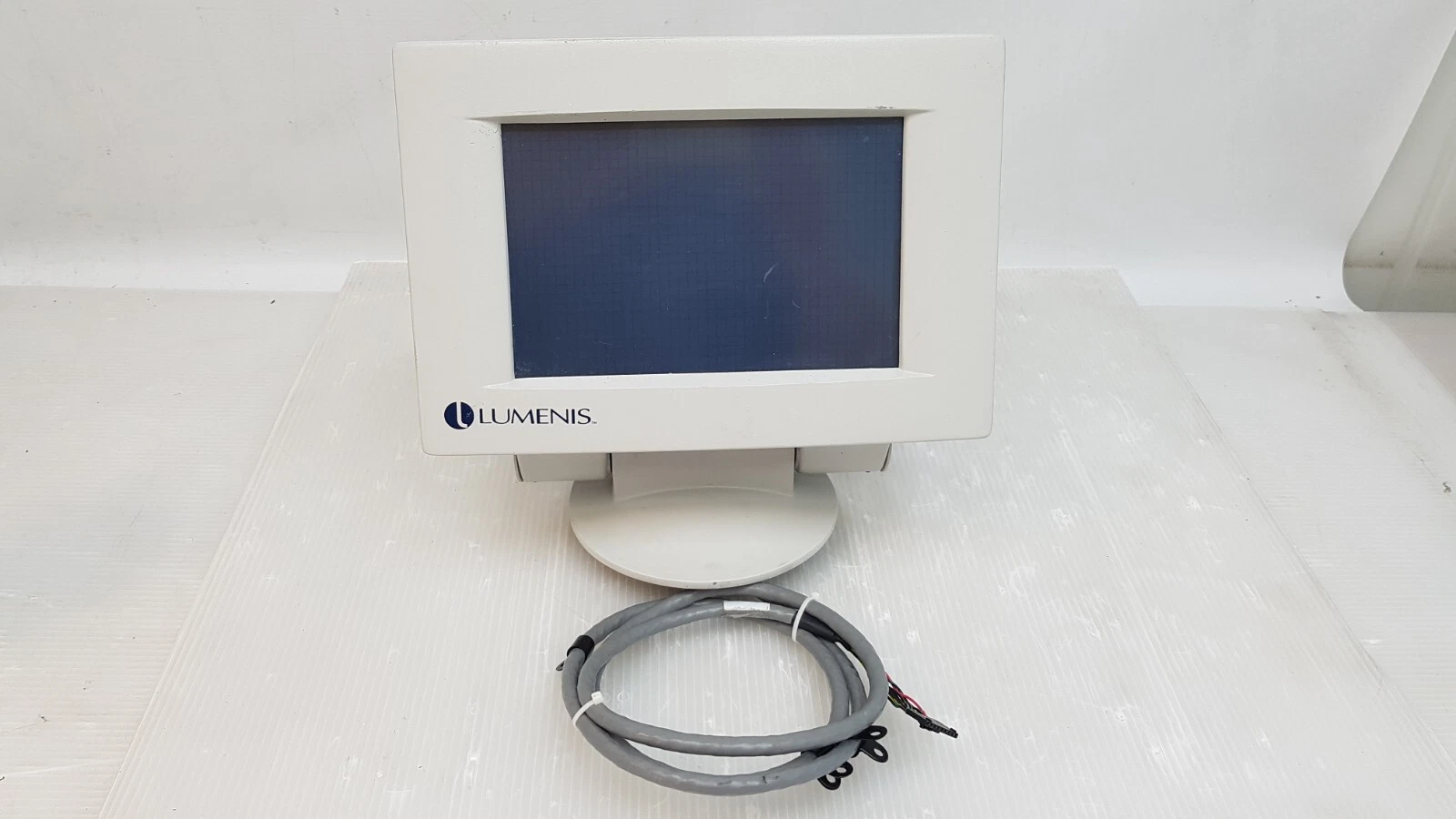

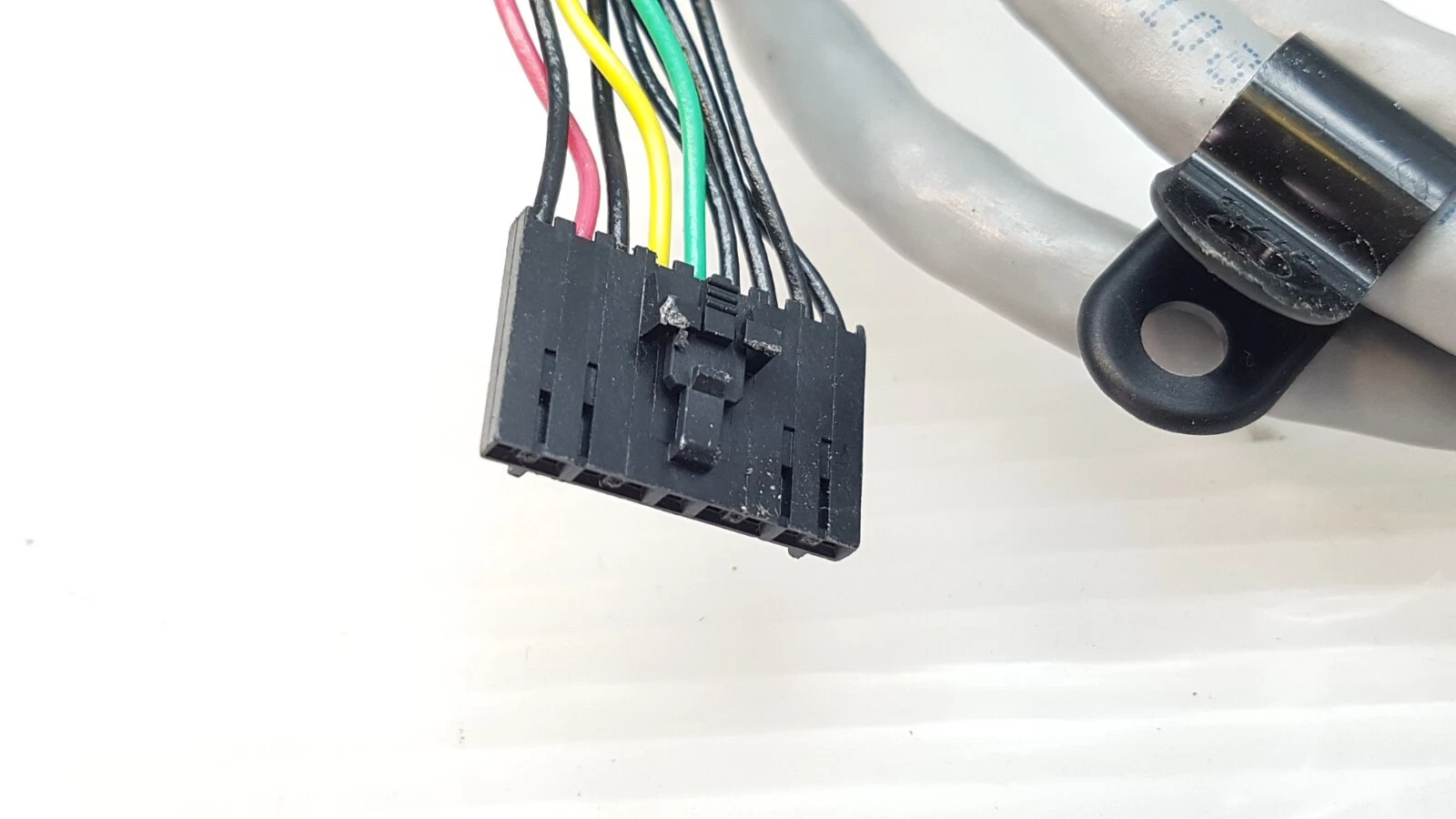

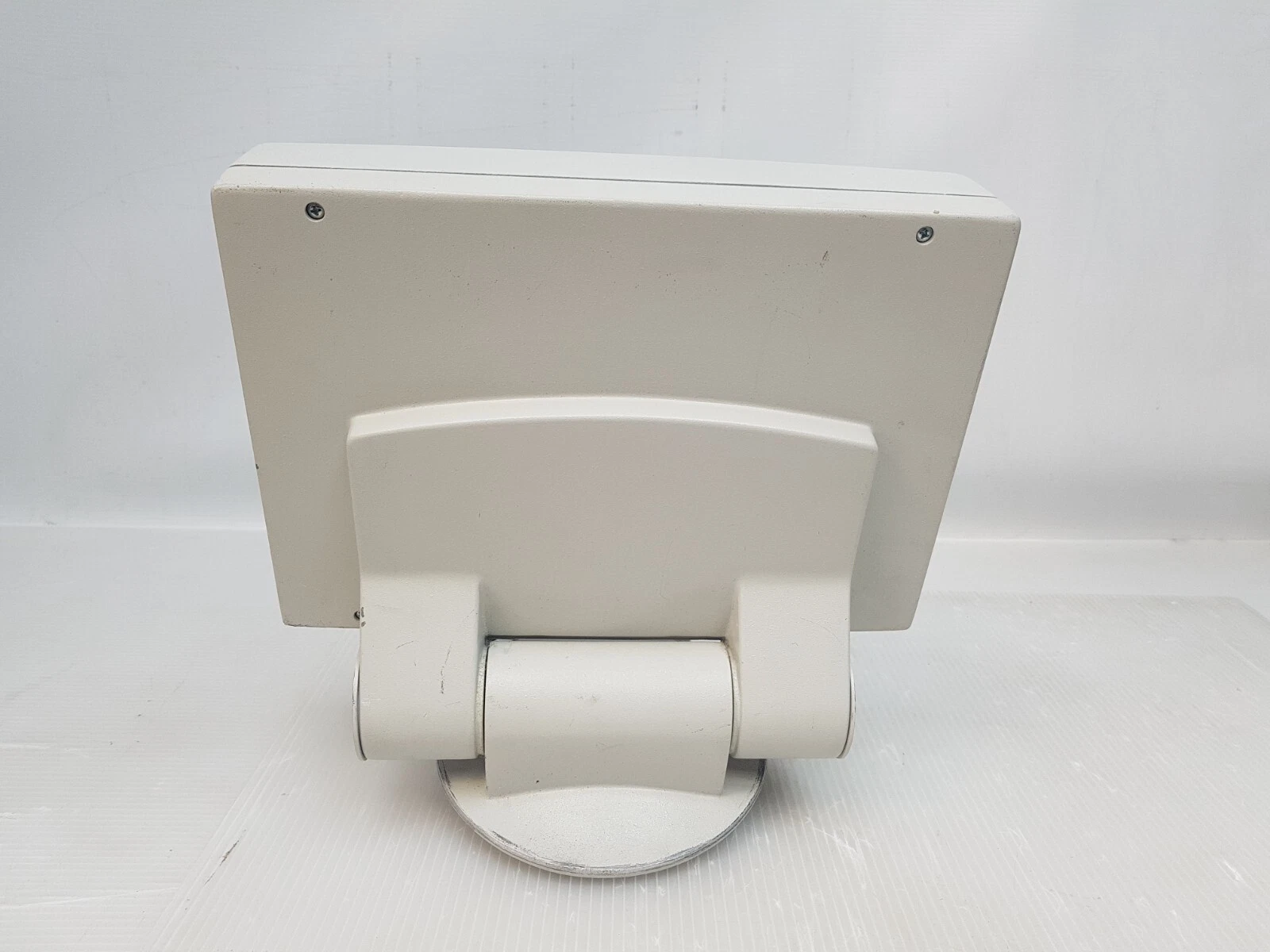

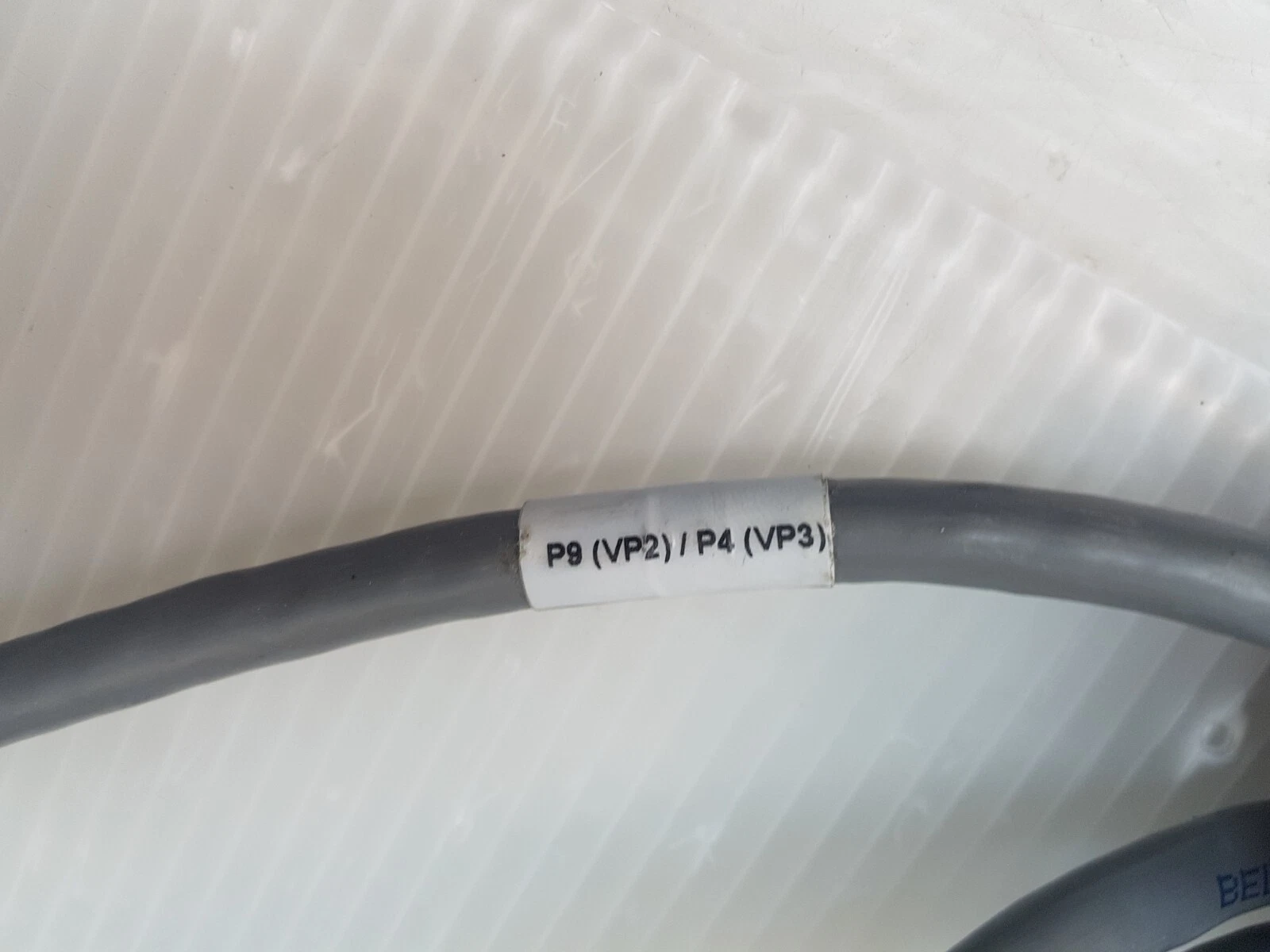

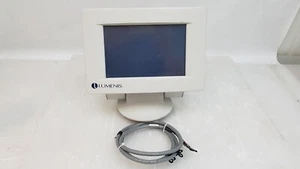

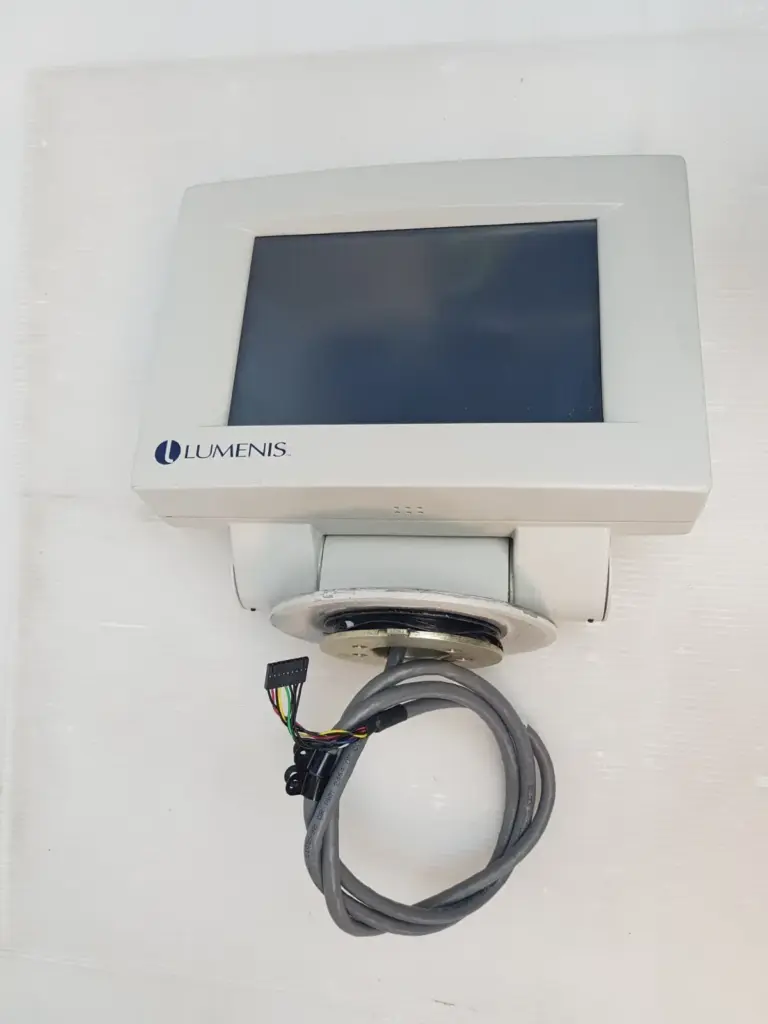

The photos show the complete terminal: a light-grey housing with the Lumenis logo below the screen, a hinged tilt stand on a round base, and a grey cable ending in a multi-wire connector. The cable carries the tag P9 (VP2) / P4 (VP3).

What condition is it in?

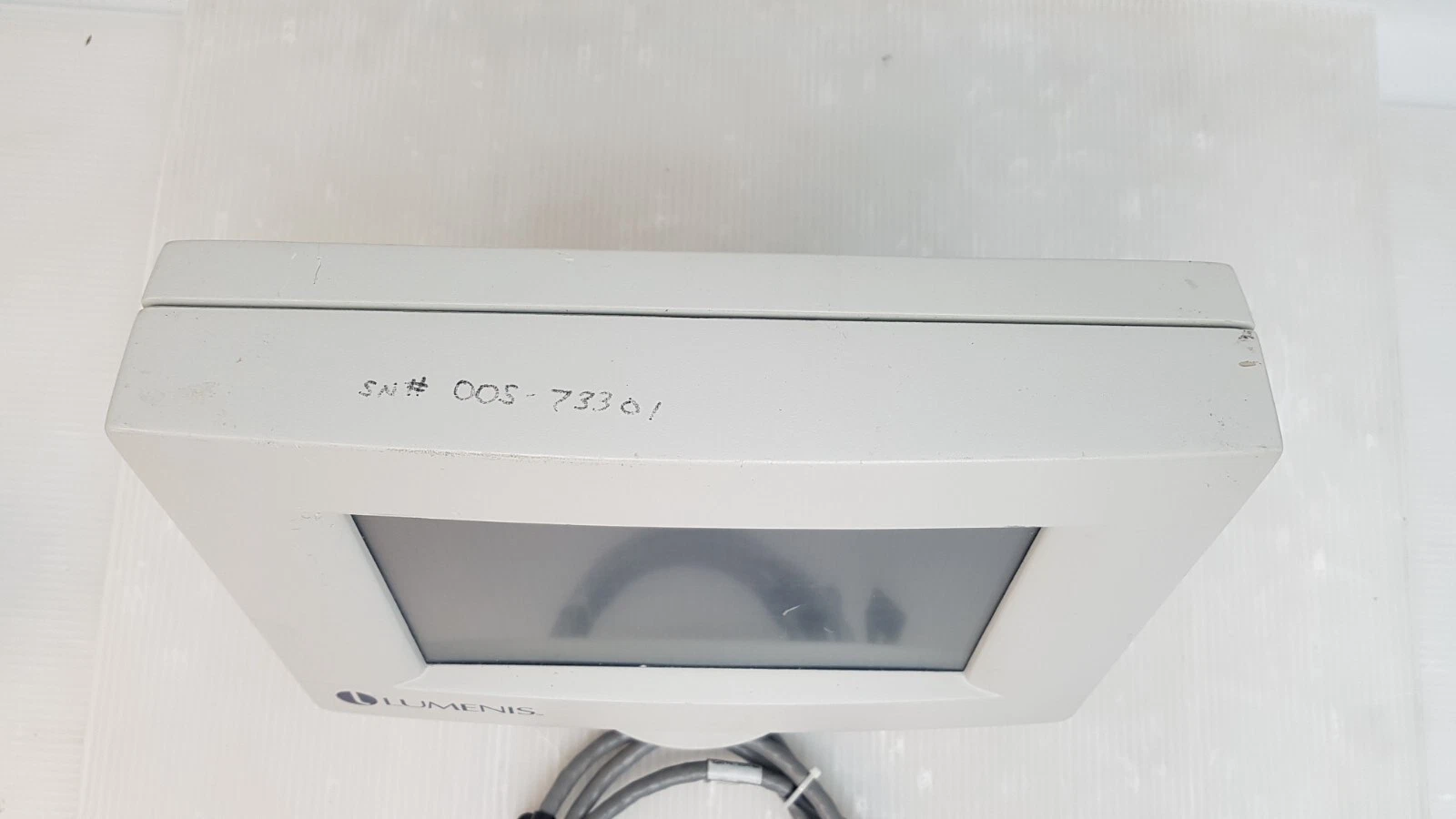

Used. The housing, stand and cable are intact in the photos, and the display glass shows no visible cracks. The screen is not shown powered on.

Ships from
Israel
Tracking
Included on every order

Import duties and taxes may apply in your country and are paid by the buyer on delivery.

Returns
Not accepted

Return terms differ from item to item — this item's own policy is shown above.

Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.

Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.

Read the full returns & warranty policy

Questions about this part

Which system uses the 0633-476-01 graphics terminal?

The Lumenis VersaPulse PowerSuite holmium surgical laser. Its service manual lists 0633-476-01 as the Display Controller, and the unit carries a module labelled Cabinet Power Suite.

Is this just the board or the complete terminal?

It is the complete terminal: housing with screen, the 0633-476-01 Rev. Y controller board, tilt stand and cable.

Which firmware revisions are fitted?

The labelled chips are 0638-380-01, 0638-381-01, 0638-382-01 and 0638-383-01, all marked Rev. B.

Has the display been powered on?

The photos do not show the screen lit, and the unit is sold as used with no test claim.
