Photos show the actual item you will receive.
Product details
About this part
The LUMENIS ASSY 0633-641-01 REV. H is made by Lumenis and identified by manufacturer part number 0633-641-01 REV. H.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × LUMENIS ASSY 0633-641-01 REV. H.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Lumenis), the part number (0633-641-01 REV. H) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Lumenis
- Part number
- 0633-641-01 REV. H
- Revision
- H
- Transformer T1
- Signal Transformer 14A-20-1468A
- Transformer T2
- Signal Transformer 14A-30-36: 115/230 V primary, 18/36 V secondary, 30 VA, 50/60 Hz
- Relay K4
- Omron G7L-2A-P-CB
- Relay K2
- Potter & Brumfield RTB34012F
- Fuse F4 / F5 (marked on board)
- T125 mA / T2000 mA
- Terminal blocks
- TB2 ACNON / ACHON; TB3 ACN / ACH / EGND; ACNISO / ACHISO
- Fused outputs (silkscreen)
- XFMR_FAN_ACH, FAN_ACH, LVDC_ACH, PUMP_ACH via 12-pin connector

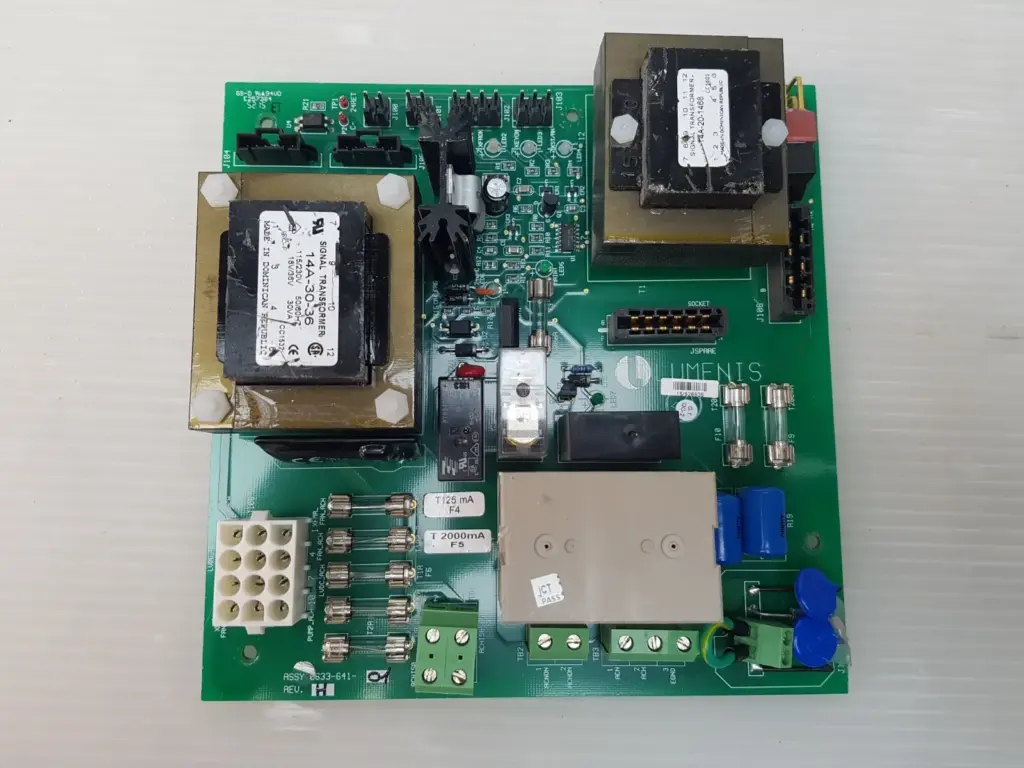

The Lumenis 0633-641-01 Rev. H is a used AC power circuit board assembly from Lumenis (Coherent Medical) laser equipment. It carries two transformers, mains relays and a row of fuses feeding outputs marked for a pump, fans and a low-voltage DC supply. The part number also appears as 0633641-01.
What components are on this board?

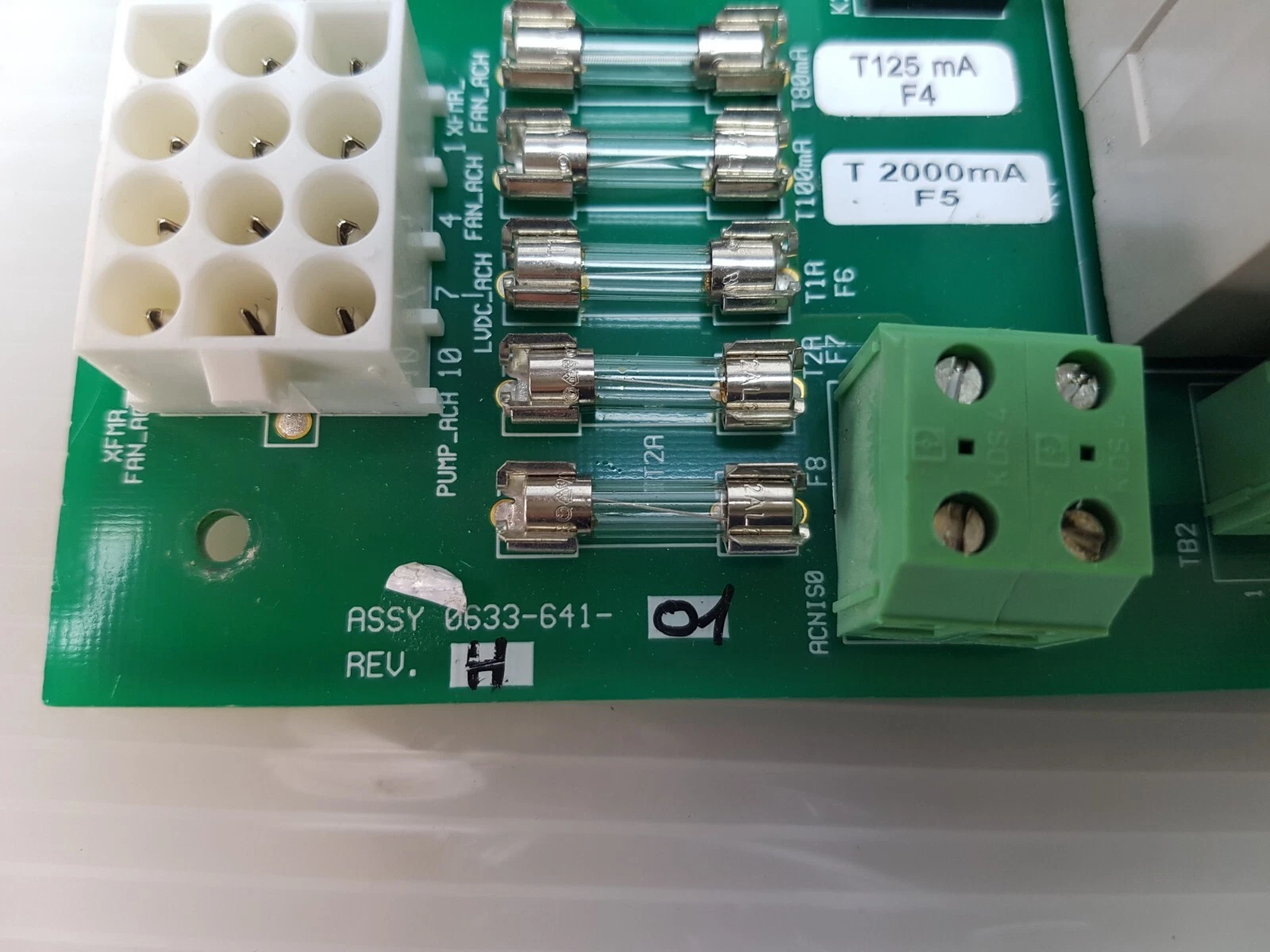

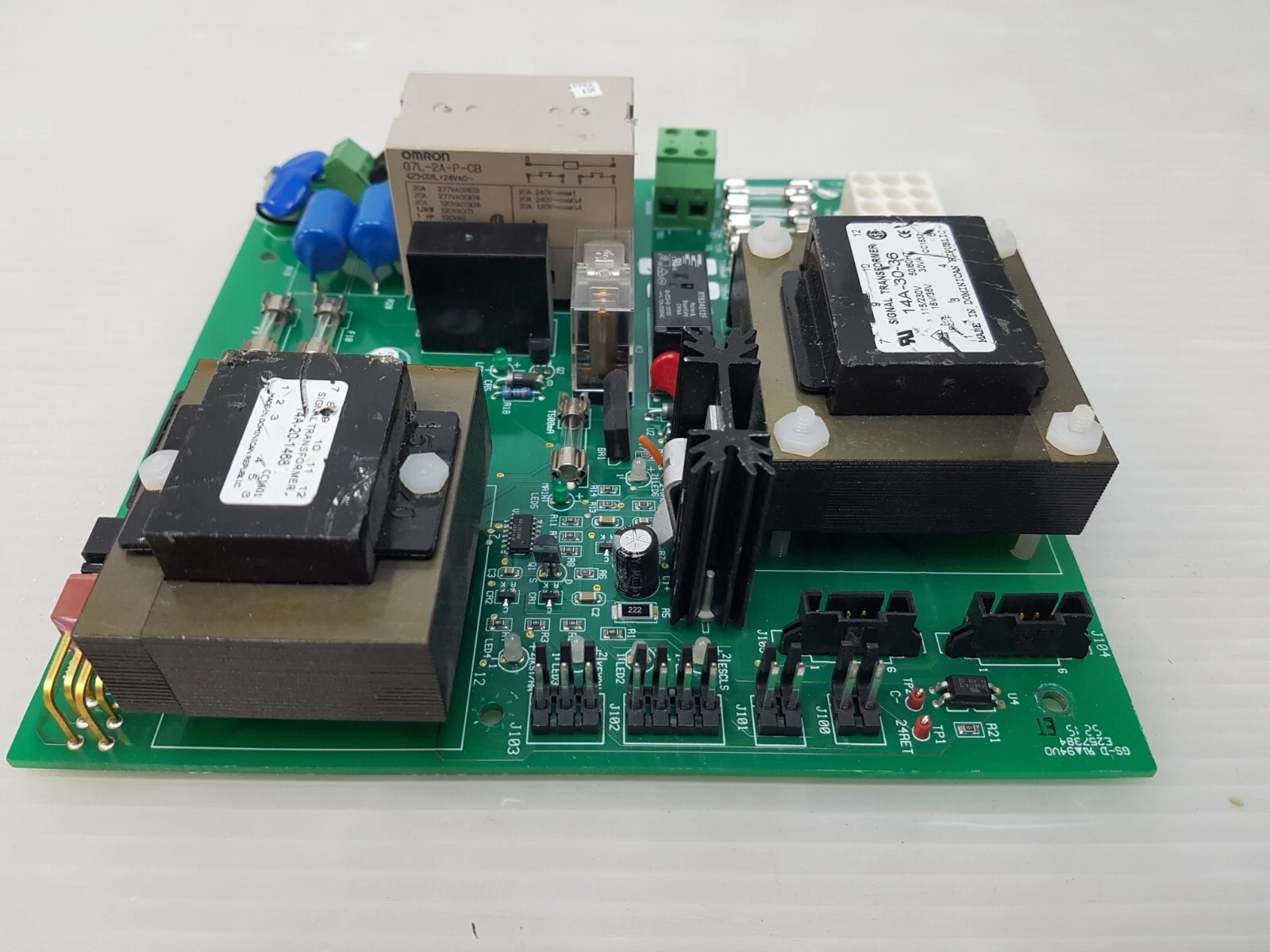

The photos show a Signal Transformer 14A-20-1468A at T1 and a Signal Transformer 14A-30-36 at T2. K4 is an Omron G7L-2A-P-CB power relay, and a Potter & Brumfield RTB34012F relay and an Omron plug-in relay sit near the heat sink. The fuse row, with F4 marked T125 mA and F5 marked T2000 mA, feeds a 12-pin connector marked XFMR_FAN_ACH, FAN_ACH, LVDC_ACH and PUMP_ACH. Mains wiring lands on screw terminals marked ACN, ACH and EGND.
What condition is it in?
Used. The photos show a green, Lumenis-marked board with both transformers and all fuse positions populated, and a two-pin plug with blue disc components at the SRG1 position. The REV. field is hand-marked H.
Is this the same part as other 0633-641-01 revisions?
It has the same assembly number, but the layout changed between revisions. Rev. H uses a labelled 14A-20-1468A transformer at T1, while the Rev. C and D boards we have seen use an unlabelled potted transformer there, and some have a Phoenix Contact surge module at SRG1. Match the revision letter on your original board when possible.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Lumenis 0633-641-01 Rev. H?
It is an AC power circuit board assembly from Lumenis (Coherent Medical) laser equipment, with two transformers, mains relays and fused outputs for a pump, fans and a low-voltage DC supply.
Which relay is used at K4?
The photos show an Omron G7L-2A-P-CB power relay at K4.
Is this unit complete?
The photos show both transformers, the relays and all fuse positions populated, plus the plug at SRG1. It is sold used.
How do I tell the revision?
Look at the REV. field next to the ASSY 0633-641- silkscreen. On this board it is marked H.
