Photos show the actual item you will receive.
Product details
About this part
The LUMENIS CAPACITORS DUMP BOARD LM-EA-1149680-E is made by Lumenis and identified by manufacturer part number LM-EA-1149680-E.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × LUMENIS CAPACITORS DUMP BOARD LM-EA-1149680-E.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Lumenis), the part number (LM-EA-1149680-E) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Lumenis
- Part number
- LM-EA-1149680-E
- Silkscreen
- CAPACITORS DUMP BOARD, PC-1149680 REV.B
- Resistors
- 3 × Arcol HS50 100R F (100 Ω, ±1%, 50 W series, aluminium-housed wirewound)
- Relay
- Cynergy3 DAR72410 reed relay: SPST-NO, 24 V DC coil, 10 kV isolation, 1 kV / 3 A max switching
- Capacitors
- 4 × radial electrolytic
- Connectors
- J1 3-way pluggable screw terminal, J2 2-pin
The Lumenis LM-EA-1149680-E is a capacitors dump board assembly, built on Lumenis PCB PC-1149680 Rev B. The silkscreen reads "CAPACITORS DUMP BOARD PC-1149680 REV.B", and the label reads LM-EA-1149680-E. This unit is used.
What components are on the dump board?

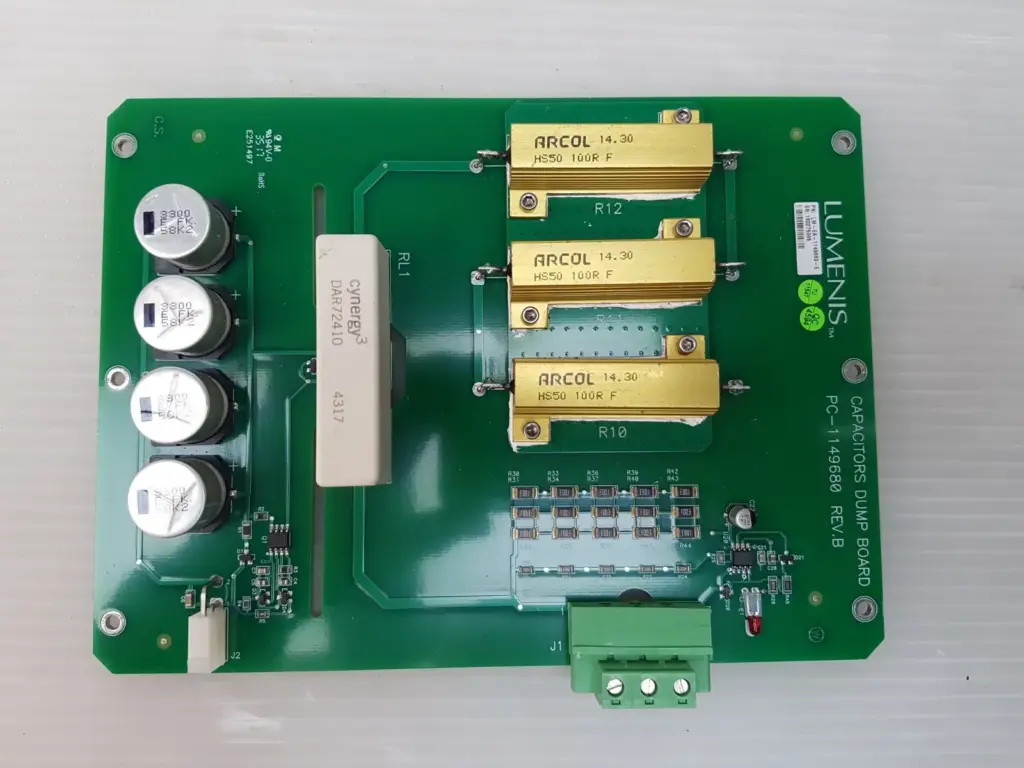

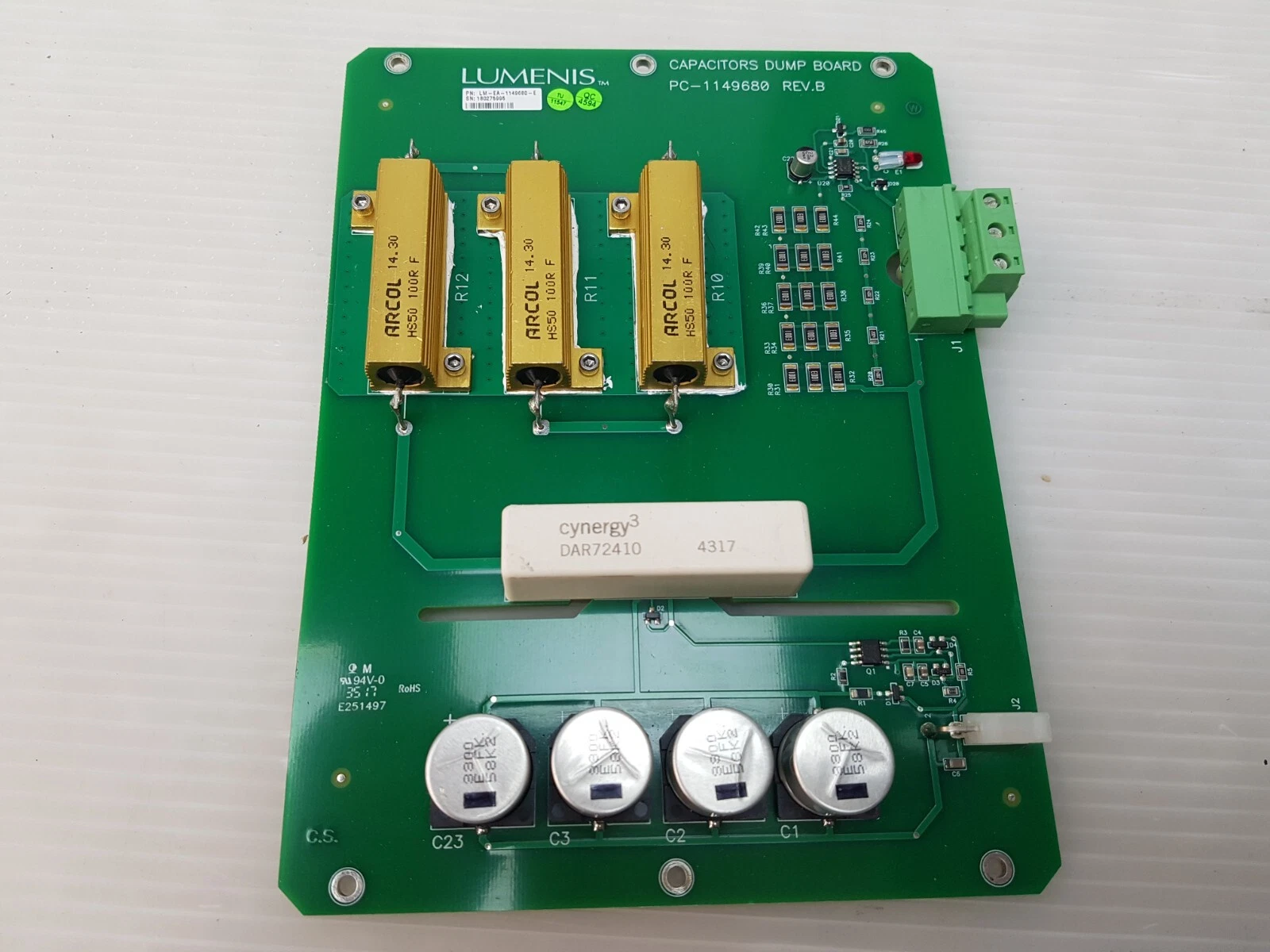

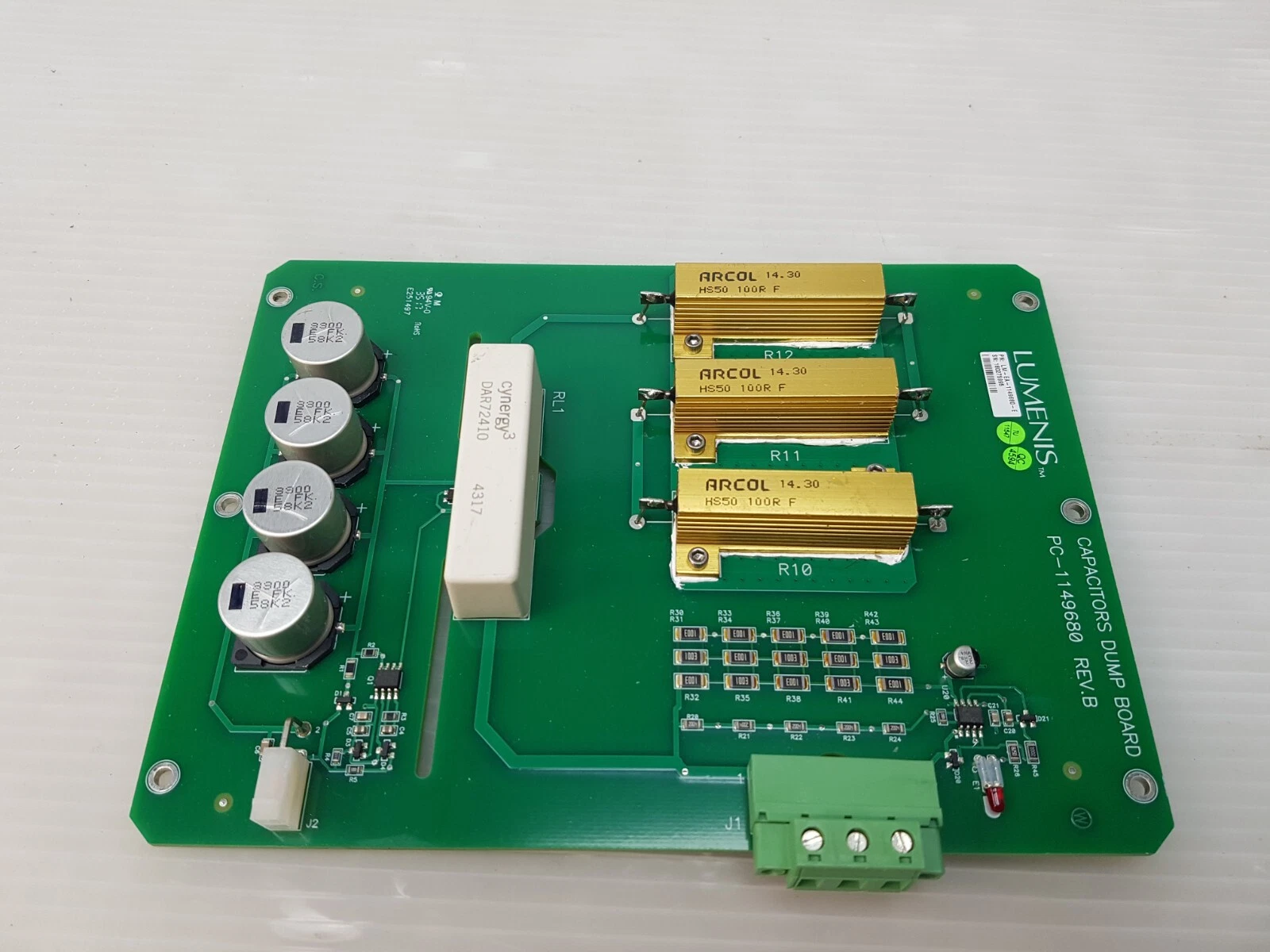

The board carries three Arcol HS50 aluminium-housed wirewound resistors marked 100R F, which is 100 Ω at ±1% tolerance in Arcol's code, in a series rated 50 W when heatsink-mounted. It also has a Cynergy3 DAR72410 reed relay, a single-pole normally-open relay with a 24 V DC coil, 10 kV isolation and a 1 kV switching rating. Four radial electrolytic capacitors, a 3-way pluggable screw terminal (J1) and a small 2-pin connector (J2) complete the main parts.
What should I check before ordering?
Match the full label number, including the -E suffix, and the board revision (Rev B) against the board you are replacing. Buyers also search this part as LMEA1149680E or PC-1149680.
What condition is it in?
Used. The photos show the component side and the plain solder side, with the resistors, relay and connectors fitted.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 30 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Lumenis LM-EA-1149680-E?
It is a Lumenis capacitors dump board assembly on PCB PC-1149680 Rev B, carrying three 100 Ω Arcol HS50 resistors and a Cynergy3 DAR72410 reed relay.
What are the resistors on this board?
Three Arcol HS50 aluminium-housed wirewound resistors marked 100R F: 100 Ω, ±1% tolerance, from Arcol's 50 W HS50 series.
Which relay is fitted?
A Cynergy3 DAR72410, a high-voltage reed relay with SPST-NO contacts, a 24 V DC coil and 10 kV isolation.
