Photos show the actual item you will receive.
Product details
About this part
The LENZE EMB9352-E 33.9352-E.1B is made by Lenze and identified by manufacturer part number 33.9352-E.1B.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × LENZE EMB9352-E 33.9352-E.1B.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Lenze), the part number (33.9352-E.1B) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Lenze
- Part number
- 33.9352-E.1B
- Model
- EMB9352-E
- Country of Origin
- Germany
- Manufacturer
- Lenze (Aerzen, Germany)
- Series
- 9350 brake unit, 9352 brake chopper
- Type
- EMB9352-E
- Label number
- 33.9352-E.1B
- Id.-No. / Prod.-No.
- 00401024 / 01228529
- Input (nameplate)
- DC/PE 765 V, Imax = 25 A
- Output (nameplate)
- Pav = 19 kW, Ppk = 32 kW
- Switching thresholds (master mode)
- 375 V / 725 V / 765 V (default) for 230 V / 400-460 V / 480 V mains
- Brake resistor
- External, on terminals RB1, RB2
- DC-bus terminals
- +UG, -UG
- Documented for (series)
- Lenze 8200, 9300, 8200 vector drives, 15-90 kW
- Approvals (label)
- CE, UL Listed 1D74 Industrial Control Equipment
- Made in
- Germany
- Condition
- Used
The Lenze EMB9352-E is a 9352 brake chopper from the Lenze 9350 brake unit range, labeled 33.9352-E.1B, rated DC/PE 765 V, Imax 25 A, with 19 kW average and 32 kW peak braking power. A brake chopper connects to the DC bus of a drive and switches an external brake resistor on when the DC-bus voltage rises during braking, so the drive does not trip on overvoltage. The E in EMB9352-E stands for the built-in (panel-mount) version with its own heatsink.

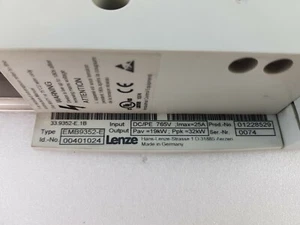

What does the nameplate say?
33.9352-E.1B, Type EMB9352-E, Id.-No. 00401024, Prod.-No. 01228529, Ser.-Nr. 0074. Input: DC/PE 765V, Imax=25A. Output: Pav=19kW, Ppk=32kW. Lenze, Hans-Lenze-Strasse 1, D-31885 Aerzen, Made in Germany. The warning label next to it carries the CE and UL Listed (1D74, Industrial Control Equipment) marks and states that the device stays live for up to 180 s after the mains voltage is removed.
What does a brake chopper do, and how is the 9352 different from the 9351?
Lenze's 9350 operating instructions (EDBMB935X) describe two designs: the 9351 brake module, which has a brake resistor inside, and the 9352 brake chopper, which drives an external brake resistor on terminals RB1 and RB2. Both connect to the drive's DC bus on +UG and -UG and are documented for Lenze 8200, 9300 and 8200 vector drives from 15 to 90 kW. Switches S1 and S2 set the switching threshold and S3 selects master or slave for parallel operation.
Which switching threshold should I set?
Lenze lists these thresholds in master mode: 375 V for 230 V mains, 725 V for 400 to 460 V mains, and 765 V for 480 V mains (the default setting, S1 and S2 ON). All brake units connected in parallel on one DC bus must use the same threshold. Check the Lenze instructions for the brake resistor value before you connect one.

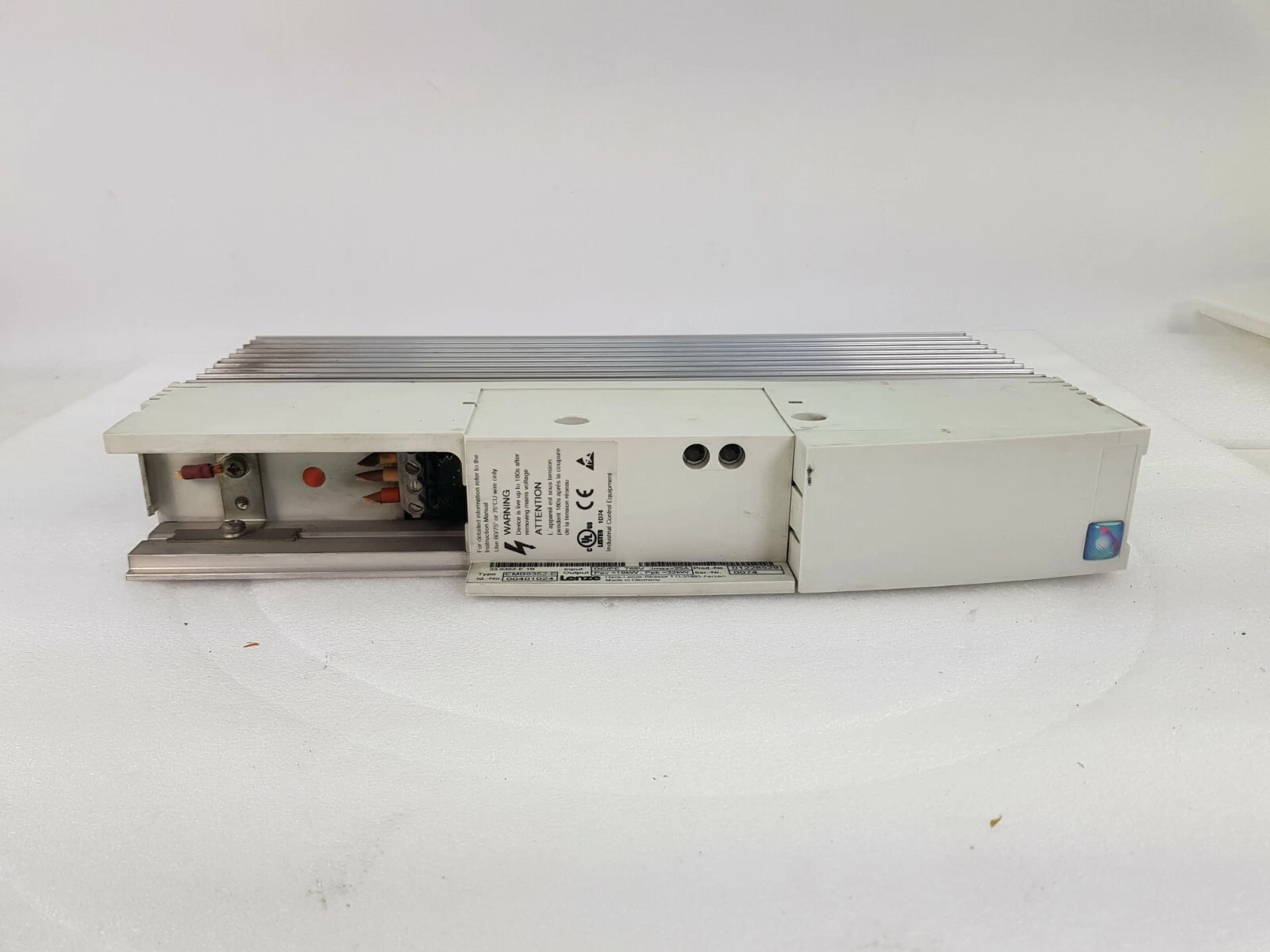

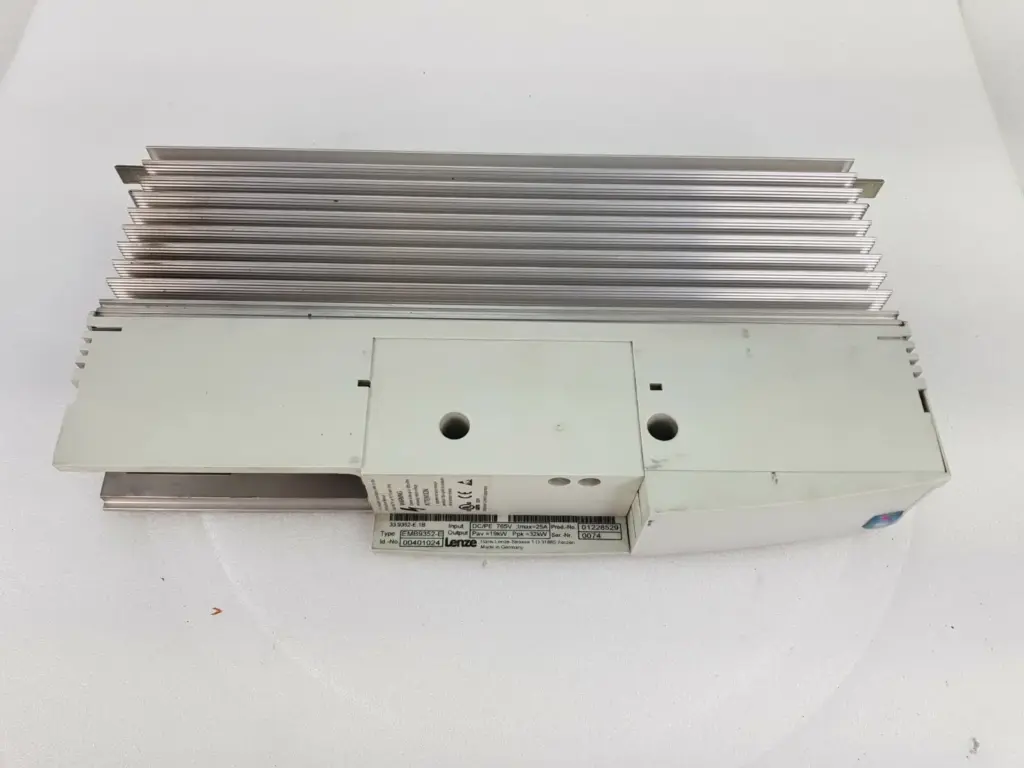

What is in the photos?
The complete unit with its finned aluminum heatsink and mounting rails, the terminal compartment at one end, and a close-up of the nameplate. Condition: used.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Free — paid by us
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Lenze EMB9352-E?
A brake chopper from the Lenze 9350 brake unit range. It switches an external brake resistor onto a drive's DC bus during braking. Nameplate: DC/PE 765 V, Imax 25 A, Pav 19 kW, Ppk 32 kW.
How does a brake chopper work on a VFD?
When a motor brakes, it feeds energy back into the drive's DC bus and the voltage rises. Once it passes the switching threshold, the chopper connects the brake resistor, which turns the energy into heat and keeps the drive from an overvoltage trip.
What is the difference between the Lenze 9351 and 9352?
The 9351 is a brake module with a built-in brake resistor. The 9352 is a brake chopper that needs an external brake resistor on terminals RB1 and RB2.
Is a brake resistor included?
No brake resistor is shown in the photos. The 9352 is designed for an external resistor.
What does 33.9352-E.1B mean?
It is printed on the nameplate above the type EMB9352-E. Lenze does not publish a key for it, so we do not decode it; use the full number to match your parts list.
Where can I find the manual?
The Lenze 9350 brake unit operating instructions are document EDBMB935X. They cover the EMB9351-E and EMB9352-E.
What condition is it in?
Used.
