Photos show the actual item you will receive.
Product details
About this part
The KELK Ltd. KOMATSU AIH-123QS-PP-UC Heating System ABCAA00160 is made by Komatsu and identified by manufacturer part number ABCAA00160.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × KELK Ltd. KOMATSU AIH-123QS-PP-UC Heating System ABCAA00160.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Komatsu), the part number (ABCAA00160) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Komatsu
- Part number
- ABCAA00160
- Model
- AIH-123QS-PP-UC
- Country of Origin
- Japan
- Manufacturer (label)
- KELK Ltd., Komatsu brand
- Matching controller (label)
- AIC-7-12-UC (not included in photos)
- Product type
- CS-Heater inline chemical heater, heating unit
- Heating method
- Halogen lamps, near-infrared, through high-purity quartz tubes
- Heater wattage (AIH-123 series)
- 12 kW
- Temperature setting range
- 50 to 170 °C, depending on chemical and system
- Allowable liquid pressure
- 0.5 MPa
- Pipe fitting
- 20 mm quartz fitting by Nippon Pillar Packing (not included)
- Safety functions
- Overheat and leak detection, alarm output
- Approvals (label)
- Conforms to UL STD 61010A-1, ETL listed 3157291
- Reorder no. (label)
- CAAG01392
The KELK AIH-123QS-PP-UC is a Komatsu-branded CS-Heater heating unit, an inline chemical heater that warms process liquids flowing through high-purity quartz tubes with halogen lamps, part number ABCAA00160. KELK built the CS-Heater for semiconductor wet benches, where chemicals for wafer cleaning, etching and resist stripping have to be heated without contact with metal parts. The nameplate reads: KOMATSU, Model AIH-123QS-PP-UC with controller AIC-7-12-UC, Part No ABCAA00160, KELK Ltd., made in Japan, conforms to UL STD 61010A-1, ETL listed.
How does a quartz inline chemical heater work?
The liquid flows through transparent quartz glass tubes and never touches the heating element. Halogen lamps outside the tubes radiate near-infrared light that heats the liquid. KELK states this keeps the wetted surface cooler, limits dissolution of glass into the liquid, and keeps lamp fragments out of the chemical if a lamp breaks. Lamps can be replaced from one side without disconnecting the tubes.
What are the AIH-123 series specifications?
According to the KELK brochure, the AIH-123 series pairs with the AIC-7-12 controller and has a 12 kW heater, a 50 to 170 °C setting range depending on the chemical and system, PID control with soft start, 0.5 MPa allowable liquid pressure, leak and overheat detection, and RS-232C communication. Piping uses 20 mm quartz fittings made by Nippon Pillar Packing, which KELK does not include with the heater.
What is in the photos?

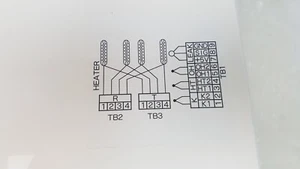

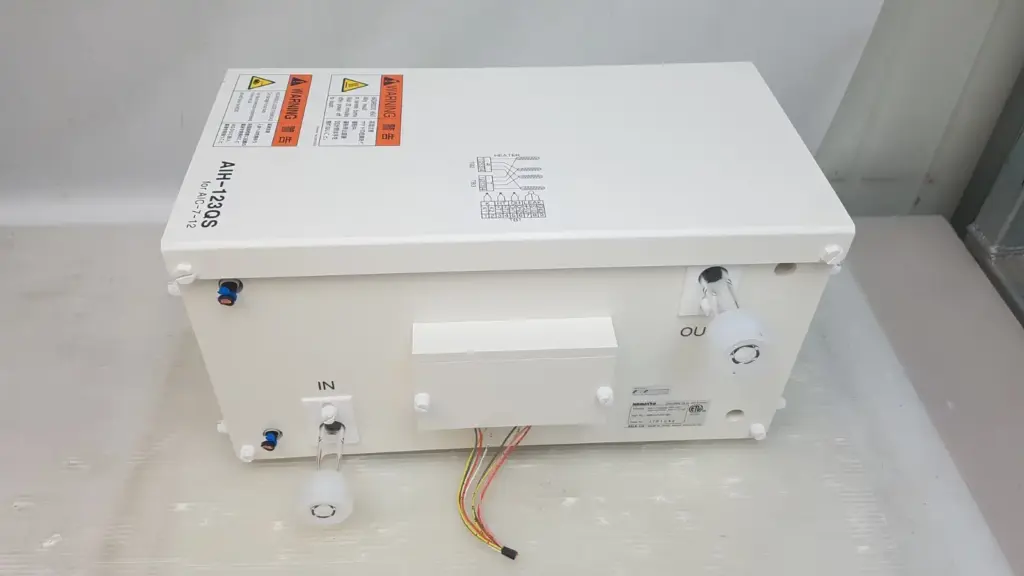

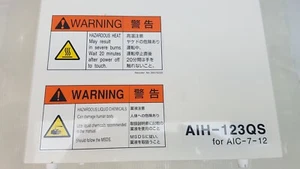

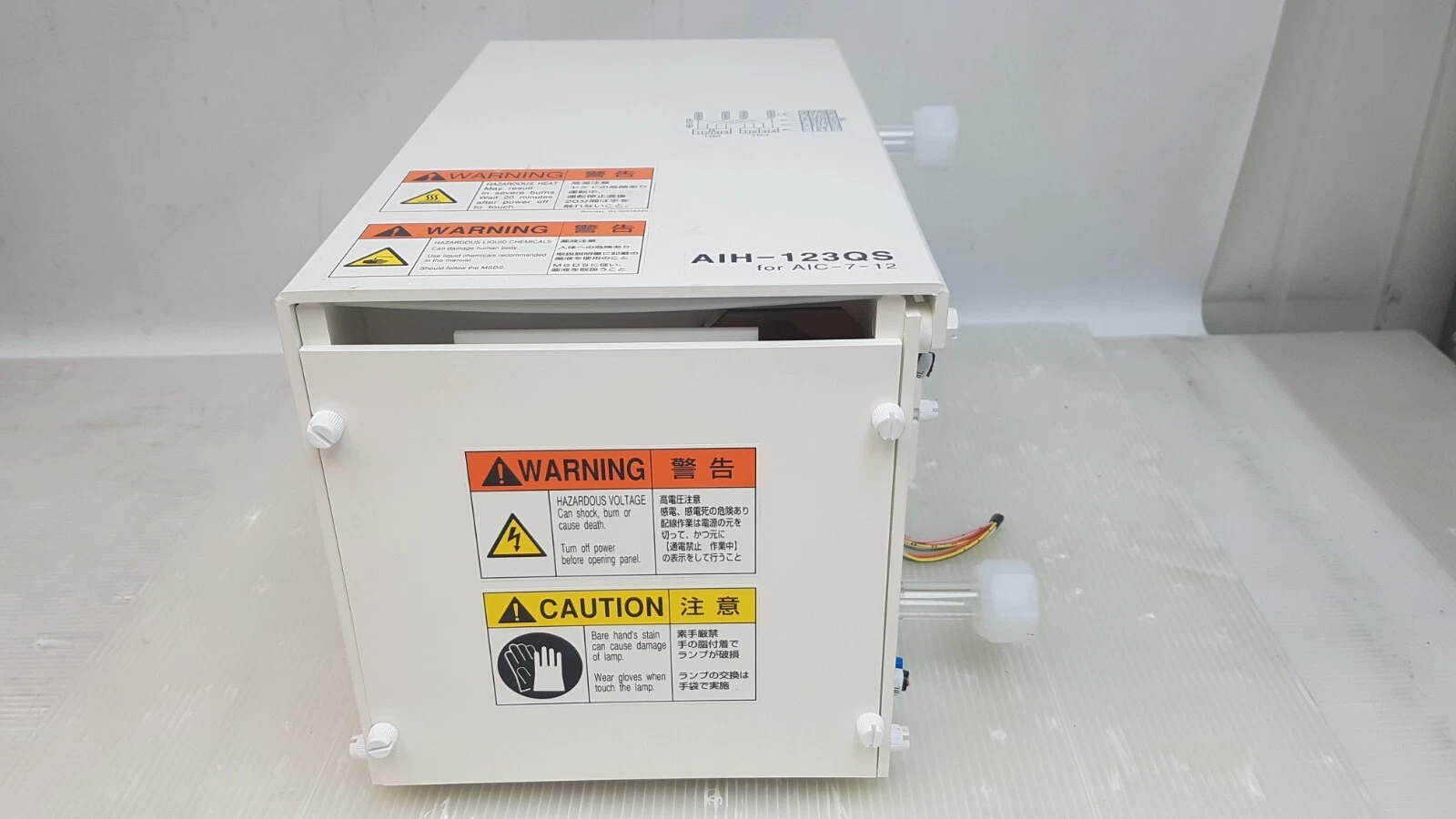

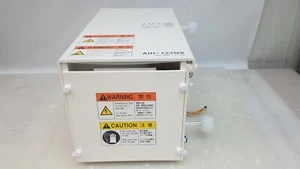

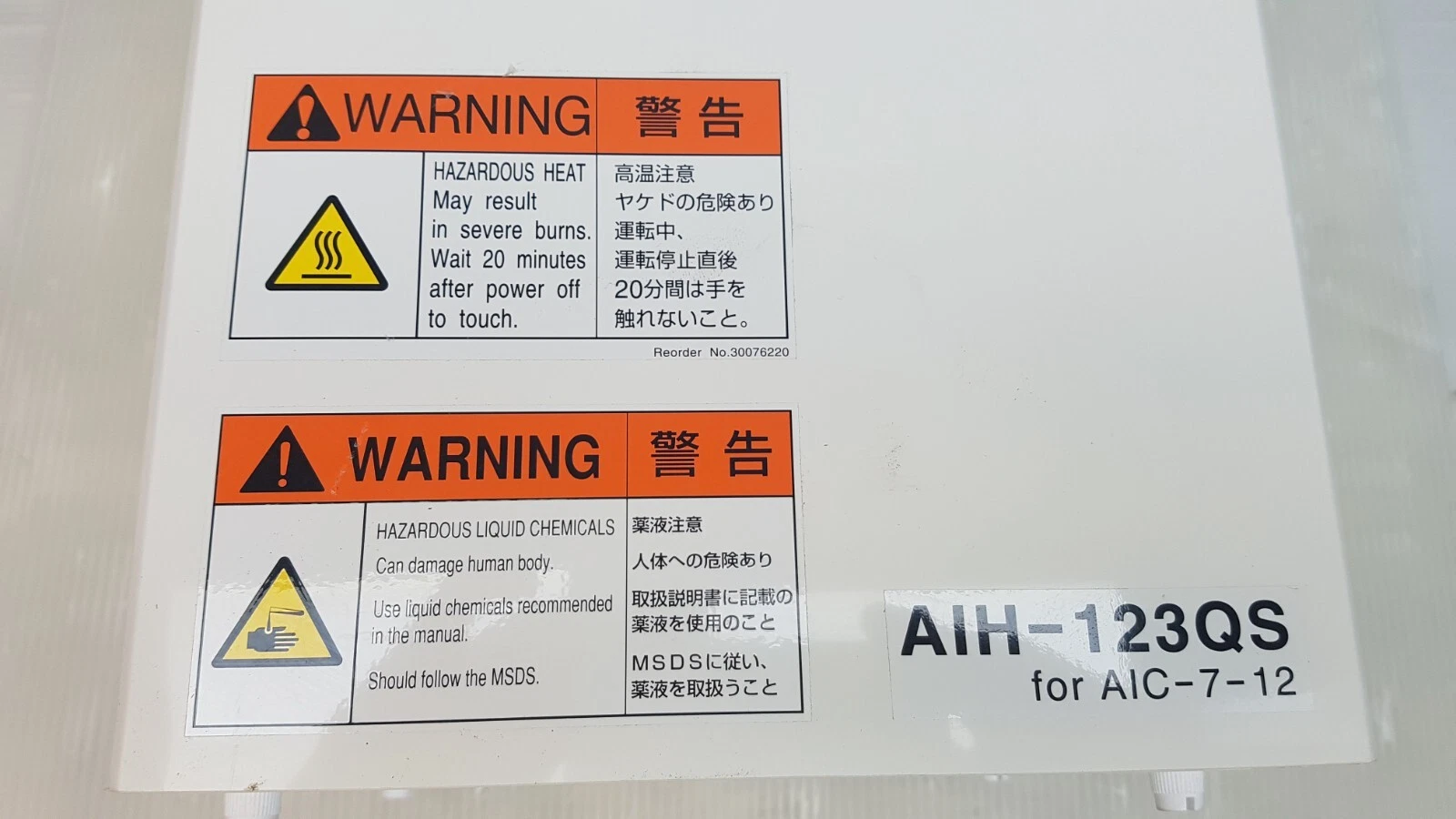

The heating unit only: white enclosure marked AIH-123QS for AIC-7-12, IN and OUT quartz pipe connections, a terminal wiring diagram (heater terminals TB2/TB3, and TB1 for the K, HT, OH and LEAK signals, the leak sensor on +5V/SIG/GND), heat, chemical, voltage and lamp-handling warning labels, and the flying signal leads. The AIC-7-12 controller is not shown. Condition: used.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Free — paid by us
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the KELK AIH-123QS?
The heating unit of KELK's CS-Heater, an inline heater that warms semiconductor process chemicals in quartz tubes using halogen lamps. This unit is Komatsu part ABCAA00160.
How does a quartz inline heater heat the chemical?
Halogen lamps sit outside transparent quartz tubes and heat the flowing liquid with near-infrared radiation, so the chemical never touches the heating element or any metal.
Which controller does it need?
The nameplate pairs it with the AIC-7-12-UC controller. The controller is not shown in the photos.
What chemicals is the CS-Heater used for?
KELK lists wafer cleaning chemicals (ammonia peroxide and hydrochloric acid peroxide) and resist-stripping solutions in semiconductor manufacturing.
What is the heater power of the AIH-123 series?
KELK's brochure gives 12 kW for the AIH-123 series with the AIC-7-12 controller.
Are the quartz pipe fittings included?
KELK specifies 20 mm Nippon Pillar Packing quartz fittings and does not include them with the heater. The photos show the IN and OUT connections on the unit.
What is KELK's relation to Komatsu?
The nameplate carries the Komatsu brand with KELK Ltd. as the maker, made in Japan.
