Photos show the actual item you will receive.
Product details
About this part
The ECI TECHNOLOGY TLA7335 REV. C is made by ECI Technology and identified by manufacturer part number TLA7335 REV. C.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × ECI TECHNOLOGY TLA7335 REV. C.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (ECI Technology), the part number (TLA7335 REV. C) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- ECI Technology
- Part number
- TLA7335 REV. C
- Manufacturer (silkscreen)
- ECI Technology
- Assembly number
- TLA7335 Rev C
- Bare PCB number
- HTA7335 Rev C
- Bus
- 8-bit ISA edge connector
- Bracket connectors
- 2 x D-sub (J1, J2)
- DC-DC converter
- MicroPower Direct A556RW
- Oscillator (marking)
- SG-615P, 10.0000 MHz
- Adjustments
- Multi-turn trim potentiometers
- Condition
- Used

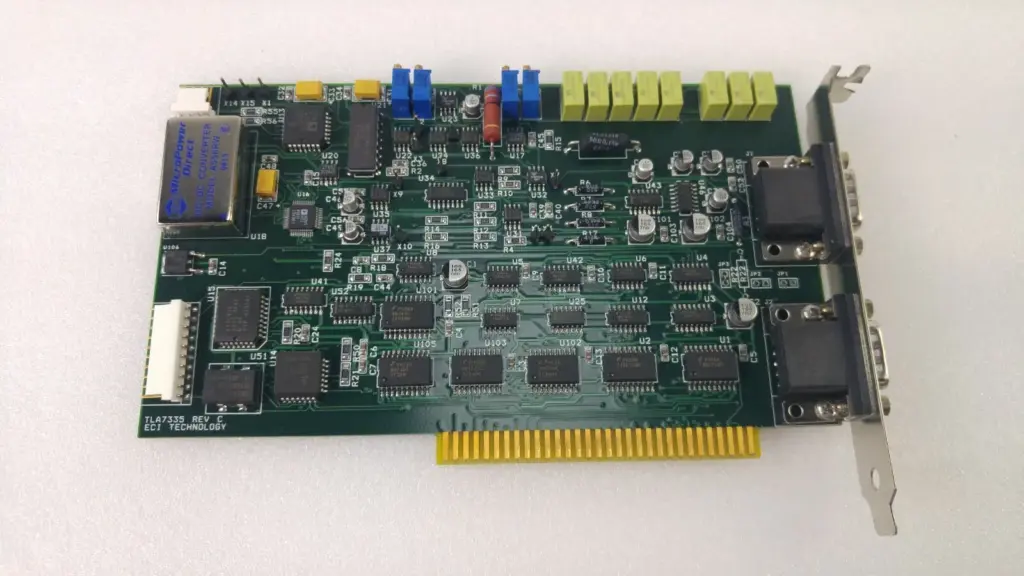

The ECI Technology TLA7335 Rev C is an 8-bit ISA expansion board, with two D-sub connectors on its mounting bracket. The component side is silk-screened "TLA7335 REV C, ECI TECHNOLOGY", and the solder side carries the bare-board number HTA7335 REV C.
Who is ECI Technology?
ECI Technology is a New Jersey maker of chemical monitoring systems, such as plating-bath analyzers, for semiconductor, printed circuit board and metal finishing lines. The board does not state which ECI instrument it came from.
What is on the board?
- 8-bit ISA edge connector and full-height metal bracket
- Two D-sub connectors (J1, J2) on the bracket
- MicroPower Direct DC-DC converter, model A556RW
- Blue multi-turn trim potentiometers and a row of yellow film capacitors
- Crystal oscillator marked SG-615P 10.0000M
- Fairchild 74-series logic ICs and two white board-to-board connectors
What condition is it in?
Used. The solder side has a handwritten "036" and a small sticker dated 6-1-08. The photos show the actual board.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Free — paid by us
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the ECI Technology TLA7335?
An 8-bit ISA expansion board made by ECI Technology, Rev C, with two D-sub ports and an on-board DC-DC converter.
What is the difference between TLA7335 and HTA7335?
Both are printed on this board. TLA7335 Rev C is on the component side with the ECI name; HTA7335 Rev C is printed on the bare circuit board on the solder side.
What does ECI Technology make?
Chemical monitoring systems, such as plating-bath analyzers, for semiconductor, PCB and metal finishing processes.
Which ECI instrument uses this board?
The board does not say. Match the number TLA7335 Rev C with the board in your instrument.
Does it fit a PCI slot?
No. It has an 8-bit ISA edge connector and needs an ISA slot.
