Photos show the actual item you will receive.
Product details
About this part
The Jordan Valley Bruker XYZ+Tilt Stage Machine From Lithography Process. is made by Bruker Jordan Valley and identified by manufacturer part number XYZ Stage.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Jordan Valley Bruker XYZ+Tilt Stage Machine From Lithography Process..
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Bruker Jordan Valley), the part number (XYZ Stage) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Bruker Jordan Valley
- Part number
- XYZ Stage
- Model
- XYZ Stage
- Brand (listing)
- Jordan Valley (Bruker)
- Type
- Motorized XYZ + tilt stage assembly
- Top
- Round plate with concentric grooves and locating pins, on a cylindrical housing
- Linear drive
- Ball screws with flexible shaft couplings and linear guide rails
- Tilt
- Cradle between two upright side plates with curved guides
- Cabling
- Cable carriers (drag chains), D-sub connectors, two BNC-type connectors
- Base
- Two dark base plates
- Packed weight (warehouse label)
- 39.8 kg
- Condition
- Used
This is a used motorized multi-axis stage assembly, listed as a Jordan Valley (Bruker) XYZ + tilt stage from a semiconductor process tool, with a round top plate carried on stacked linear axes and a tilt cradle. Jordan Valley Semiconductors, an Israeli maker of in-line X-ray metrology tools, became part of Bruker in 2015. This type of part is also called a motorized XYZ stage or multi-axis positioning stage.
What can be seen in the photos?

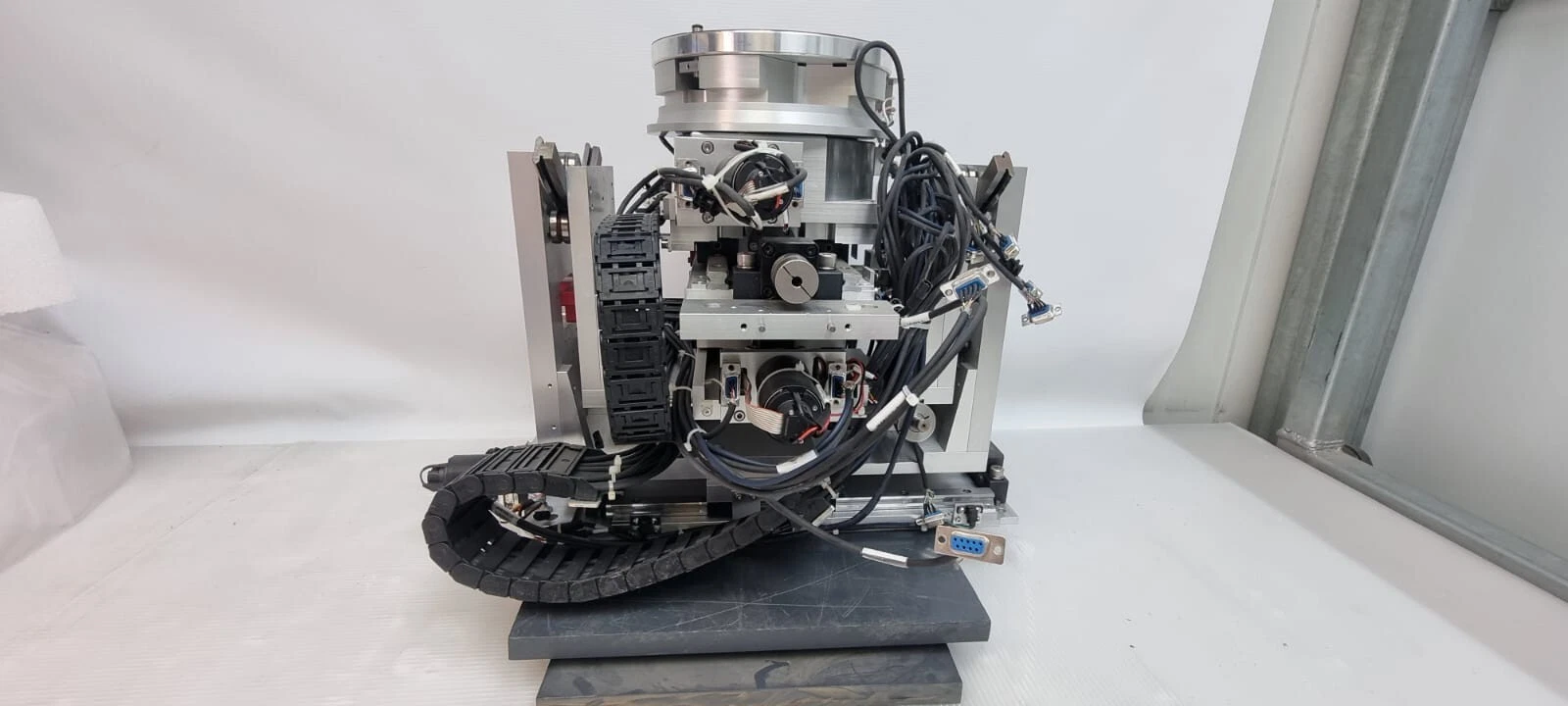

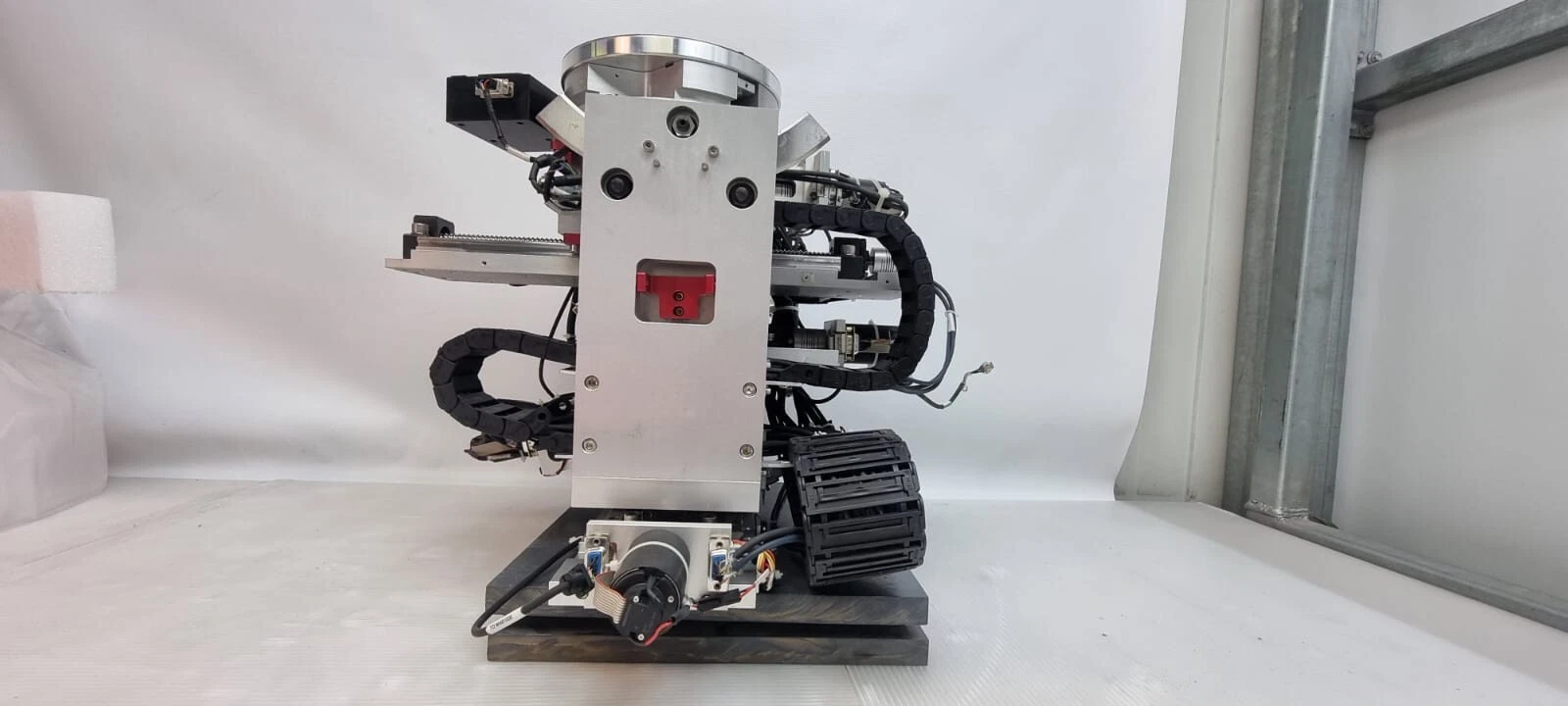

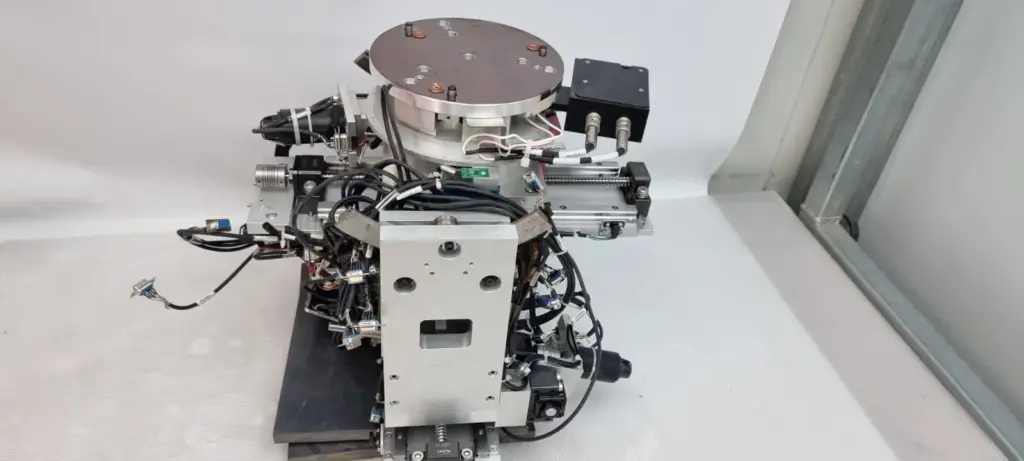

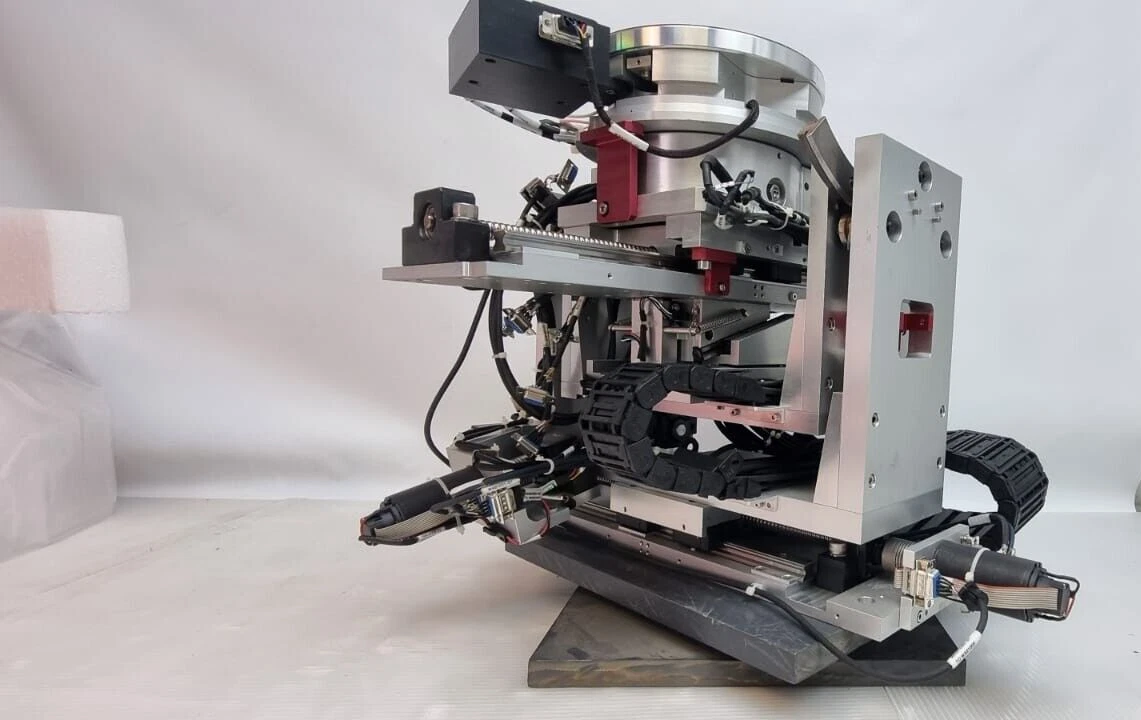

A round top plate with concentric grooves and locating pins, mounted on a cylindrical housing. Below it are stacked linear axes driven by ball screws through flexible shaft couplings, linear guide rails, a tilt cradle between two upright side plates with curved guides, several motors with gearheads or encoders, black cable carriers (drag chains), and many cables ending in D-sub connectors. Two BNC-type connectors exit a black box on the side of the top assembly. The stage sits on two dark base plates.
Is there a model number or nameplate?
No manufacturer nameplate, model or part number is visible in the photos. The brand and the description come from the listing. If you need to match a specific tool, send us your part number or photos of your stage before you buy.
What condition is it in?
Used. It is sold as the stage assembly shown; no controller, software or documentation is shown in the photos.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 30 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is this stage?
A motorized multi-axis positioning stage with XYZ travel and tilt, listed as a Jordan Valley (Bruker) unit from a semiconductor process tool.
Who is Jordan Valley?
Jordan Valley Semiconductors was an Israeli maker of in-line X-ray metrology and defect inspection tools. Bruker completed its acquisition in November 2015.
What is the difference between a manual and a motorized XYZ stage?
A manual stage is moved with micrometers or knobs. A motorized stage like this one is driven by motors and ball screws, so a controller can position it automatically.
Is there a part number on the stage?
No part number or nameplate is visible in the photos. Contact us with your part number if you need to match a specific tool.
Does it come with a controller or software?
No controller, software or documentation is shown in the photos. The listing covers the stage assembly as pictured.
What condition is it in?
Used, as shown in the photos.
