Product details
About this part
The B&R X20DIF371 Digital Input Module Rev. C0 with X20BM11 Base is made by B&R Automation and identified by manufacturer part number X20 DI F371.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × B&R X20DIF371 Digital Input Module Rev. C0 with X20BM11 Base.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (B&R Automation), the part number (X20 DI F371) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- B&R Automation
- Part number
- X20 DI F371
- Model
- X20 DI F371
- Country of Origin
- Austria
- Manufacturer
- B&R Industrial Automation, Austria
- Type
- X20 digital input module, 16 inputs
- Nominal voltage
- 24 VDC (-15% / +20%)
- Input circuit
- Sink, 1-wire connections, EN 61131-2 Type 1
- Input current
- Typ. 2.68 mA at 24 VDC
- Input filter
- Hardware ≤100 μs; software default 1 ms, 0 to 25 ms in 0.2 ms steps
- Switching threshold
- Low <5 VDC, High >15 VDC
- Isolation
- Channel to bus 500 Veff; channels not isolated from each other
- Power consumption
- Bus 0.18 W, internal I/O 1.47 W
- Bus module (included)
- X20BM11, Rev. H0
- Terminal block
- X20TB1F, 16-pin (not shown in photos)
- Operating temperature
- -25 to 60 °C horizontal, -25 to 50 °C vertical
- Markings (label)
- CE, KC, cULus, ATEX FTZÚ 09 ATEX 0083X, Made in Austria
The B&R X20DIF371 is an X20 System I/O module with 16 digital inputs for 24 VDC, sink wiring and 1-wire connections, shown here mounted on its X20BM11 bus module. It reads binary signals from sensors and switches and passes them to the controller over the X20 bus. Each input has a green status LED, and the input delay can be set in software. The part number is written both as X20DIF371 and as X20 DI F371, the way it is printed on the module.
What does the module label say?

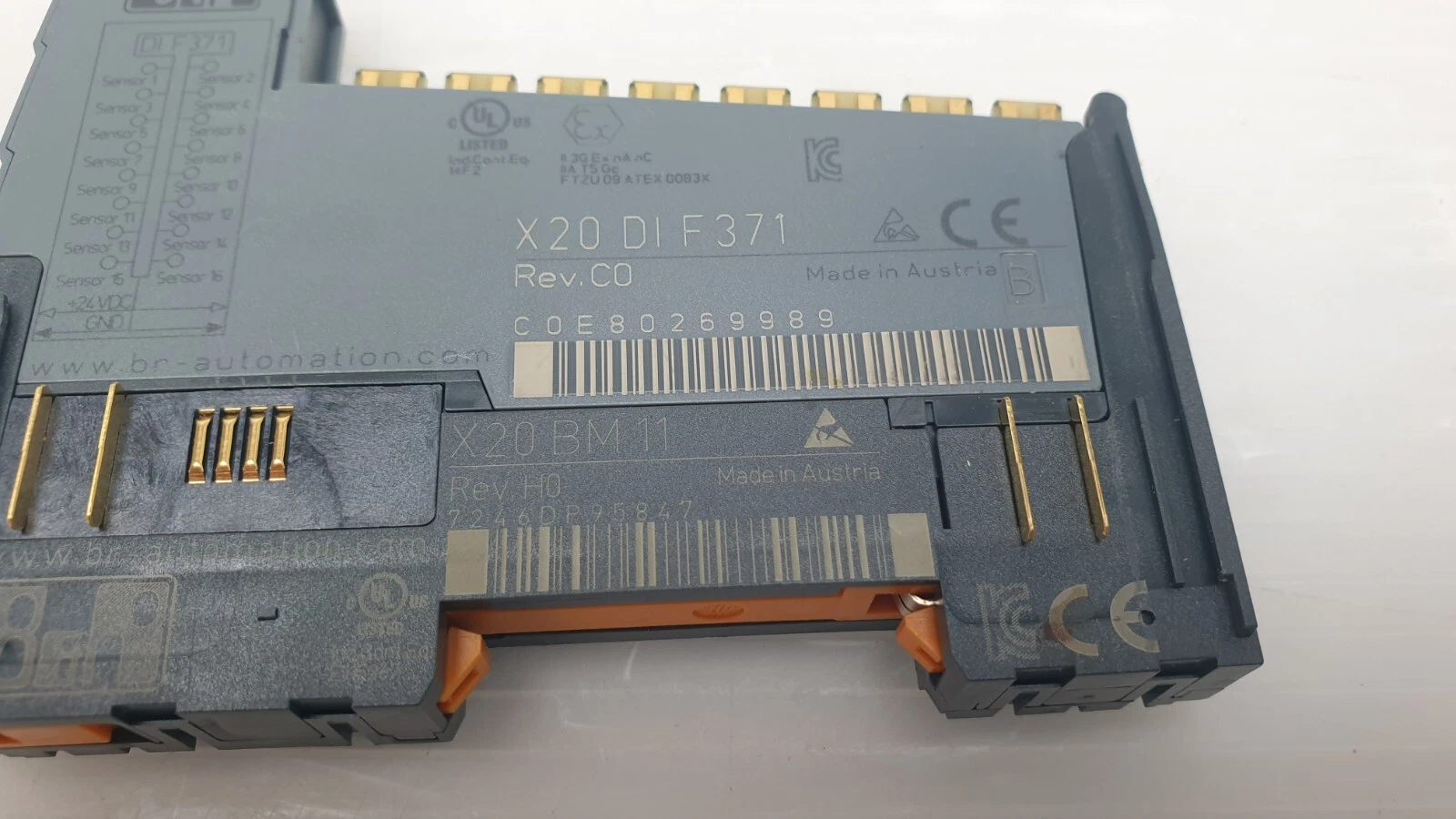

The I/O module reads X20 DI F371, Rev. C0, serial C0E80269989, Made in Austria, with CE, KC, cULus and ATEX (FTZÚ 09 ATEX 0083X) markings. The bus module under it reads X20 BM 11, Rev. H0, serial 7246DP95847, Made in Austria. The side print shows the wiring for Sensor 1 to Sensor 16 with +24 VDC and GND.
What is the X20BM11 bus module for?
In the B&R X20 System each electronics module sits on a bus module that carries the X20 bus and the I/O power supply to the next module in the row. B&R lists the X20BM11 (24 VDC keyed, internal I/O power supply connected through) as the bus module to order with the X20DIF371. The bus module snaps onto the DIN rail and the I/O module plugs into it.
What else do I need to use it?
A 16-pin X20TB1F terminal block for the field wiring, which B&R lists as a separate order item and which is not shown in the photos, plus an X20 bus controller or CPU and a 24 VDC I/O supply.
What is in the photos?

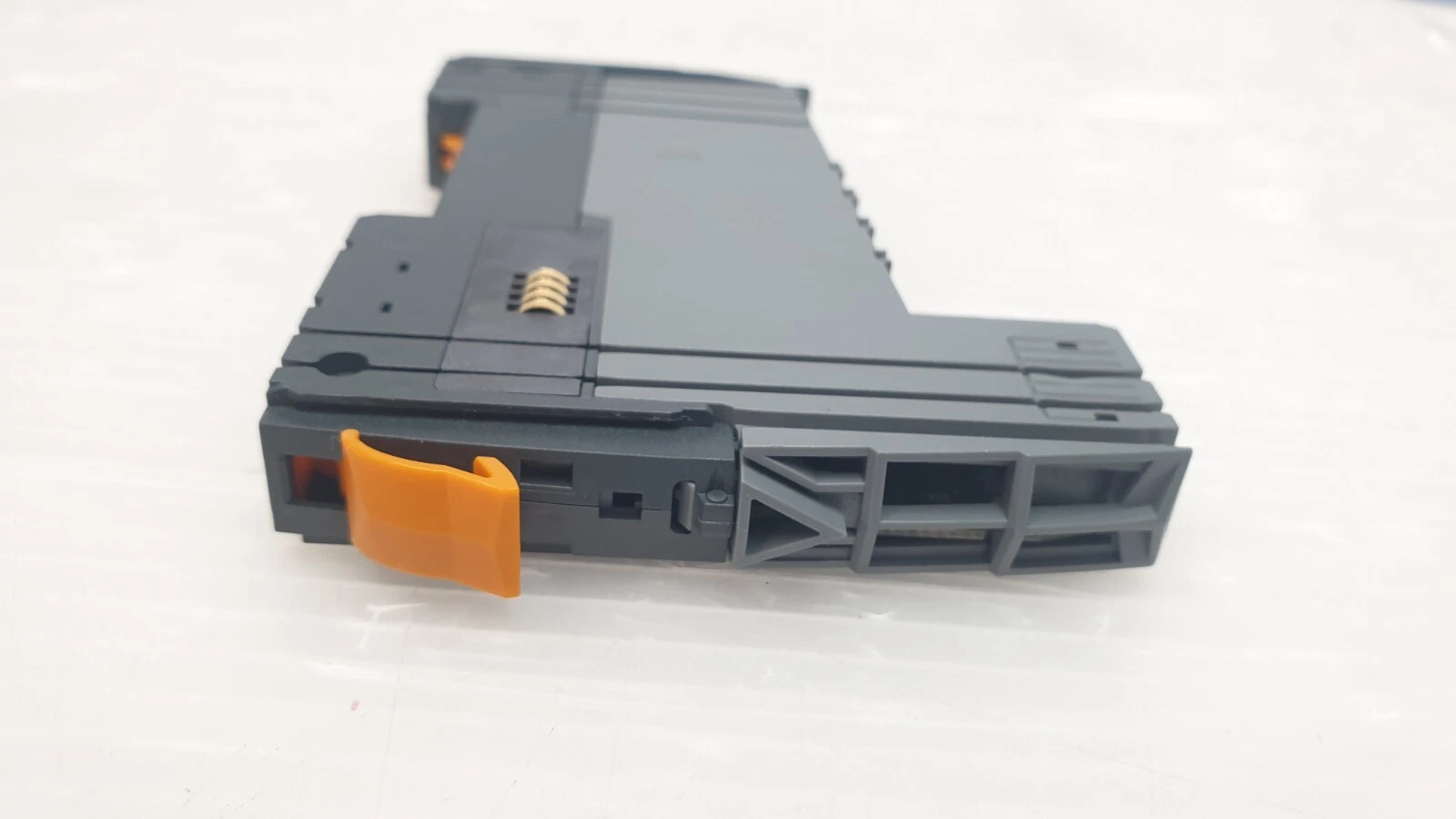

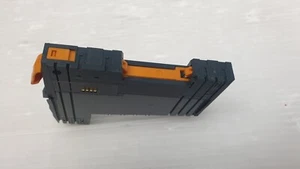

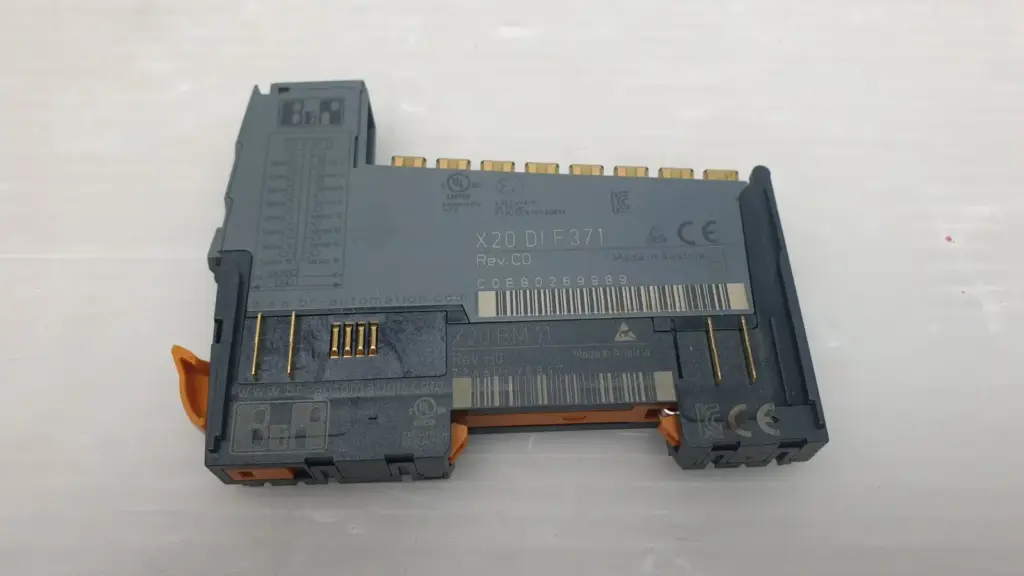

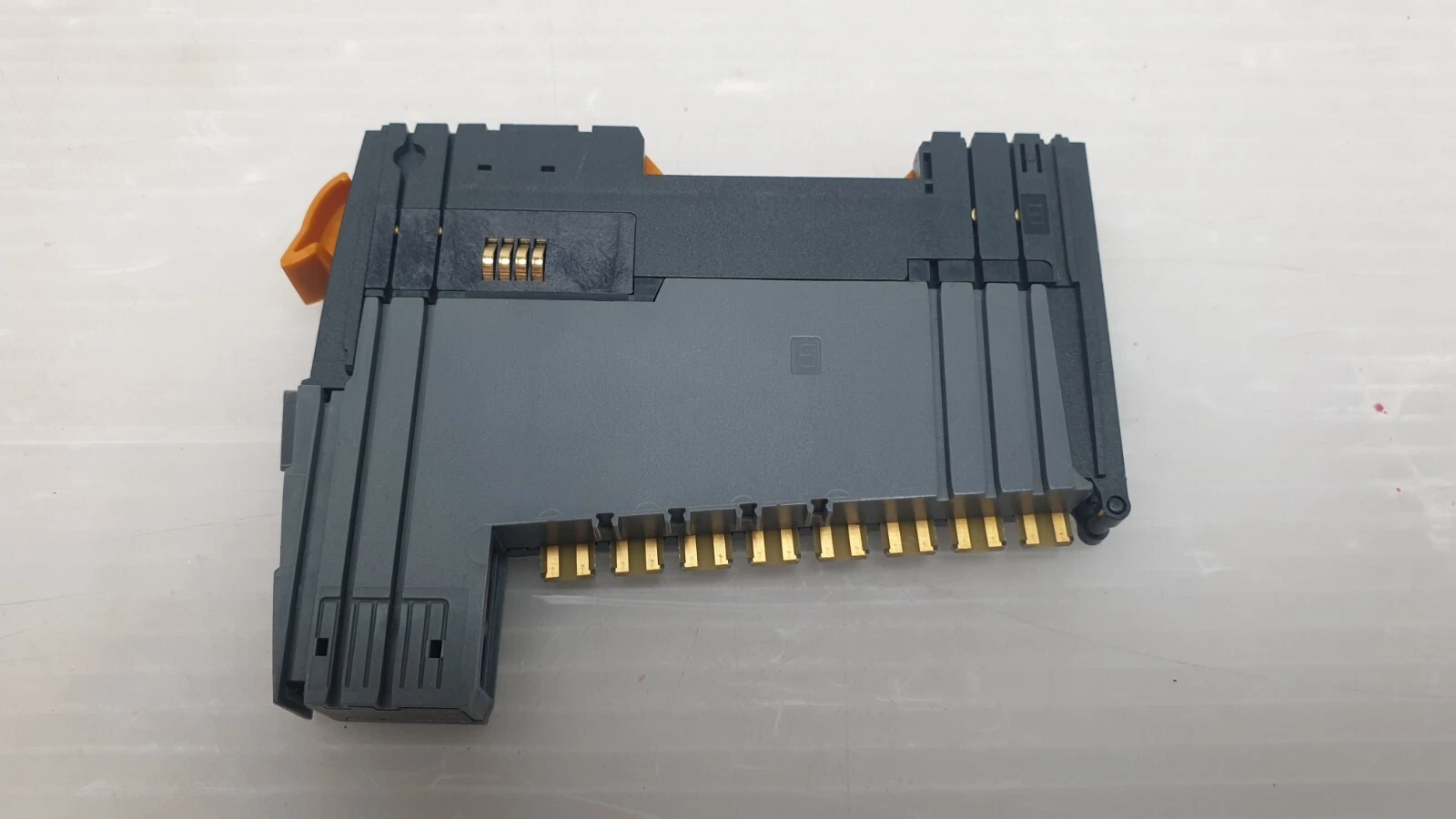

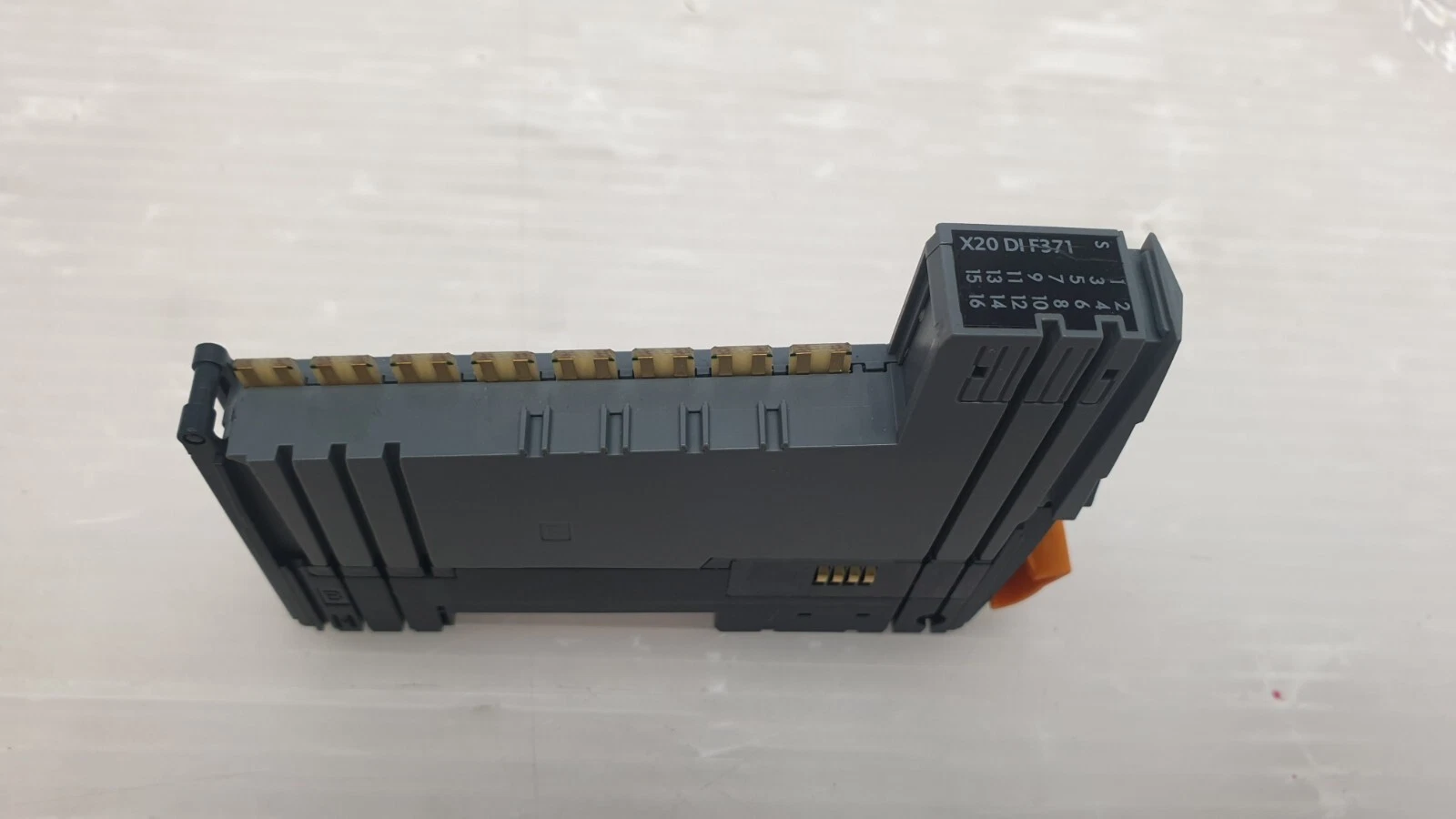

The X20DIF371 on its X20BM11 base from the label side, close-ups of both labels, the opposite side, the top edge with the pin layout (1 to 16) and the ends with the orange locking lever. Condition: used.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the B&R X20DIF371?
An X20 System digital input module with 16 inputs for 24 VDC, sink wiring and 1-wire sensor connections.
Is the X20BM11 bus module included?
Yes. The photos show the module mounted on an X20BM11 bus module, Rev. H0.
What is the difference between X20DIF371 and X20cDIF371?
The electronics are the same. The X20cDIF371 has a protective coating against condensation and corrosive gases; this one is the uncoated X20DIF371.
Which terminal block does it use?
B&R lists the 16-pin X20TB1F terminal block. It is ordered separately and is not shown in the photos.
Can I set the input filter time?
Yes. The software filter defaults to 1 ms and can be set from 0 to 25 ms in 0.2 ms steps, on top of a hardware filter of ≤100 μs.
Does it work with sourcing (PNP) sensors?
The module has sink inputs: a sensor switches +24 VDC onto the input, as in the B&R connection example.
What condition is it in?
Used.
Over 1,000 positive reviews from our customers
100% positive feedback · 527 ratings in the past 12 months
- Accurate description 5.0 /5
- Communication 5.0 /5
- Shipping speed 5.0 /5
- Shipping cost 4.7 /5
-
Communicate well，nice seller, will come back again for other items.
AGILENT N5380B SMA PROBE HEAD f***0 (40) -
Fast shipping! Good seller! A+++++ Very clean & Perfect working.
Lumenis PenMount PM6202 t***s (229) -
Great seller!
Brooks Automation 234961-0001 Wafer Aligner 24V Module Assembly j***w (720) -
Fast Shipping, Thanks AAAAA++++++++
STRATASYS PC ASY-07025 REV. A KONTRON KTQ67/Flex t***7 (1,144) -
recommend this seller
FLIR Blackfly S BFS-U3-50S5C-C Color Camera w/ Edmund Optics 58000, 8.5mm/F1.3 r***5 (3) -
great seller, fast shipment.
MKS Baratron Pressure Transducer 728A-28375 USED b***m (1,347) -
Fast shipment
Finder Type 22.32 Modular Contactor – Lot of 6 (NEW, 60-Day Warranty) c***s (1,506) -
Item exactly as described. Quick shipping. Excellent eBay seller!
c***s (153) -
Arrived quickly. Well packaged, exactly as described. Powered on and is operating perfectly. Smooth transaction.
b***3 (799) -
Item as advertised. Very fast shipping. Highly recommended seller.
t***1 (592) -
Fast dispatch and packed extremely well, camera and lens was exactly as described.
v***u (697) -
Package was extremely well packaged and arrived in great condition. Item was exactly as described. Great seller and reasonable shipping times. Overall, great transaction.
w***v (540) -
Item as described and prompt shipping.
4***g (90) -
produit conforme, expédition rapide, emballage soigneux, rien à dire. Je recommande fortement!
i***4 (101) -
As-advertised. Good communication. A++++
s***n (558) -
Good Communication, Fast Shipping, Smooth Transaction!
c***s (153) -
Excellent quality ,good condition,as a new
m***6 (2) -
Excellent Product at an Excellent Price. Thank you!
f***y (772) -
Delivery was first-class! Fantastic packaging. Wish all sellers were this great.
b***c (248) -
Excellent seller! Great communication and very helpful with my inquiries. The item was shipped via FedEx and arrived in Taiwan much faster than expected. Highly recommend!
k***8 (1) -
Supersafely packed, blazing fast shipping and exactly as described. Highly recommending and for sure gladly again. Thank you very much!
l***f (1,132) -
Smooth and fast shipping, received items within a week
b***2 (26) -
Fast delivery, good packaging, very friendly and helpful seller. Had to pay UK import duty, but I expected that. Controller is in very good condition considering its age, obviously very well look after. All functions I have tested worked perfectly. Overall very pleased and would happily buy from this seller again. A+++
k***s (822) -
As described, fast delivery, great seller.
t***s (2,051) -
I received the items the same week I ordered it. Extremely well packaged. Items were as described, perfect state. Flawless purchase!
p***0 (4) -
This was packaged perfectly with care. I highly recommend this seller their response was impeccable and professional. The product was as or better than expected. I had no issues with shipping at all as I was worried it may get hung up in customs but did not. As described works perfectly. Again A+ ratings
s***g (279) -
Great product, prompt shipping, great seller, A+++
t***1 (1,259) -
totally satisfied, hope to deal with you once again!
y***8 (2) -
Fast shipping, great communication, excellent seller, thank you!
s***9 (16) -
Highly recommend this seller, gave me same day dispatch, rapid delivery, very well packed and great pricing... could not be better!!
n***6 (394) -
Incredibly fast delivery and so well packed thank you! Exceeding expectations...
n***6 (394) -
Perfect, Thank you so much for accommodating me on the shipping you saved our job!!
d***9 (8) -
Fantastic service, well packed, very fast shipping and items in excellent like new condition! Highly recommend...
n***6 (394) -
Excellent product exactly as described fast shipping
s***x (163) -
Good quality. Fast Shipping. I would buy again from this seller
s***1 (459) -
Great seller! Great contact, fast shipping ! Thank you very much.
r***9 (5) -
shipped fast. packed well. exactly as described. good transaction.
g***l (653) -
Shipped quickly and the device arrived undamaged and fully functional. Used it to power a laser tube with no issues
q***0 (75) -
Item is as described , fast shipping . A++ seller .Thanks
u***e (2,312) -
Great camera and price. Works as expected and in excellent like new condition. Thanks for a great product.
f***p (147) -
The part arrived well packaged and is working well
s***9 (78) -
Perfect condition. Arrived on time. Good quality product.
r***7 (70) -
Good product, recommended. Would buy again!
f***7 (207) -
All good, as described! Well packaged and fast shipping!
e***i (52) -
Excellent seller! The motor was exactly as described. Fast shipping too!
9***9 (241) -
Excellent communication and support by vendor. I would purchase from them again .
t***s (493) -
Item was very well packed and arrived in perfect working conditon.
s***8 (131) -
All good, very positive experience, package arrived in 3 days!
b***r (139) -
Great seller! Item works perfectly! I will buy again!
z***0 (622) -
It was risky purchasing used printheads, but these turned out to be great and a huge savings over the OEM parts.
c***6 (848)
Feedback left by buyers on our eBay store, shown as written. Buyer names are masked by eBay.
More from B&R Automation
Single units, actual photos
-
B&R Automation X20 AT 2222

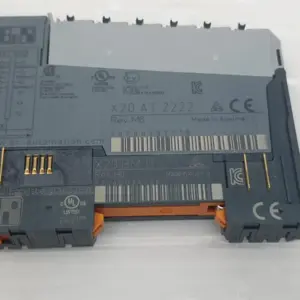

B&R X20AT2222 (X20 AT 2222) Pt100/Pt1000 Temperature Input Module Rev. M6 on X20BM11 Bus Module Rev. H0
