Photos show the actual item you will receive.
Product details
About this part
The B&R X20CS1020 RS232 Communication Module Rev. F0 with X20BM11 Base is made by B&R Automation and identified by manufacturer part number X20 CS 1020.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × B&R X20CS1020 RS232 Communication Module Rev. F0 with X20BM11 Base.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (B&R Automation), the part number (X20 CS 1020) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- B&R Automation
- Part number
- X20 CS 1020
- Model
- X20 CS 1020
- Country of Origin
- Austria
- Manufacturer
- B&R Industrial Automation, made in Austria
- Type
- X20 communication module, 1x RS232
- Transfer rate
- Max. 115.2 kbit/s
- Handshake lines
- RTS, CTS
- FIFO buffer
- 1 kB
- Controller
- UART type 16C550 compatible
- Max. distance (B&R)
- 900 m
- Electrical isolation
- RS232 isolated from bus, not from I/O power supply
- Power consumption
- Bus 0.01 W, internal I/O 1.44 W
- Connection
- Via X20TB12 (12-pin) or X20TB06 terminal block, not included
- Bus module
- X20BM11, 24 VDC keyed, internal I/O power connected through
- Operating temperature
- -25 to 60 °C horizontal, -25 to 50 °C vertical
- Certifications
- CE, cULus E115267, ATEX Zone 2, IP20
The B&R X20CS1020 is a 1x RS232 communication module for the B&R X20 I/O system, and this listing is the module (Rev. F0) together with an X20BM11 bus module (Rev. G0). B&R describes it as an RS232 interface for serial, remote connection of complex devices to the X20 system. Like a normal X20 electronics module it can sit anywhere on the remote backplane. The part number is also written X20 CS 1020 and X20CS1020.
What does the label say?

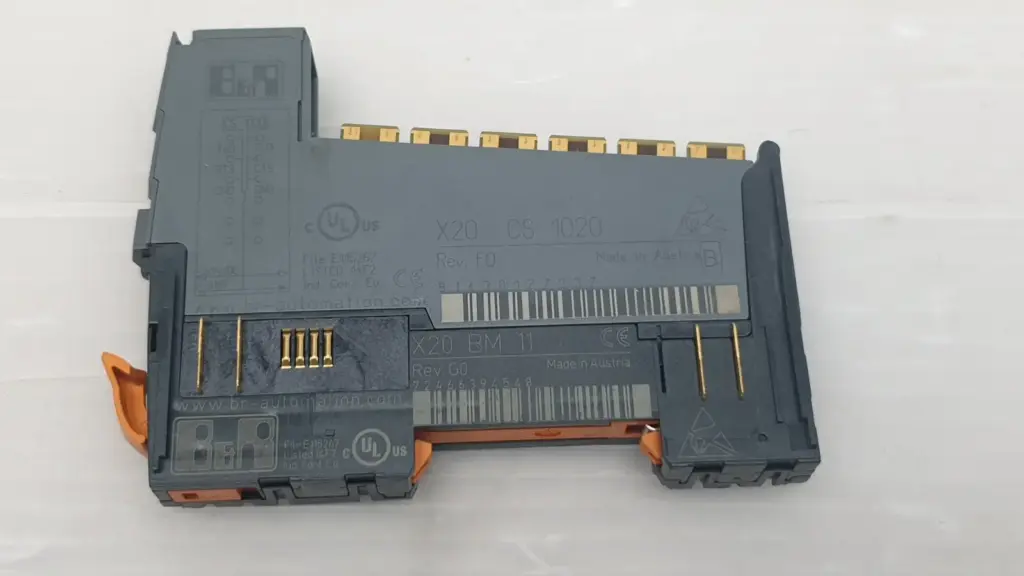

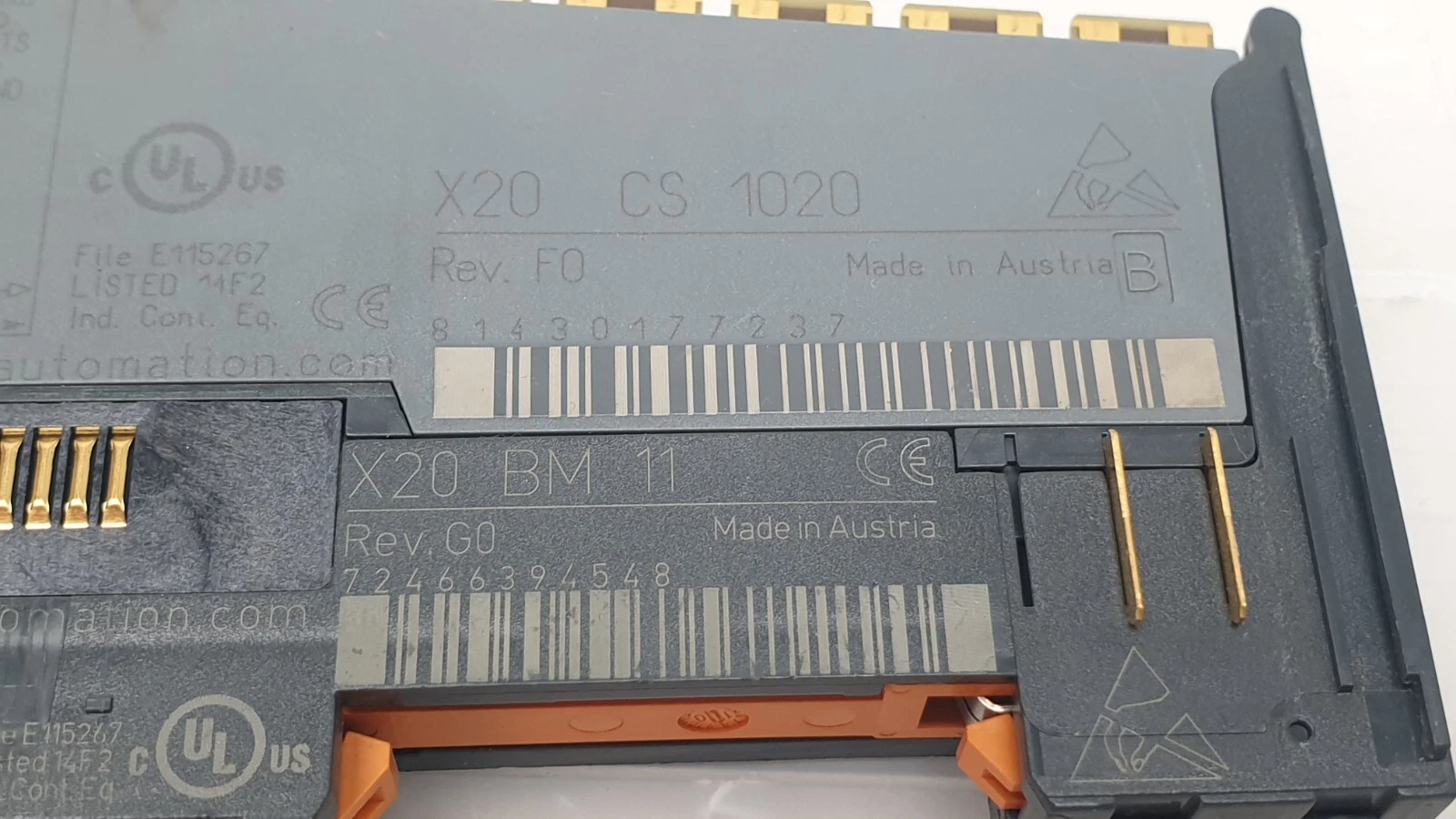

The electronics module reads "X20 CS 1020, Rev. F0, Made in Austria" with the cULus mark (File E115267, Listed 14F2, Ind. Cont. Eq.) and CE. The side print shows the pin assignment: TxD, RxD, RTS, CTS and GND, plus 24 VDC and GND. The bus module reads "X20 BM 11, Rev. G0, Made in Austria".
What is the X20BM11 bus module?
The X20BM11 is the B&R X20 bus module, 24 VDC keyed, with the internal I/O power supply connected through. It snaps onto the DIN rail and carries the X20 bus and power from module to module, and the X20CS1020 plugs onto it. B&R lists the X20BM11 or X20BM15 bus module as a mandatory accessory for this module.
What else do I need?
A 12-pin X20TB12 or 6-pin X20TB06 terminal block, which B&R lists as a mandatory accessory, ordered separately. The serial connection is made through the terminal block. No terminal block is shown in the photos.
What is in the photos?

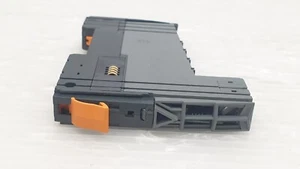

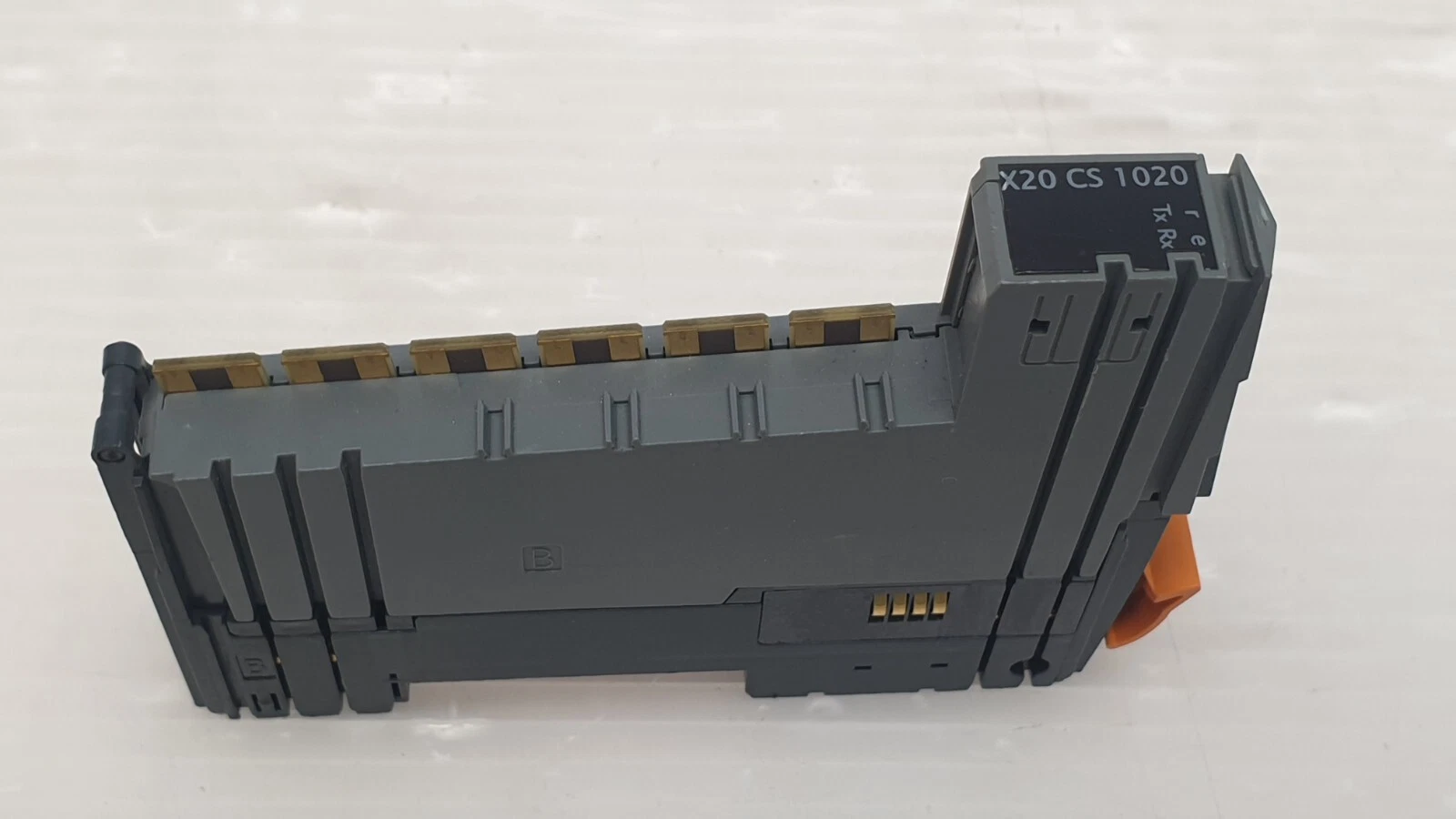

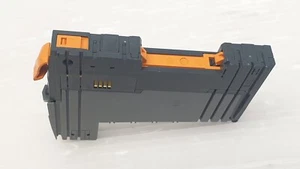

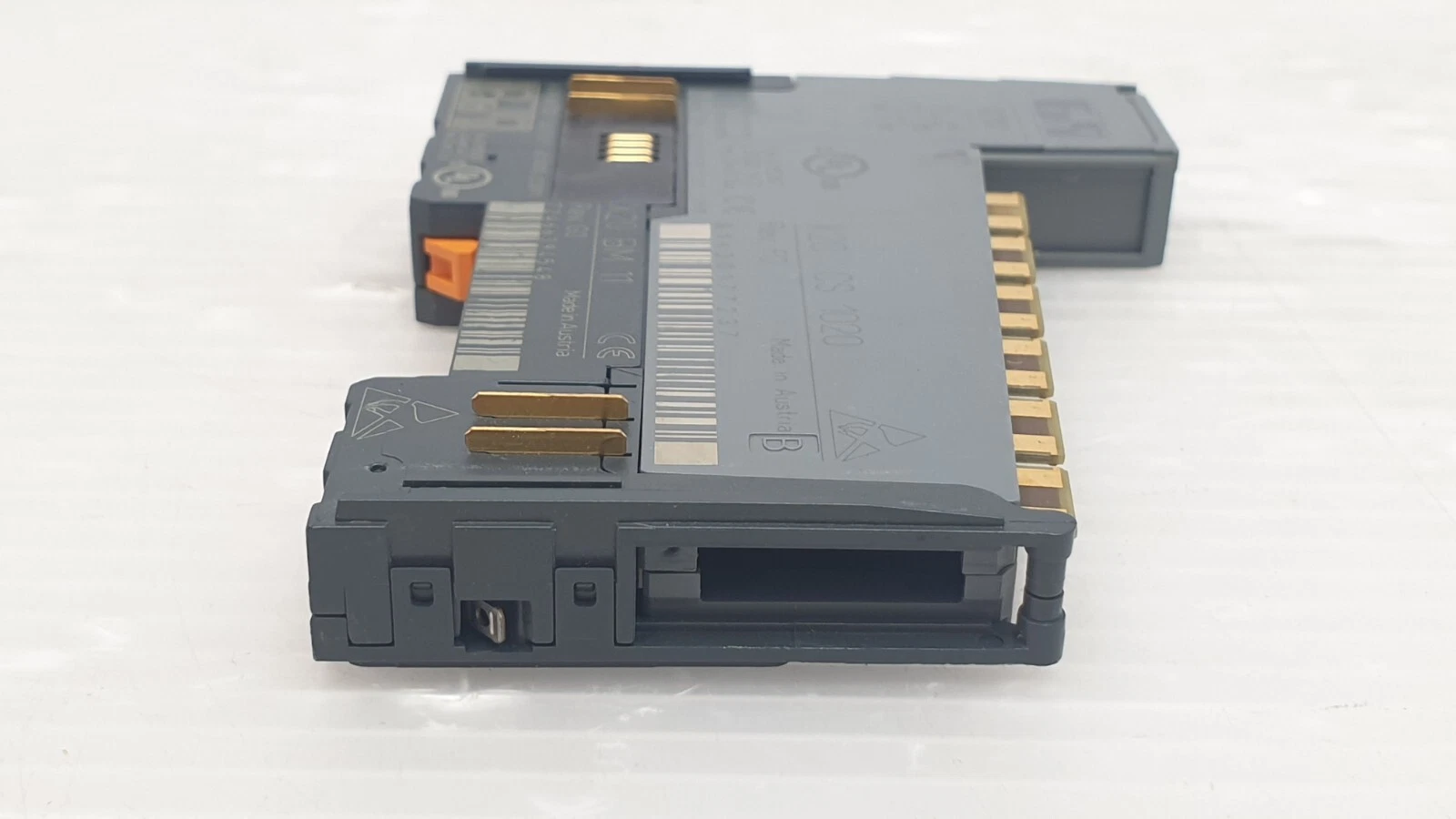

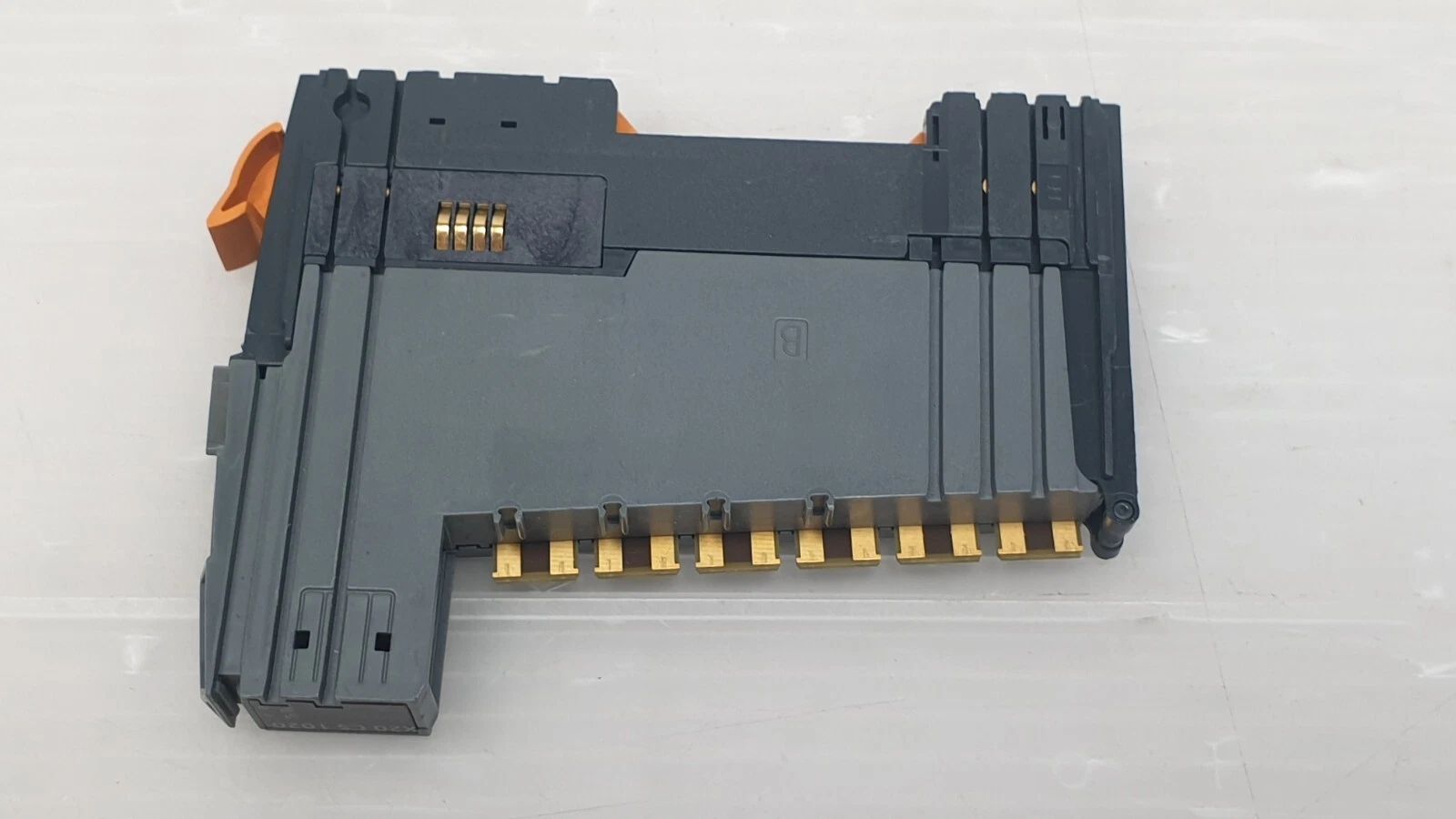

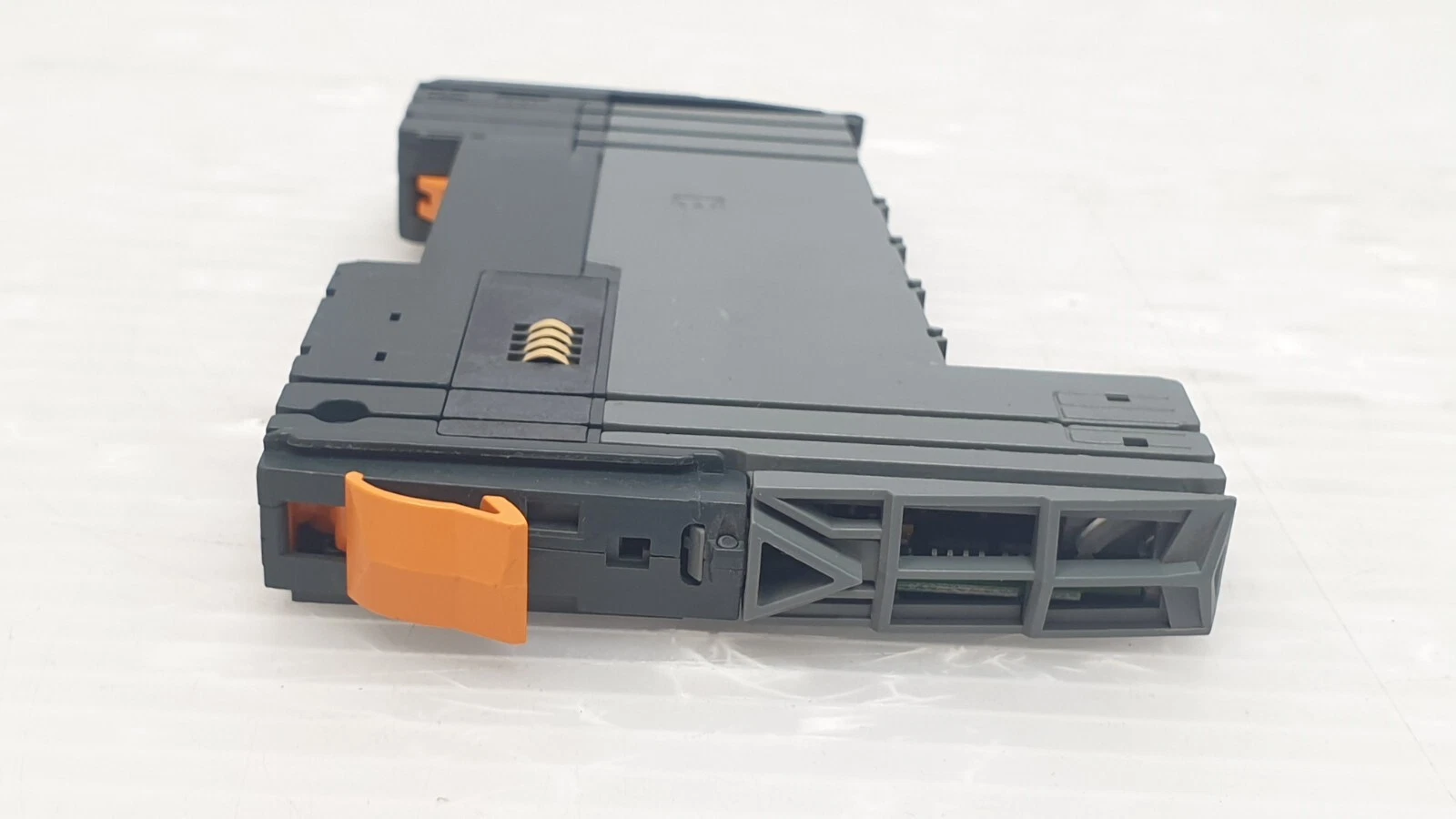

The X20CS1020 on the X20BM11 from the front, both sides, top and bottom, and close-ups of the labels. Condition: used.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the B&R X20CS1020?
A B&R X20 system communication module with one RS232 interface, for serial connection of devices to the X20 I/O system.
Is the bus module included?
Yes. The module is mounted on an X20BM11 bus module (Rev. G0), as shown in the photos.
Is a terminal block included?
No terminal block is shown in the photos. B&R lists an X20TB12 or X20TB06 terminal block as a mandatory accessory, ordered separately.
What is the maximum baud rate?
B&R gives a maximum transfer rate of 115.2 kbit/s, with RTS/CTS handshake and a 1 kB FIFO buffer.
What is the difference between X20BM11 and X20BM15?
Both are 24 VDC keyed X20 bus modules with the internal I/O power supply connected through. The X20BM15 also has a node number switch.
Is the RS232 port isolated?
The RS232 interface is isolated from the X20 bus but not from the I/O power supply.
What condition is it in?
Used.
