Photos show the actual item you will receive.
Product details
About this part
The B&R Automation Module 8EAC0152.001-1 Rev. B0 - New is made by B&R Automation and identified by manufacturer part number 8EAC0152.001-1.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New. Factory new, in original packaging.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × B&R Automation Module 8EAC0152.001-1 Rev. B0 - New.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (B&R Automation), the part number (8EAC0152.001-1) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- B&R Automation
- Part number
- 8EAC0152.001-1
- Model
- 8EAC0152.001-1
- Country of Origin
- Austria
- Manufacturer
- B&R Industrial Automation, Eggelsberg, Austria
- Material number
- 8EAC0152.001-1, Rev. B0
- Description (B&R)
- ACOPOS P3 plug-in module, analog multi-encoder interface
- Slot
- Slot 1 of an ACOPOS P3 drive
- Encoder connector
- X41M, 10-pin male iX industrial connector, coding B
- Max. encoder cable length
- 75 m
- Sine/cosine inputs
- Differential, 120 Ω termination, 12-bit resolution
- Serial interface
- RS485 synchronous serial
- Encoder supply
- 5.2 V ±0.1 V (max. 300 mA) or 11.45 V ±0.1 V (max. 200 mA)
- Temperature sensor input
- 1 x, 500 Ω to 5 kΩ
- Max. power consumption
- 12 W
- Software support
- mapp Motion 5.1.0 and higher, ACP10/ARNC0 5.00.0 and higher
- Dimensions / weight
- 82 x 24 x 103 mm, 64 g
- Operating temperature
- 5 to 40 °C nominal, 55 °C max.
The B&R 8EAC0152.001-1 is an ACOPOS P3 plug-in module that adds an analog multi-encoder interface to an ACOPOS P3 servo drive, so the drive can read a motor's sine/cosine encoder. This unit is new, revision B0, made in Austria by B&R Industrial Automation in Eggelsberg, in its original box.
What does the module connect to?
It fits slot 1 of an ACOPOS P3 drive. The front plate carries the connector marked X41M, which B&R specifies as a 10-pin male iX industrial connector, coding B, for encoder cables up to 75 m. B&R lists adapter cable 8ECG00X4.3151D-0 (0.4 m, 10-pin iX to 15-pin female D-sub) as an optional accessory.
What signals does it read?
Differential sine/cosine inputs with 12-bit resolution and 120 Ω termination, a differential reference input, an RS485 synchronous serial interface (data rate depends on the configured encoder type) and one temperature sensor input for 500 Ω to 5 kΩ. B&R's data sheet notes HIPERFACE as one of the configurable encoder types.
What does Rev B0 mean for the encoder supply?
The encoder supply is configurable to 5.2 V (max. 300 mA) or 11.45 V (max. 200 mA), overload- and short-circuit-proof. B&R notes that up to revision C0, the 11.45 V load capacity drops to 100 mA at ambient temperatures from 40 °C. This module is Rev B0, so that limit applies.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the B&R 8EAC0152.001-1?
An ACOPOS P3 plug-in module with an analog multi-encoder interface. It lets an ACOPOS P3 servo drive evaluate sine/cosine motor encoders.
How does a sin/cos encoder interface work?
The encoder sends two analog signals, sine and cosine, per line. The module digitizes them (12-bit here) and interpolates between lines, so the drive gets a much finer position than the line count alone.
Which ACOPOS P3 slot does it go in?
Slot 1, according to B&R's technical data.
What cable connects it to a 15-pin D-sub encoder cable?
B&R lists adapter cable 8ECG00X4.3151D-0, 0.4 m, from the 10-pin iX connector to a 15-pin female D-sub.
What encoder supply voltages are available?
5.2 V with up to 300 mA, or 11.45 V with up to 200 mA. On revisions up to C0, such as this Rev B0 unit, the 11.45 V limit is 100 mA from 40 °C ambient.
What software version is needed?
mapp Motion 5.1.0 or higher, or ACP10/ARNC0 5.00.0 or higher.
Is it new?

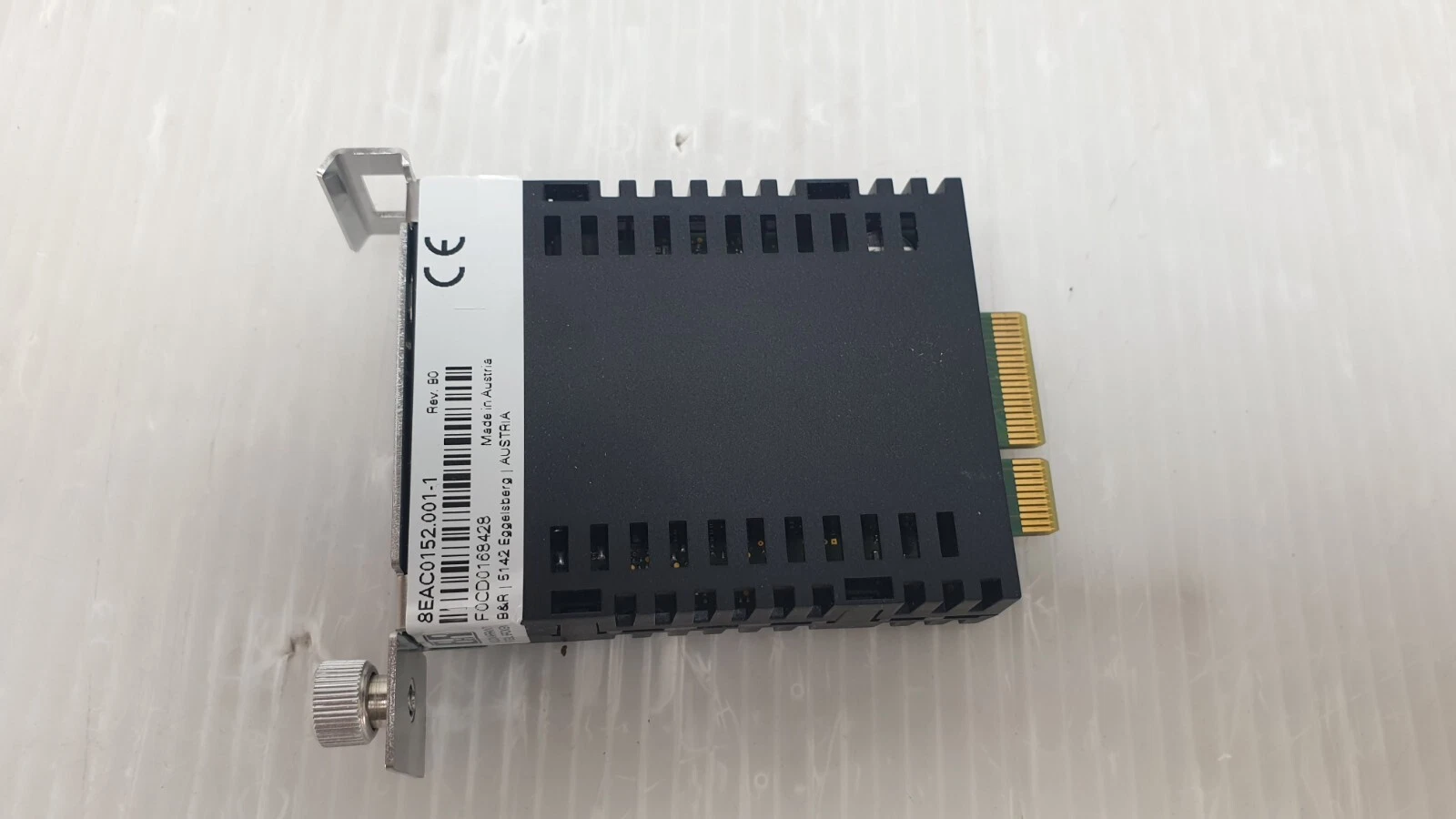

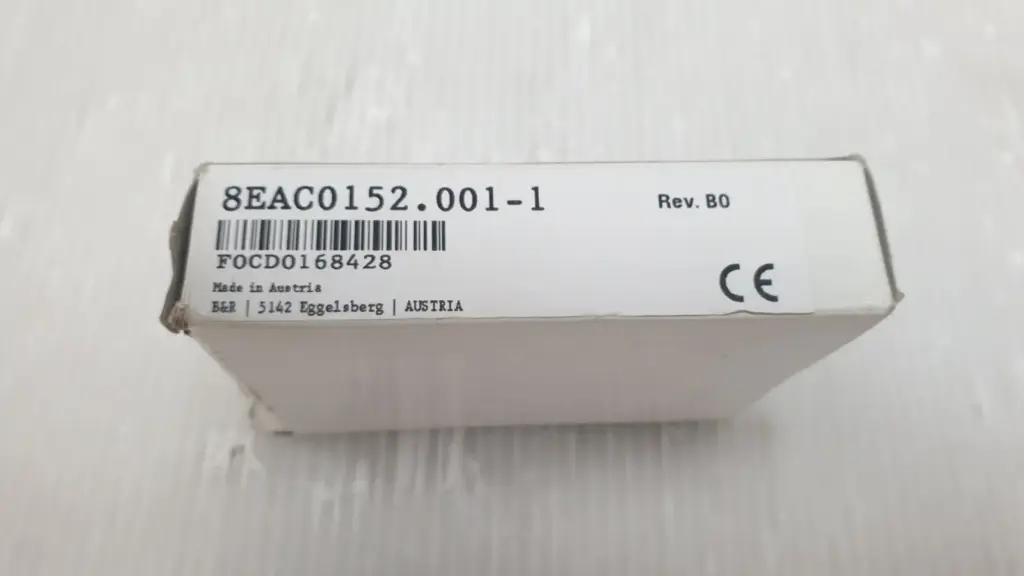

Yes. New, Rev B0, in the original B&R box with matching labels on box and module.
