Photos show the actual item you will receive.
Product details
About this part
The ASM Advanced Semiconductor Materials 1001-524-21 Processor PCB Rev-A is made by ASM Advanced Semiconductor Materials and identified by manufacturer part number 1001-524-21.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New – Open Box. Unused. Packaging opened or missing.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × ASM Advanced Semiconductor Materials 1001-524-21 Processor PCB Rev-A.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (ASM Advanced Semiconductor Materials), the part number (1001-524-21) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- ASM Advanced Semiconductor Materials
- Part number
- 1001-524-21
- Model
- 1001-524-21
- Country of Origin
- Japan
- Manufacturer
- ASM (Advanced Semiconductor Materials)
- Part number (label)
- 1001-524-21 REV A
- Bare board (silkscreen)
- ASM 2548860-01 REV-A
- Other label lines
- 1027LW- 27, SFC 32399
- Interface ICs
- 2 x NEC D71055C parallel interface unit (U10, U11)
- Driver ICs
- 2 x ST ULN2803A Darlington array (U12, U13)
- Logic
- 74HC541, 74HC245, 74HC688
- Backplane connector
- X4, DIN 41612-style, TYCO 6-1393644-6
- Ribbon headers
- 3 x boxed headers X1, X2, X3
- Settings
- 2 x 4-position DIP switch (S1, S2)
- Other
- Green pluggable terminal block
- Condition
- New - Open Box
The ASM 1001-524-21 Rev A is a circuit board from ASM (Advanced Semiconductor Materials), built on bare board ASM 2548860-01 Rev-A, with two NEC D71055C parallel interface chips and a DIN 41612 backplane connector. Condition: new, open box. Buyers also search this part as 1001-524-21 or 100152421.
How do I identify this board?

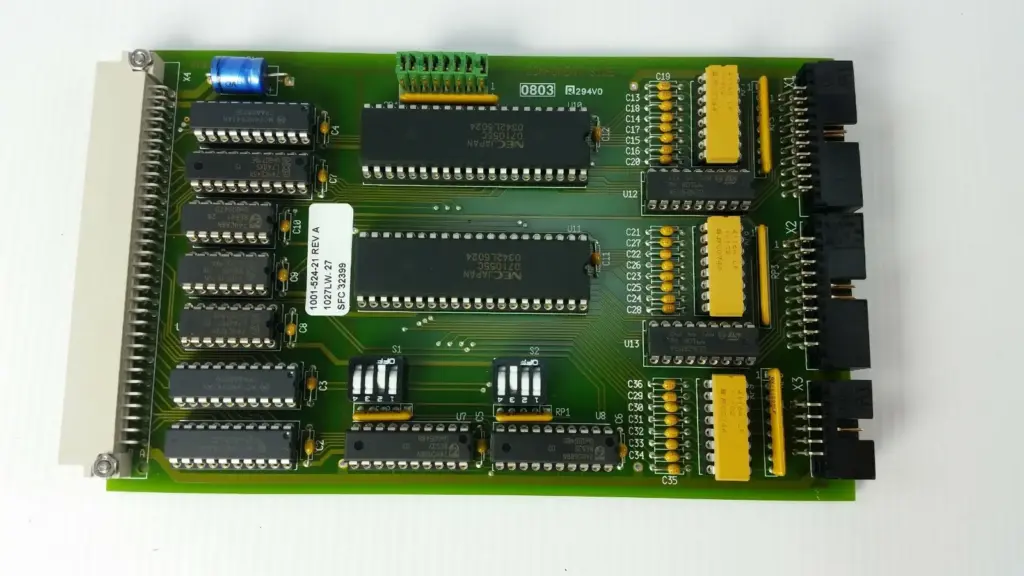

A white label on the component side reads 1001-524-21 REV A, 1027LW- 27 and SFC 32399. The solder side silkscreen reads ASM 2548860-01 REV-A. The component side is marked COMPONENT SIDE and 0803. Match the label number 1001-524-21, including REV A, to your parts list.
What is on the board?
Two NEC D71055C chips (U10, U11), which are CMOS parallel interface units with three 8-bit I/O ports in the 8255 style. The board also carries two ST ULN2803A Darlington driver arrays (U12, U13), 74HC-series logic including MC74HC541 buffers, a 74HC245 transceiver and two 74HC688 comparators, and yellow resistor networks. Two 4-position DIP switches (S1, S2) and a green pluggable terminal block sit on the top edge.
Which connectors does it have?
On one edge a DIN 41612-style connector (X4) marked TYCO 6-1393644-6, which distributors list as a right-angle DIN 41612 plug. On the opposite edge three boxed ribbon-cable headers, X1, X2 and X3. The DIN 41612-style connector is held to the board with two screws.
What condition is it in?
New, open box. The photos show both sides with all components in place and no visible damage.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Paid by the buyer
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the ASM 1001-524-21?
A circuit board from ASM (Advanced Semiconductor Materials), revision A, built on bare board ASM 2548860-01 Rev-A. It carries two NEC D71055C parallel interface chips and ULN2803A driver arrays.
What is the NEC D71055C?
A CMOS programmable parallel interface unit with three 8-bit I/O ports, compatible with the industry-standard 8255 architecture. This board has two of them.
What is the difference between 1001-524-21 and 2548860-01?
1001-524-21 REV A is on the label of the complete board. ASM 2548860-01 REV-A is printed on the bare circuit board itself.
What connector does it plug in with?
A DIN 41612-style connector marked TYCO 6-1393644-6 on one edge. Three boxed ribbon-cable headers (X1, X2, X3) are on the opposite edge.
Which ASM tool does it fit?
The board does not state the tool. Use the full number 1001-524-21 REV A to match it to your parts list.
What condition is it in?
New, open box. All components are in place in the photos.
