Photos show the actual item you will receive.
Product details
About this part
The KARL STORZ M17102B BOARD is made by KARL STORZ and identified by manufacturer part number M17102B.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × KARL STORZ M17102B BOARD.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (KARL STORZ), the part number (M17102B) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- KARL STORZ
- Part number
- M17102B
- Model
- M17102B
- Manufacturer (silkscreen)
- KARL STORZ
- Board (silkscreen)
- M17102B, display board
- Second board in photos
- KARL STORZ ...17101A control board, first character hidden
- Firmware label
- V1.2 on the 40-pin processor
- Display
- 4-digit 7-segment LED display and LED bar graph
- Legends
- REPLACE LAMP, STANDBY, HOURS, MANUAL, VIDEO
- Logic ICs
- MC74HC374AN, MC74HC138AN, MC74HC00AN, MC14016BCP, MM74HC123AN
- Voltage regulators
- 7812 and 7805 on a shared heat sink
- Crystal
- 7.3728 MHz (ECS)
- Board markings
- ECN 6, CR 18V-0; handwritten SN 1766 and SN 1415
- Condition
- Used

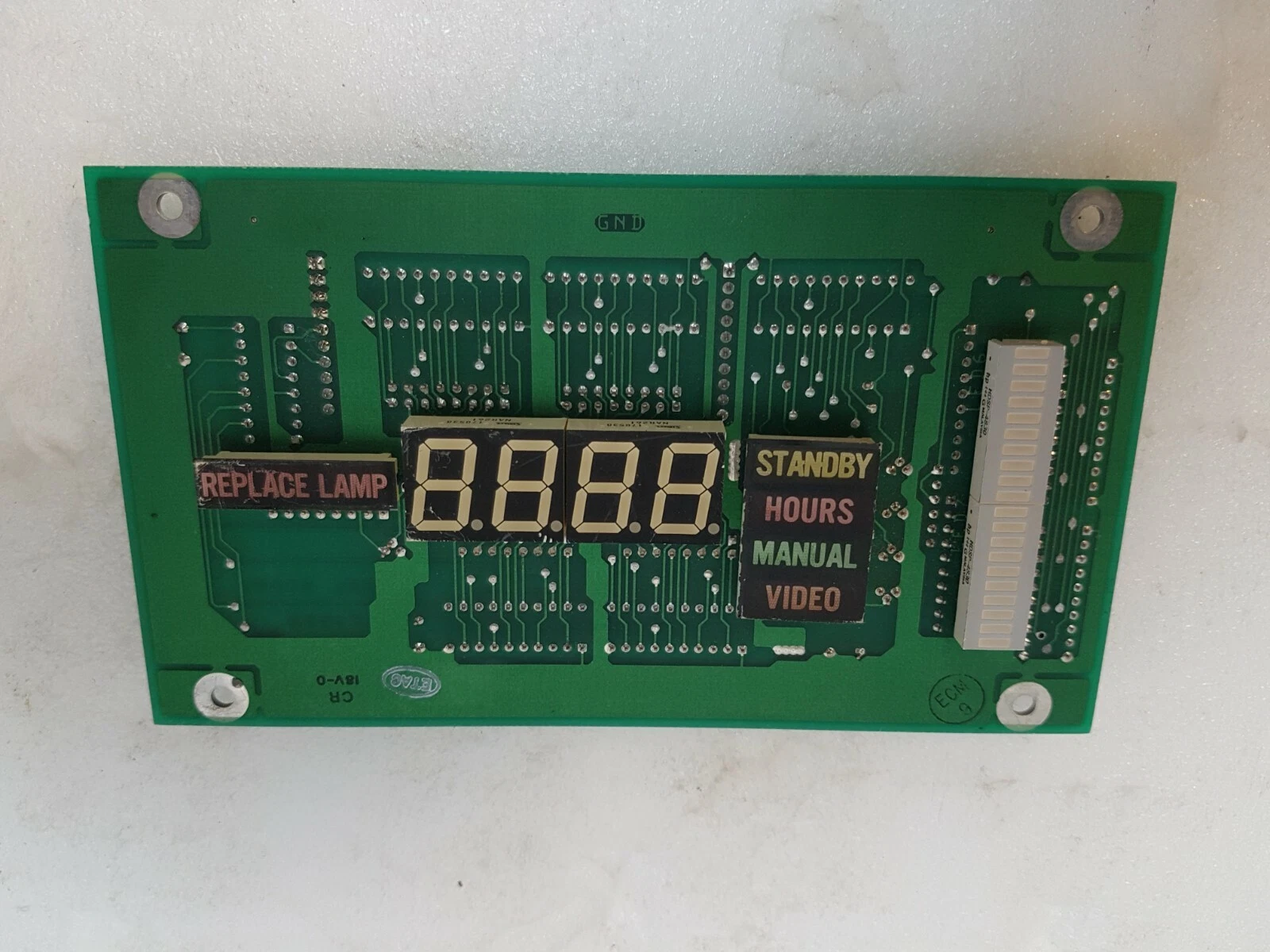

The KARL STORZ M17102B is a printed circuit board from KARL STORZ equipment that carries a 4-digit LED display, an LED bar graph and the status legends REPLACE LAMP, STANDBY, HOURS, MANUAL and VIDEO. In the photos it is stacked on brass standoffs with a second KARL STORZ board marked 17101A, which carries the microcontroller and power regulation. It is a spare circuit board, not a complete medical device.
What is marked on the boards?

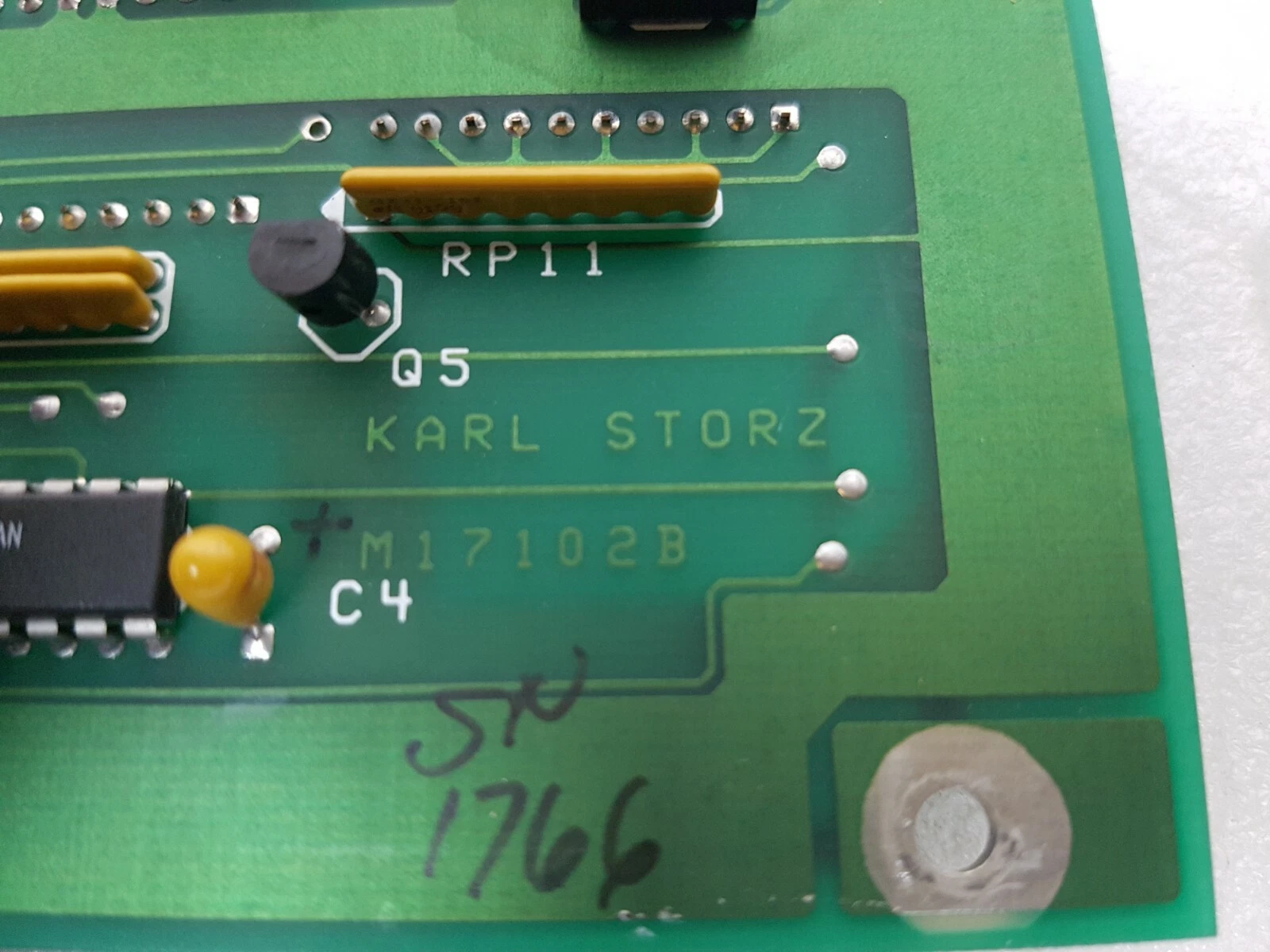

The display board silkscreen reads KARL STORZ M17102B, with a handwritten SN 1766, ECN 6 and CR 18V-0 markings. The control board silkscreen reads KARL STORZ and 17101A (the first character is hidden behind a capacitor), with a handwritten SN 1415 and a V1.2 label on its 40-pin processor.
What components are on it?

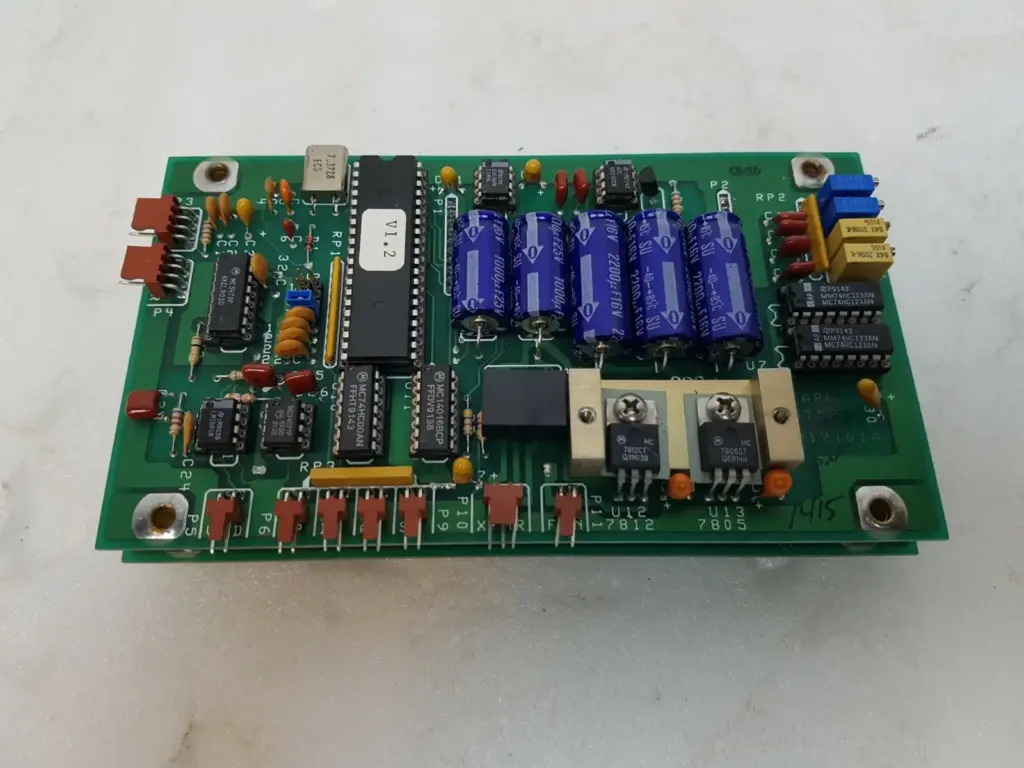

The M17102B side uses MC74HC374AN latches and an MC74HC138AN decoder to drive the display. The control board has a 7.3728 MHz ECS crystal, MC74HC00AN, MC14016BCP and MM74HC123AN logic, 7812 (+12 V) and 7805 (+5 V) regulators on a shared heat sink, and 1000 µF 25 V and 2200 µF 16 V capacitors. Header labels include XFMR and FAN.
What condition is it in?

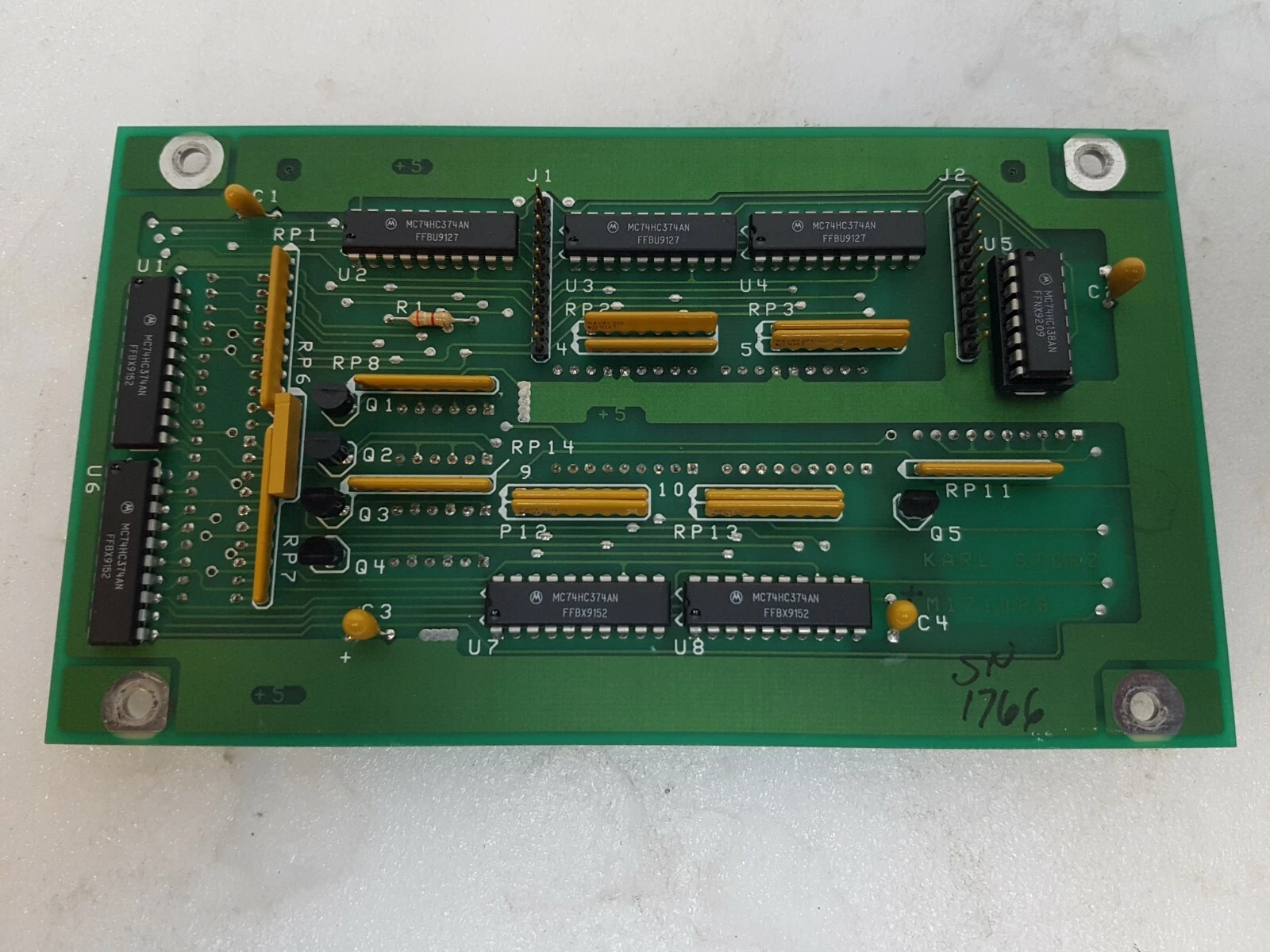

Used. The photos show the two boards stacked together and separated, front and back.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the KARL STORZ M17102B?
A KARL STORZ circuit board with a 4-digit LED display, an LED bar graph and the legends REPLACE LAMP, STANDBY, HOURS, MANUAL and VIDEO.
Is this a complete medical device?
No. It is a spare circuit board assembly, without housing, power supply or front panel.
What is the second board in the photos?
A KARL STORZ control board marked 17101A, mounted on brass standoffs above the M17102B. Its processor carries a V1.2 label.
Which KARL STORZ unit is it from?
The unit model is not printed on the boards. Match the board number M17102B with your equipment's service documentation before ordering.
What condition is it in?
Used, as shown in the photos.
