Product details
About this part
The AE MERCURY 10013 AE Advanced Energy 27-256558-00 RF Match 3150273-004 B is made by AE Advanced Energy and identified by manufacturer part number 3150273-004 B.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × AE MERCURY 10013 AE Advanced Energy 27-256558-00 RF Match 3150273-004 B.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (AE Advanced Energy), the part number (3150273-004 B) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- AE Advanced Energy
- Part number
- 3150273-004 B
- Model
- 27-256558-00
- Type
- RF match network (Mercury 10013 Match)
- Label P/N
- 27-256558-00, F/R B
- RF input
- J1, 13.56 MHz
- LF input
- J5, 400 kHz, 600 V rms max.
- Control power
- ~115 V, 50–60 Hz, 0.5 A (J4 IEC inlet)
- Control connectors
- J2 25-pin D-sub, J3 15-pin D-sub
- Other ports
- RF sample (BNC), phase zero and magnitude zero adjustments
- Cooling
- Water, IN/OUT fittings, 60 psi (4 bar / 400 kPa) max.; plus fan
- Markings
- CE; Danger high RF voltage 4400 V
- Made in
- China
The Advanced Energy (AE) Mercury 10013 Match, part number 3150273-004 Rev B, is an RF impedance matching network for plasma process equipment, labelled for a 13.56 MHz RF input and a separate 400 kHz LF input. Its Advanced Energy Industries label also carries P/N 27-256558-00 and F/R B. The unit is water cooled, draws its control power from a 115 V AC inlet and is made in China. Buyers search it as Mercury 10013, 3150273-004, 3150273004 or 27-256558-00.
What inputs and connections does the Mercury 10013 match have?

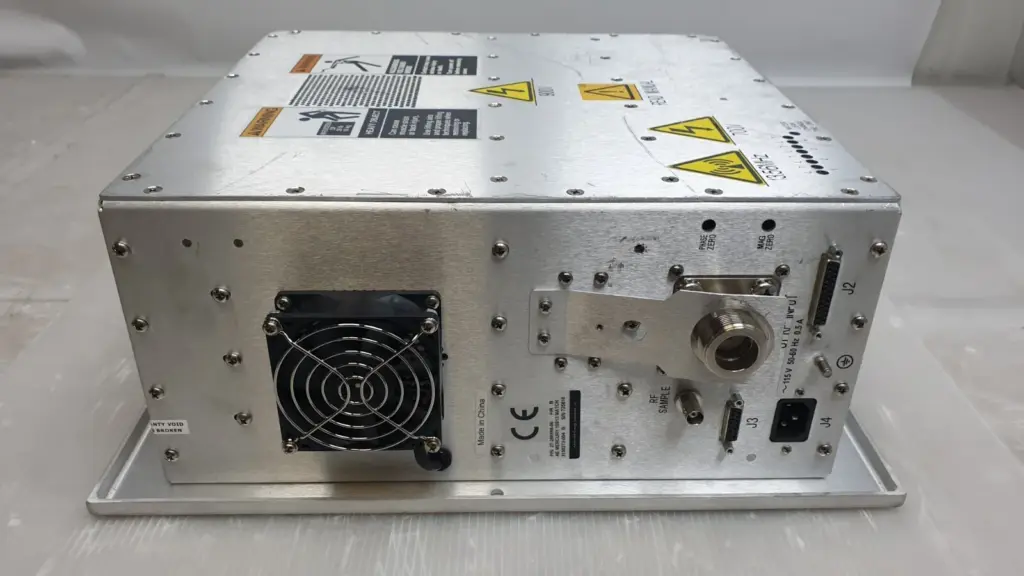

One face carries the J1 RF input (a large coaxial connector), a BNC RF sample output, J2 (25-pin D-sub) and J3 (15-pin D-sub) control connectors, a J4 IEC power inlet marked ~115 V 50–60 Hz 0.5 A, a ground stud, PHASE ZERO and MAG ZERO adjustment ports, and a cooling fan. The opposite end has the J5 LF input, marked 400 kHz and 600 V rms max, and the water IN and OUT fittings marked 60 psi (4 bar / 400 kPa) max.
What safety markings are on the unit?
The housing carries Danger labels for high RF voltage (4400 volts), RF radiation warnings for 13.56 MHz and 400 kHz, voltage warnings marked 700 V and 900 V, and Read Manual labels. A row of status indicators on the top panel includes a Water Leak indicator.
What condition is this match in?
Used. The photos show the complete aluminium enclosure on its mounting plate with warning labels in place, light scratches and handling marks, and a strip of tape residue on one side panel.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What frequencies does the AE Mercury 10013 match handle?
The unit is labelled for 13.56 MHz on its J1 RF input and 400 kHz (600 V rms max.) on its J5 LF input.
Does the Mercury 10013 need cooling water?
Yes. It has water IN and OUT fittings marked for 60 psi (4 bar / 400 kPa) maximum, as well as a cooling fan.
What power does the match need?
Its J4 IEC inlet is marked ~115 V, 50–60 Hz, 0.5 A for control power.
Which part numbers are on this unit?
The Advanced Energy label reads P/N 27-256558-00, F/R B, AE Mercury 10013 Match, 3150273-004 B.
