Photos show the actual item you will receive.
Product details
About this part
The TEL TOKYO ELECTRON MODIFY SET 3 PIN LHP CT5085-428149-13 is made by TEL Tokyo Electron and identified by manufacturer part number CT5085-428149-13.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × TEL TOKYO ELECTRON MODIFY SET 3 PIN LHP CT5085-428149-13.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (TEL Tokyo Electron), the part number (CT5085-428149-13) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- TEL Tokyo Electron
- Part number
- CT5085-428149-13
- Model
- CT5085-428149-13
- Country of Origin
- Japan
- Manufacturer (label)
- Tokyo Electron Ltd. (TEL)
- Part name (label)
- MODIFY SET,3PIN(LHP)
- Quantity (label)
- 1 PC (one set)
- Arm
- ARM(LHP) ASSY, item 10, qty 1
- Air cylinder
- AIR CYLINDER ASSY, item 9, qty 1
- Cylinder on assembly
- CKD SSD-T1L1623-X21, lot 9Z10
- Screws
- SUS304 cap and set screws, M3 and M4, 6 bags
- Other parts in photos
- Linear guide block on short rail, angled aluminum block
- Country of origin (label)
- Japan
- Condition
- Used
The TEL CT5085-428149-13 is a Tokyo Electron modification kit named "MODIFY SET, 3PIN (LHP)", made in Japan, with an arm assembly, an air cylinder assembly and the screws to fit them. It is a TEL spare part for semiconductor equipment. The Tokyo Electron label gives part number CT5085-428149-13, part name MODIFY SET,3PIN(LHP), quantity 1 PC, made in Japan. The part number is also written as CT5085428149-13 or CT508542814913.
What is in the kit?

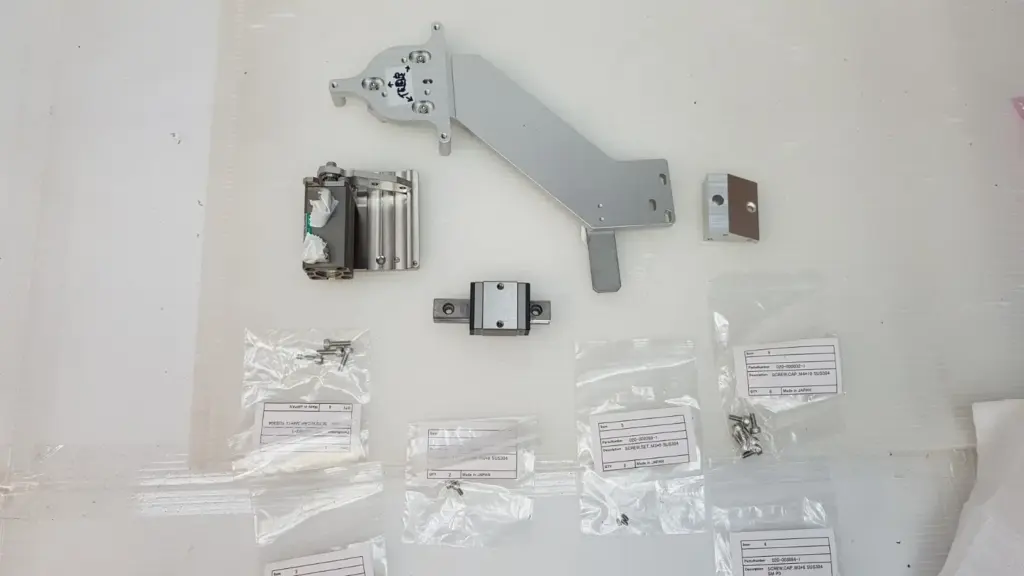

The photos show the parts laid out with their numbered item labels:

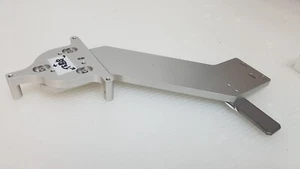

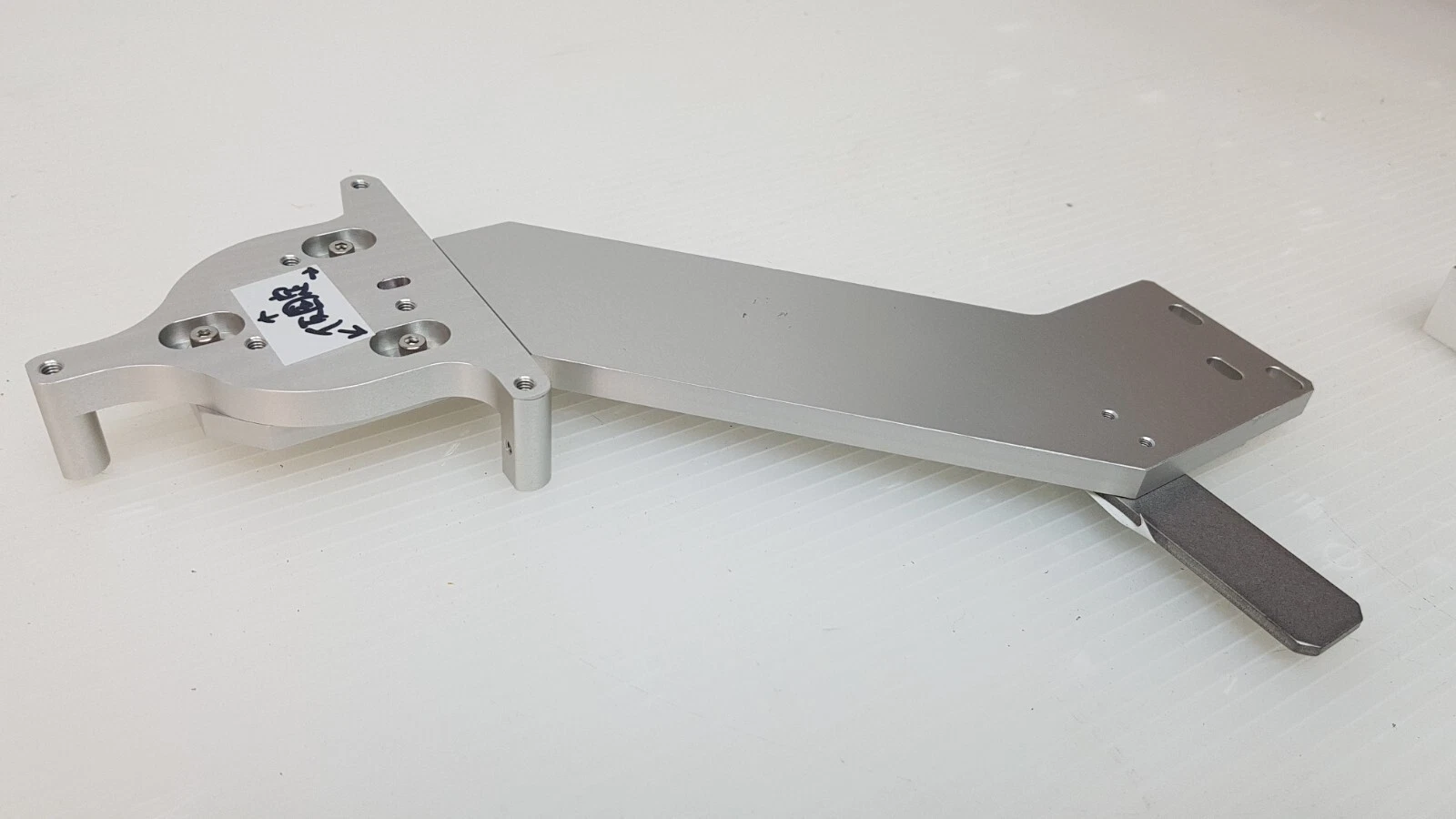

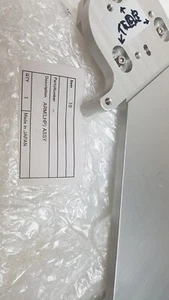

- ARM(LHP) ASSY, item 10, qty 1: a long machined aluminum arm with a dark end plate

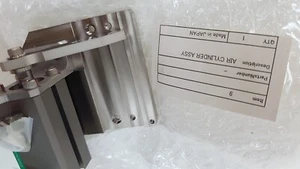

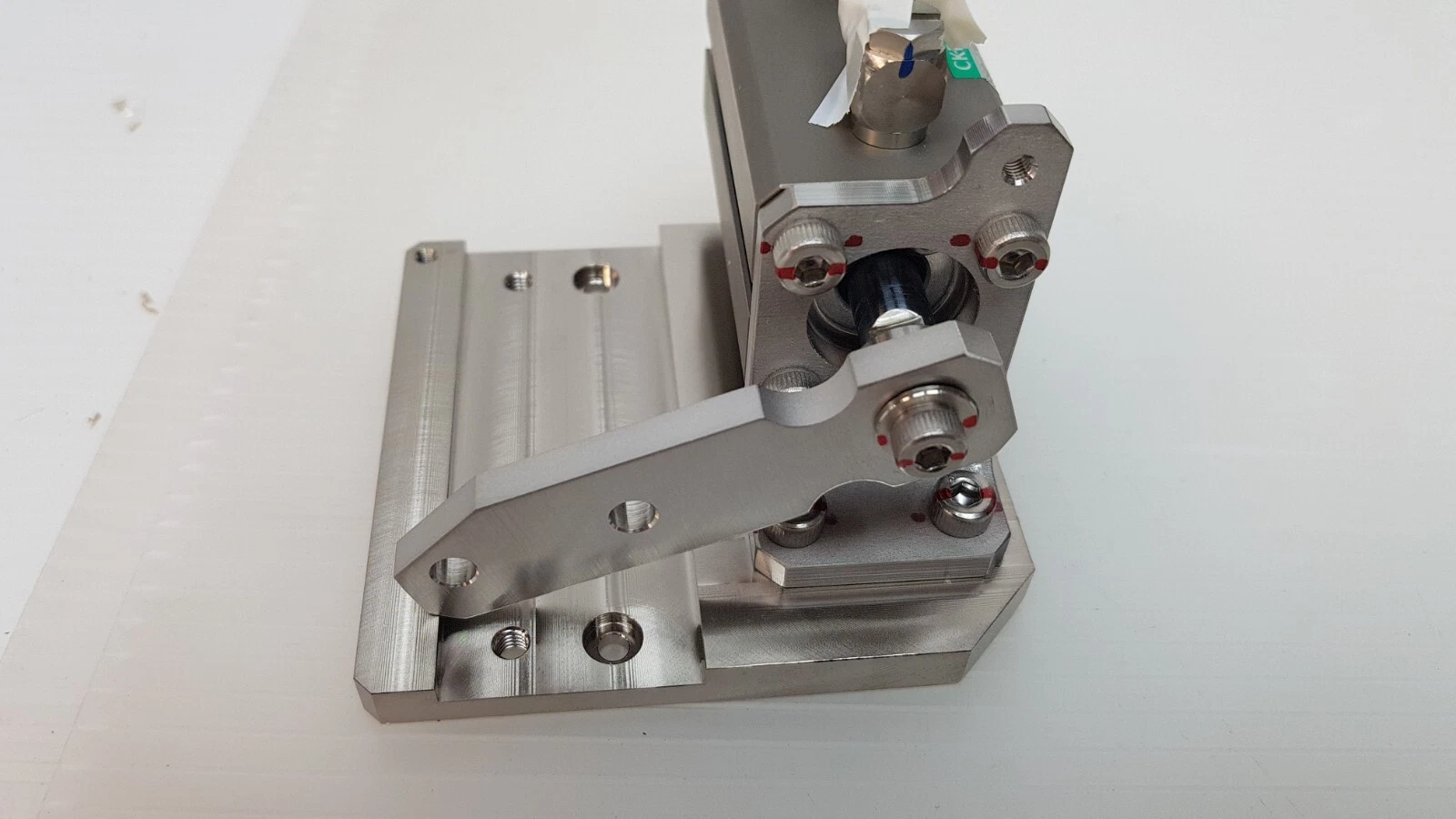

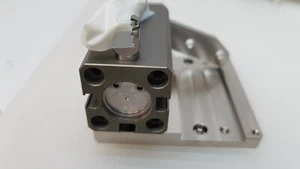

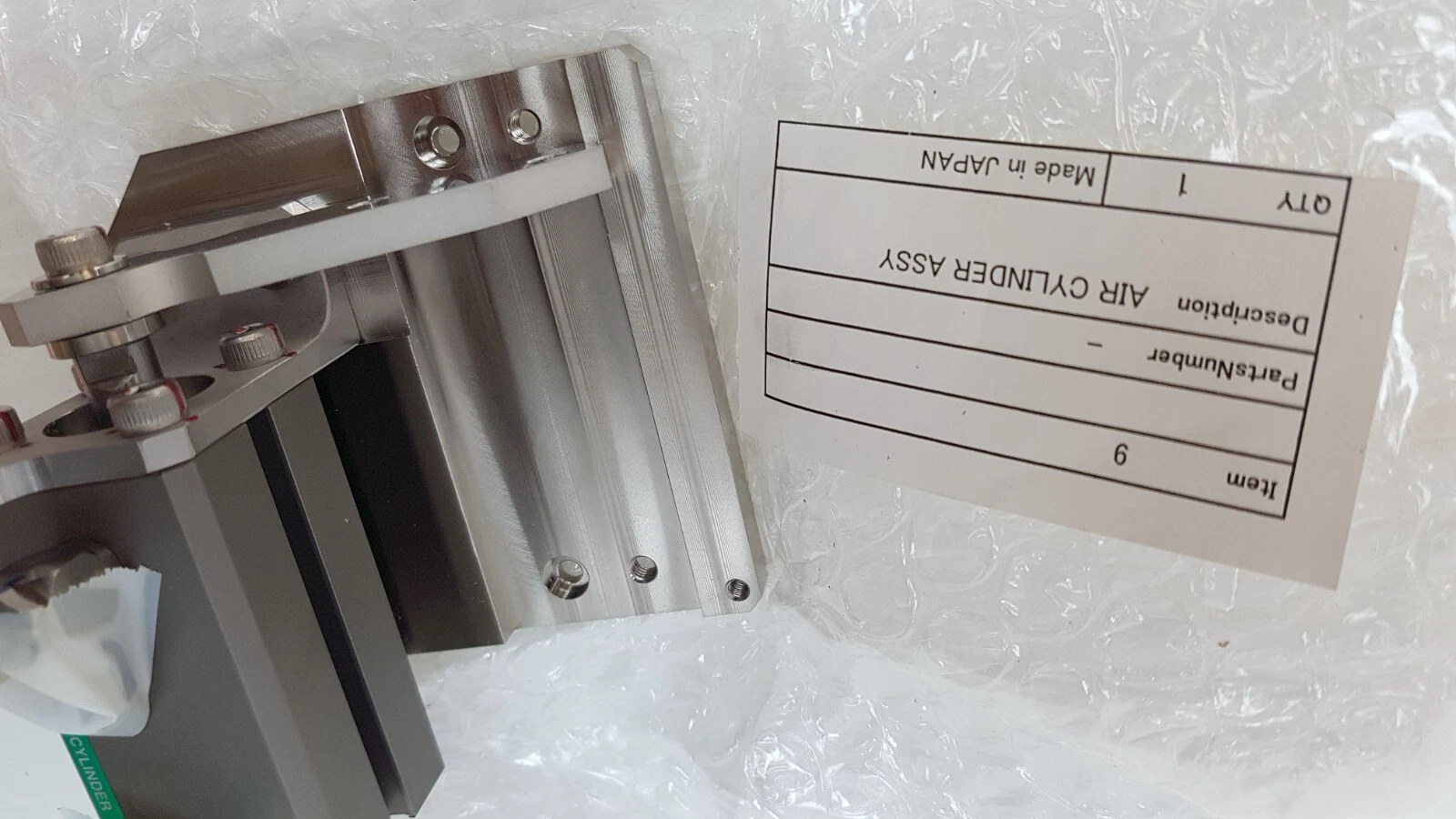

- AIR CYLINDER ASSY, item 9, qty 1: a CKD air cylinder on a stainless bracket with a lever

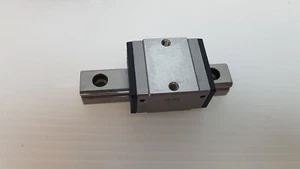

- A small linear guide block on a short rail
- An angled aluminum mounting block
- Six bags of SUS304 stainless screws (listed below)
Which cylinder is on the air cylinder assembly?

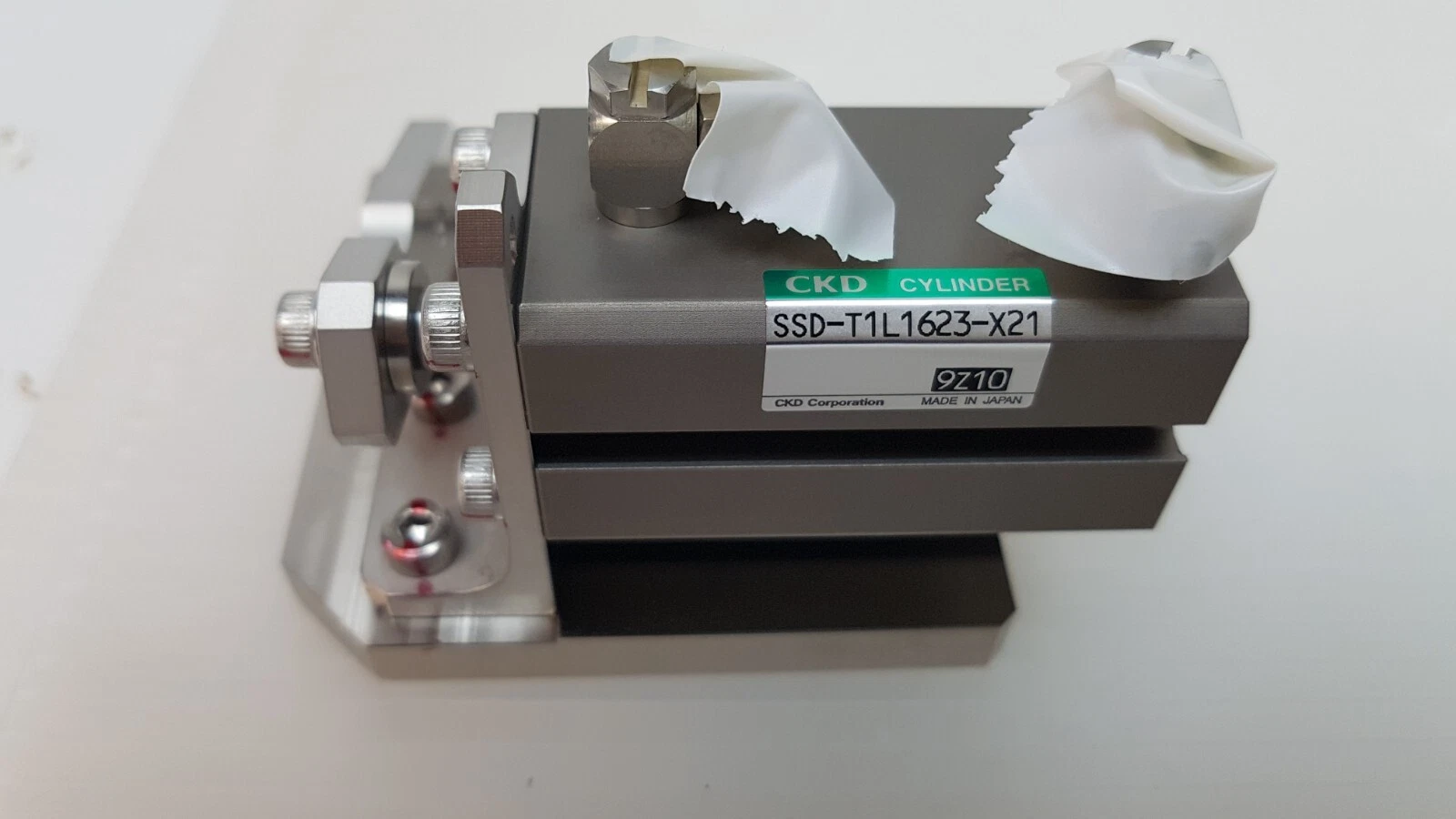

The cylinder label reads CKD CYLINDER SSD-T1L1623-X21, lot 9Z10, CKD Corporation, made in Japan. The cylinder code is shown as printed; it is not decoded here.
Which screws are included?

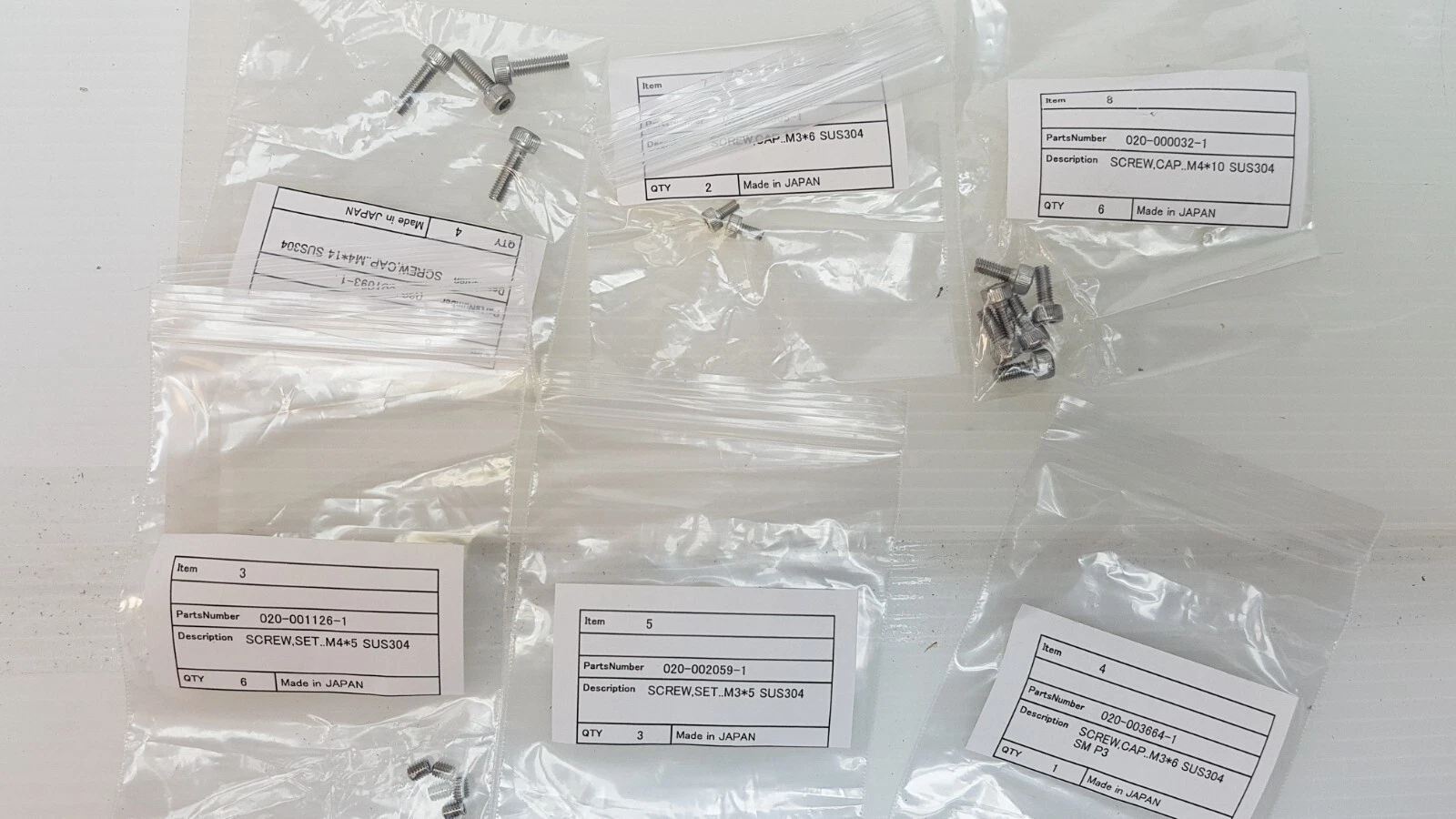

The bag labels read: 020-001126-1 SCREW,SET,M4*5 SUS304, qty 6; 020-003664-1 SCREW,CAP,M3*6 SUS304 SM P3, qty 1; 020-002059-1 SCREW,SET,M3*5 SUS304, qty 3; 020-000032-1 SCREW,CAP,M4*10 SUS304, qty 6; SCREW,CAP,M4*14 SUS304, qty 4; SCREW,CAP,M3*6 SUS304, qty 2. All bags are marked Made in Japan.
How do I confirm it is the right part?
Match the TEL part number CT5085-428149-13 and the part name MODIFY SET,3PIN(LHP) with your tool's parts list or TEL service documentation. Condition: used.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is TEL CT5085-428149-13?
A Tokyo Electron modification kit named MODIFY SET, 3PIN (LHP). It holds an ARM(LHP) assembly, an air cylinder assembly, a linear guide, a mounting block and screws.
What does LHP stand for?
The labels do not explain it. LHP appears in the set name and on the arm (ARM(LHP) ASSY). Check your TEL documentation for the module it refers to.
Which cylinder is used?
A CKD air cylinder labeled SSD-T1L1623-X21, made in Japan, mounted on the air cylinder assembly.
Are screws included?
Yes. Six labeled bags of SUS304 stainless cap and set screws in M3 and M4 sizes are shown.
Which tool does it fit?
The label does not name the tool. Match CT5085-428149-13 with your equipment parts list before ordering.
What condition is it in?
Used. The parts are shown in bags with their item labels.
