Photos show the actual item you will receive.
Product details
About this part
The Accelnet Model 800-1656 Servo Drive is made by Accelnet and identified by manufacturer part number 800-1656.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Accelnet Model 800-1656 Servo Drive.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Accelnet), the part number (800-1656) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Accelnet
- Part number
- 800-1656
- Model
- 800-1656
- Country of Origin
- United States
- Product line
- Accelnet (Copley Controls)
- Input voltage (nameplate)
- 20–90 VDC
- Input current (nameplate)
- 40 A peak
- Output voltage (nameplate)
- 90 VDC max.
- Continuous output current
- 12 A
- Peak output current
- 36 A
- Power / motor connector
- J1, 6-position: +AUX HV, +HV, GND, MOT W, MOT V, MOT U
- Communication ports
- 2 × RJ-45 CAN (J4, J5), RS-232 (J6)
- Signal connectors
- J2 15-pin D-sub, J3 26-pin D-sub
- Node address
- Rotary CAN ADDR switch (S1)
- Approvals on label
- c-UL-us, CE

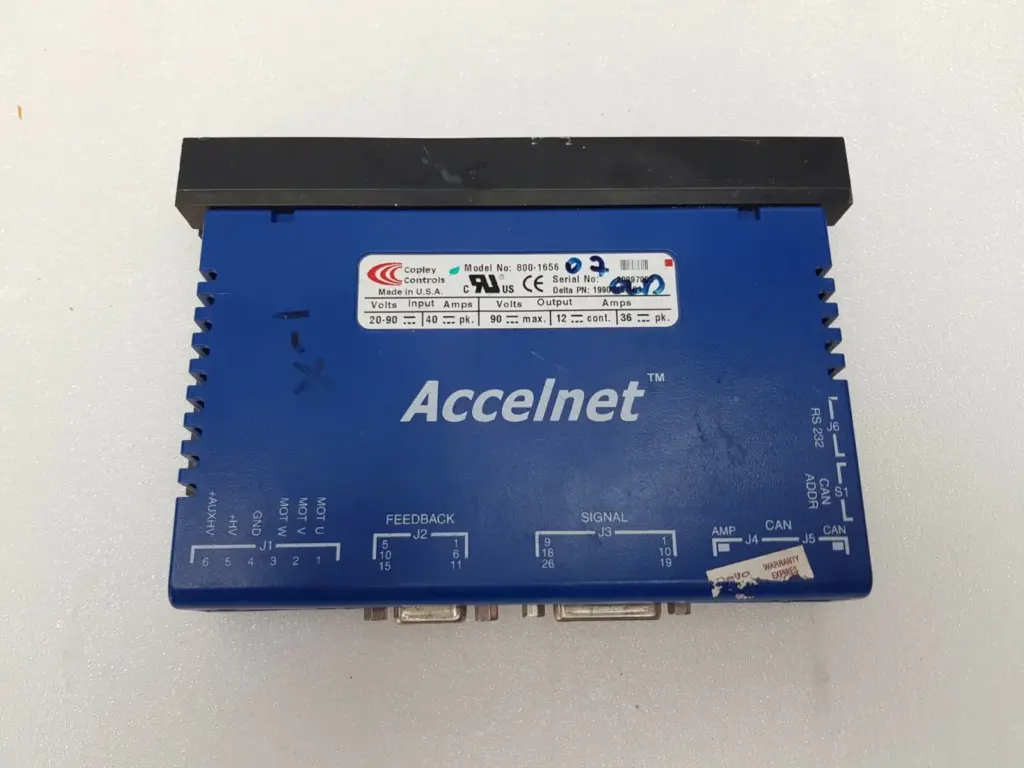

The Copley Controls 800-1656 is a DC-powered servo drive from the Accelnet line, rated 20–90 VDC input and 12 A continuous / 36 A peak output. The ratings are taken from the drive's own nameplate, which also carries UL (c-UL-us) and CE marks and the note "Made in U.S.A.". The unit is built as a panel-mount module on a black finned heatsink. Buyers also search this part as 8001656 or Accelnet 800 1656.
What connectors does the Accelnet 800-1656 have?

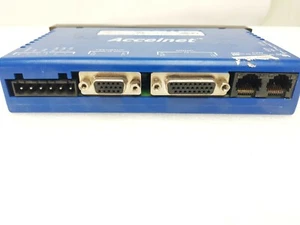

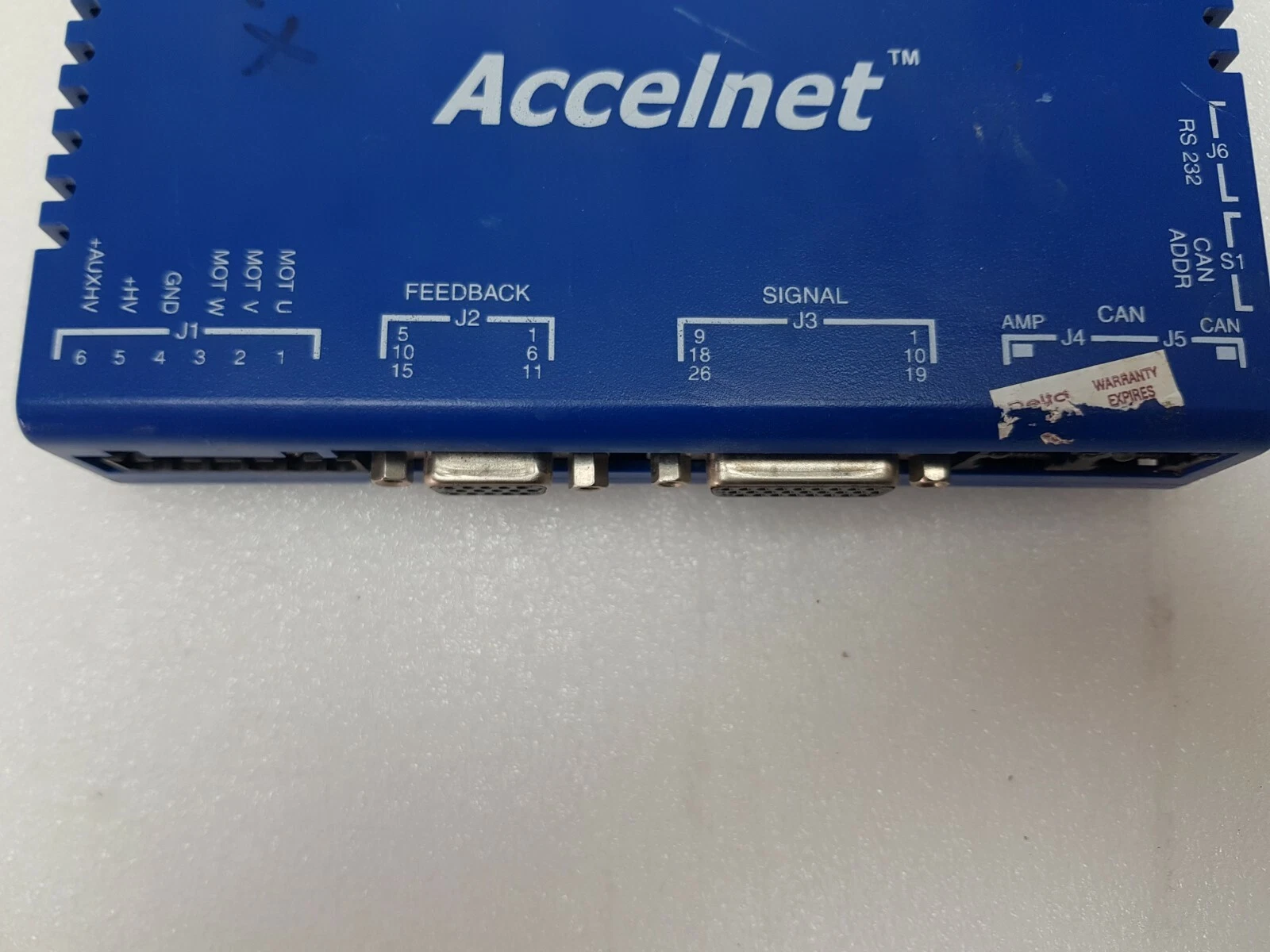

The case markings show a 6-position power and motor connector (J1: +AUX HV, +HV, GND, MOT W, MOT V, MOT U), a 15-pin D-sub (J2) for the motor sensor signals, a 26-pin D-sub signal connector (J3), two RJ-45 CAN ports (J4 and J5) with an AMP status indicator, an RS-232 port (J6) and a hexadecimal CAN ADDR rotary switch (S1) for the node address.
How do the nameplate ratings compare with Copley's catalog models?
The nameplate values – 20–90 VDC in, 90 VDC max out, 12 A continuous and 36 A peak – are the same ratings Copley lists for its CANopen Accelnet Panel ACP-090-36. The nameplate also carries a customer part-number field. If you are replacing a drive in an existing machine, match the 800-1656 model number rather than the ratings alone, since the drive's stored configuration belongs to the original application.
What condition is this drive in?
Used. The photos show an intact blue housing and heatsink with normal handling marks, a hand-drawn marker "X" on the top face, a partly torn sticker next to the CAN ports, and clean connector shells.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What are the power ratings of the Copley 800-1656?

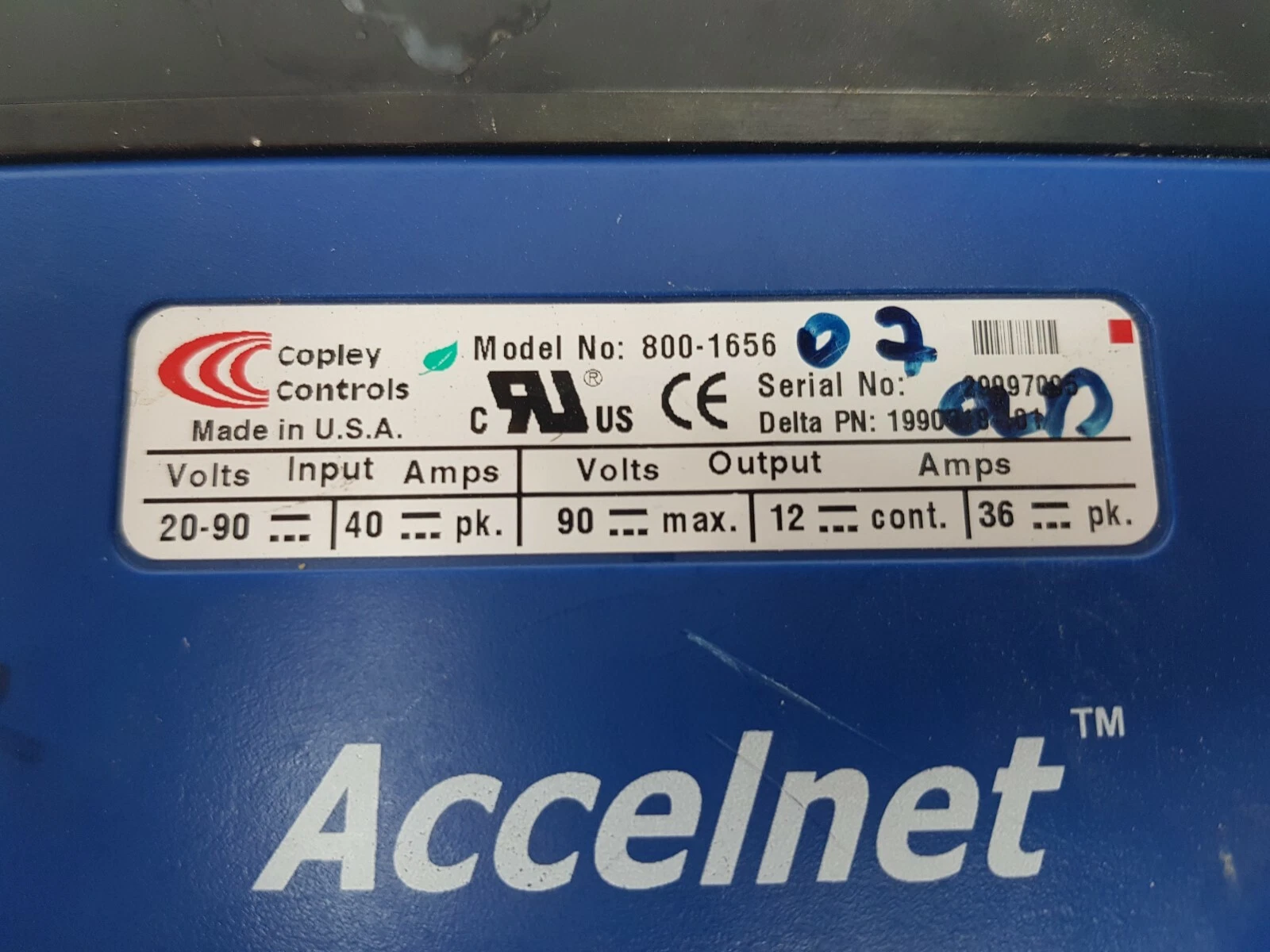

The nameplate lists 20–90 VDC input (40 A peak) and an output of 90 VDC max. with 12 A continuous and 36 A peak current.
Does the Accelnet 800-1656 have CAN communication?

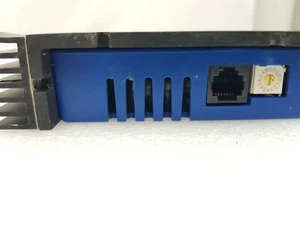

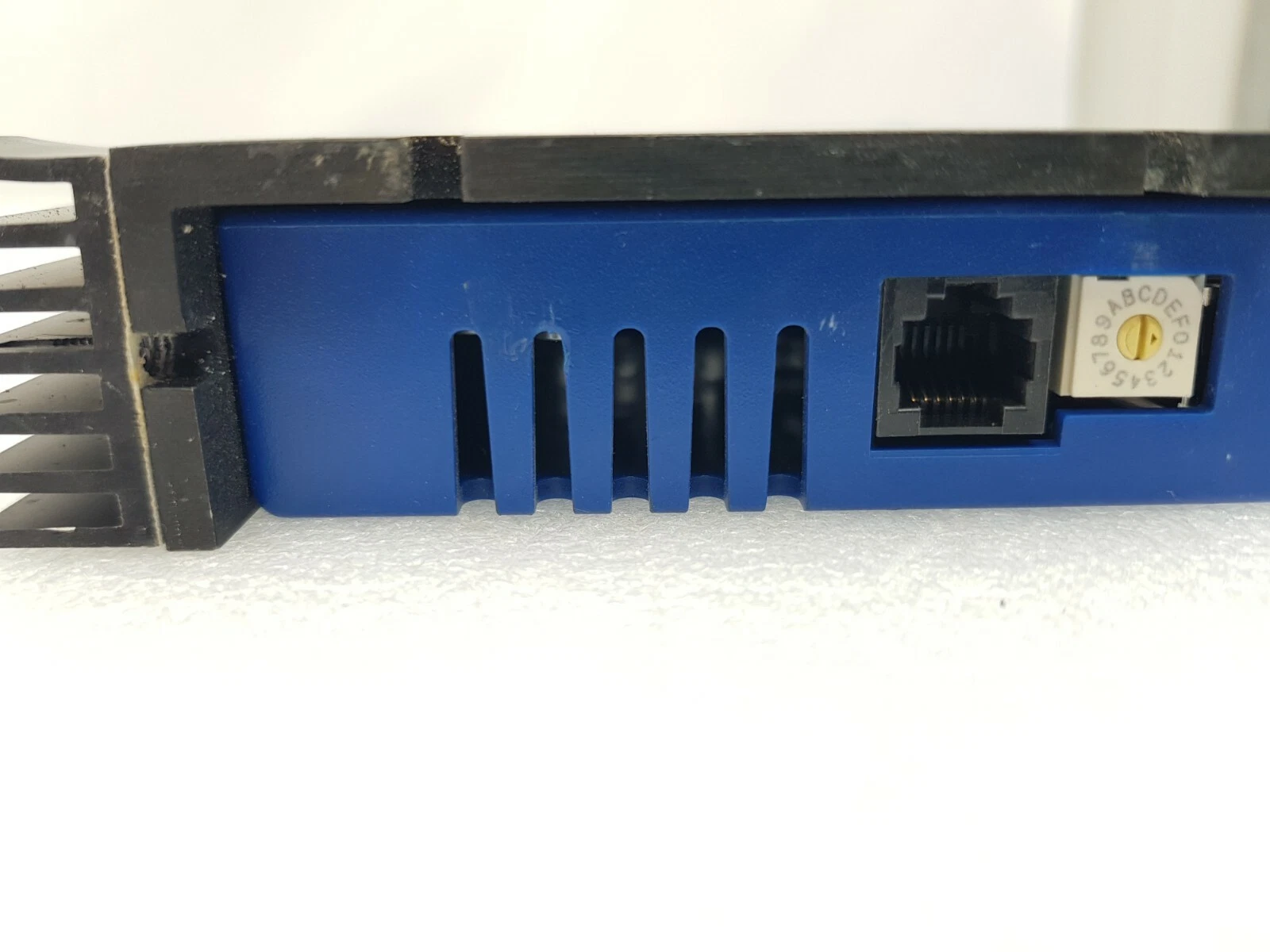

Yes. The case shows two RJ-45 CAN ports (J4 and J5), a rotary CAN ADDR switch for the node address, and a separate RS-232 port (J6).
Is the 800-1656 the same as a Copley ACP-090-36?
Its nameplate ratings are the same as those Copley lists for the ACP-090-36 Accelnet Panel drive, but it carries its own model number, 800-1656. For a like-for-like replacement, match the model number on your existing drive.
Does this drive run on AC mains?
No. The nameplate specifies a DC input of 20–90 V, so it needs a DC power supply in that range.
