The YAMATO ELECTRIC WORKS COOLTRON POWER SOURCE SVC-803A-X2A-US is made by YAMATO ELECTRIC WORKS and identified by manufacturer part number SVC-803A-X2A-US.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × YAMATO ELECTRIC WORKS COOLTRON POWER SOURCE SVC-803A-X2A-US.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (YAMATO ELECTRIC WORKS), the part number (SVC-803A-X2A-US) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- YAMATO ELECTRIC WORKS
- Part number
- SVC-803A-X2A-US
- Model
- COOLTRON
- Country of Origin
- Japan
- Manufacturer
- Yamato Electric Works Inc., Japan
- Model (plate)
- SVC-803A-X2A-US
- Product line
- Cooltron
- Serial number
- P0612040
- Type
- Power source part, circulating thermoelectric cooling & heating device
- Input (marking)
- AC100V
- Output display
- Output current, DC A
- Controller settings (label)
- Proportional band equiv. 3 °C, integral 0, derivative 0
- Sensor input
- PT100Ω input, internal sensor
- Interfaces
- RS 485, alarm output, upper/lower limit, ON/OFF input cool & heat
- Alarms
- Thermosensor, cooling fan, liquid circulation, radiating water, upper/lower limit
- Weight / size (packed)
- Approx. 9.7 kg, 43 x 32 x 18 cm
The Yamato Electric Works Cooltron SVC-803A-X2A-US is the power source part of a circulating thermoelectric cooling and heating device: the control and power unit that drives external thermomodules and holds a liquid at a set temperature. The front panel reads "COOLTRON, POWER SOURCE PART, CIRCULATING METHOD, THERMOELECTRIC COOLING&HEATING DEVICE", and the model plate reads SVC-803A-X2A-US, serial P0612040, made in Japan. A tag on the front reads TCU-01.

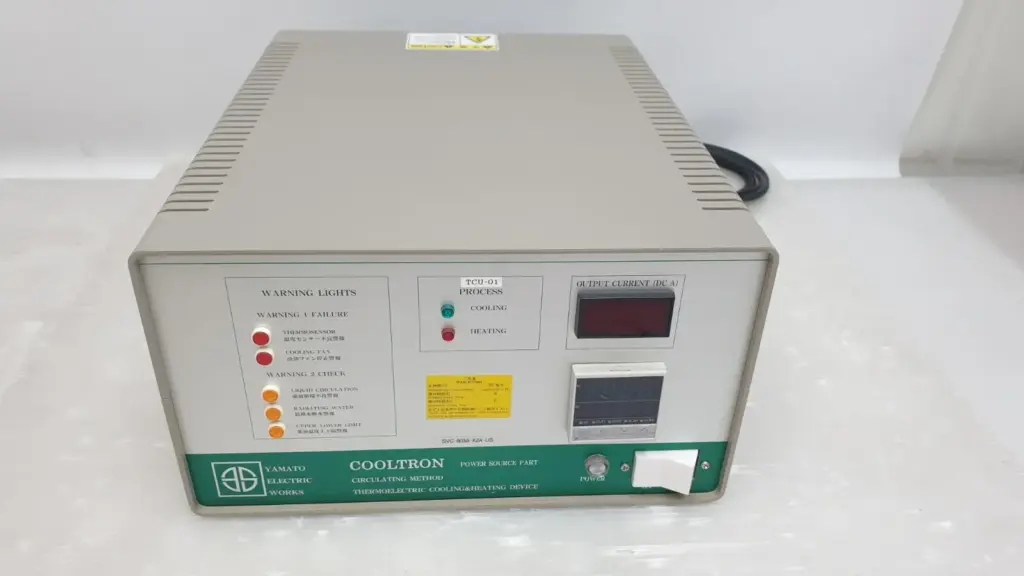

What is on the front panel?
A digital temperature controller (PV and SV displays, AT, OUT1, OUT2, ALM1 and ALM2 indicators), an OUTPUT CURRENT (DC A) meter, COOLING and HEATING process lamps, a power lamp and an ON/OFF switch. Warning lights are split into WARNING 1 FAILURE (thermosensor, cooling fan) and WARNING 2 CHECK (liquid circulation, radiating water, upper/lower limit). A notice label gives the controller settings as proportional band equivalent to 3 °C, integral time 0 and derivative time 0.

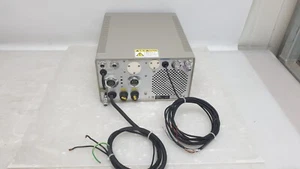

What connections are on the back?
PT100Ω INPUT, ALARM OUTPUT, INTERNAL SENSOR (cable), PROTECTIVE CIRCUIT, THERMOMODULES, AC100V INPUT (cable), RS 485, UPPER/LOWER LIMIT, ON/OFF INPUT COOL & HEAT, EARTH, two NO FUSE breakers, and covered ports marked EXTERNAL TEMP.CONTROLLER and LINKAGE. A cooling fan grille is on the right. The power cable and a signal cable end in open wire ends.
How does a thermoelectric cooling and heating device work?
Thermoelectric (Peltier) modules move heat from one side to the other when DC current flows through them; reversing the current switches between cooling and heating. This power source supplies and controls that DC current, and the front-panel meter shows it in amps.
What condition is it in?
Used. The unit is marked for AC100V input.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Yamato Cooltron SVC-803A-X2A-US?
The power source part of a Yamato Electric Works Cooltron circulating thermoelectric cooling and heating device. It drives and controls the thermomodules.
Does it include the thermomodules?
No. This is the power source unit only; the thermomodules connect to the THERMOMODULES connector on the back.
How does a thermoelectric cooler work?
A Peltier module pumps heat from one face to the other when DC current flows. Reversing the current reverses the heat flow, so the same module can cool or heat.
What input voltage does it use?
The back panel marks the power input as AC100V.
Can it be controlled remotely?
The back panel has RS 485, ON/OFF INPUT COOL & HEAT, ALARM OUTPUT and UPPER/LOWER LIMIT connectors. Protocol details are not printed on the unit.
What temperature sensor does it use?
The back panel has a PT100Ω INPUT connector and an INTERNAL SENSOR cable.
What condition is it in?
Used.
