Photos show the actual item you will receive.
Product details
About this part
The XOAR TITAN Heavy Lifting Electric Brushless Motor T8120 KV100 – New is made by XOAR and identified by manufacturer part number T8120 KV100.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New. Factory new, in original packaging.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × XOAR TITAN Heavy Lifting Electric Brushless Motor T8120 KV100 – New.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (XOAR), the part number (T8120 KV100) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- XOAR
- Part number
- T8120 KV100
- Model
- T8120 KV100
- Brand / series
- XOAR TITAN Heavy Lifting Electric Brushless Motor Series
- KV
- 100
- Configuration
- 36N40P
- Battery
- 12S LiPo
- Max continuous current
- 49.16 A
- Max continuous power
- 2266.9 W
- Idle current
- 0.87 A
- Dimensions
- 88.6 mm diameter x 47.9 mm height
- Weight
- 556 g
- Mounting
- M4 holes, 23 mm center to center
- Suggested propellers
- XOAR PJP-T-L 26x9.2 to 34x14
- Markings (box label)
- FC, CE, RoHS, Made in China
- Box contents
- 1 motor, 1 propeller mounting plate, 2 M3 screws
The XOAR TITAN T8120 KV100 is a 100 KV brushless motor from the XOAR TITAN Heavy Lifting series, made for large multicopters and drones on a 12S LiPo battery. The box label reads "XOAR TITAN - Heavy Lifting Electric Brushless Motor Series x (1), Model Number: T8120 | KV100, Made in China" with FC, CE and RoHS marks. Each box holds one motor.
What does KV100 mean on a brushless motor?
The KV rating is the motor's no-load speed per volt. A 100 KV motor turns about 100 rpm for every volt applied with no propeller. A low KV like this suits large, slow-turning propellers, which is what heavy-lift drones use.
What are the main specs?
XOAR lists a 36N40P configuration, 88.6 mm diameter, 47.9 mm height, 556 g weight, 0.87 A idle current, 49.16 A maximum continuous current and 2266.9 W maximum continuous power on 12S LiPo. The dimension drawing in the photos shows 88.6 mm and 47.9 mm.
What propellers and drone size does it suit?
XOAR suggests its PJP-T-L propellers from 26x9.2 to 34x14 inches. XOAR gives an all-up weight range of 10.4-23.6 kg for a quadcopter, 15.6-35.4 kg for a hexacopter and 20.8-47.2 kg for an octocopter.
What is in the box?

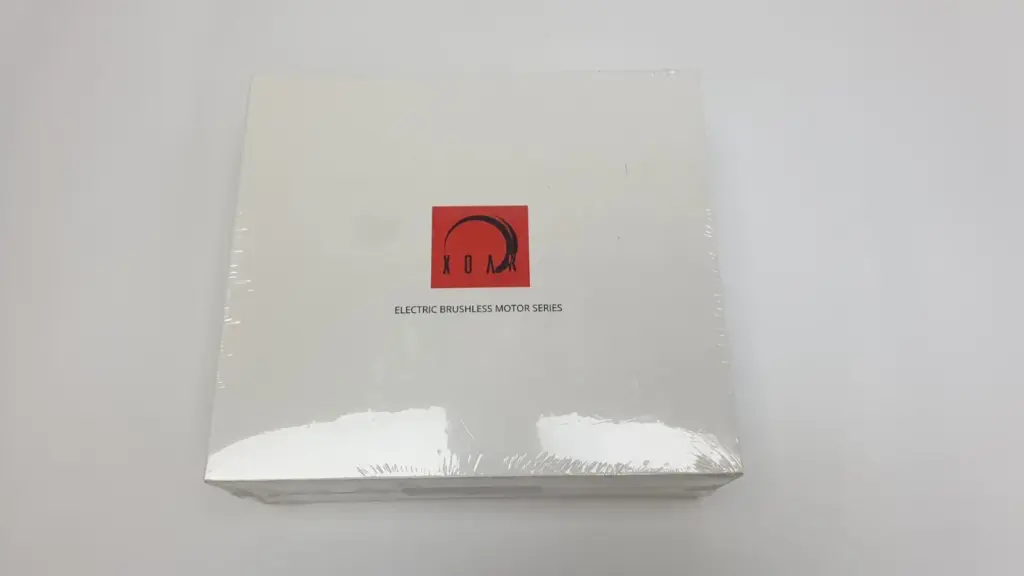

XOAR lists one T8120 KV100 motor, one propeller mounting plate and two M3 screws for mounting the propeller. The box is new and still in its shrink wrap.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Free — paid by us
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the XOAR T8120 KV100?
A 100 KV brushless motor from the XOAR TITAN Heavy Lifting series, for large multicopters and drones on 12S LiPo.
What does KV mean on a brushless motor?
KV is no-load rpm per volt. A 100 KV motor turns about 100 rpm per volt without a propeller. Low KV motors swing large propellers efficiently.
What battery does it need?
XOAR lists 12S LiPo.
How heavy a drone can it lift?
XOAR gives an all-up weight of 10.4-23.6 kg for a quadcopter, 15.6-35.4 kg for a hexacopter and 20.8-47.2 kg for an octocopter.
Which propellers fit?
XOAR suggests PJP-T-L propellers: 26x9.2, 27x8.2, 28x8, 29x9.5, 30x10, 32x12 and 34x14.
How many motors are in one box?
One. The box label reads 'Series x (1)'.
Is it new?
Yes, new in the sealed, shrink-wrapped XOAR box.
