Photos show the actual item you will receive.
Product details
About this part
The VAT 61534-KHGH-BHI1, 770692 is made by VAT and identified by manufacturer part number 61534-KHGH-BHI1.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as For Parts / Not Working. Sold as-is, for parts or repair.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × VAT 61534-KHGH-BHI1, 770692.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (VAT), the part number (61534-KHGH-BHI1) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- VAT
- Part number
- 61534-KHGH-BHI1
- Model
- 61534-KHGH-BHI1
- Country of Origin
- Switzerland
- Series
- VAT Series 615 (61.5) butterfly control and isolation valve with integrated pressure controller
- Nominal size
- DN 50 (2 in nominal I.D.)
- Body
- Aluminum, hard anodized
- Flanges
- ISO-KF
- Controller version
- Basic (no sensor power supply, no power failure option)
- Interface
- RS232, 2 sensor inputs
- Actuator
- Stepper motor with position encoder
- Panel connectors
- POWER, INTERFACE, SENSOR, SERVICE
- VAT label number
- 770692

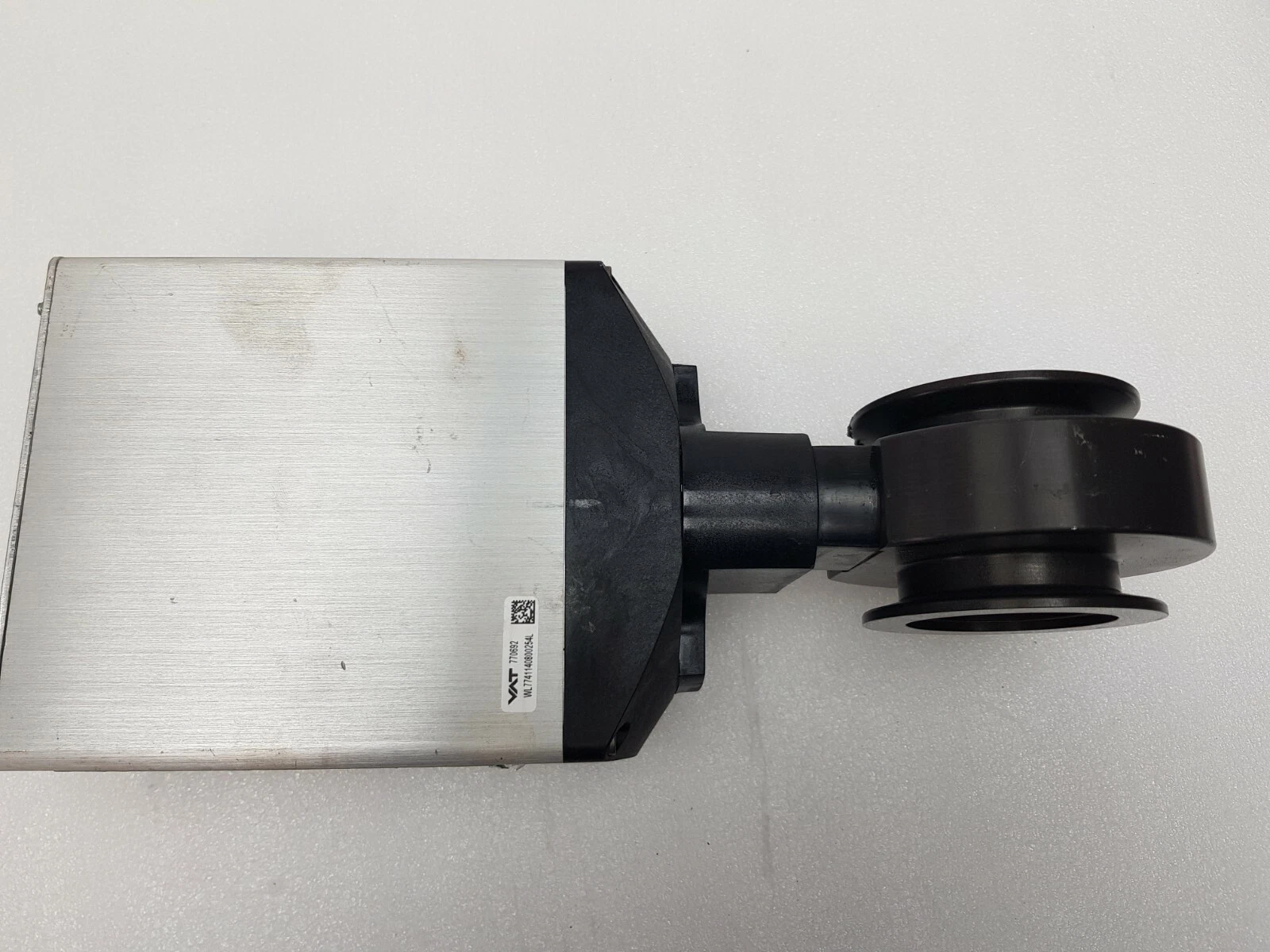

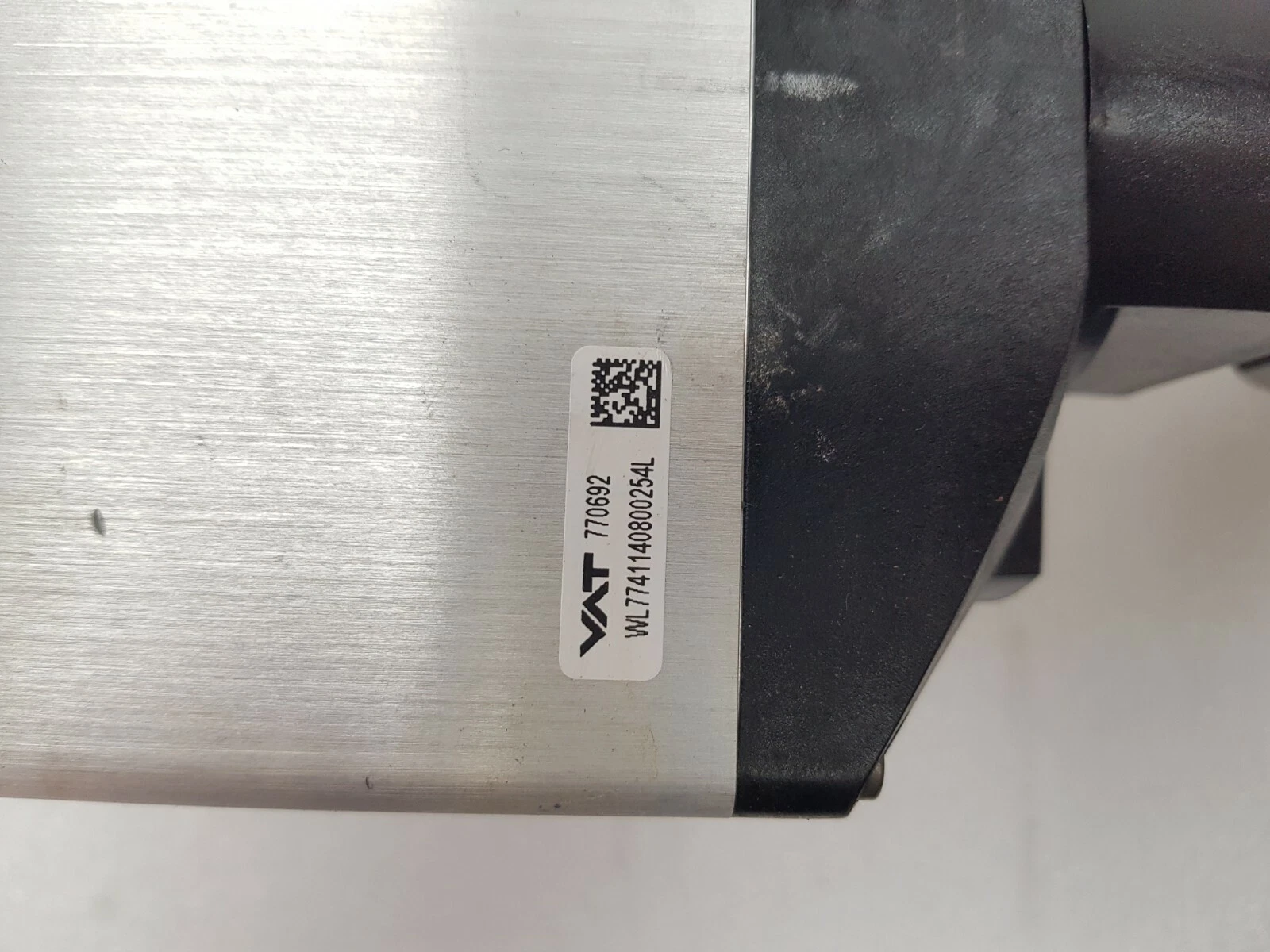

The VAT 61534-KHGH-BHI1 is a DN 50 (2-inch) butterfly control and isolation valve from VAT's Series 615, with a built-in pressure controller. VAT builds the Series 615 for downstream pressure control and isolation in vacuum processes such as CVD in semiconductor, flat-panel and solar manufacturing. A stepper motor turns the valve plate, an encoder monitors its position, and the integrated controller sets the plate position needed to hold the pressure setpoint. The unit also carries a VAT label with the number 770692. The part number is also searched as 61534KHGHBHI1.
What does the 61534-KHGH ordering code mean?
In VAT's Series 615 ordering key, 61534 is the DN 50 size, K and H stand for an aluminum body, hard anodized, with ISO-KF flanges, G is the basic controller version (no sensor power supply and no power failure option), and H is an RS232 interface for 2 pressure sensors. VAT's catalog does not decode the -BHI1 suffix, so it is not described here.
What connections are on the controller?

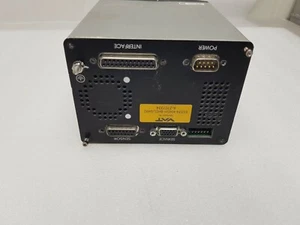

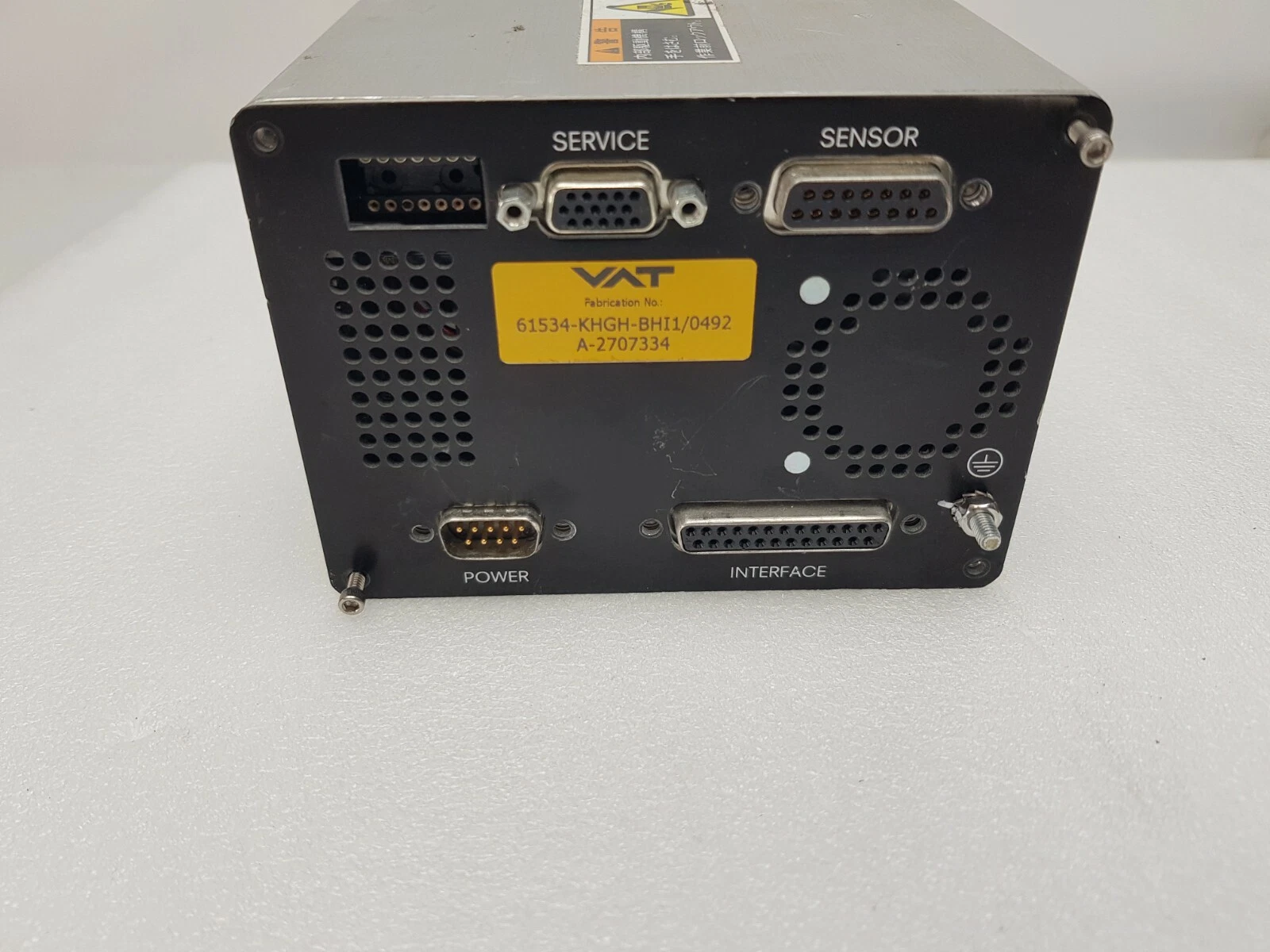

The photos show four labelled ports on the controller end panel: POWER, INTERFACE, SENSOR and SERVICE, plus a ground stud and cooling vents. The yellow VAT fabrication label on the same panel reads 61534-KHGH-BHI1.
What condition is this valve in?

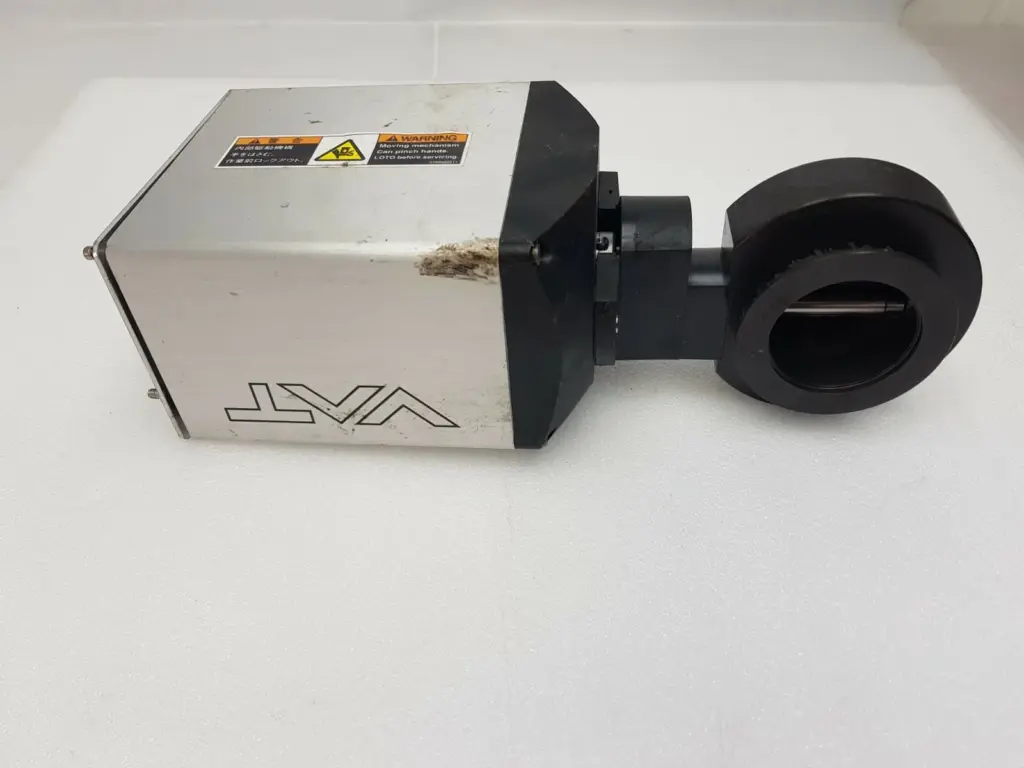

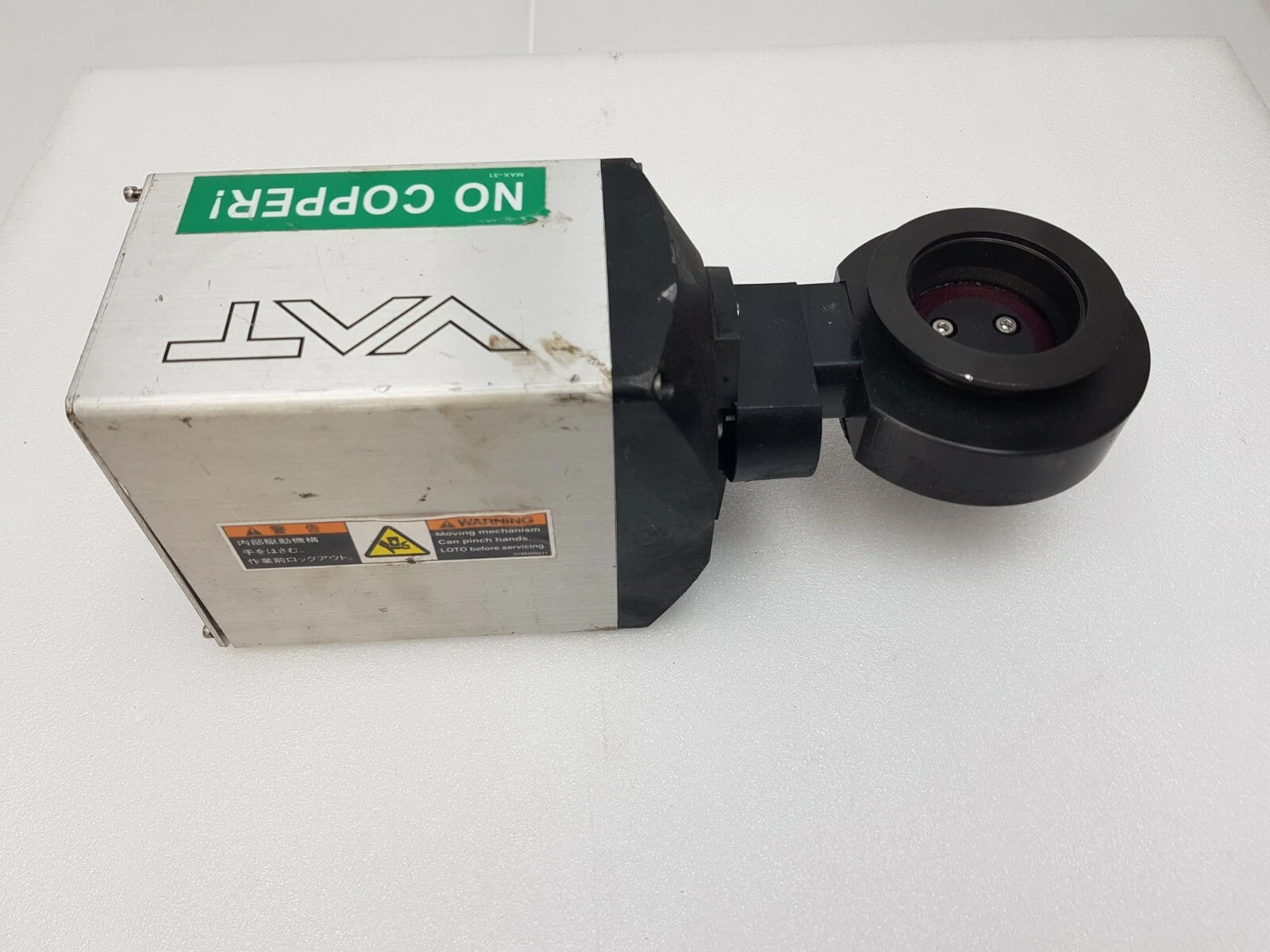

This valve is sold as For Parts / Not Working. The photos show marks and residue on the aluminum housing near the actuator, general handling wear, a green "NO COPPER!" tool label on one side, and the valve plate visible inside the flange opening.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Not accepted
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the VAT 61534-KHGH-BHI1?
It is a VAT Series 615 butterfly valve in size DN 50 with an integrated pressure controller, used to control and isolate vacuum process pressure downstream of a chamber.
What interface does the 61534-KHGH-BHI1 use?
According to VAT's ordering key, the final H in KHGH means an RS232 interface with inputs for 2 pressure sensors.
What flanges and body material does this valve have?
The KH code means an aluminum, hard-anodized valve body with ISO-KF flanges in DN 50.
Does this valve have a power failure option or sensor power supply?
No. The G in KHGH is VAT's basic controller version, without the sensor power supply and without the power failure option.
Is this valve working?
No working condition is claimed. It is sold as For Parts / Not Working, and the photos show marks and residue on the housing.
