Product details
About this part
The TREK 40859 REV. C High Voltage Control Board Assembly ASSY 43690 – Used is made by TREK and identified by manufacturer part number 43690.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as Used. Previously used. See condition notes and photos.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × TREK 40859 REV. C High Voltage Control Board Assembly ASSY 43690 – Used.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (TREK), the part number (43690) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- TREK
- Part number
- 43690
- Model
- 40859
- Board model (silkscreen)
- 40859 Rev. C
- Assembly number
- 43690 (hand-written on board)
- Boards in enclosure
- 2
- Voltage warning (label)
- Hazardous Voltage 1.4 kV
- Connectors
- IN1, IN2 (screw-locked multi-pin); EV1, EV2
- Output cables
- 2 blue cables with insulated terminal blocks
- Warning label P/N
- 564-2894 (English), 564-2895 (Japanese)
- Enclosure stickers
- 11176/2250, 11176/2315
- Condition
- Used
This is a used TREK high voltage control assembly: a metal enclosure holding two TREK 40859 Rev C circuit boards (ASSY 43690), with two blue output cables, warning-labelled for 1.4 kV. TREK is the high voltage amplifier and power supply brand now part of Advanced Energy.
What is in the photos?

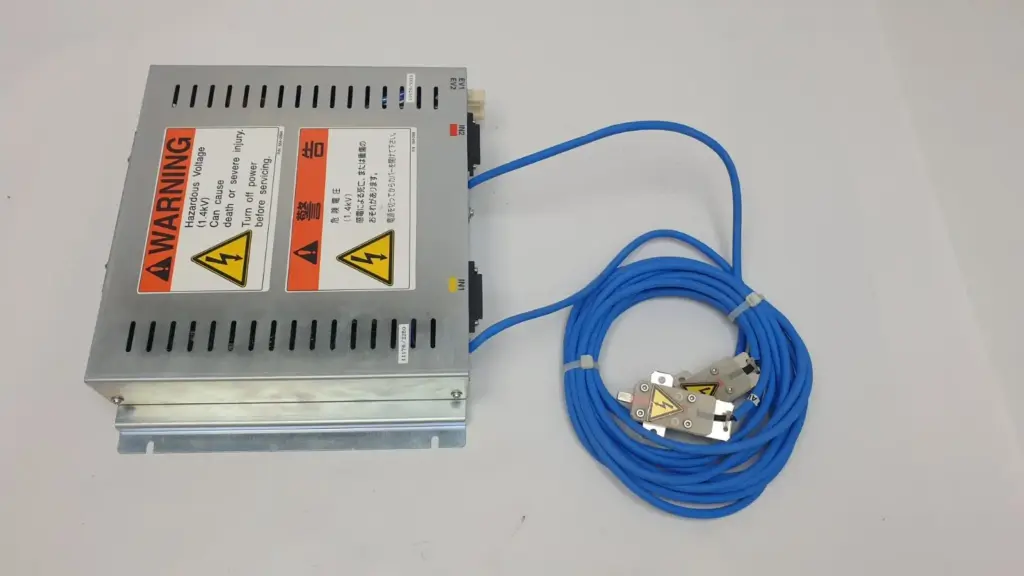

- A vented steel enclosure on a mounting plate, with English and Japanese warning labels: Hazardous Voltage (1.4kV), label P/N 564-2894 and 564-2895
- Two inputs marked IN1 (yellow) and IN2 (red), each with a screw-locked multi-pin connector, and two small connectors marked EV1 and EV2
- Two blue cables leaving the enclosure, each ending in a translucent terminal block with a high voltage symbol and metal mounting tabs
- Inside: two identical boards, each silkscreened TREK 40859 REV. C, with the ASSY number hand-written in the ASSY field
What do the boards and labels say?
Board silkscreen: TREK 40859 REV. C, ASSY (hand-written, listed as 43690). Enclosure stickers: 11176/2250 and 11176/2315. Parts visible on the boards include Linear Technology LT1055 op-amps, an OPI1264B, transformers marked L2090R / L2091R (AM-19368, AM-19369) and an L1001R 5800-NL Rev C transformer.
What does the 1.4 kV warning mean?
The enclosure labels warn that the unit carries hazardous voltage of 1.4 kV that can cause death or severe injury, and to turn off power before servicing. Only qualified people should install or service it.
What condition is it in?
Used. It is sold as shown, enclosure with both boards and the two attached output cables.
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Free — paid by us
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is TREK 40859?
The board number printed on the two TREK high voltage control boards in this assembly, revision C.
What is ASSY 43690?
The assembly number hand-written in the ASSY field of the 40859 boards.
What voltage does it handle?
The enclosure warning labels state hazardous voltage of 1.4 kV.
Who makes TREK high voltage power supplies?
TREK high voltage amplifiers and power supplies are now part of Advanced Energy.
Does it come with cables?
Yes. Two blue output cables with terminal blocks are attached to the enclosure, as shown in the photos.
Is it new?
No. It is used.
