Photos show the actual item you will receive.
Product details
About this part
The Siemens TERMINATOR RS 485 6ES7 972-0DA00-0AA0 is made by Siemens and identified by manufacturer part number 6ES7 972-0DA00-0AA0.
This listing is for the exact part number stated above. Compare the part number, condition and photos with your equipment before ordering.
Condition
This item is listed as New. Factory new, in original packaging.
The photos are part of the description — check them for labels, connectors, markings and any visible wear.
What's included
1 × Siemens TERMINATOR RS 485 6ES7 972-0DA00-0AA0.
Only the items listed here or clearly shown in the photos are included. Cables, manuals, mounting hardware and accessories are not included unless stated.
Identification & compatibility
Check the manufacturer (Siemens), the part number (6ES7 972-0DA00-0AA0) and the photos against your equipment. If you are not sure this is the right part, contact us before you order.
Price match
Found an identical item for less at a fixed price elsewhere? Contact us before you buy with the details, and we will review it.
Important information
Product information is based on what is available for this specific item. Where specifications or compatibility are critical to your application, confirm them before purchase.
- Brand
- Siemens
- Part number
- 6ES7 972-0DA00-0AA0
- Model
- 6ES7 972-0DA00-0AA0
- Country of Origin
- Germany
- Manufacturer
- Siemens (SIMATIC DP)
- Product type
- RS-485 terminating element (PROFIBUS terminator) for PROFIBUS/MPI networks
- Supply voltage
- 24 VDC (20.4 to 28.8 VDC)
- Current consumption
- 30 mA typical
- Power loss
- 0.72 W max.
- Transmission rate
- 9.6 kbit/s to 12 Mbit/s
- Connections
- Screw terminals: L+, M, PE (supply), A1, B1 (bus); shield clamp
- Degree of protection
- IP20
- Operating temperature
- 0 to 60 °C
- Dimensions (W x H x D)
- 60 x 70 x 43 mm
- Weight
- approx. 95 g
- Product version (label)
- E-Stand 04, FS 04
- Markings
- CE, N117, FM, cULus, Ex II 3 G Ex nA II T4, KEMA 02 ATEX 1096X; Made in Germany
The Siemens 6ES7972-0DA00-0AA0 is a SIMATIC DP RS-485 terminating element that terminates a PROFIBUS DP or MPI network segment, powered from 24 VDC. The unit is marked PROFIBUS TERMINATOR and the Siemens box label reads RS 485-TERMINATOR, SIMATIC. Siemens lists it in its "Active RS 485 terminating element" family. The part number is also written 6ES7 972-0DA00-0AA0 and 6ES79720DA000AA0.
What does a PROFIBUS terminator do?
An RS-485 bus has to be terminated at both ends of each segment so that signals are not reflected back down the cable. Siemens describes this part as an RS-485 terminating resistor for terminating PROFIBUS/MPI networks. It has its own 24 VDC supply input, which is what makes it an active terminating element.
How is it wired?

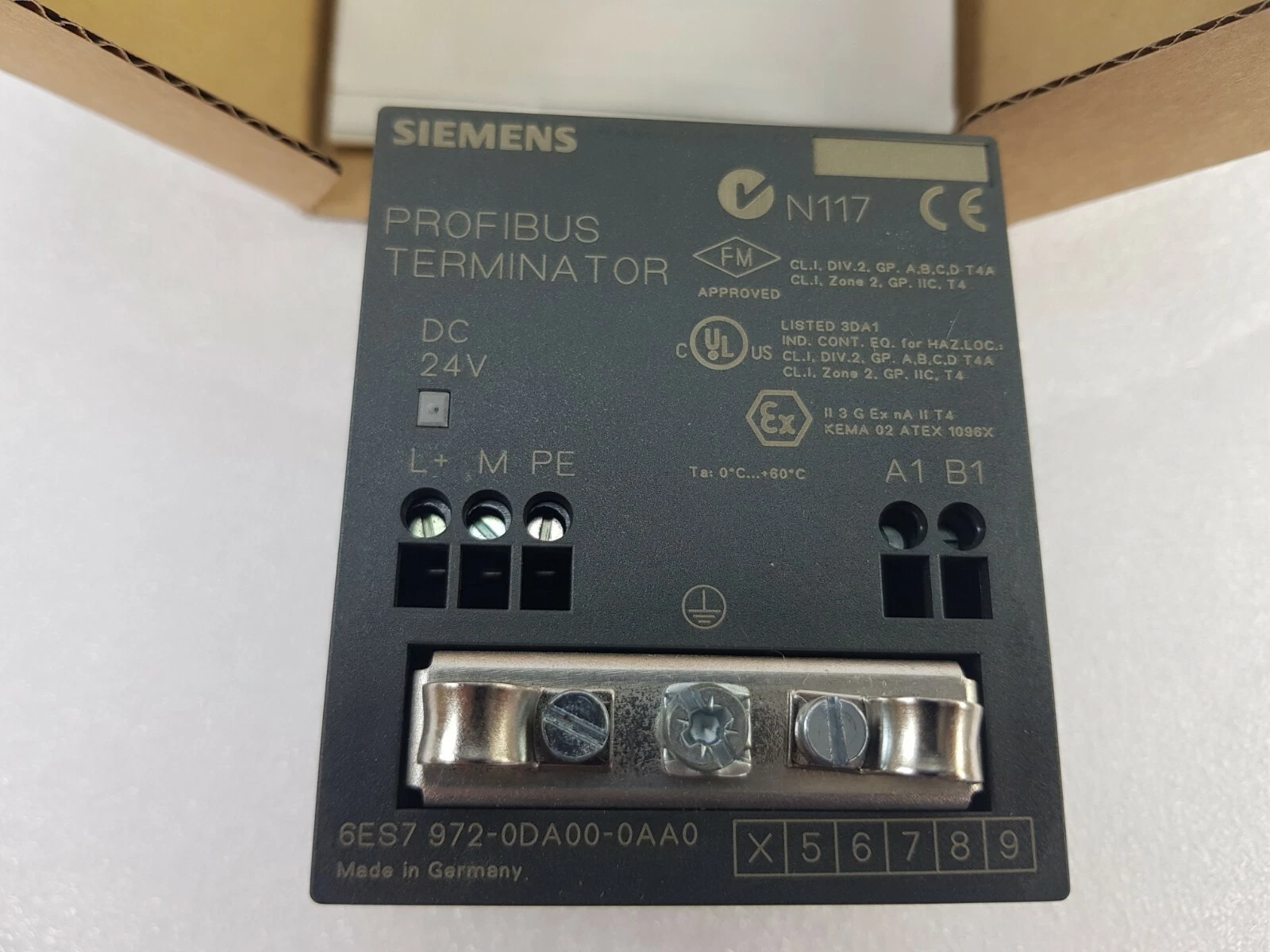

The front has screw terminals L+, M and PE for the 24 VDC supply and A1, B1 for the PROFIBUS cable, plus a cable clamp bar for the cable shield and a DC 24V indicator window. Per the Siemens datasheet, both the supply and the bus cable use screw terminal blocks.
What do the labels say?
Front: SIEMENS, PROFIBUS TERMINATOR, DC 24V, 6ES7 972-0DA00-0AA0, Made in Germany, CE, N117, FM approved (Cl. I, Div. 2, Gp. A, B, C, D T4A; Cl. I, Zone 2, Gp. IIC, T4), UL listed 3DA1 Ind. Cont. Eq. for Haz. Loc., II 3 G Ex nA II T4, KEMA 02 ATEX 1096X, Ta 0 °C to +60 °C. Box label: 1P 6ES7 972-0DA00-0AA0, E-Stand (version) 04, FS 04, Siemens AG, DE-92224 Amberg.
What condition is it in?

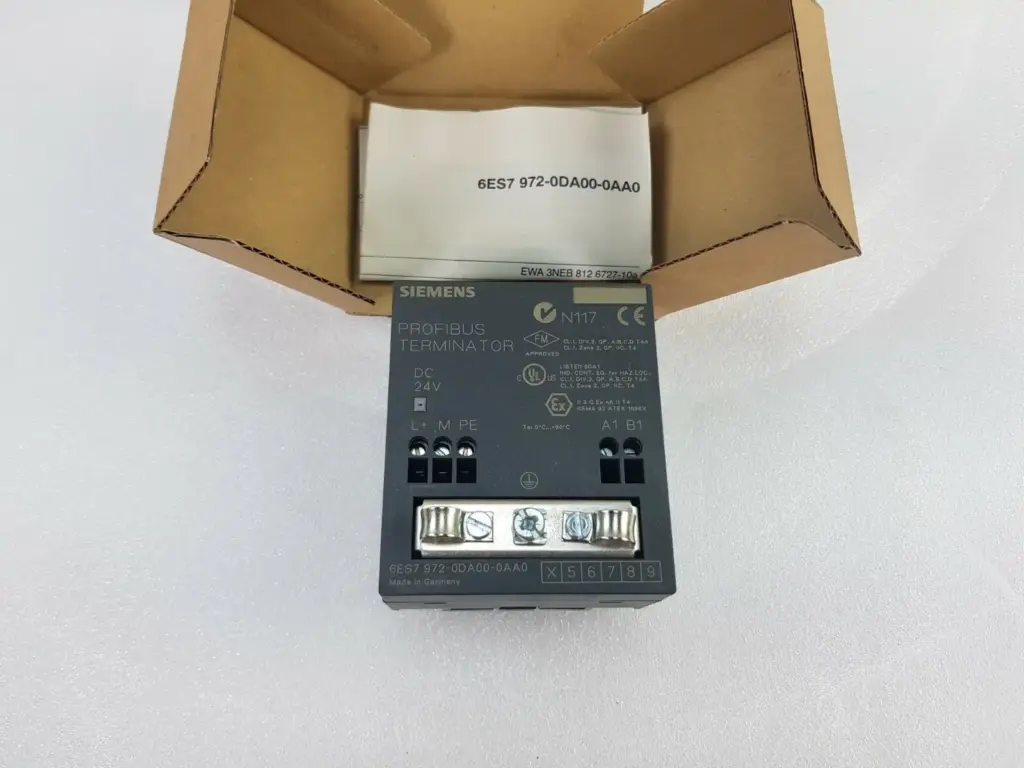

New, in the original Siemens box with the product information sheet (EWA 3NEB 812 6727-10a).
- Ships from
- Israel
- Tracking
- Included on every order
Import duties and taxes may apply in your country and are paid by the buyer on delivery.
- Returns
- Accepted within 60 days of delivery
- Return shipping
- Free — paid by us
- Refund
- Money back
Return terms differ from item to item — this item's own policy is shown above.
Whatever it says, an item that arrives faulty or not as described is covered: tell us within 30 days of delivery and we will refund or replace it.
Consumers in the EU, the UK and Israel keep their legal right to cancel within 14 days. Full details and the return request form are on our Returns and warranty page.
Questions about this part
What is the Siemens 6ES7972-0DA00-0AA0?
A SIMATIC DP RS-485 terminating element, marked PROFIBUS TERMINATOR, used to terminate a PROFIBUS DP or MPI network segment.
What does a PROFIBUS terminator do?
It terminates the end of an RS-485 bus segment so that signals are not reflected back down the cable. Each segment needs termination at both ends.
What power supply does it need?
24 VDC, with a permissible range of 20.4 to 28.8 VDC. Typical current consumption is 30 mA.
What baud rates does it support?
9.6 kbit/s up to 12 Mbit/s, per the Siemens datasheet.
How do I wire it?
Connect 24 VDC to L+ and M, earth to PE, and the PROFIBUS cable to A1 and B1. The shield goes under the metal clamp bar.
Can it be used in hazardous locations?
The front label shows FM and UL approval for Class I, Division 2 and Zone 2 (T4), and ATEX II 3 G Ex nA II T4 (KEMA 02 ATEX 1096X). Check these against your site requirements.
What condition is it in?
New, in the original Siemens box with the product information sheet.
